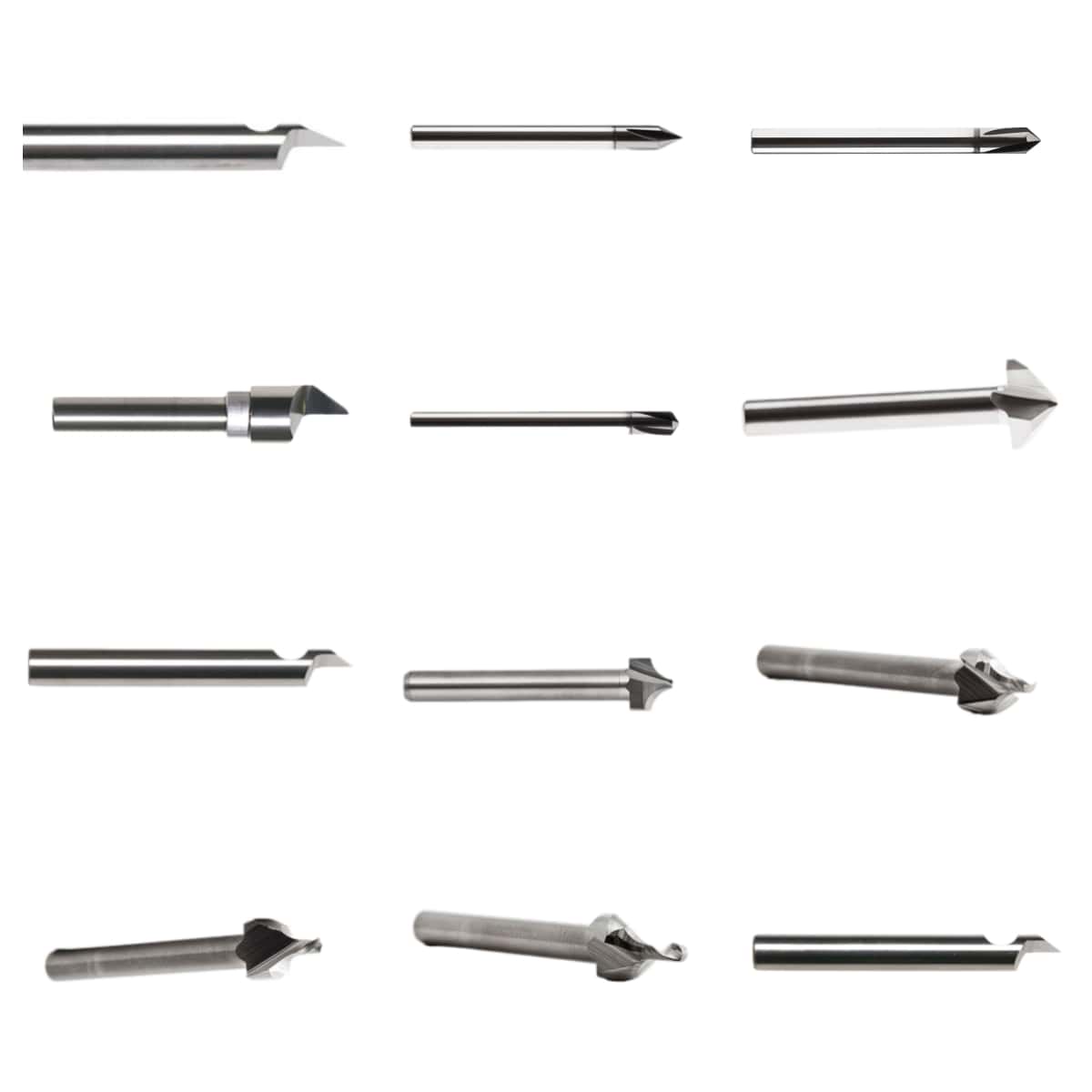

Esko Kongsberg 6mm Special Purpose Milling & Router Bits Replacement Compatible

Esko Kongsberg 6mm Special Purpose Milling & Router Bits are a distinct category of tools separated from standard up-cut and down-cut routing bits. Instead of simple raw material cutout, these bits execute highly geometric or finish-specific tasks like engraving, edge chamfering, braille insertion, … Enquire now

Description

Esko Kongsberg 6mm Special Purpose Milling & Router Bits Replacement Compatible

Kongsberg Precision Cutting Systems CNC milling, engraving, and routing bits. They are universally designed with a standard 6 mm shank diameter to fit Kongsberg multi-purpose high-frequency router heads. The technical specifications, angles, and dimensions for each part code are categorized by application below:

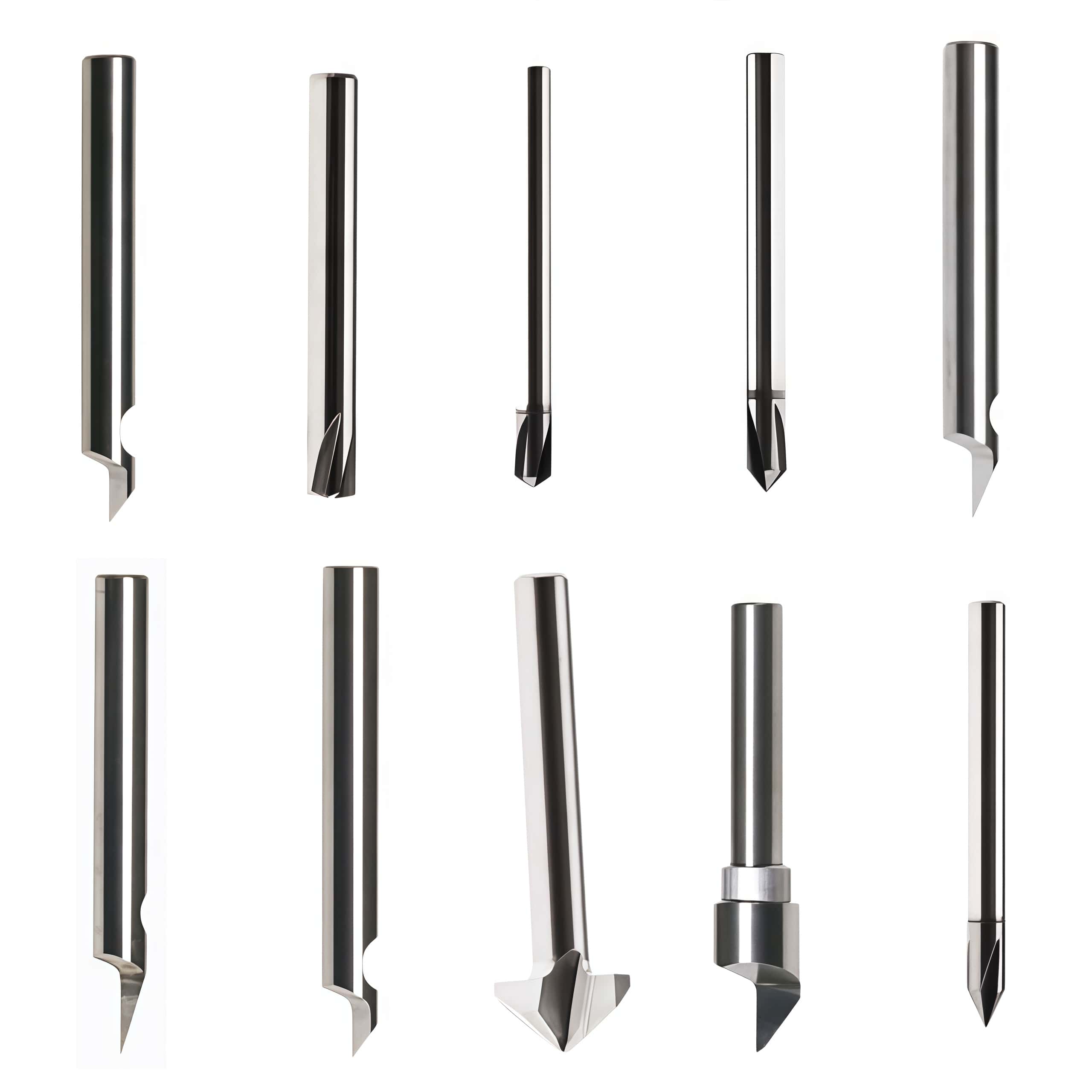

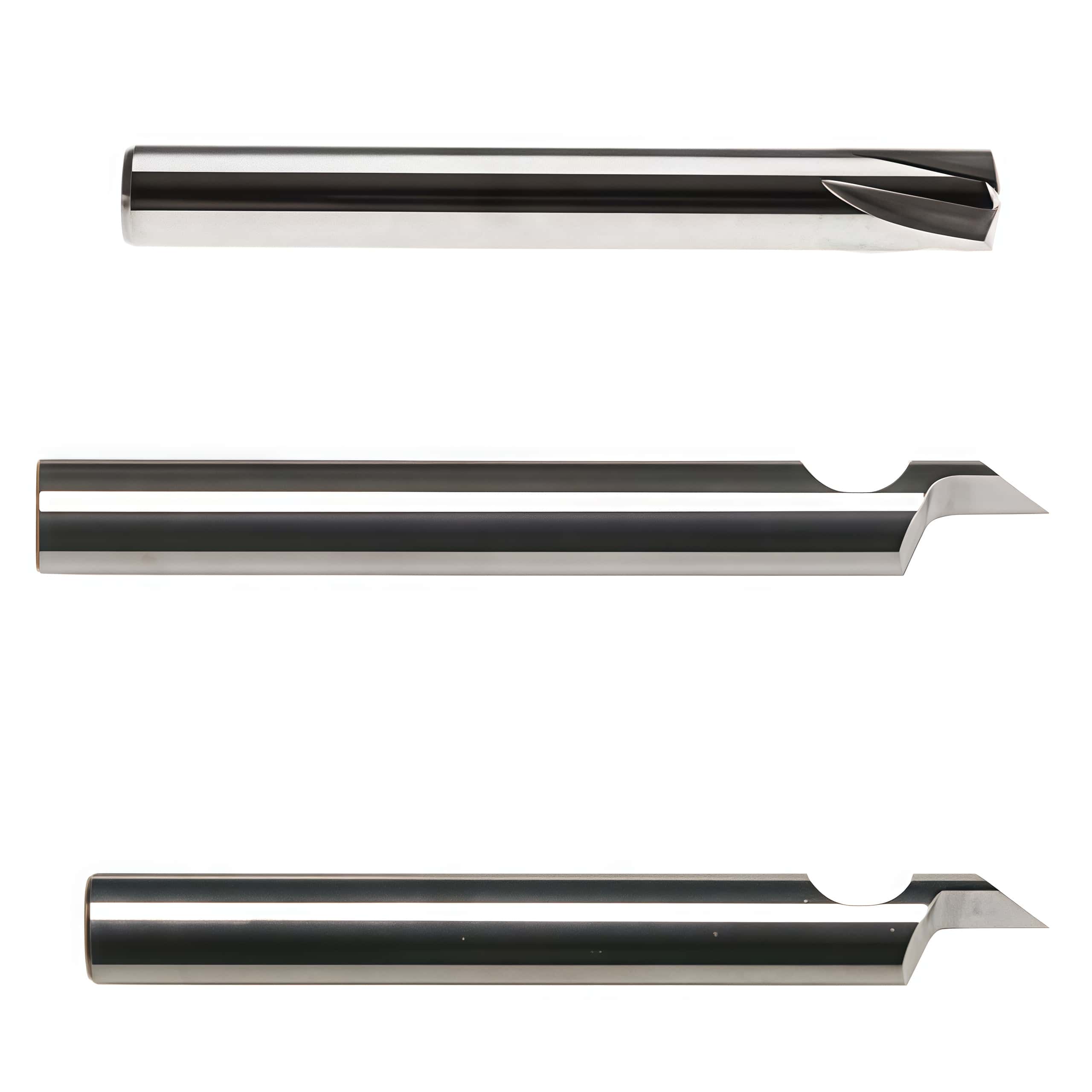

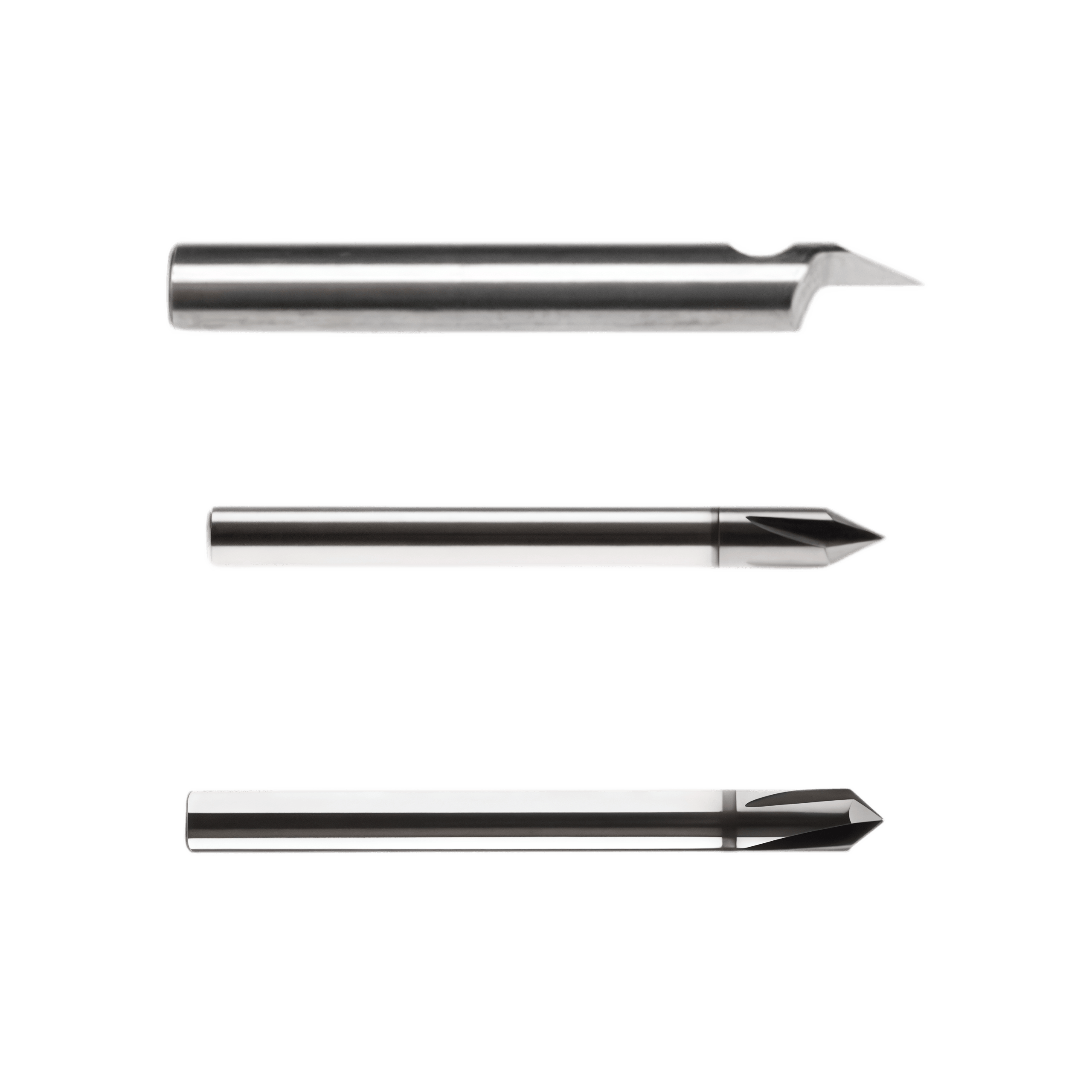

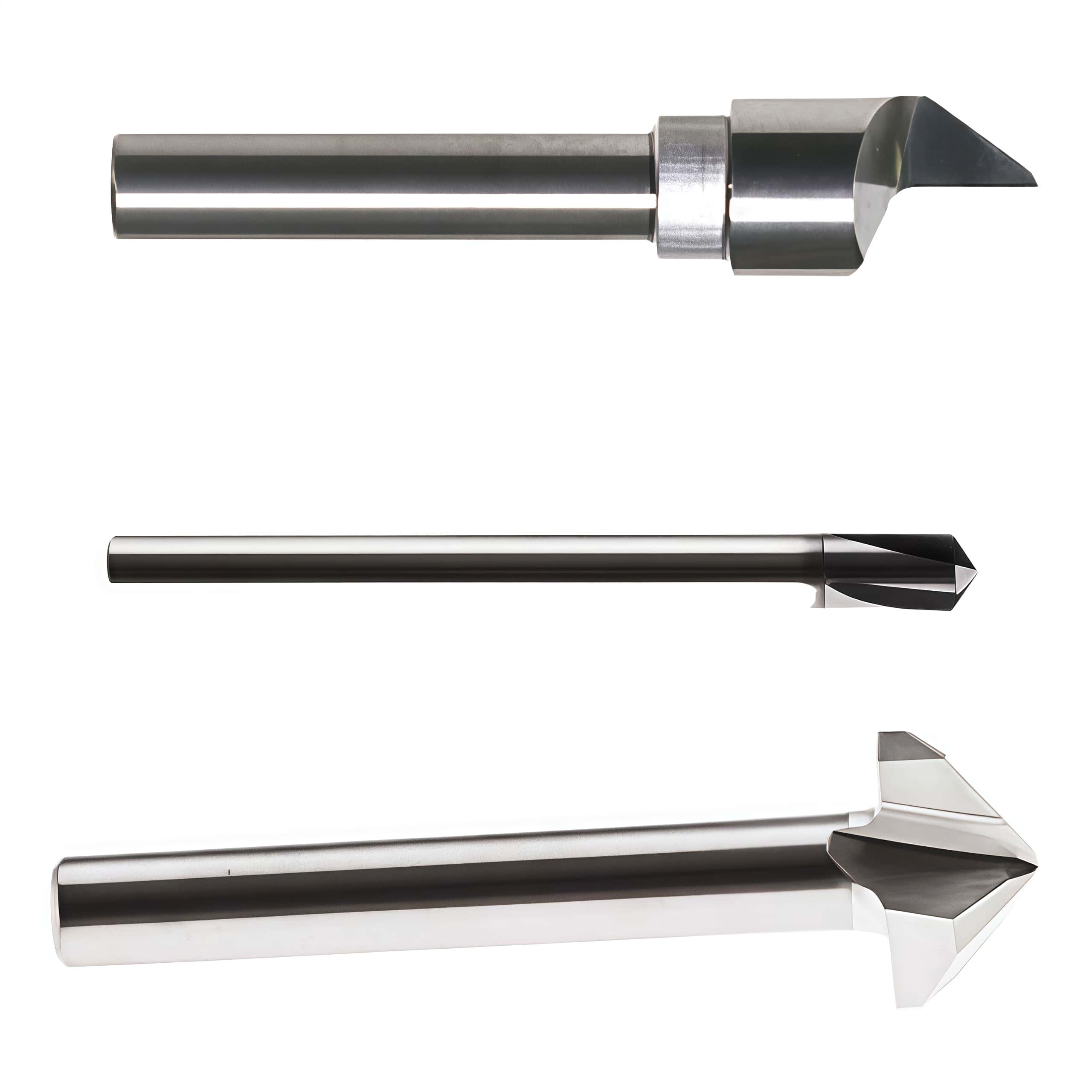

Engraving & V-Notch Folding Bits (BIT-EBV)

Esko Kongsberg 6mm Special Purpose Milling & Router Bits

These solid tungsten carbide tools are engineered for high-speed beveling, flat-bottom text engraving, and precision V-grooving to facilitate folding in Aluminum Composite Materials (ACM like Dibond).

Part Number	OEM Code	Angle & Flute Geometry	Dimensions & Key Specs
BIT-EBV06-40 (i-6630)	G42444398	40° V-Shape, 1 Flute (Z1)	6mm shank, 50mm length, 7.5mm cut length
BIT-EBV06-60 (i-6660)	G42444406	60° V-Shape, 1 Flute (Z1)	6mm shank, 0.2mm tip radius
BIT-EBV06-46	G42444992	46° V-Shape	6mm shank, designed for specialized angles
BIT-EBV06-73	G42444380	73° V-Shape	6mm shank
BIT-EBV06-94 (i-3772)	G02731628	90° V-Shape, 1 Flute (Z1)	6mm shank, 4mm max depth, 0.9mm tip width
BIT-EBV06-120-2F	G42458141	120° V-Shape, 2 Flutes (2F)	6mm shank, 4mm max depth, 1.8mm ball-nose tip
BIT-EBV06-60-4F	G42459719	60° V-Shape, 4 Flutes (4F)	6mm shank, multi-flute finishing tool
BIT-EBV06-90-4F	G42459727	90° V-Shape, 4 Flutes (4F)	6mm shank, multi-flute clean-edge tool
BIT-EBV06-120-4F	G42459735	120° V-Shape, 4 Flutes (4F)	6mm shank, balanced high-speed profiling
BIT-EBV06-158-5F	G42462960	158° V-Shape, 5 Flutes (5F)	6mm shank, heavy-duty engraving/clearing

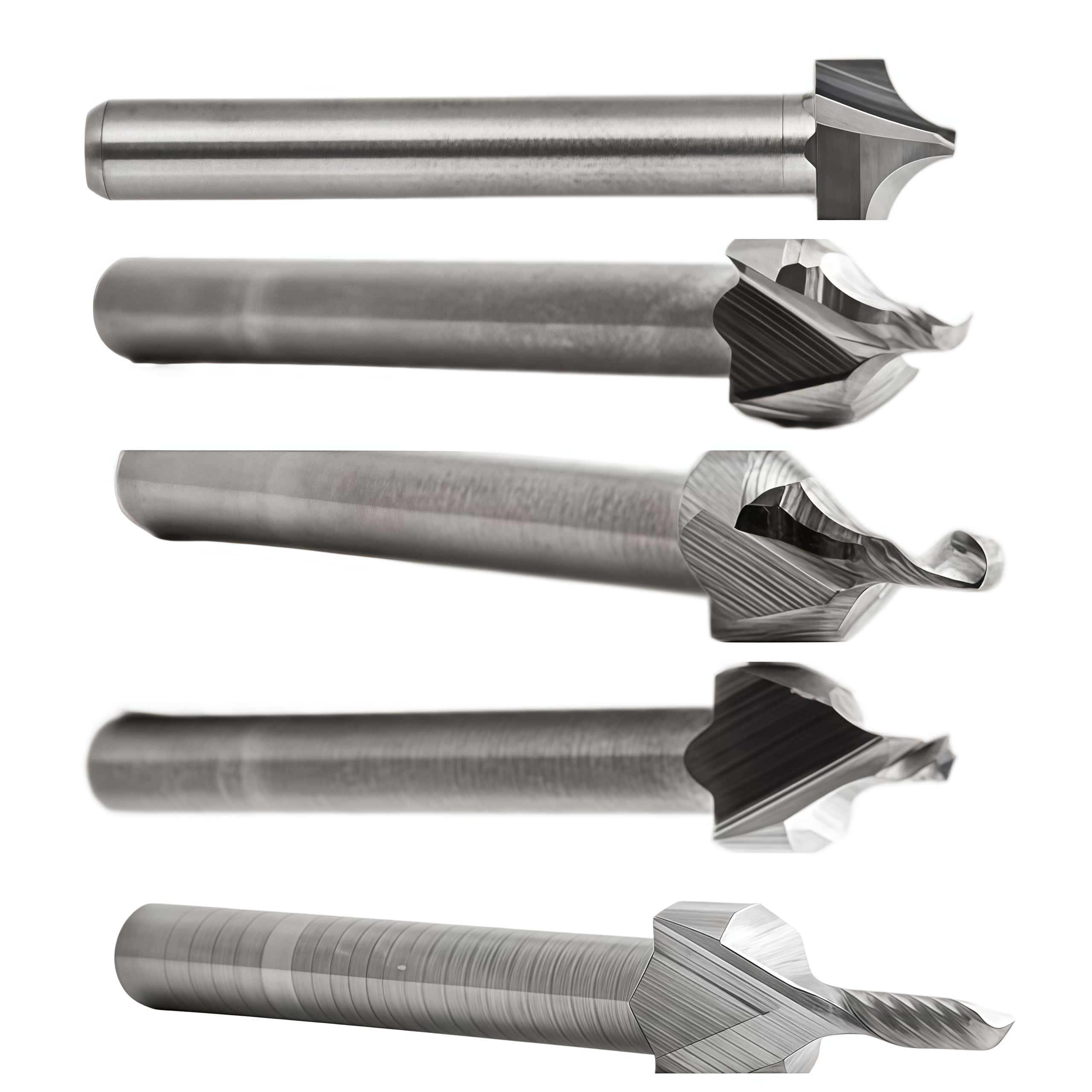

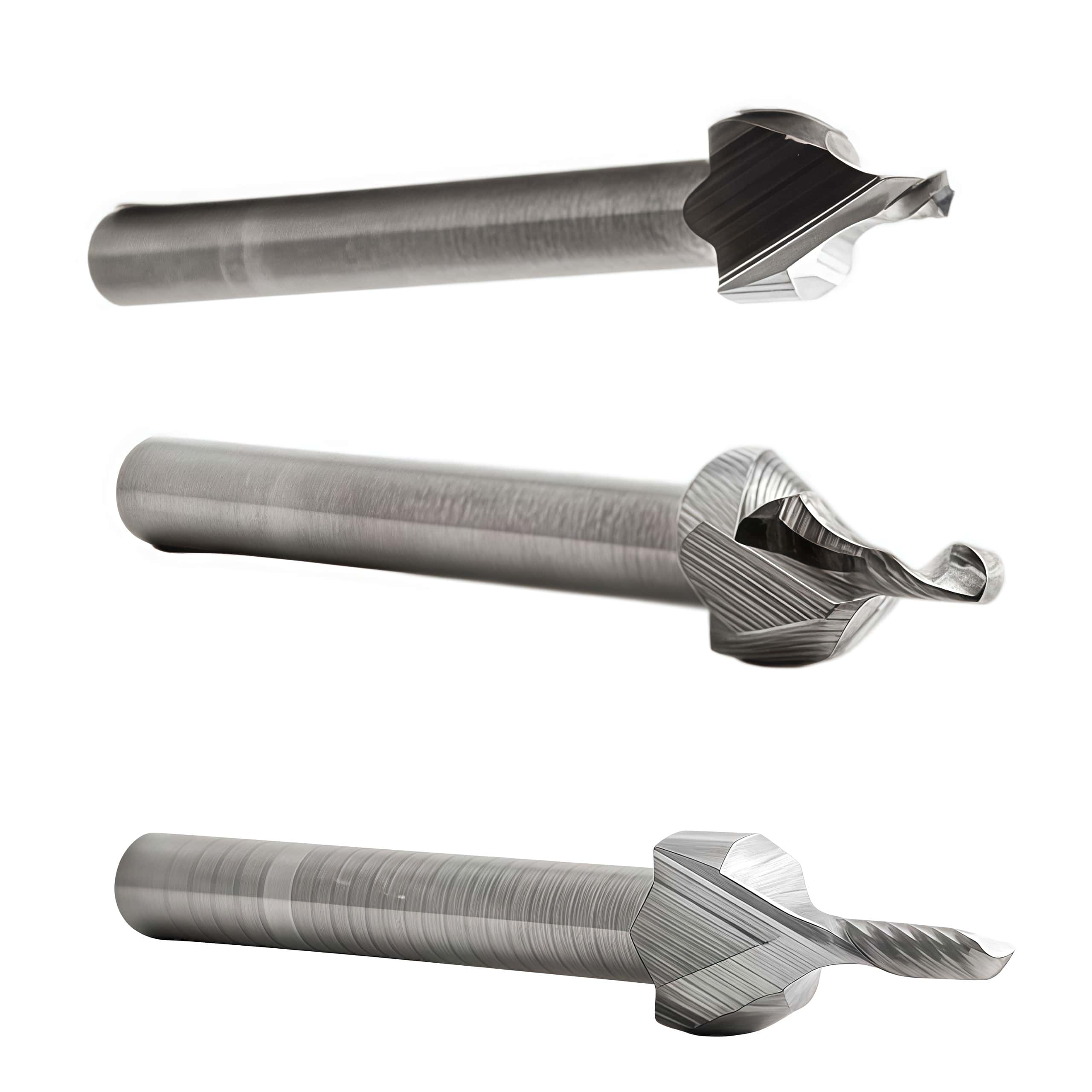

Radius & Bevel Profiling Bits (BIT-RBO)

These tools feature a rounded profile radius edge (Radius Ball-Overshot/Bevel) used to smooth out margins or mill custom curved edges on plastic, wood, and MDF panels.

Part Number	OEM Code	Application / Sizing	Profile Description
BIT-RBO06-04	G34092429	0.4 mm Radius Bevel	6mm shank, micro-radius contouring
BIT-RBO06-4-6	G34111567	4.0 mm to 6.0 mm Bevel	6mm shank, stepped edge rounding
BIT-RBO06-6-8	G34111575	6.0 mm to 8.0 mm Bevel	6mm shank, medium-edge rounding
BIT-RBO06-8-10	G34111583	8.0 mm to 10.0 mm Bevel	6mm shank, wide-edge rounding
BIT-RBO06-12-14	G34111591	12.0 mm to 14.0 mm Bevel	6mm shank, heavy radius profiling

Specialty Braille, Polishing, & Composite Material Bits

Special purpose milling bits configured for physical modifications, clean tactile signage, and ultra-high polish edge finishes on thick plastics or acrylic sheets.

· Diamond Polish Tool 5,8/6-6-50 (G42452169): A specialty diamond-tipped polishing tool featuring a 6mm shank, a 5.8mm cutting tip, and a 50mm overall length designed to deliver crystal-clear, flame-free edges on machined acrylic panels.

· BIT-BRAILLE06-1403-50 (G42460238): An engraving bit designed for drilling precision holes for Braille spheres. It features a 6mm shank diameter, a 1.4mm tip diameter, and a 50mm length.

· BIT-BRAILLE06-1503-50 (G42455477): A variant Braille drilling bit featuring a 6mm shank diameter, a slightly wider 1.5mm tip diameter, and a 50mm overall length.

· BIT-MCS06-6022-64 (i-9152) (G42458786): A 6mm shank diameter Multi-purpose Carbide Slotting/Milling bit with a 22mm flute length and a 64mm overall length, built for rigid plastic panel sizing.

· BIT-MSD06-6022-64 (i-6432) (G42458794): A 6mm shank diameter Multi-purpose Down-cut Solid carbide bit featuring a 22mm flute length and a 64mm overall length, designed to push chips downward to prevent top-surface burring on delicate laminates.
