Flatbed Plotters and Cutters Tungsten Steel Cnc Cutting Knife Blades

Flatbed Plotters and Cutters Tungsten Steel Cnc Cutting Knife Blades China India Canada Poland Australia United States Netherlands Enquire now

Description

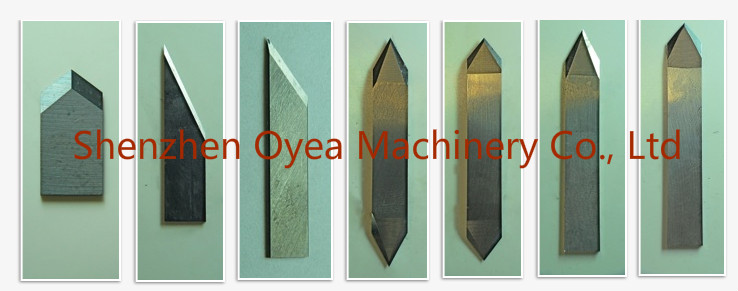

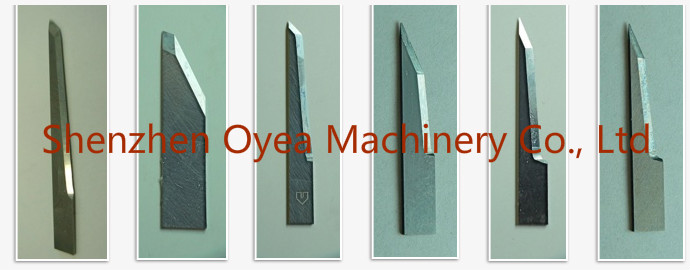

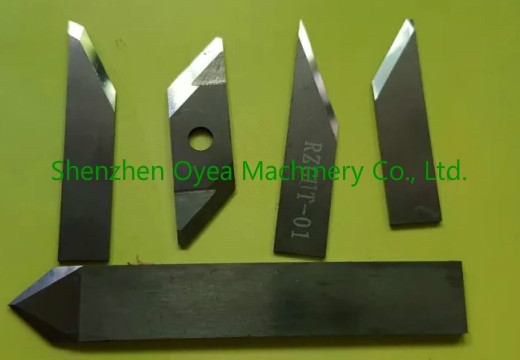

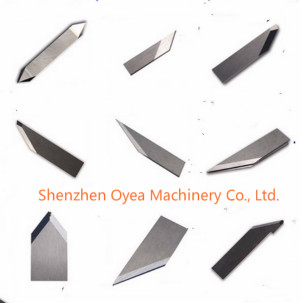

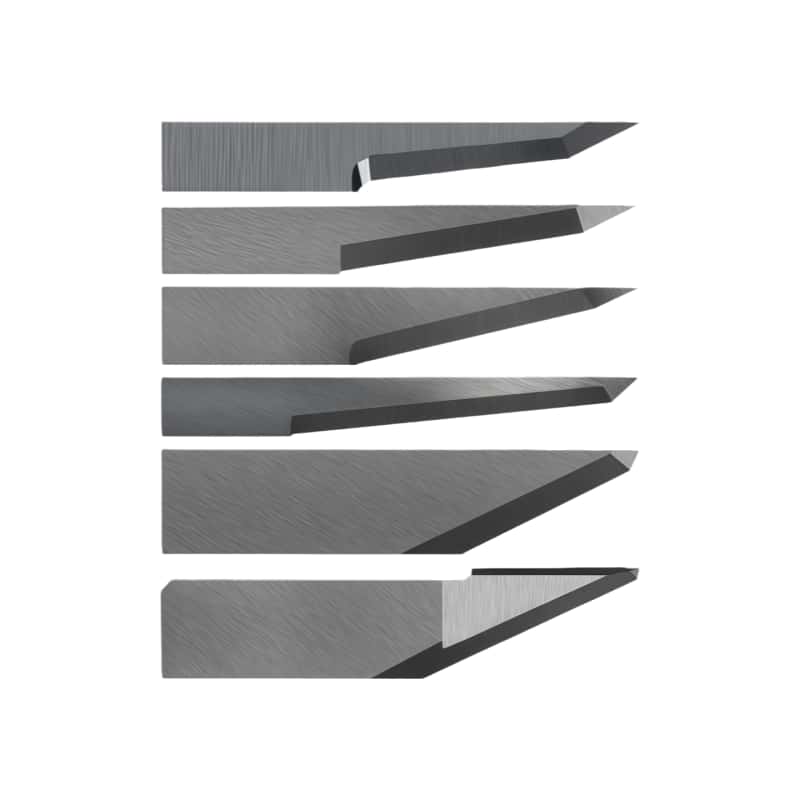

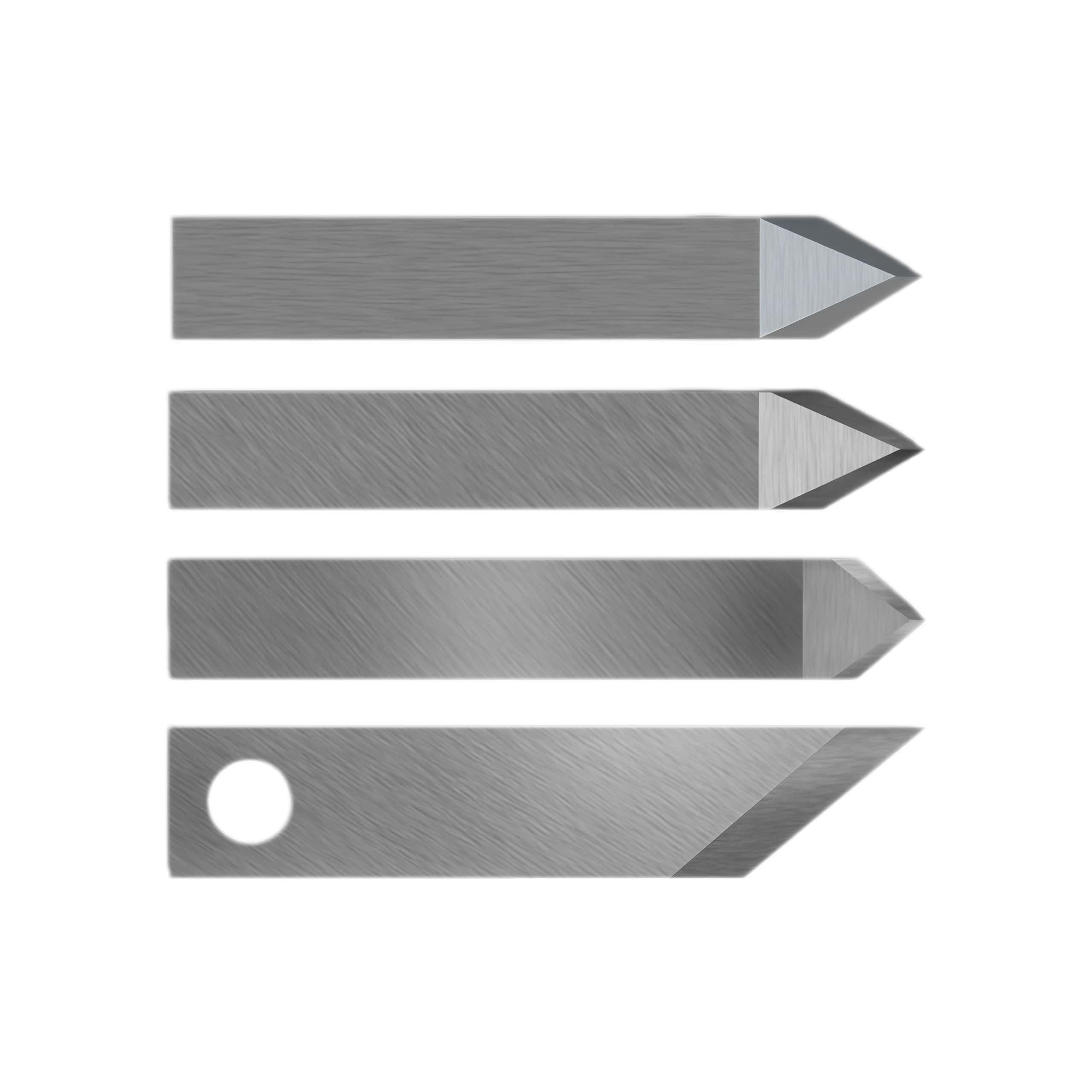

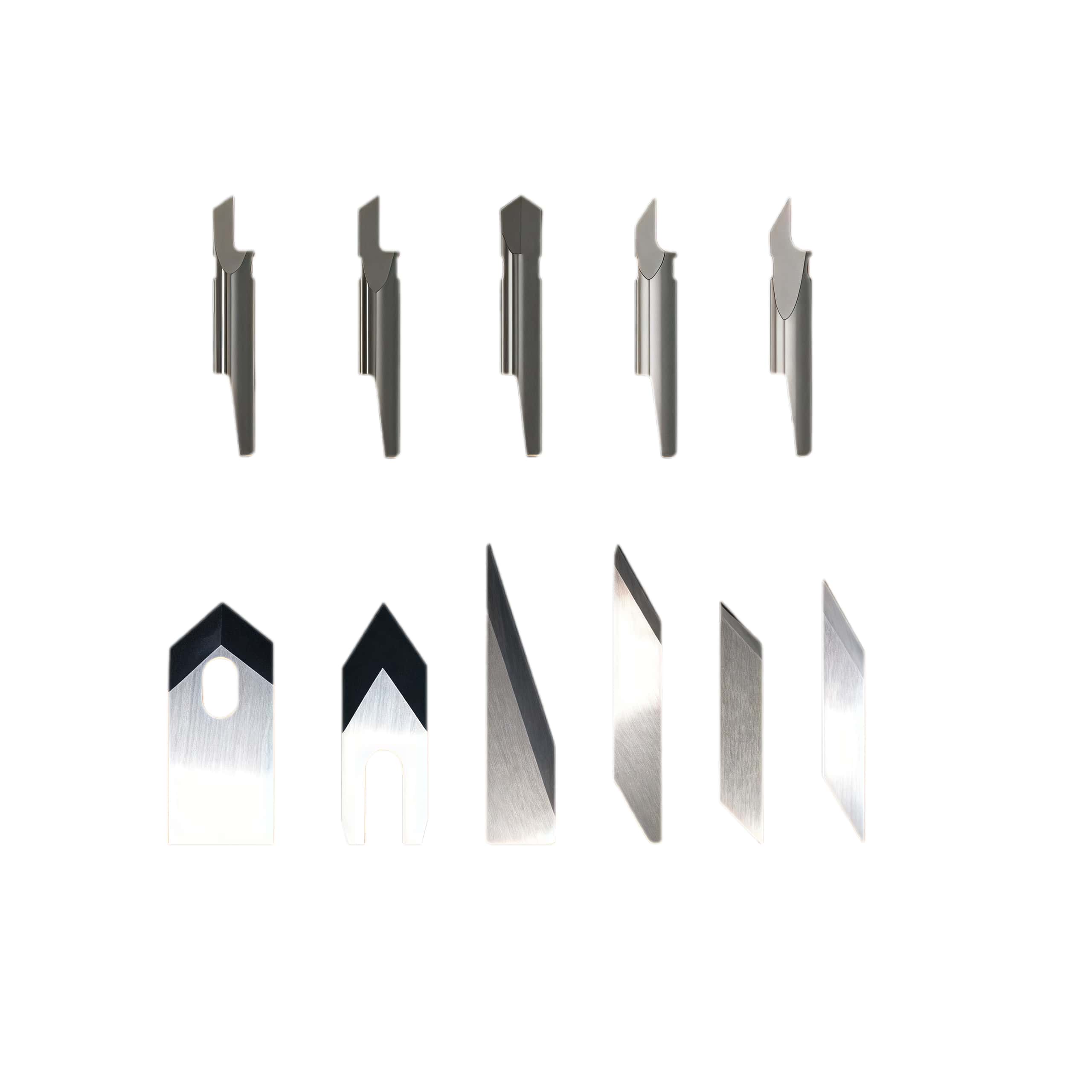

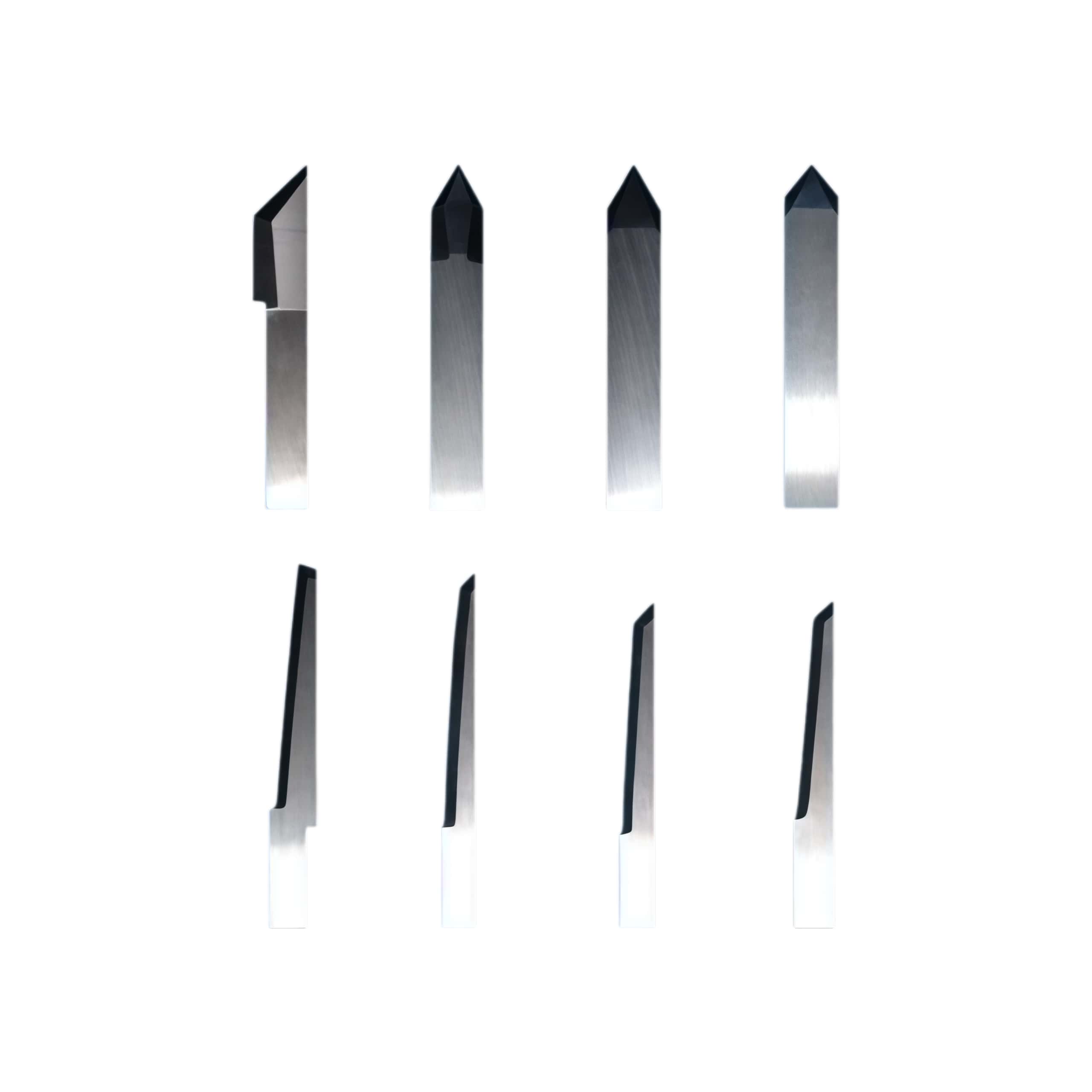

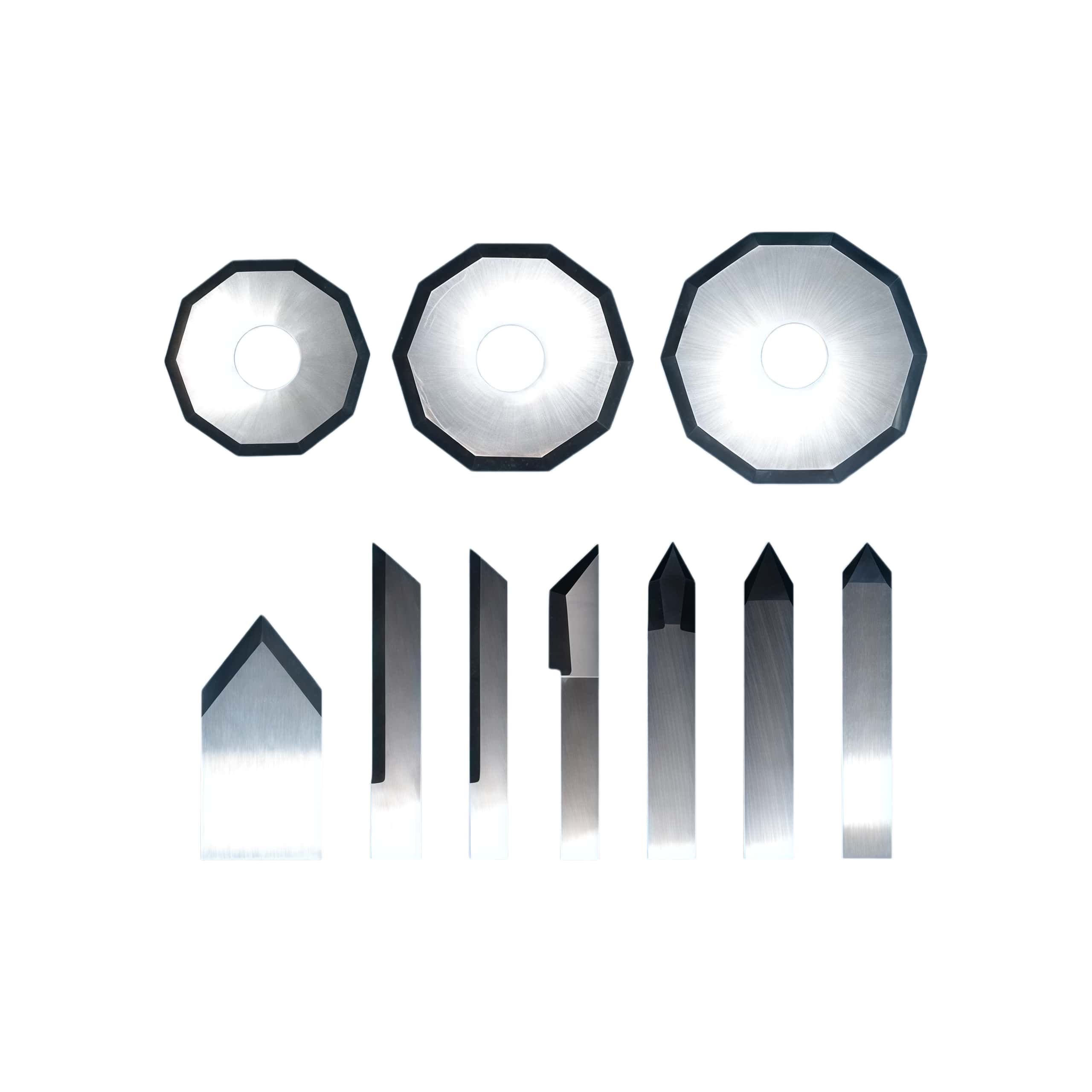

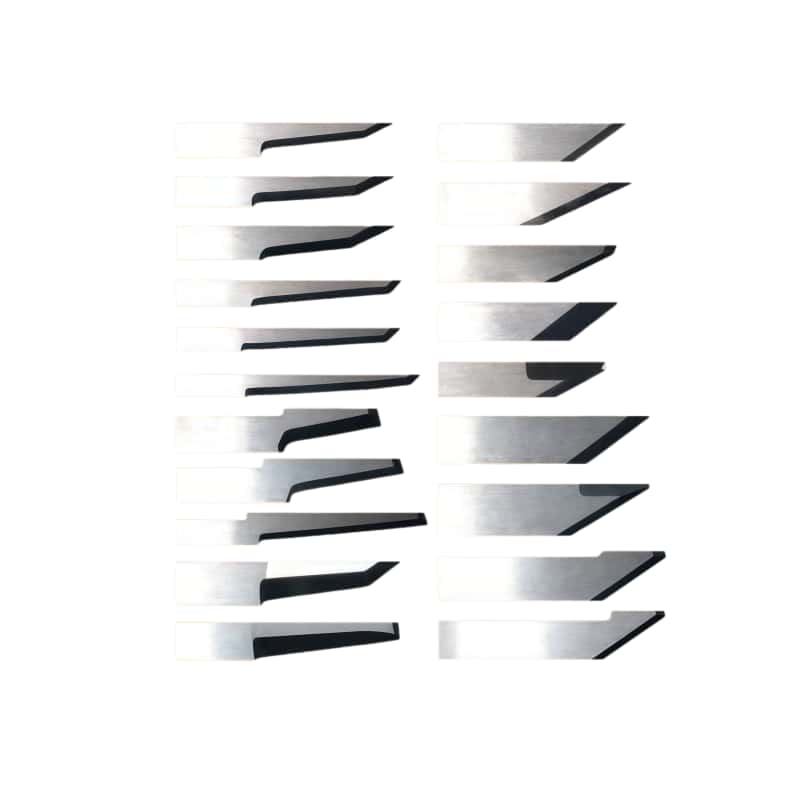

Tungsten Steel Cnc Knife Blades For Flatbed Plotters and Cutters

Tungsten steel (cemented carbide) CNC knife blades provide the extreme hardness and wear resistance required for high-speed automated cutting across these specific industrial digital flatbed ecosystems. Because these brands span multiple industries (from heavy apparel and leather to technical signage and composite manufacturing), the blades are divided by their specific shank mechanisms, tool heads, and cutting motions.

Compatibility Categorization by Machine Ecosystem

1. Heavy Apparel, Fabric & Leather Cutters

These systems primarily utilize high-frequency oscillating knives (EOT/POT) and heavy vertical drag blades to slice through nested leather hides, dense textiles, and carbon fiber plies.

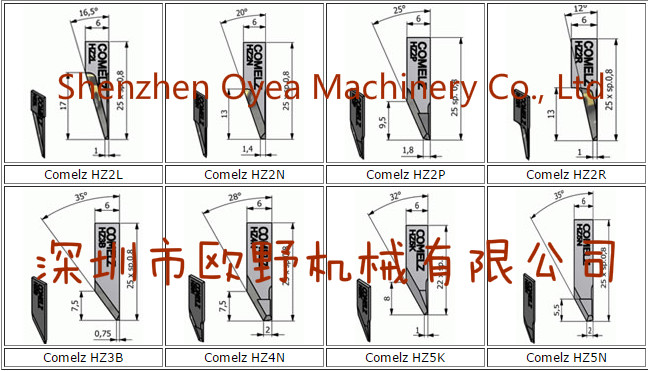

ATOM & Comelz: Specialize in flat-shank, micro-structured pointed knives for precision automotive and footwear leather cutting.
Lectra & Gerber Cutter: Use large, robust vertical chopping and oscillating knives designed to slice through high-ply fabric spreads without deflecting.
ELITRON, TESEO, & TALAMONTI: Require ultra-sharp, thin-profile tungsten carbide blades to handle intricate curves in luxury leather goods.
KURIS, BULLMER, & FK Group: Heavy industrial multi-ply fabric cutting systems utilizing long, rigid carbide serrated or straight vertical blades.

2. Signage, Packaging & Industrial Flatbeds

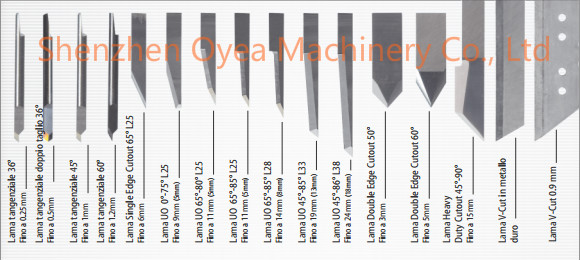

These machines use a combination of pneumatic oscillating tools, tangential creasing/cutting heads, and V-cut modules for structural packaging and graphics.

ZUND & ESCO: Use highly standardized blade series (such as Z10, Z11, Z21, Z41, Z61). They require precise flat-milled shanks or notched cylindrical shanks to lock into specialized tool modules.
WILD & Eastman: Legacy and modern technical flatbeds utilizing heavy-duty tangential drag knives for canvas, rubber, and heavy gaskets.

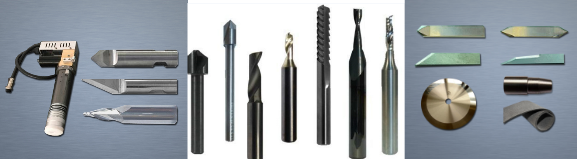

Multicam Knives & PRO TEC: CNC routers outfitted with knife-cutting attachments, deploying heavy-duty round-shank oscillating blades to handle thick foam and honeycomb plastics.

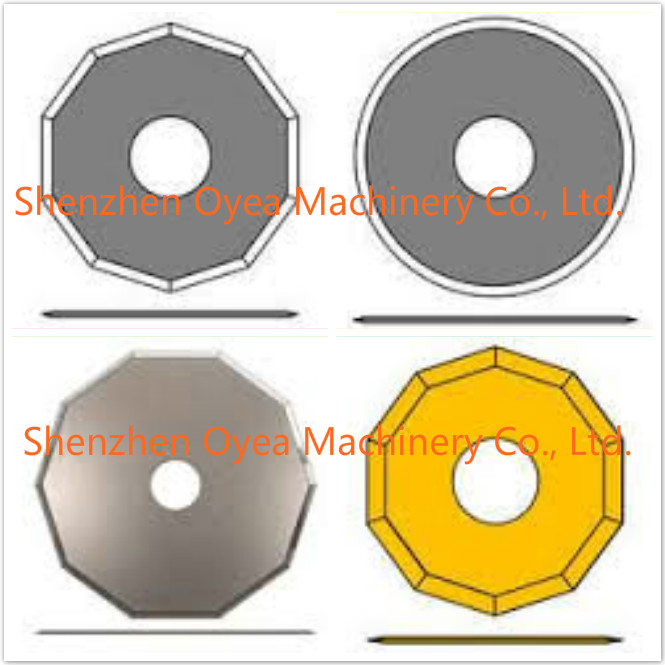

S.M.R.E & CUTMAX: Architectural and industrial textile processors using large-format rotary or heavy vertical tangential knives for PVC tarps and architectural fabrics.

3. High-Precision Graphics & Vinyl Plotters

These roll-fed and flatbed systems rely on small cylindrical drag pins (typically 1.5mm to 2.0mm diameters) mounted in swivel holders.

SUMMA (including Summar/MM Solution): Utilizes both standard drag pins and specialized dual-notch tangential blades (T-Series) for high-speed reflective and sandblast vinyl tracking.
GRAPHTEC, ROLAND, & MIMAKI: Universal reliance on 1.5mm shaft tungsten carbide pins, utilizing distinct blade angles (30°, 45°, 60°) designated for specific vinyl, cardstock, and laminate thicknesses.

Technical Specifications Checklist

When ordering carbide blades from an aftermarket supplier, specify these parameters to guarantee proper fitment:

Shank Type: Round cylindrical, flat-sided, double-notched, or pin-type.
Shank Diameter / Thickness: Common sizes include 1.5mm (vinyl plotters), 6mm or 8mm (standard Zund-style tools), and specific flat-stock thicknesses (e.g., 0.63mm or 1.5mm flat shanks).
Cutting Edge Profile: Single-edge, double-edge, center-tipped, or offset-point.
Max Cutting Depth: Ensure the blade length exceeds your thickest material profile by at least 1–2mm

If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.

Contact with us ,you will get more than what you can !
