iEcho E18L E18LC Oscillating Cutting Knife Blades For Iecho Flatbed Cutter Shop In China

iEcho E18L and E18LC oscillating cutting knife blades are both heavy-duty oscillating blades for iEcho flatbed cutters, but they use different mounts and cutting depths. Enquire now

Description

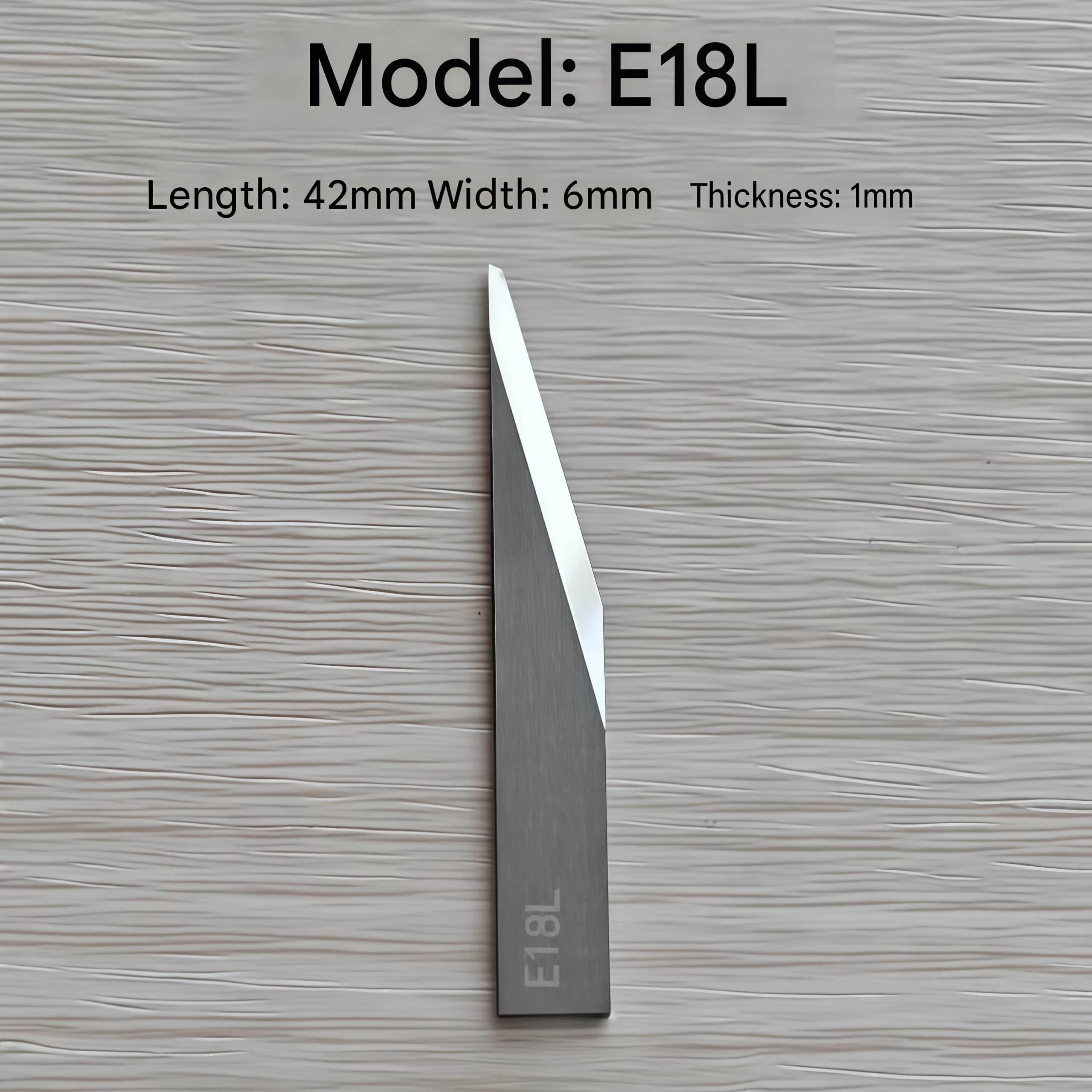

iEcho E18L E18LC Oscillating Knife Blades

iEcho E18L E18LC Oscillating Cutting Knife Blades

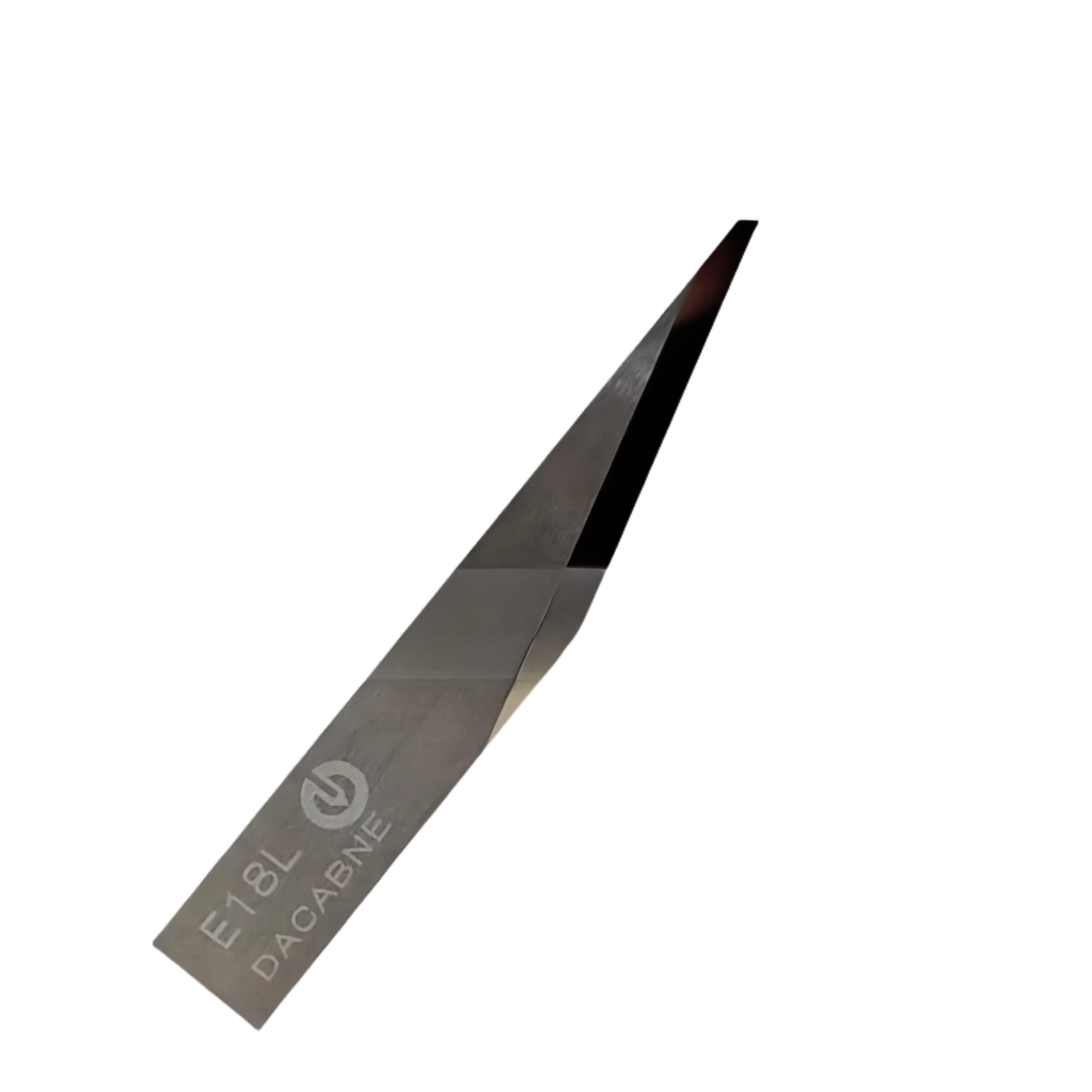

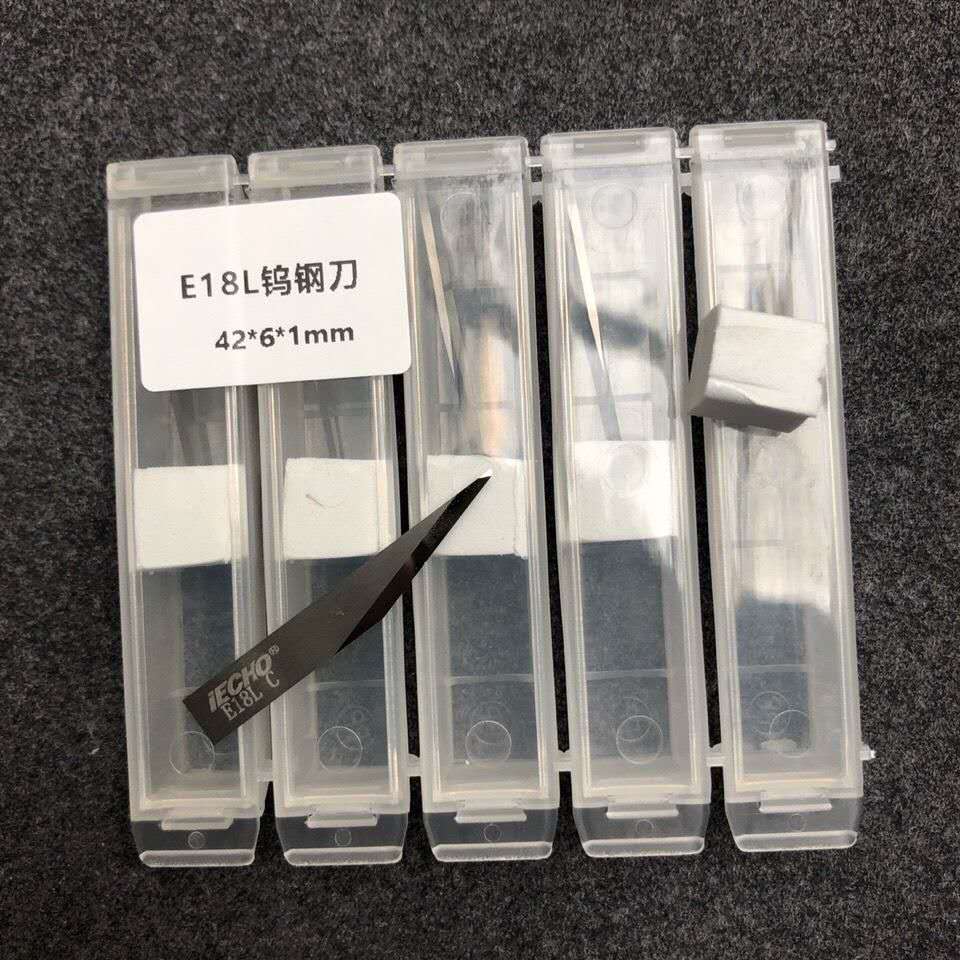

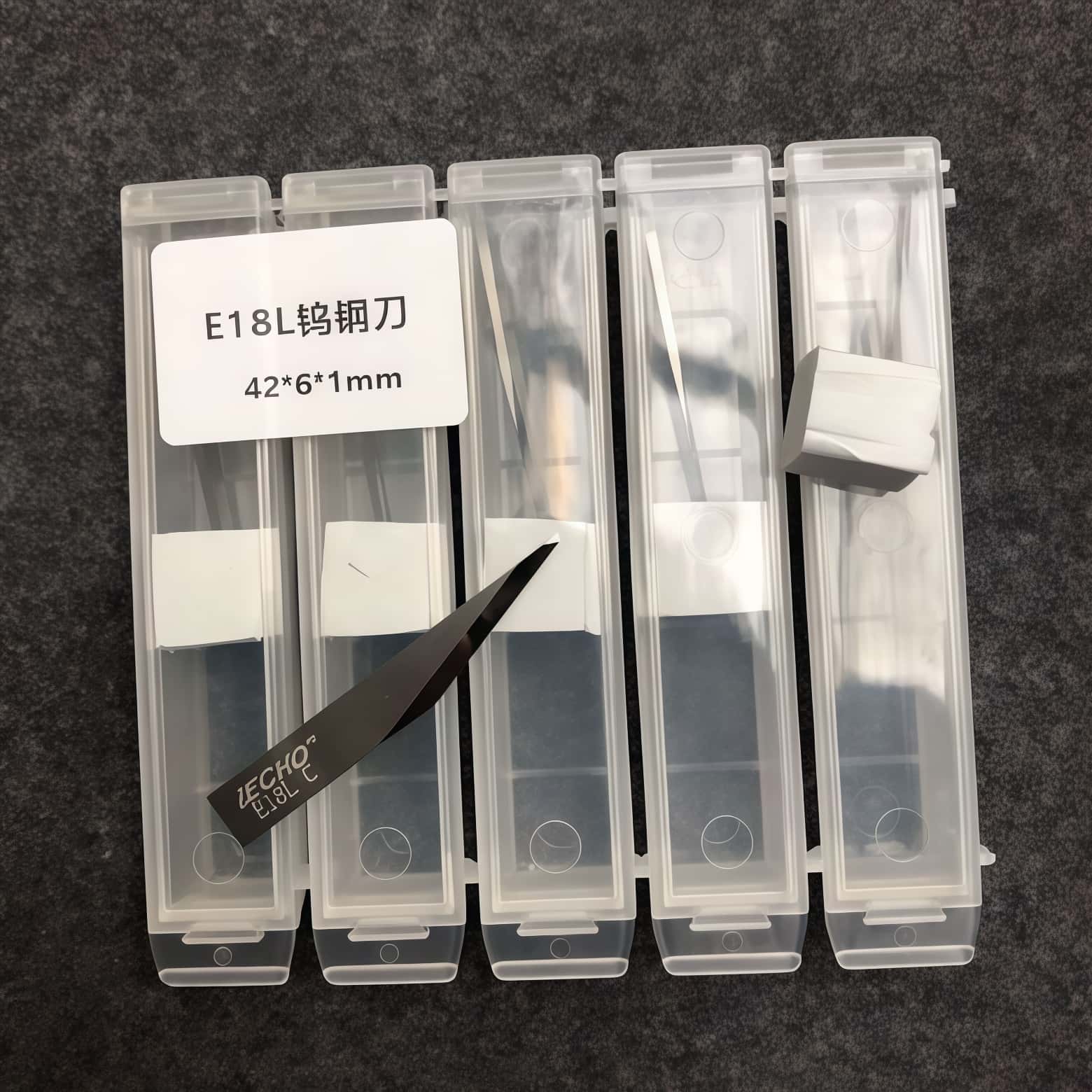

iEcho E18L and E18LC are extended-length, high-precision tungsten carbide oscillating knife blades designed for iEcho automated digital flatbed cutters. Unlike the shorter E18C variant, these models feature an increased thickness and height to accommodate thicker industrial materials requiring deeper cuts.

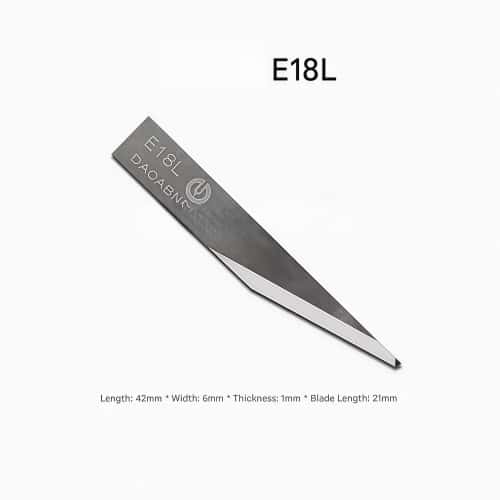

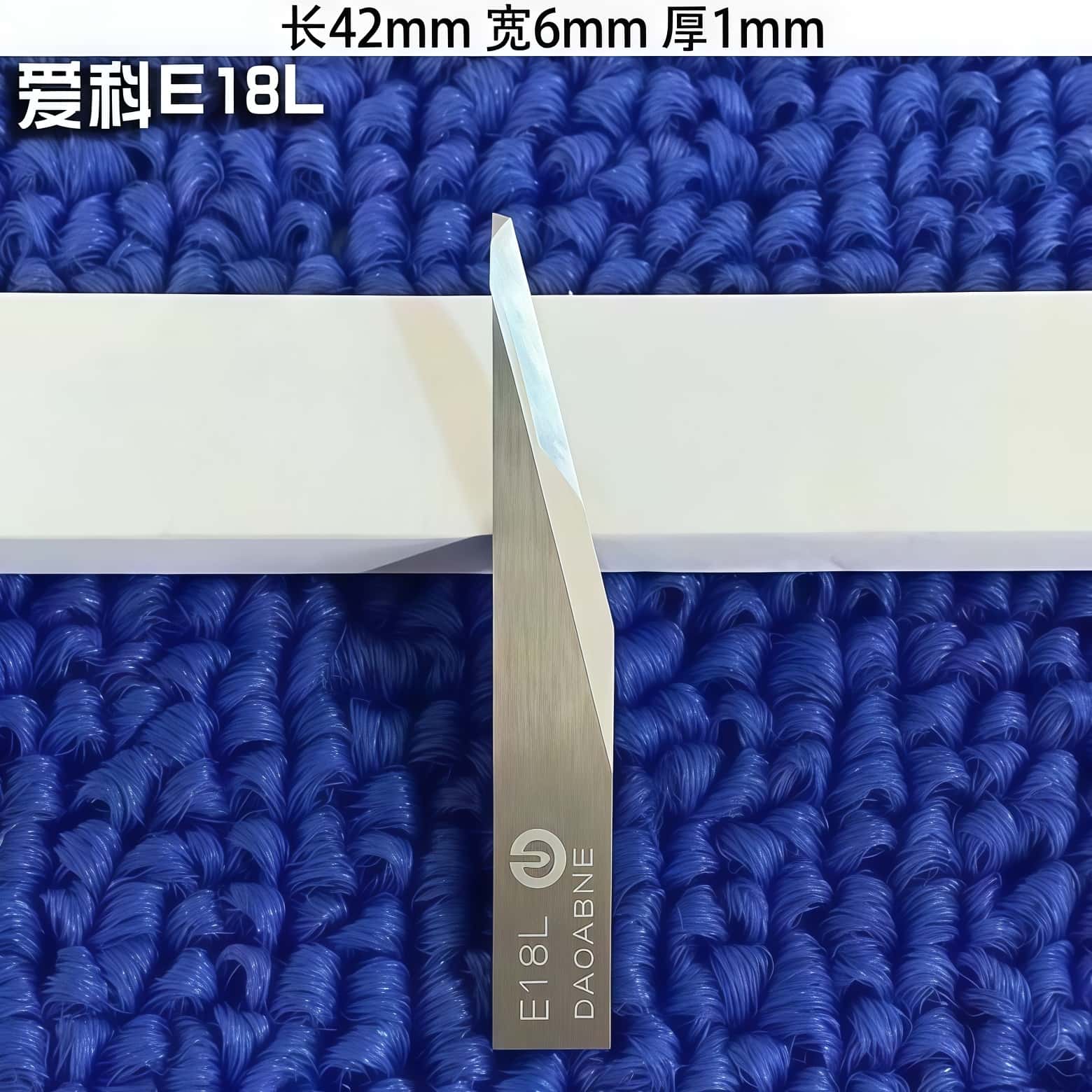

Knife height: 42mm
Thickness: 1.0mm
Max. cutting depth: 19.2 mm
Knife type: Oscillating
Angle: 74º

Target Materials

The added 1.00 mm thickness (compared to the E18C's 0.63 mm thickness) prevents blade deflection or bending when pushing through rigid or highly dense substrates. According to industrial applications documentation hosted on China Oyea, they are primarily used to process:

Heavy Packaging: Thick corrugated cardboard, honeycomb board, and rigid folding cartons.
Foams & Cushions: Pearl cotton, medium-density foams, and thick gasket materials.
Signage Materials: Thick PVC sheets, heavy self-adhesive film, and reflective vinyl foils

Machine Module Notice

Ensure your iEcho flatbed cutter is equipped with an oscillating tool holder that accepts 1.00 mm flat shanks. Standard tool modules calibrated exclusively for the thinner 0.63 mm blades (like the E18 or E18C) will not close properly around the thicker E18L or E18LC shank profiles.

Replacement for: iEcho E18L E18LC Cutworx Apex CWX/CWT E18L

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
