Iecho E20c Oscillating Knife Blades Replacement For Kongsberg Bld-Sf420 Summa 500-9811 Zund Z20

iEcho E20C oscillating knife blade is a tungsten carbide pointed oscillating blade for iEcho flatbed and automatic cutting systems, with listings showing 25 mm blade height, 4.0 mm width, 0.63 mm thickness, 65° angle, and 14.3 mm max cutting depth. Enquire now

Description

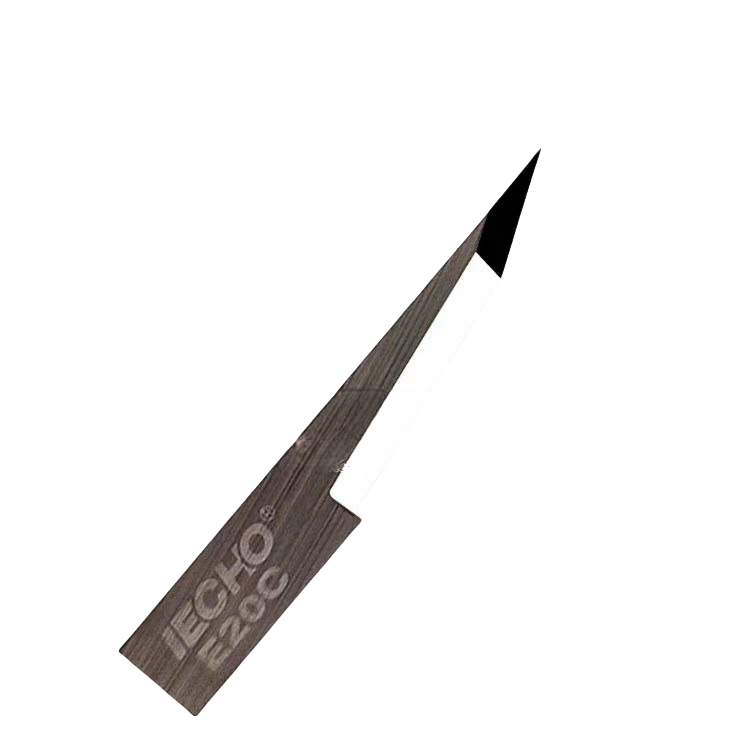

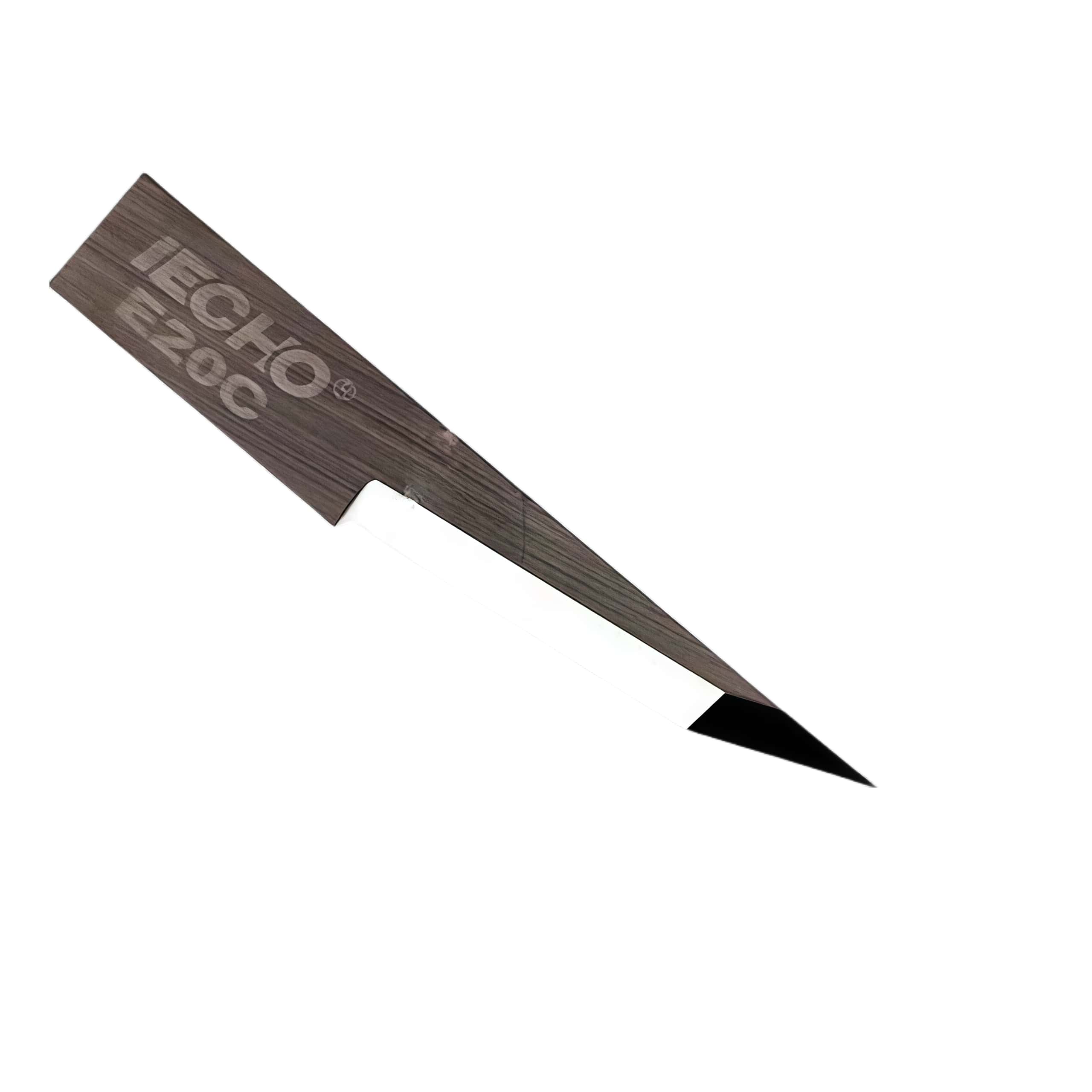

iEcho E20C Oscillating Knife Blades

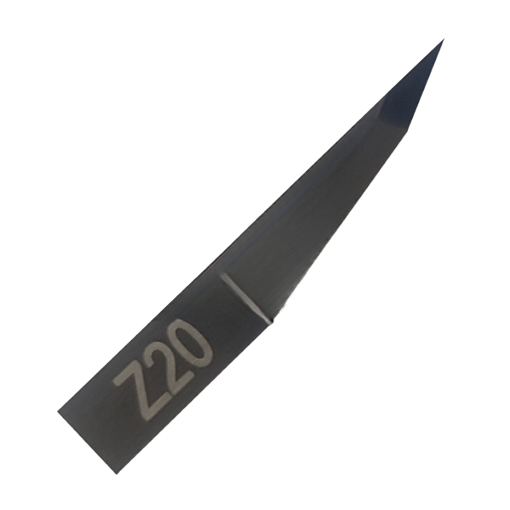

The iEcho E20C (also cataloged as the iEcho E20, part number 1.20.18.0000 067) is a highly popular, pointed flat-stock tungsten carbide oscillating knife blade. It functions as a direct cross-brand equivalent to several industry-standard blades, including the Zund Z20, Esko Kongsberg BLD-SF420, and Summa 500-9811 .

Because flatbed CNC cutter manufacturers utilize the exact same tool clamping geometry for their low-profile oscillating heads, these four part numbers are 100% physically interchangeable and can be cross-utilized in identical material workflows.

Shared Technical Profile & Geometry

Whether you purchase the OEM iEcho part or aftermarket equivalents from specialty component suppliers like Shenzhen Oyea,the blade geometry remains identical:

Blade Style: Pointed, single-edge flat oscillating blade
Blade Height: 25.00 mm
Blade Width: 4.00 mm
Shank / Mount Thickness: 0.63 mm
Cutting Angles: 63° / 84° (Engineered for tight detail work and minimal overcut)
Maximum Cutting Depth: 14.30 mm

Replacement for: BT-2380 XZ0020 Esko Kongsberg G42421974 42421974 BLD-SF420 i-420,Summa 500-0811 500-9811,Zund 3910313 Z20,Blackman & White BW20,Colex T00420,iEcho E20,Comagrav FNS10,Aristo 910.313,Gunnar GZ20

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
