Esko Kongsberg Bld-Sf420 Digital Cutting Machine Tungsten Carbide Oscillating Knife Blades

Esko Kongsberg BLD-SF420 (G42421974) is a premium single-edge flat oscillating knife blade designed for precise, fine-detailed cuts with minimal overcut on Kongsberg digital cutting tables. Made from high-grade solid tungsten carbide, Enquire now

Description

Esko Kongsberg Bld-Sf420 Digital Cutting Machine Tungsten Carbide Oscillating Knife Blades G42421974

Kongsberg Bld-Sf420 Blade,Kongsberg Bld-Sf420,Kongsberg Blade,Esko Bld-Sf420 Blade,Esko Bld-Sf420,Esko Blade,Bld-Sf420,Cnc Knife Blade,Esko Kongsberg Knife Blade,Esko Kongsberg Blades,Esko Kongsberg Blade,Esko Blades,Kongsberg Blades

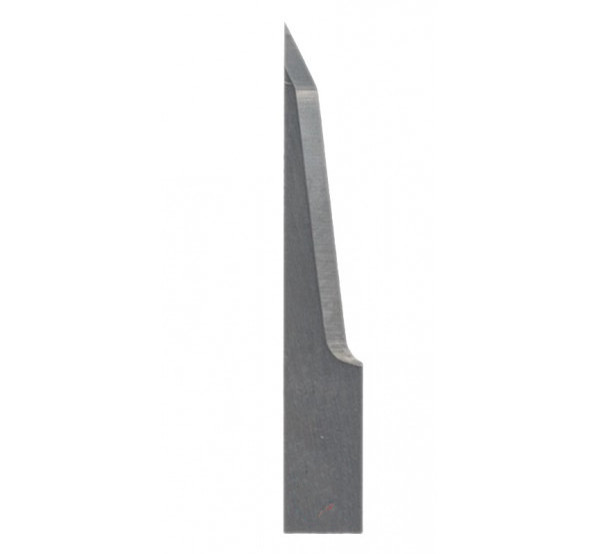

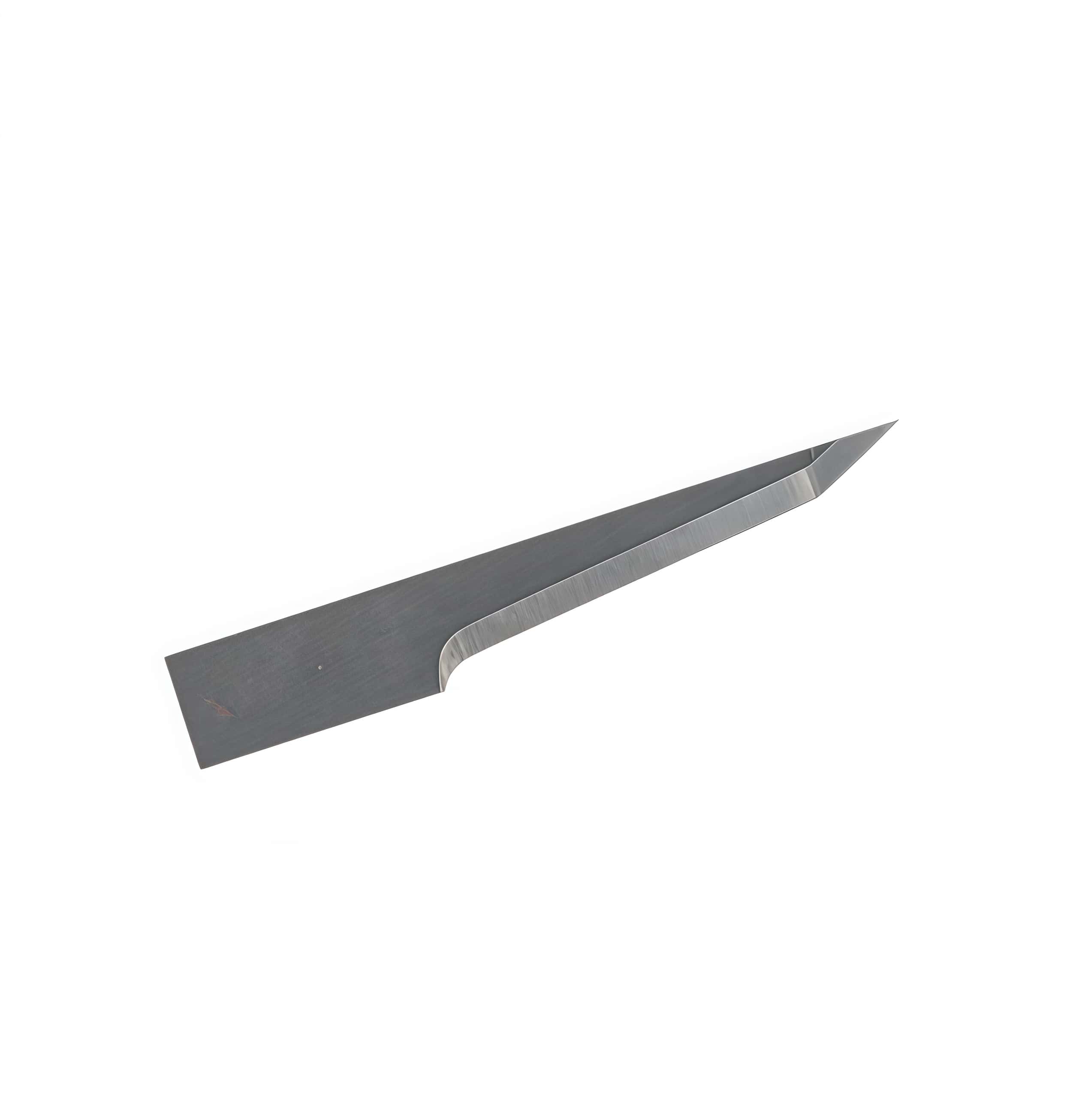

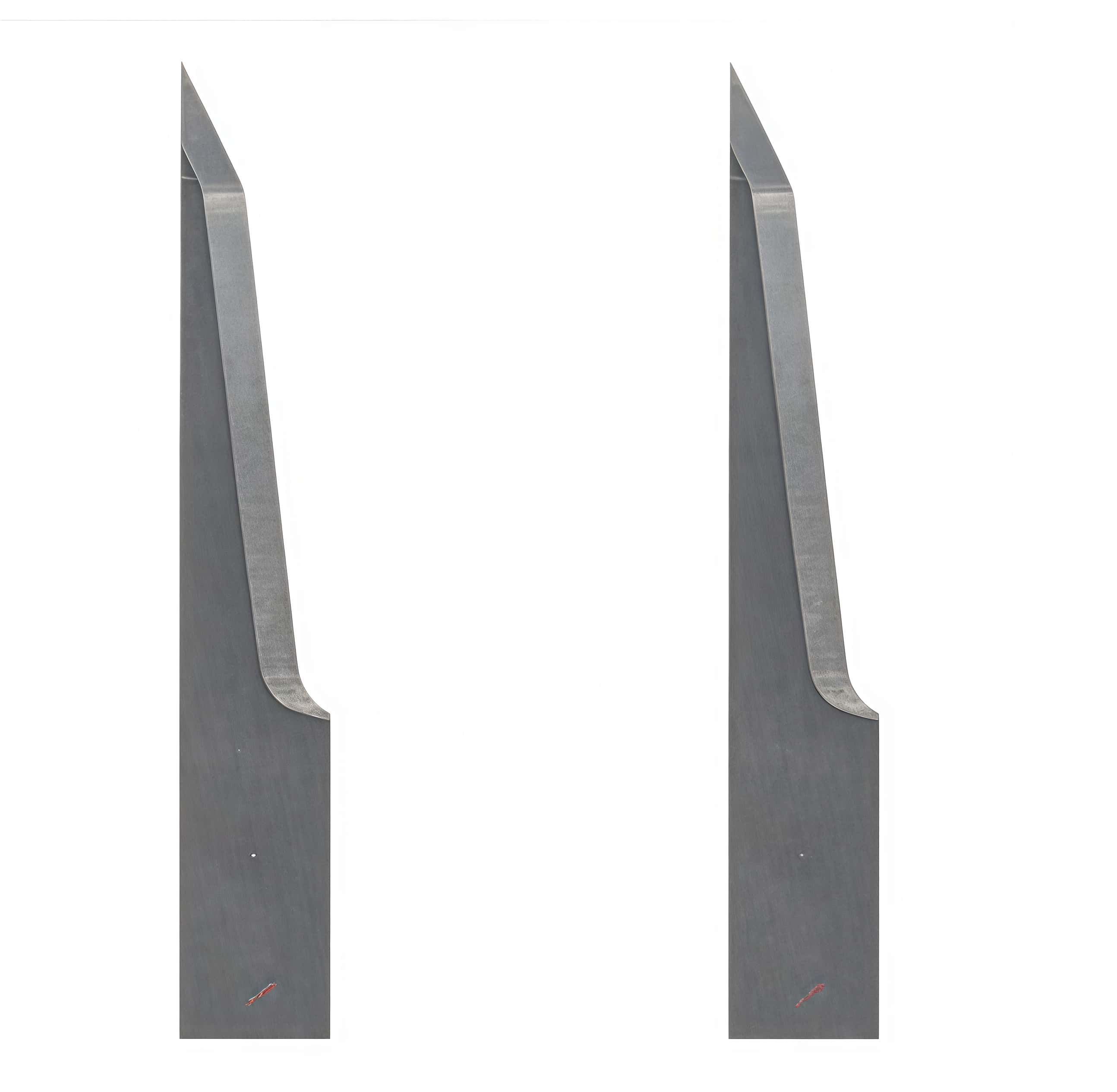

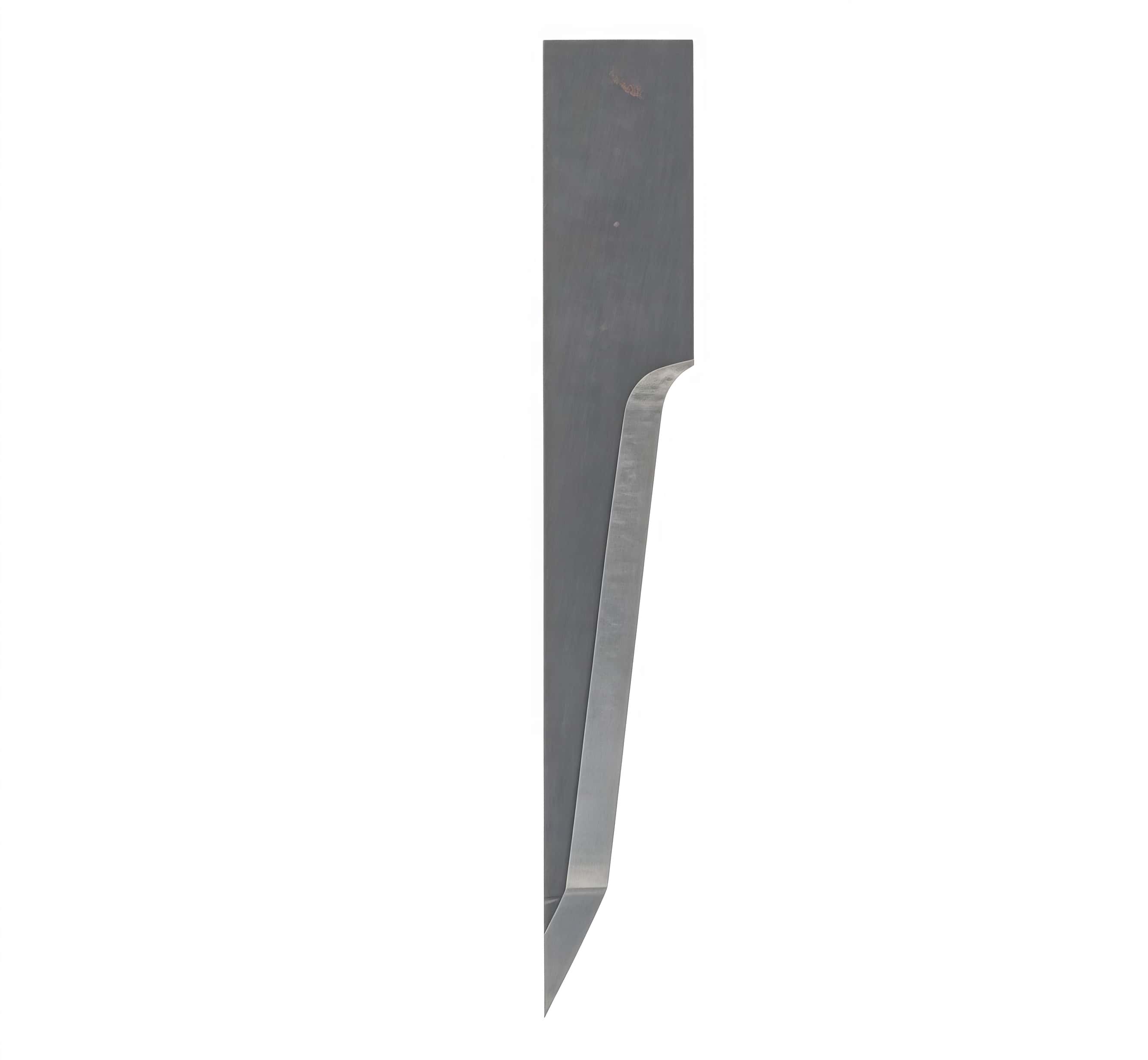

Esko Kongsberg BLD-SF420 G42421974 is a single-edged flat vibrating insert made of carbide (tungsten carbide) designed for high-precision machining on Kongsberg digital cutting machines . It features minimal overcut characteristics, making it ideal for cutting complex geometries and intricate patterns with small radii

CUTTER BRAND
Esko Kongsberg

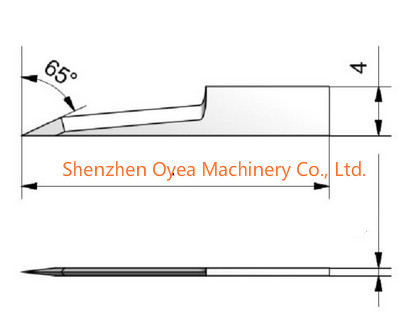

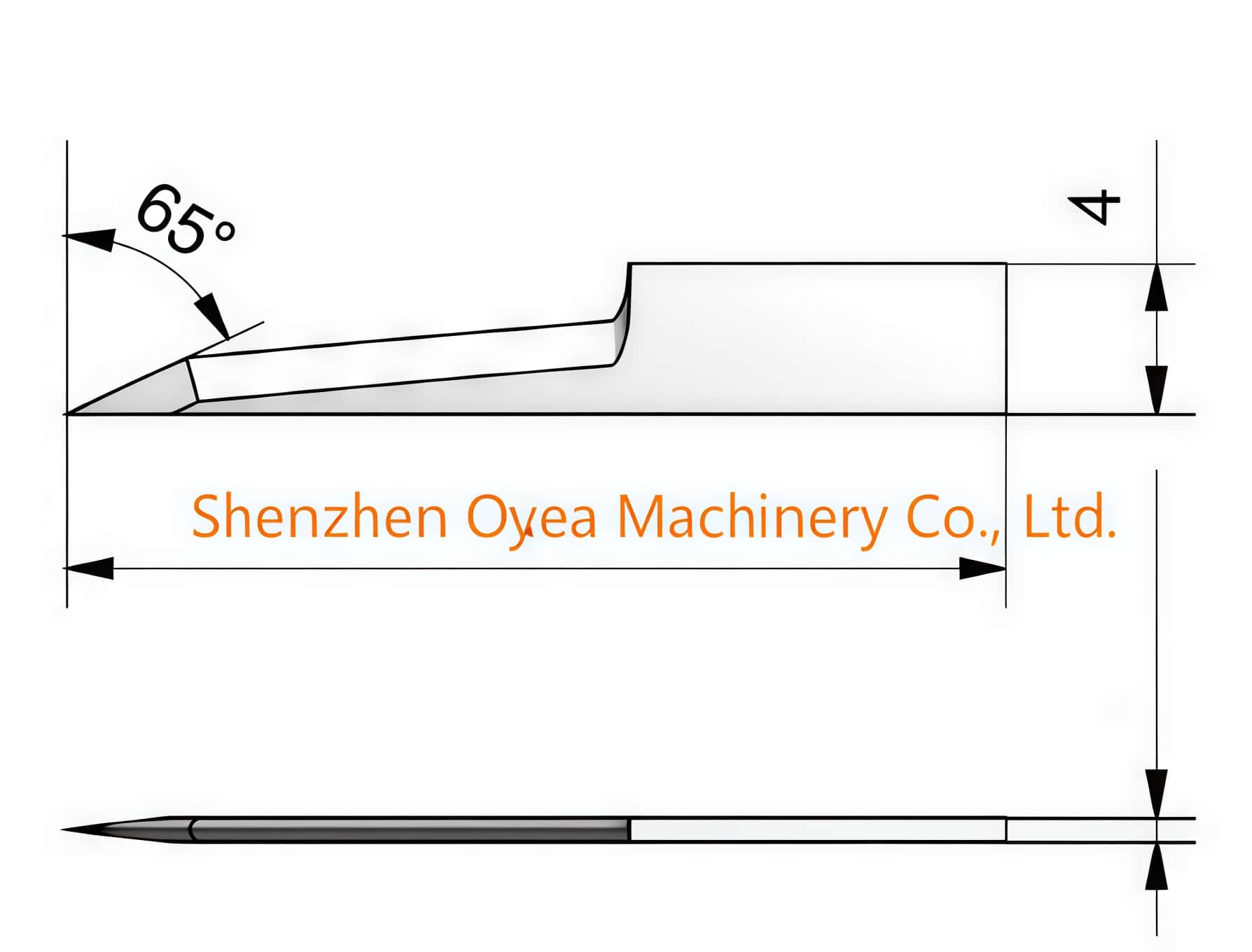

ANGLE
65°
KNIFE HEIGHT
25,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
14,30 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
flat 0,63 mm

Tool Compatibility

The BLD-SF420 integrates seamlessly into several Kongsberg tools and adapters, including:

XL / XN / X / V series: Standard Oscillating Knife Tool
XE / C / XP series: Vibracut HF Tool or Vibracut Tool (requires adapter 34047241)
MP HF Tool: Multi-Purpose High Frequency knife tool (requires adapter 34044107)
Hi-Force Tool: Requires adapter 34046557

Recommended Materials

This flat blade is specifically engineered for intricate details and small radii cuts across a wide variety of medium-thickness substrates:

Packaging & Display: Corrugated cardboard, folding carton, solid cardboard, and sandwich/foam board
Industrial Fabrics: Polyester fabrics, textiles, and rubber sheet stocks
Specialty Media: Magnetic foil, PP corrugated plastic (Coroplast), and light gaskets

Replacement for: BT-2380 XZ0020 Esko Kongsberg G42421974 42421974 BLD-SF420 i-420,Summa 500-0811 500-9811,Zund 3910313 Z20,Blackman & White BW20,Colex T00420,iEcho E20,Comagrav FNS10,Aristo 910.313,Gunnar GZ20

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
