iEcho E25C Oscillating Cutting Knife Blades For Sales Shop Supplies In China

iEcho E25C oscillating cutting knife blade is a tungsten carbide blade for iEcho digital cutters and flatbed cutting machines, with common specs of 35 mm height, 4.2 mm width, 0.63 mm thickness, 26 mm max cutting depth, and 45° / 84° cutting angles. Enquire now

Description

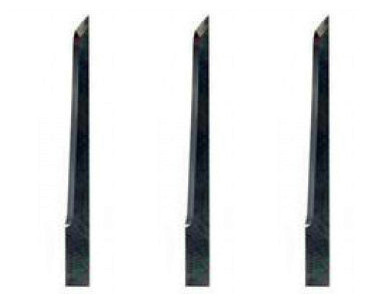

iEcho E25 Oscillating Knife Blades

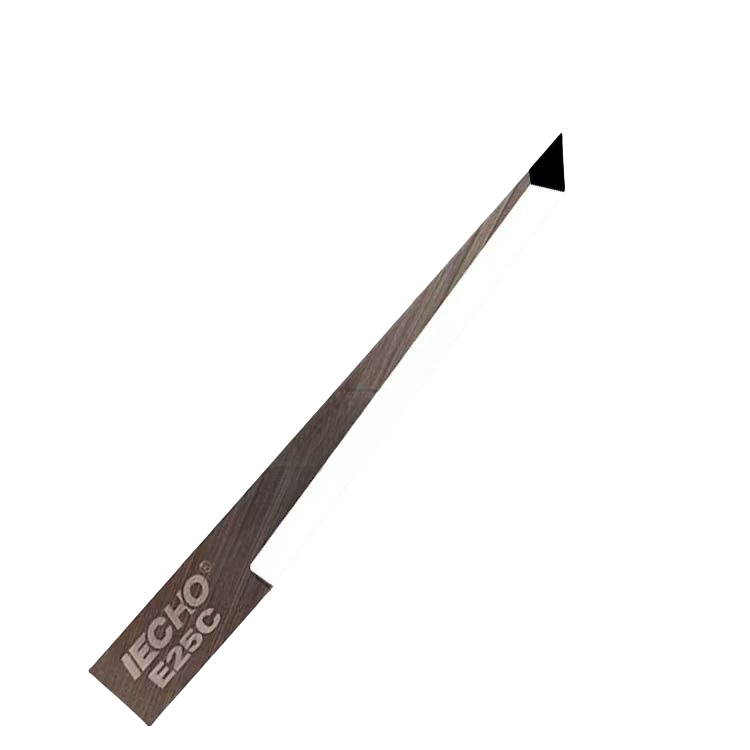

iEcho E25C Oscillating Cutting Knife Blades

iEcho E25 oscillating knife blade is a vital consumable component designed for heavy-duty, precise cutting applications on IECHO digital cutting machines. When combined with automated IECHO platforms, these premium tungsten steel blades allow manufacturing, packaging, and sign-making facilities to effortlessly cut dense substrates without fracturing.

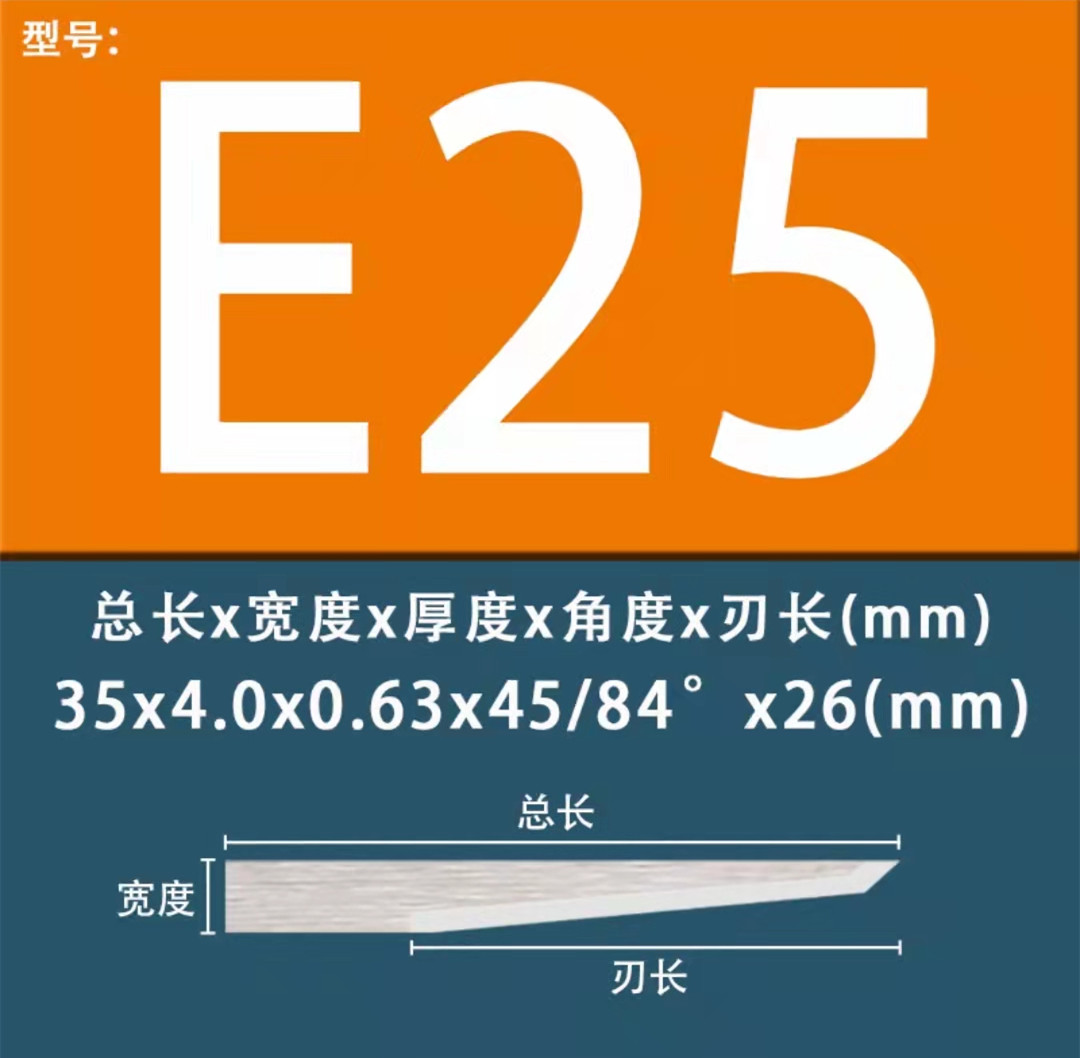

Knife height: 35mm
Thickness: 0.63 mm
Max. cutting depth:26mm
Knife type: Oscillating
Angle: 45/84°

Compatible IECHO Cutting Systems & Tools

IECHO PK Series: Optimized for automated digital cutting plotters (like the PK0604, PK0705, and PK Plus models) used primarily for graphic advertising, precise sample packaging, and small-batch showroom production.
IECHO BK/TK Series: Fully compatible with high-speed digital industrial flatbed systems (such as the BK3, BK4, and TK4S) executing long-run fabrication.
IECHO EOT Assembly: Used exclusively within the Electric Oscillating Tool (EOT) head, utilizing powerful high-frequency vibration to slice through tough, thick materials smoothly.

Replacement for: iEcho E25 Cutworx Apex CWX/CWT E25

Structural Variations

Depending on your exact material density and rigidity requirements, the E25 blade series is distributed in two main sub-types:

iEcho E25 (Standard): Features a total height of 35 mm, a cutting edge angle of 45° or 84.5°, and a standard thickness of 0.63 mm. It provides a maximum cutting depth of 26 mm.

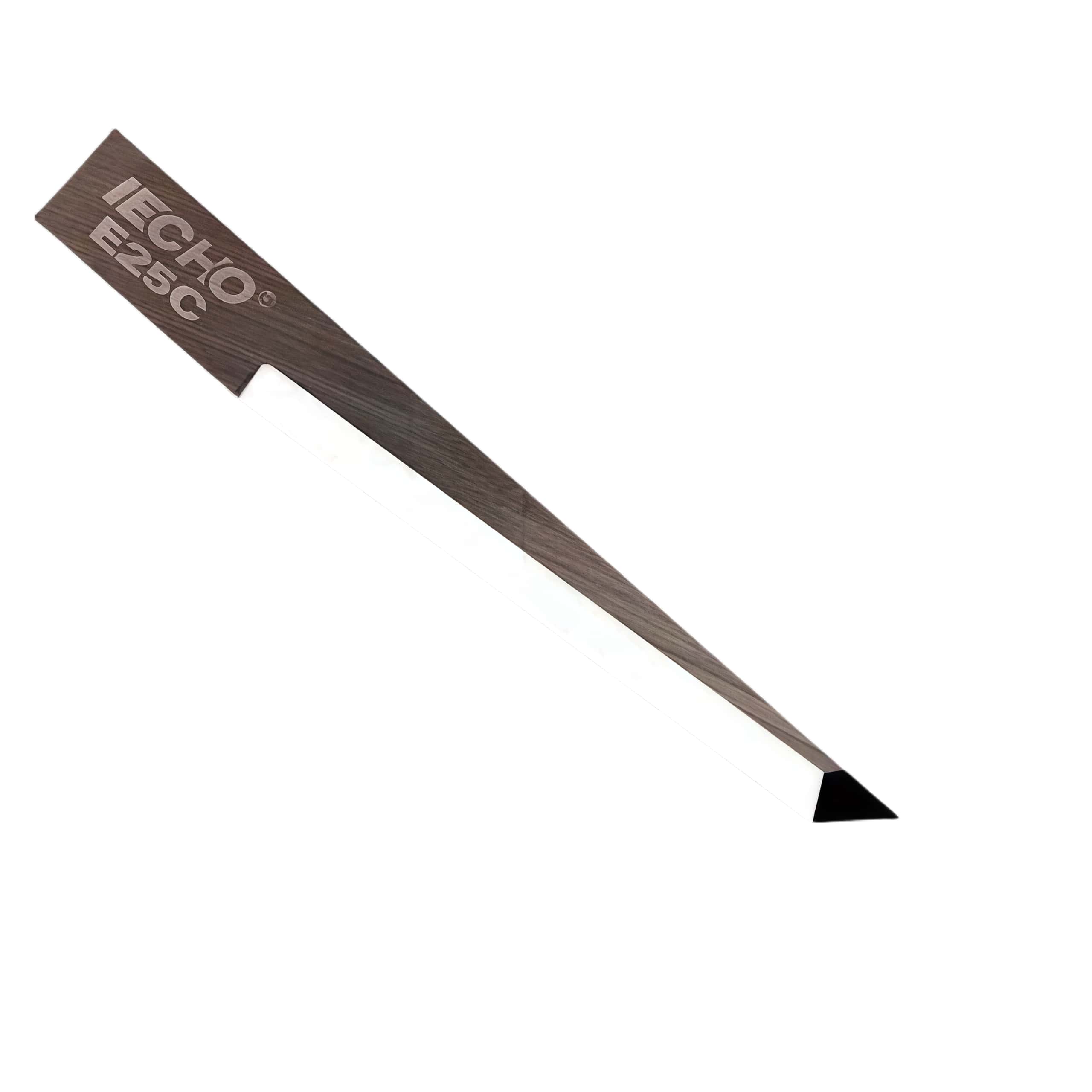

iEcho E25C: Features identical dimensions (35 mm height, 26 mm maximum depth) but is manufactured with an increased thickness of 1.0 mm for enhanced structural rigidity when handling ultra-dense composites and heavy gaskets.

Operational Tips for IECHO Cutters

Calibration: Always utilize the IECHO fully automatic knife calibration system on models like the BK4 to recalibrate your depth settings immediately after installing a new E25 blade to protect your underlayment cutting mat.
Blade Orientation Alignment: During an EOT tool-head blade swap, ensure you loosen the internal Allen locking screw. When sliding the flat shank of the E25 into position, align the factory red indicators/dots on the tool head to guarantee the cutting edge faces the correct direction of travel.
