iEcho E53C Decagonal (10-Sided) Rotation Knife Blades For Sales Shop Supplies

iEcho E53C decagonal 10-sided rotation knife blade is listed as a 36 mm-high, 0.6 mm-thick rotary blade with about 9.5 mm max cutting depth. Enquire now

Description

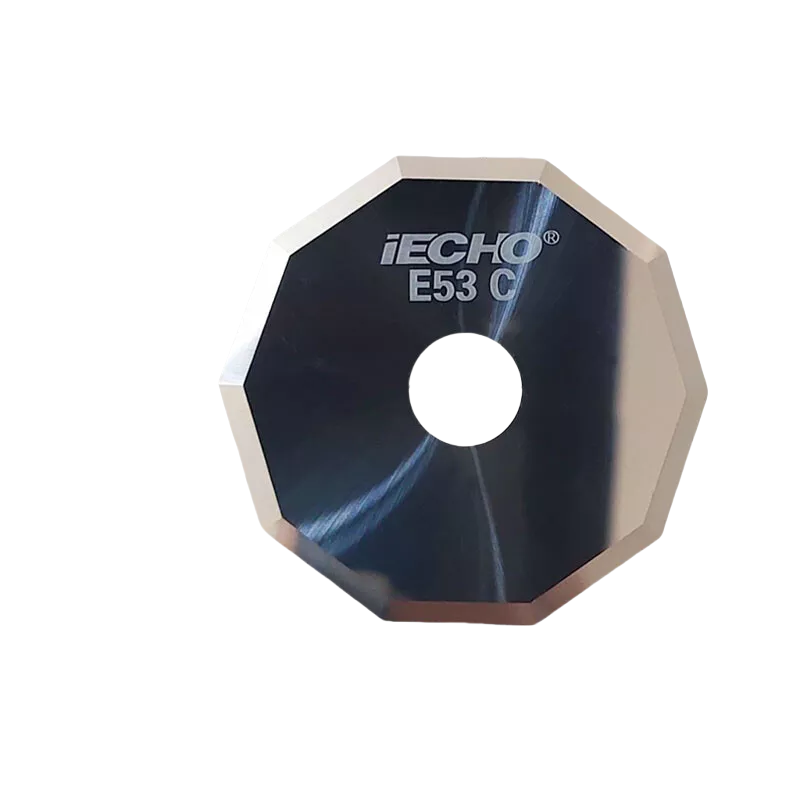

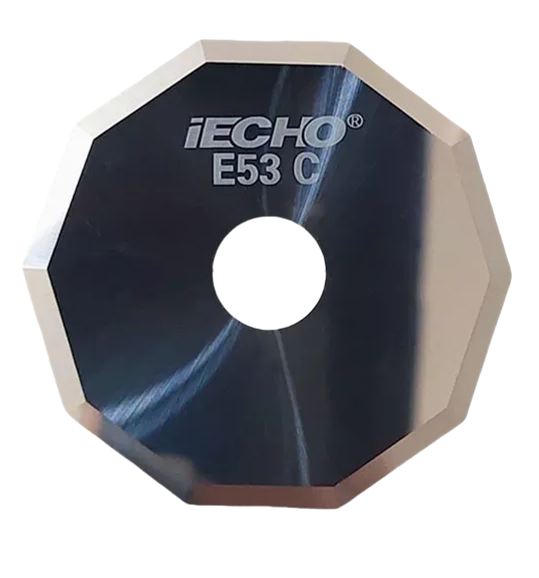

iEcho E53C Decagonal (10-Sided) Rotation Knife Blades

The iEcho E53C Decagonal (10-Sided) Rotation Knife Blade is a specialized, multi-faceted rotary blade engineered for iEcho Automated Digital Flatbed Cutters. Featuring 10 distinct ground facets, the E53C generates a subtle, high-frequency chopping and shearing cadence as it rolls. This mechanical interaction prevents single filaments from slipping or pulling away from the tool path, making it highly effective at cutting flexible, loose, or dense synthetic weaves.

The E53C shares a standardized global form factor and serves as an exact cross-reference drop-in replacement for the Zund Z52, Summa 500-0862, and Gerber MCT R53.

Technical Specifications

The structural configurations of the E53C manage its material feed speeds and cutting force requirements:

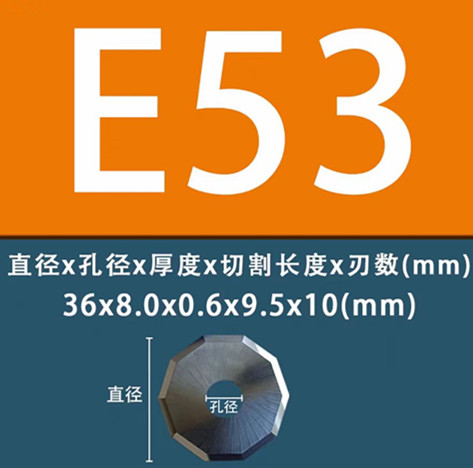

Blade Geometry: Decagonal (10-sided) faceted circular edge
Outer Diameter (Blade Height): 25.00 mm to 36.00 mm (depending on application limits)
Blade Thickness: 0.60 mm to 0.63 mm
Maximum Cutting Depth: Up to 9.50 mm
Mounting Configuration: Center bore hole Ø 8.00 mm
Material Composition: 100% Virgin Tungsten Carbide (HM - Hard Metal)

Tool Compatibility

The 8mm mounting bore lines up directly with iEcho's specialized fabric and technical textile modules:

DRT (Driven Rotary Tool): A motorized tool head that spins the E53C actively, syncing the rotation speed with the gantry’s travel velocity to produce clean cuts in fine textiles without twisting the fabric.
PRT (Power/Pneumatic Rotary Tool): A high-torque module that delivers the necessary force to push the multi-sided blade through tough, dense, or abrasive plies.

Ideal Material Applications

Because the 10-sided design nips through individual threads rather than dragging over them, the E53C excels at processing structural fabrics and synthetics:

High-Strength Composites: Raw carbon fiber plies, fiberglass sheets, and defensive aramid (Kevlar) fabrics.
Industrial Fabrics: Heavy canvas, non-woven backing layers, industrial acoustic felts, and thick carpets.
Synthetics & Apparel: Nylon mesh, multi-layered polyester, banner vinyl, and genuine leather hides.

Performance & Variation Checklist

Overcut Optimization: The E53C provides a unique edge geometry that features a larger overcut profile. This reduces the cutting force required to shear thick materials, helping to prevent tool stalling.
Coated Options: For high-volume production lines running abrasive glass or carbon filaments, look for DLC (Diamond-Like Carbon) coated variations. The dark coating lowers frictional heat buildup and prevents synthetic polymers from melting onto the blade edge.
