Summa 500-0862 500-9862 F Series Decagonal (10-Sided) Rotary Cutter Knife Blades

Summa 500-0862 and 500-9862 is a D32 (32 mm diameter) decagonal rotating circular blade used in the Rotary Module of Summa F series flatbed cutters (such as F1612) Enquire now

Description

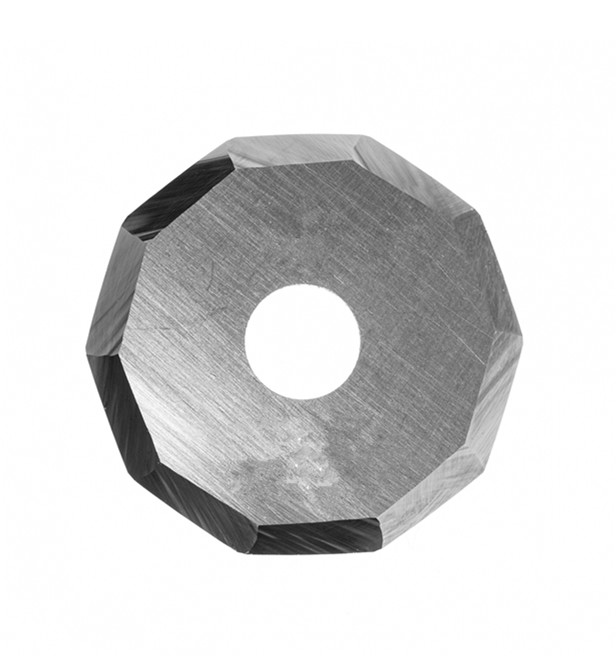

Summa 500-0862,500-9862 Decagonal (10-Sided) Rotary Knife blades

Summa 500-0862,Summa 500-9862,SUMMA ROTARY KNIFE,Summa Rotary blades,Summa Decagonal Knife,Summa Decagonal blades,SUMMA blades,summa cutter blades,Summa F Series Blades

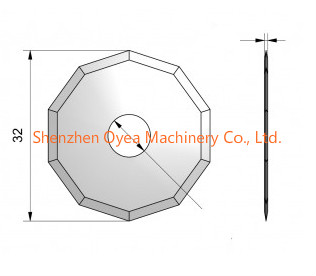

Summa 500-0862 and 500-9862 is a D32 (32 mm diameter) decagonal rotating circular blade used in the Rotary Module of Summa F series flatbed cutters (such as F1612) .

These two are essentially the same blade specification, among which500-9862This usually corresponds to the official original part number , while500-0862It is often used as a matching premium coating version (such as the DLC Diamond Carbon Coating Edition) or a premium alternative/compatible part number .

Core Technical Specifications

Parameters	Specifications	Key design role
Blade shape	Decagonal	Rotary cutting, multi-sided edges provide continuous cutting force at multiple points.

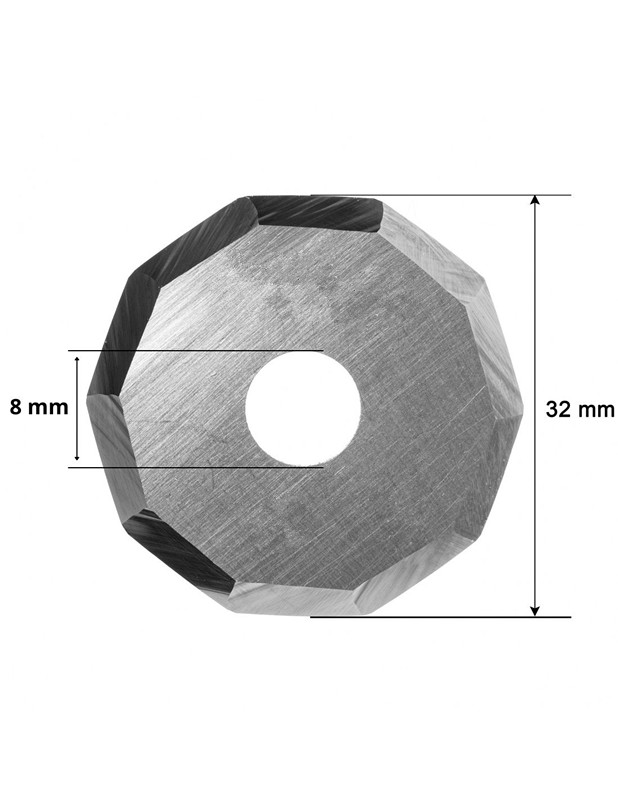

Blade diameter (D)	32 mm	The largest diameter model in the Summa rotary blade lineup provides the deepest cut.
Blade thickness	0.6 mm	Ensure that the cutting edge does not easily deform when cutting high-density materials.
Maximum cutting depth	5 mm	Suitable for processing relatively thick soft or tough materials
Materials and craftsmanship	Solid carbide/tungsten carbide (with DLC coating available)	Extremely high hardness and wear resistance, combined with a coating, can significantly extend service life.

Best applicable materials

The decagonal rotary blade is specifically designed to handle low-density, easily stretched, high-toughness, or woven materials that are difficult to handle perfectly with traditional drag blades or vibrating blades through "rolling shearing," effectively preventing the materials from wrinkling and fraying.

Composite materials : carbon fibers, glass fibers, and aramid fibers.
Industrial textiles : Felt, Nylon fabric, Polyester fabric.
Common soft materials : various non-woven fabrics, woven carpets, sunshade fabrics, banner fabrics, leather and rubber.

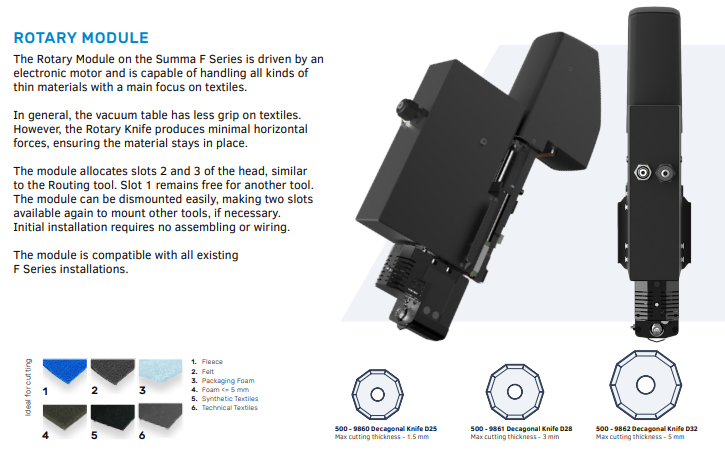

Size Comparison within the Same Series (500-986x Series)

If the 32mm blade exhibits slight deviation when cutting extremely small arcs or thin materials, refer to the other two sizes in the same series for replacement:

500-9860 (D25) : Diameter 25 mm / Maximum cutting depth 1.5 mm (suitable for extremely thin fabrics and high-precision small graphics).
500-9861 (D28) : Diameter 28 mm / Maximum cutting depth 3 mm (general compromise size).

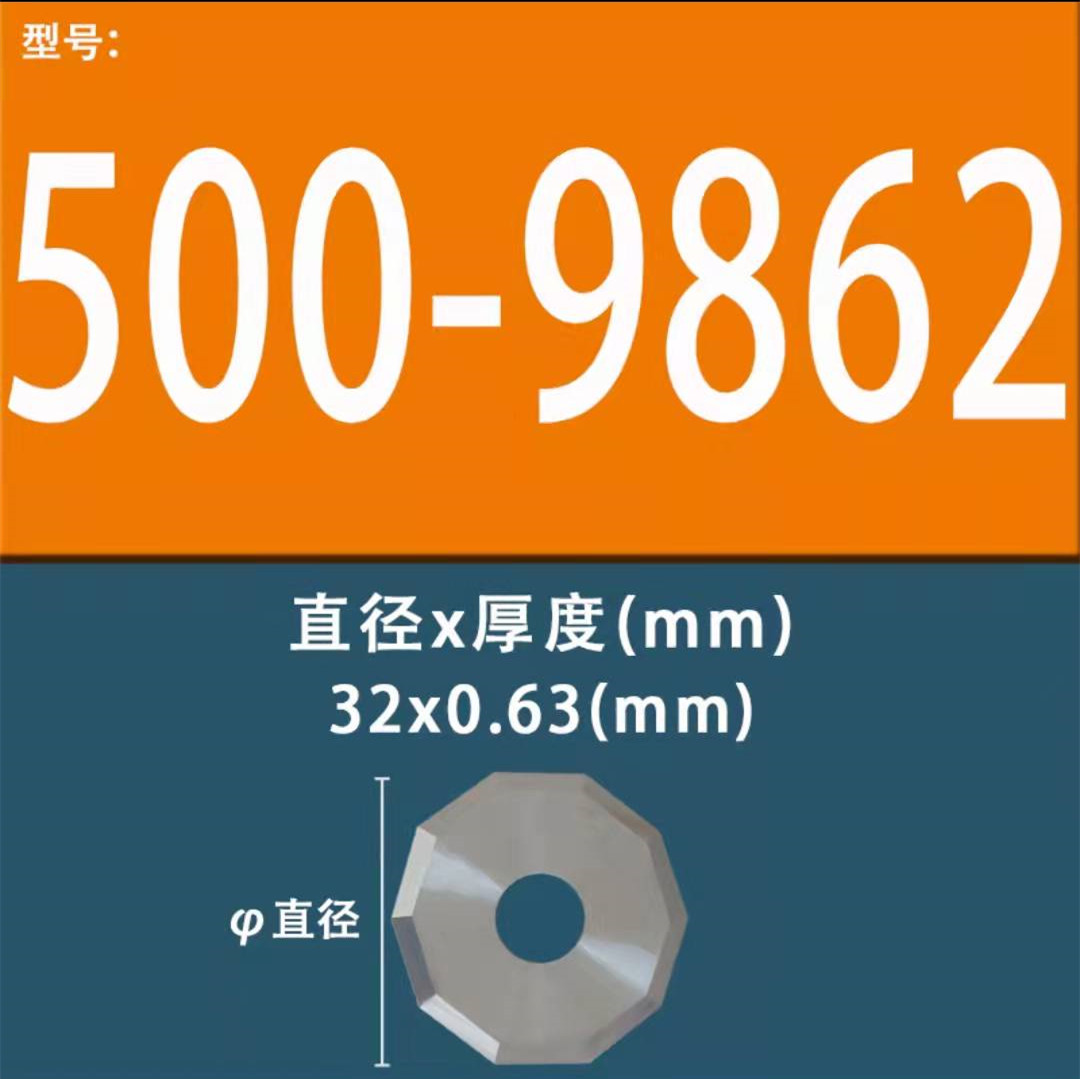

500-9862 / 500-0862 (D32) : Diameter 32 mm / Maximum cutting depth 5 mm (This model is suitable for heavy or multi-layer composite materials).

Equivalent to: BT-2352 Summa 500-0862 500-9862,Zund Z52 3910337,MultiCam 003612-MC52-ROTAR,Gerber MCT R52/ R52-V, Blumer B52, iEcho E52,Blackman & White BW52,JingWei JWei J374

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
