iEcho E23C Cutter Oscillating Knife Blades For Iecho Cutting Systems

iEcho E23C cutter oscillating knife blade is a 0.63 mm thick tungsten carbide oscillating blade with a 33 mm height, 22 mm max cutting depth, and 84.5° / 45° angle Enquire now

Description

iEcho E23C Oscillating Knife Blades

iEcho E23C Cutter Oscillating Knife Blades

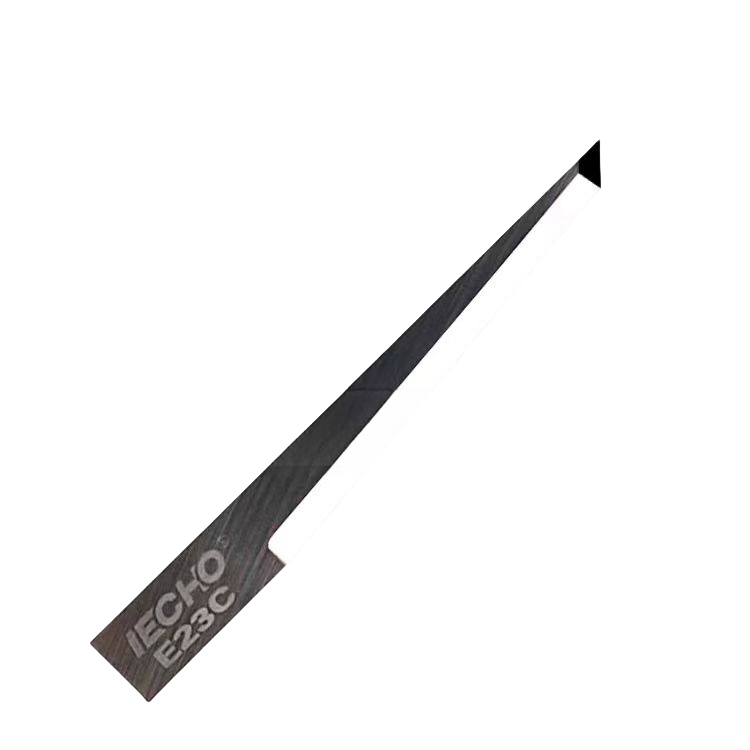

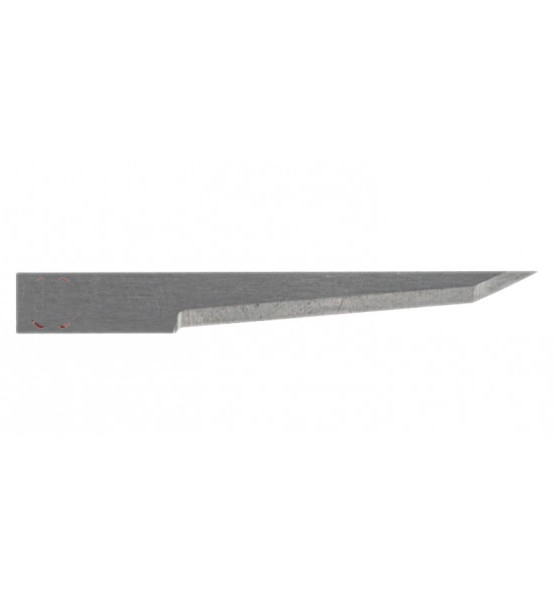

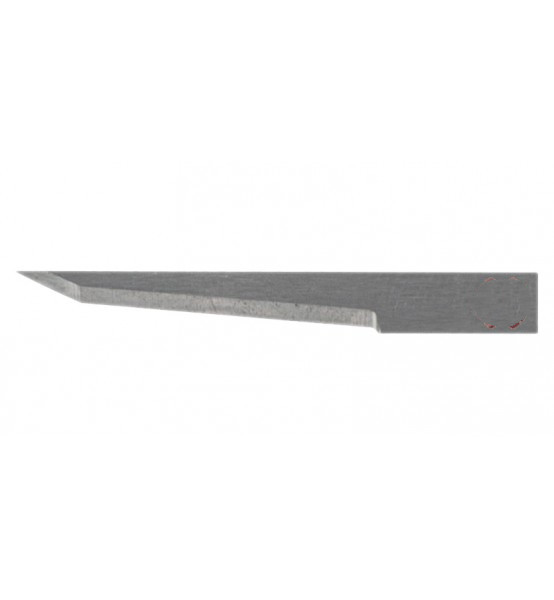

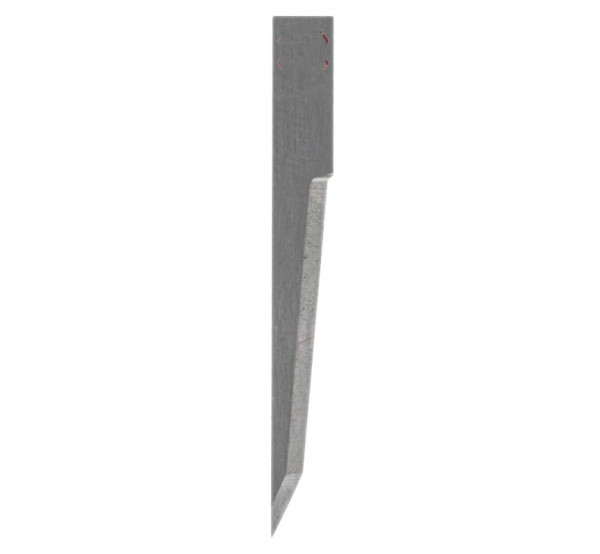

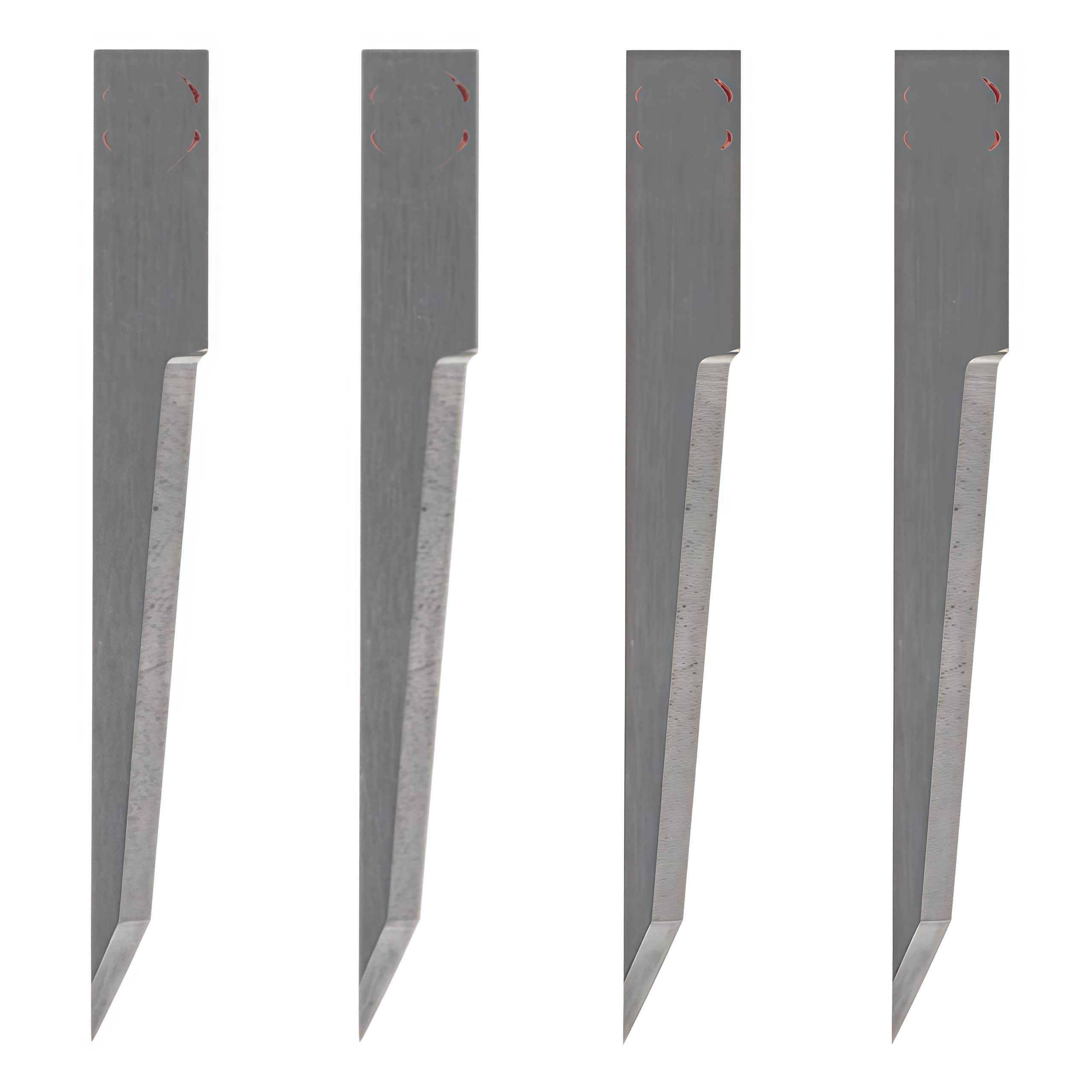

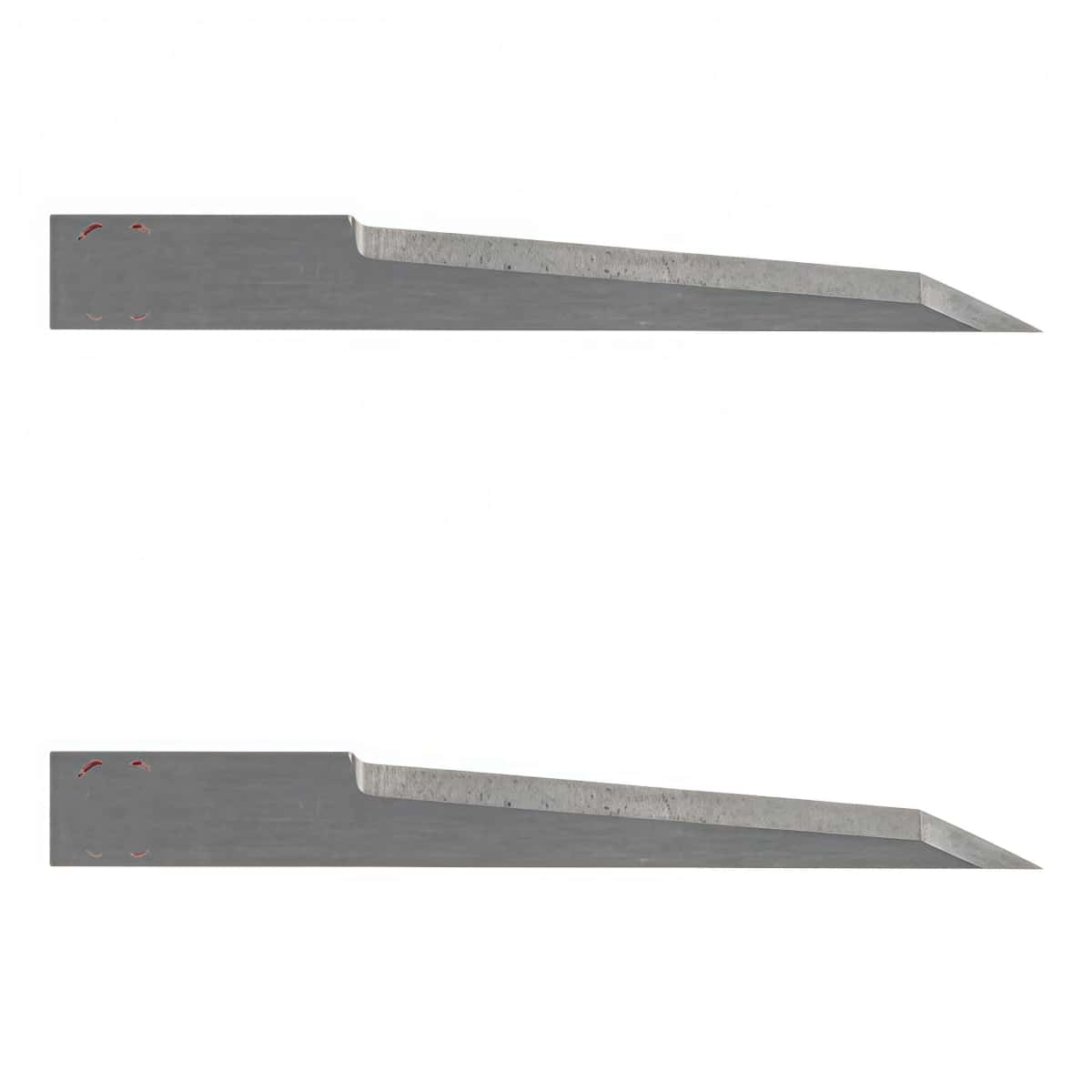

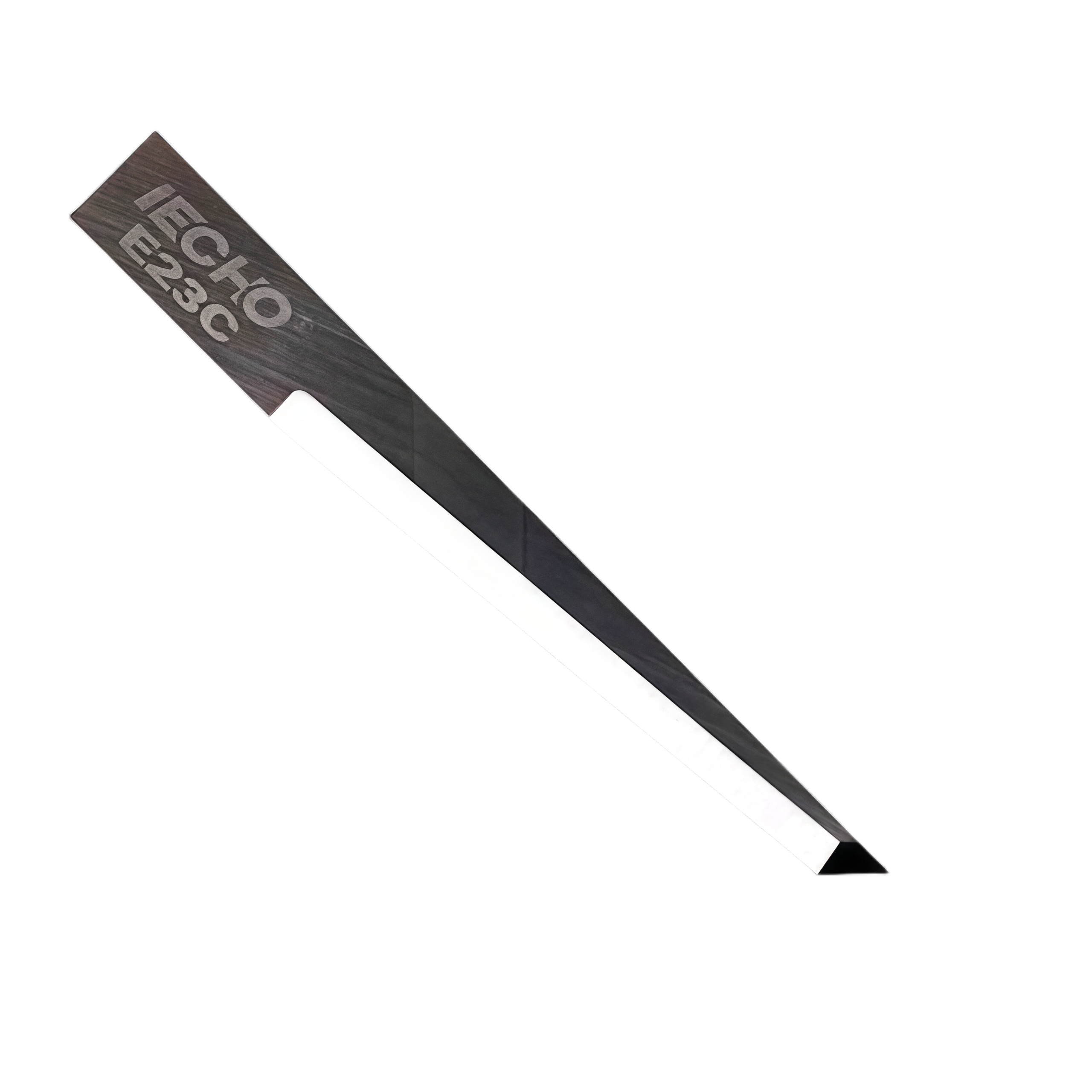

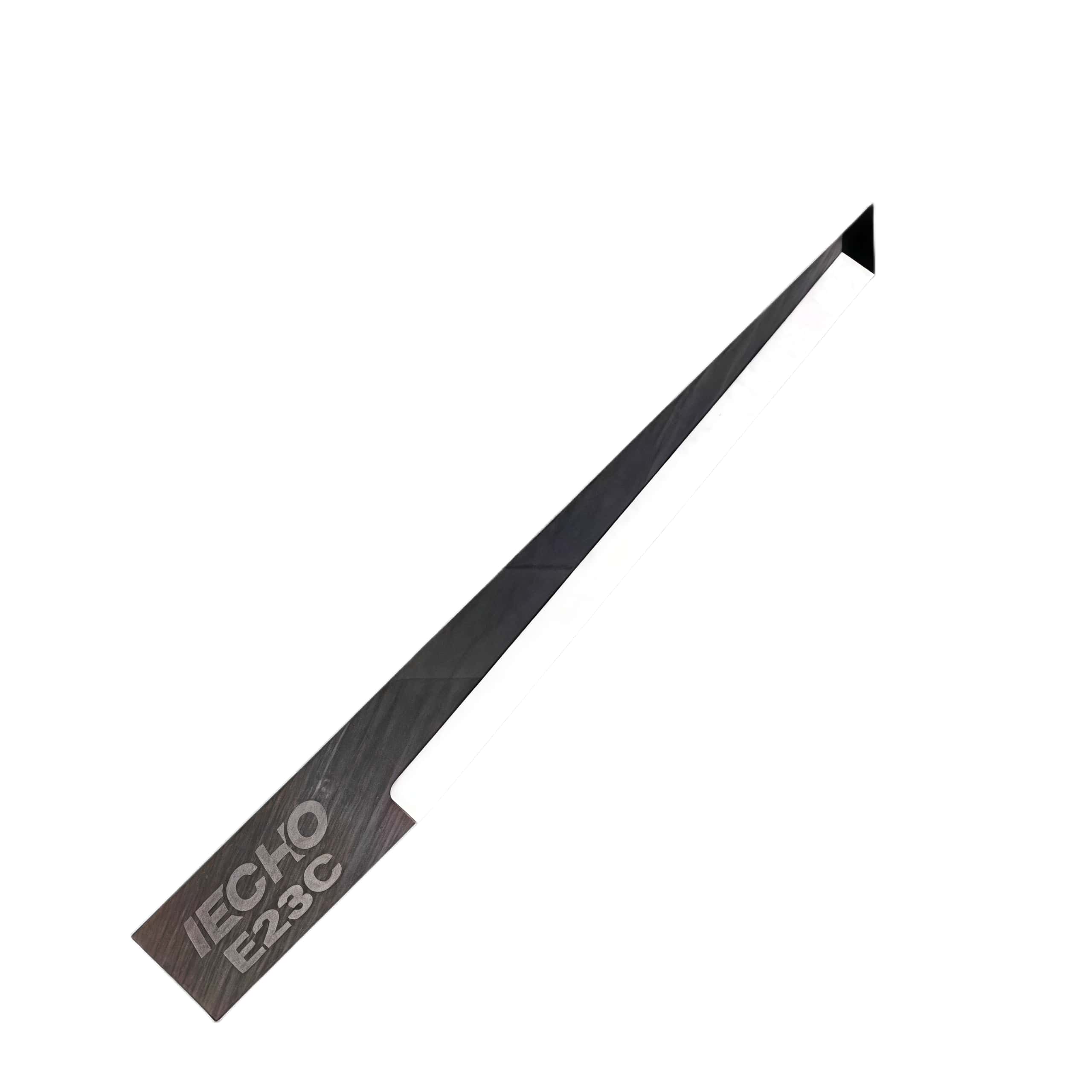

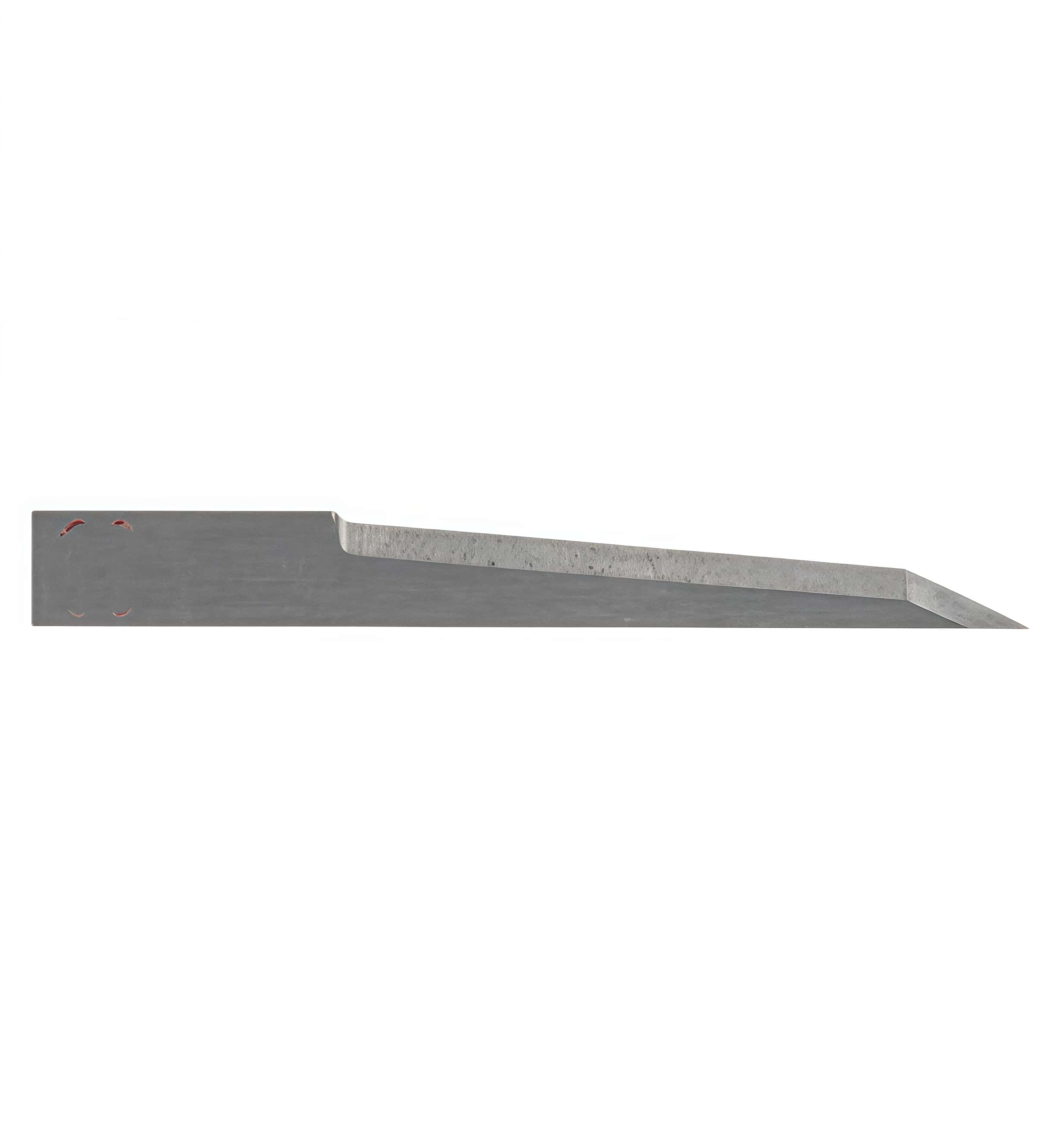

iEcho E23C (also cataloged as the E23, part number 1.20.18.0000 060) is an elongated, pointed flat-stock tungsten carbide oscillating knife blade. Designed specifically for the Electric Oscillating Tool (EOT) and Pneumatic Oscillating Tool (POT) modules, it provides an extended vertical reach.

The primary advantage of the E23C is its ability to execute tight, complex geometric details and tight-radius corners on thick, multi-layer materials without causing excessive drag or tearing.

Technical Specifications & Geometry

Industry specifications from industrial CNC components suppliers like China Oyea list the following exact physical characteristics:

Blade Height (Total Length): 33.00 mm
Blade Width: 4.00 mm
Shank / Mount Thickness: 0.63 mm flat-stock shank
Cutting Angles: 45° / 84.5° (Dual pointed-angle nose)
Maximum Cutting Depth: 22.00 mm
Geometry: Single cutting edge

Exact Cross-Brand Equivalents

Because global digital flatbed CNC cutting systems share identical 0.63 mm flat-mount collet clamping profiles, the E23C is 100% physically interchangeable with these major manufacturer part numbers:

XZ0023 BT-2323 iEcho E23 Summa 500-0815 500-9815 Zund 5005560 Z23 Blackman & White BW23 Colex T00423 ESKO KONGSBERG BLD-SF428

Key Applications
The E23C/E23 profile is widely used in industries requiring advanced material processing, such as aerospace and marine composites.
Composite Cores: Efficiently cuts structural foam like Divinycell and Rohacell.
Structural Media: Ideal for honeycomb panels and sandwich boards.
Packaging & Gaskets: Suitable for folding cartons, corrugated plastic, and dense rubber sheets.
Insulation: Designed for technical insulating mats and specialized foam inserts.

iEcho E23C Oscillating Knife Blade, designed for use with iEcho cutting systems, is available as a replacement option. Ideal for cutting applications in production and manufacturing environments, this blade is offered for wholesale purchase directly from the factory. Manufactured in Shenzhen, China by Oyea Machinery Co., Ltd., it is compatible with various systems and supports OEM and ODM supply requirements.
