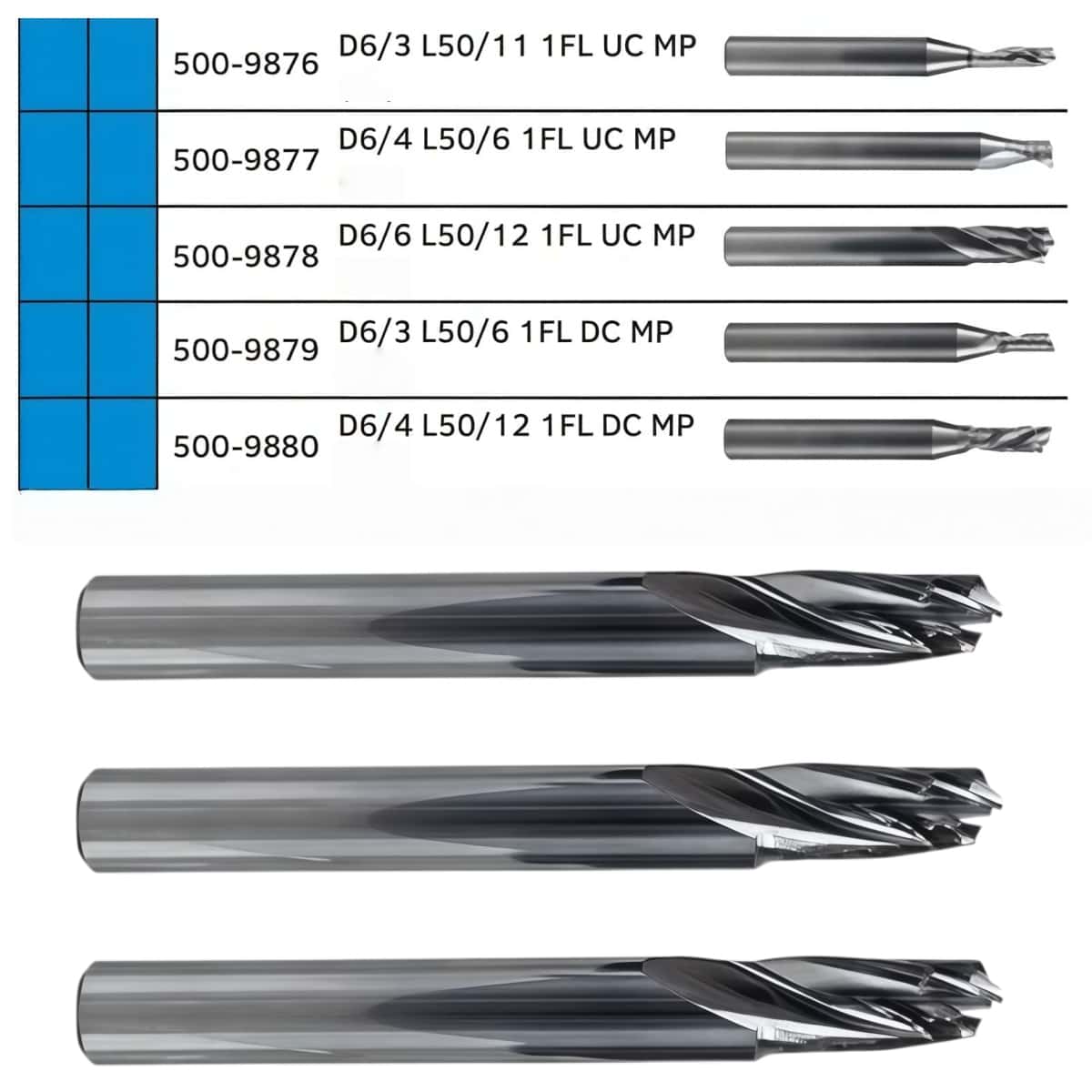

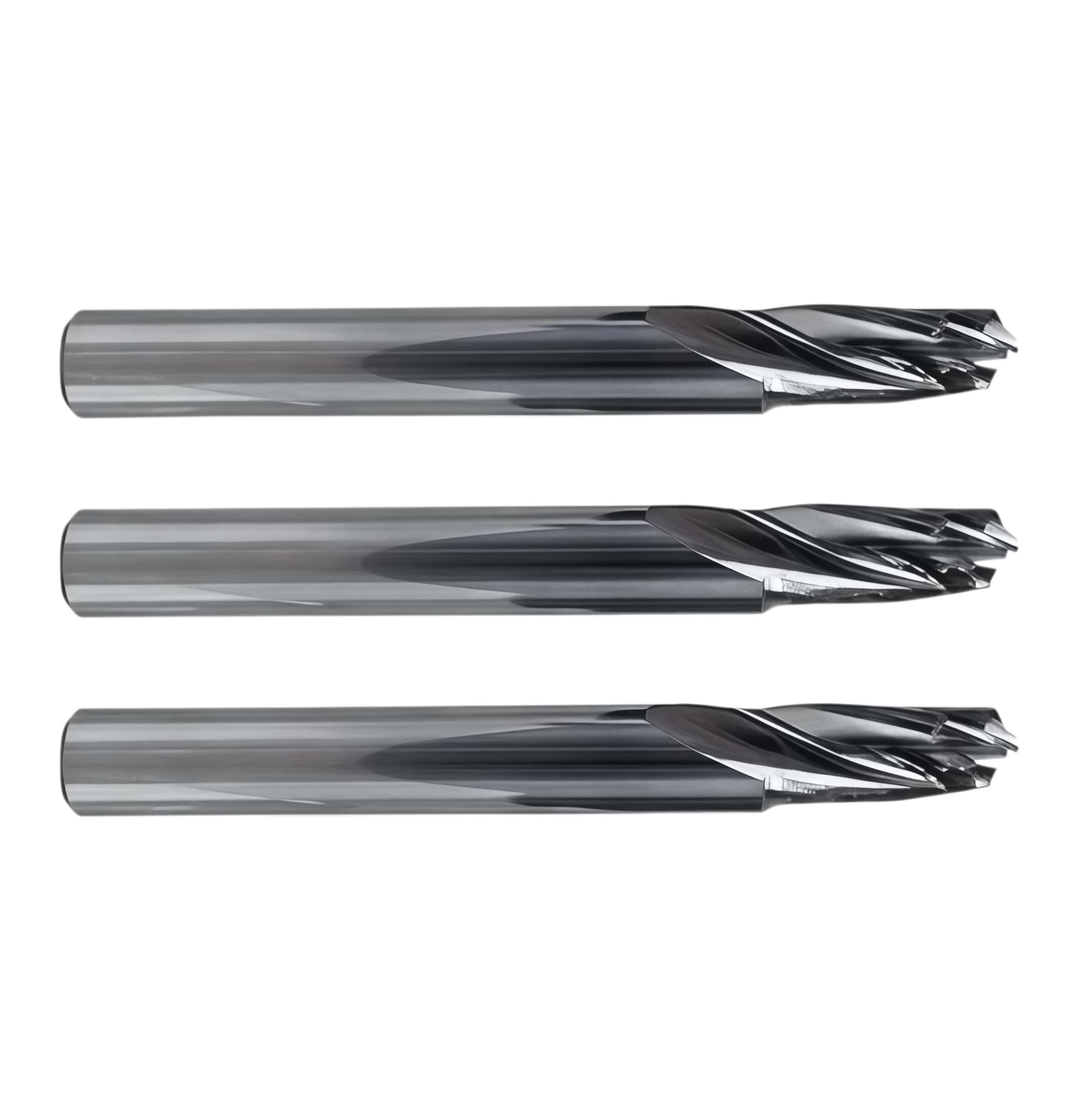

Summa 500-9878 Multipurpose Router Bit,D6/6 L50/12 1FL UC MP For Summa F Series Routing System

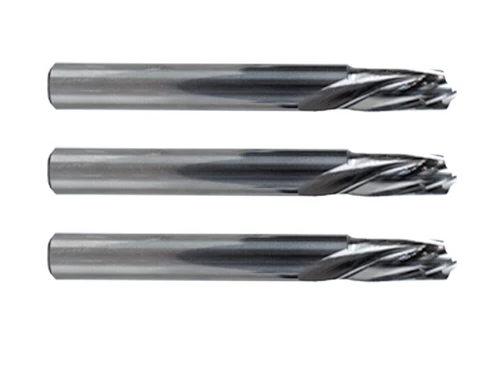

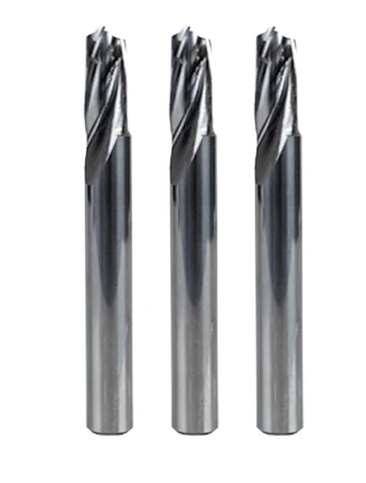

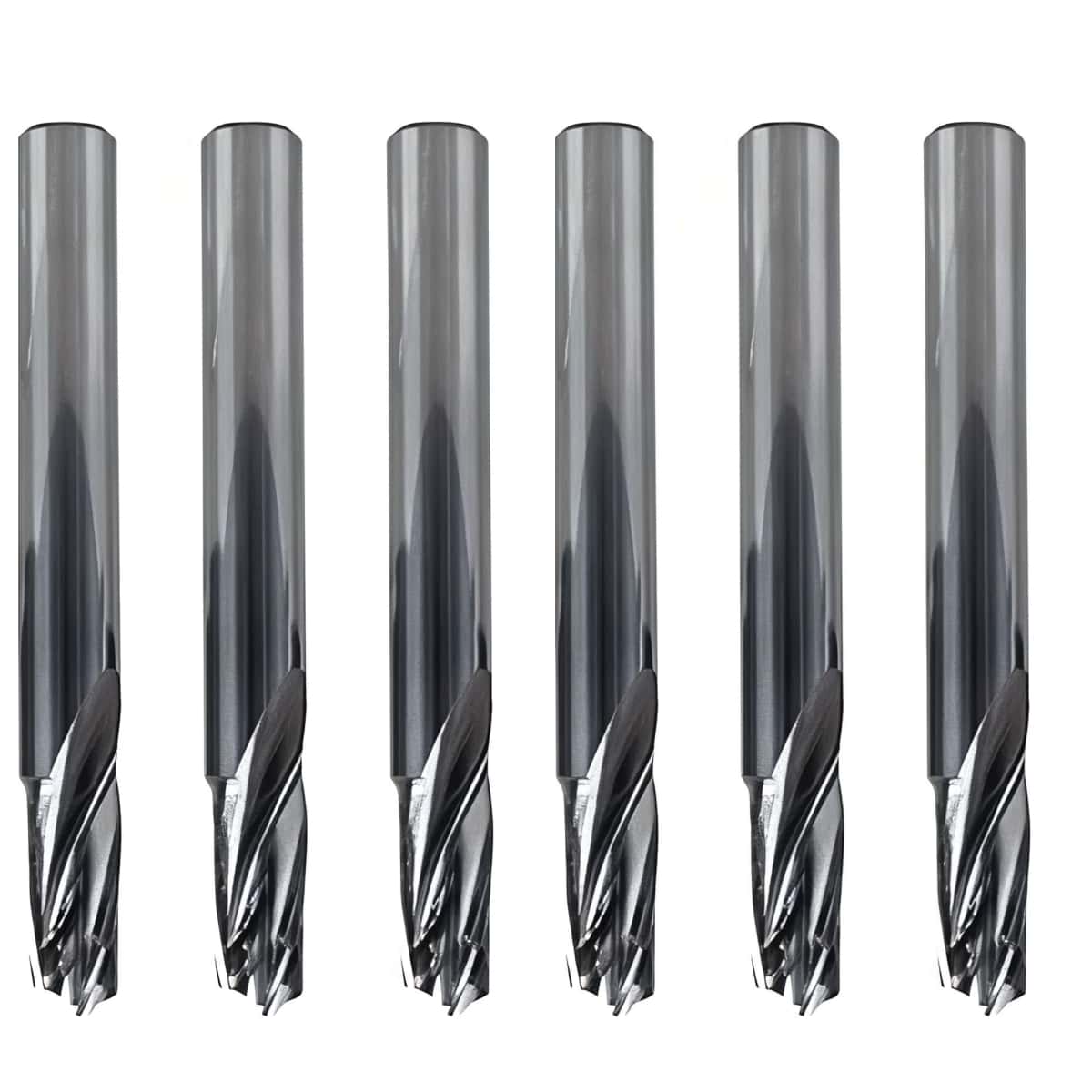

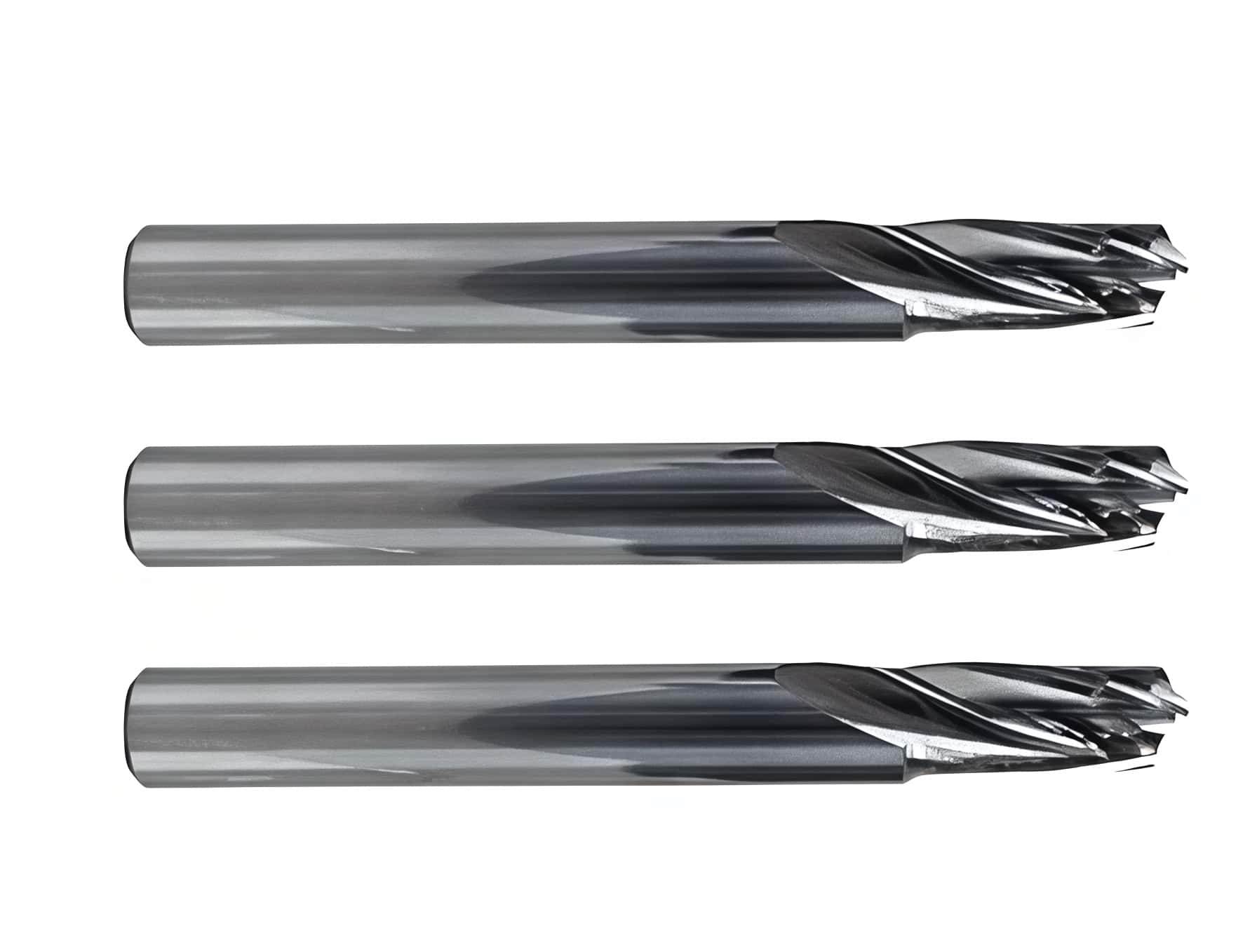

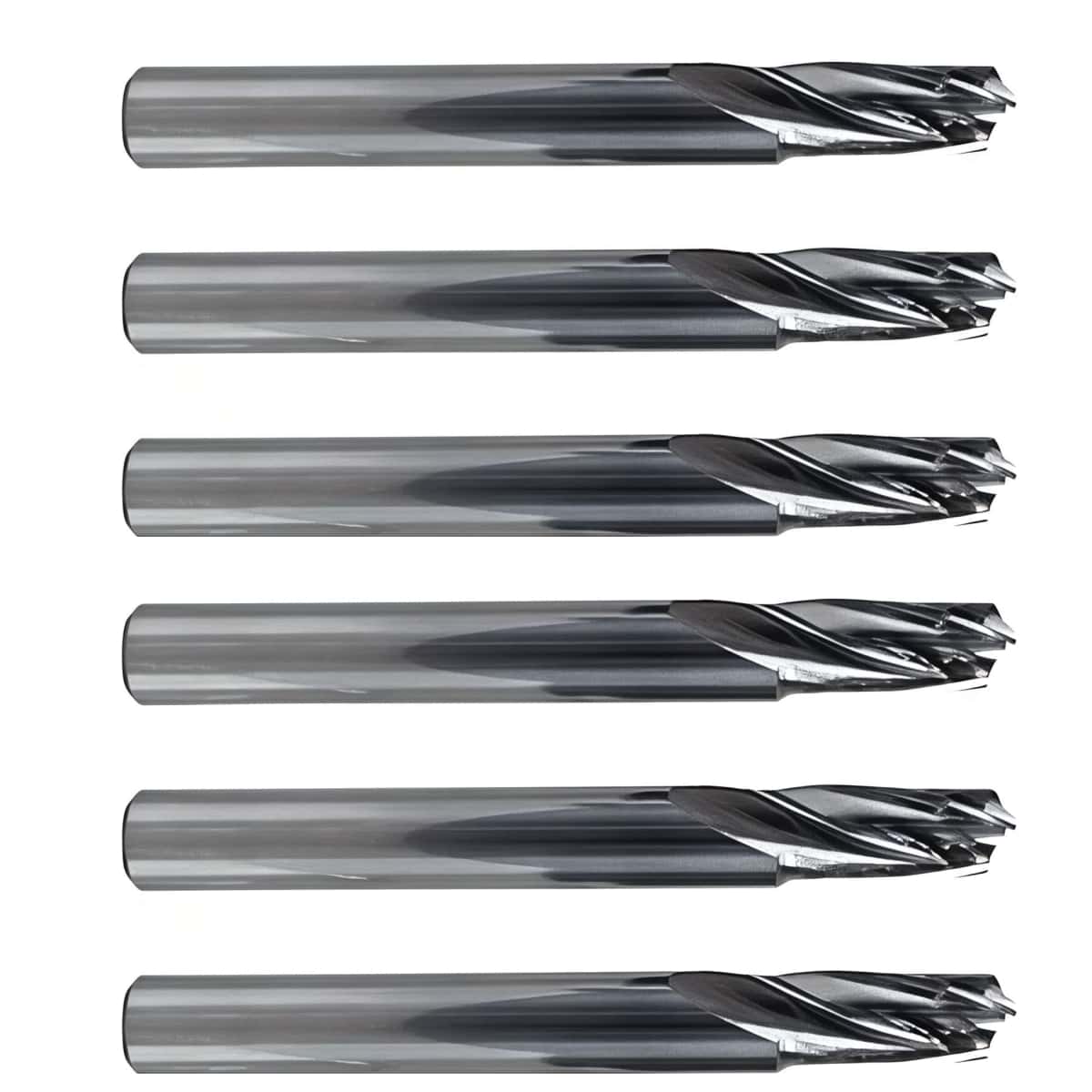

Summa 500-9878 is a single-edged, one-piece carbide multipurpose router bit tailored specifically for Summa F-series flatbed cutting machines. this particular end mill features an up-cut geometry. This design excels in chip removal and ensures effective heat dissipation, setting it apart from other… Enquire now

Description

Summa 500-9878 Multipurpose Router Bit,D6/6 L50/12 1FL UC MP For Summa F Series Routing System

Core Specifications and Technical Parameters

Code :D6/6 L50/12 1FL UC MP
Shank Diameter : 6 mm
Routing Diameter : 6 mm (A thicker tool body provides extremely high rigidity and can withstand greater cutting loads)
Blade length/Max. Routing Depth : 12 mm (suitable for machining medium-thickness plates)
Total Tool Length : 50 mm
Number of blades and chip removal direction : Single-blade up-cut (1 Flute Up-Cut / 1FL UC)
- Note: The spiral grooves of the "upward cutting" design forcefully pull chips upwards away from the machining area when rotating at high speed . This design provides a large chip removal space, effectively preventing soft plastics with low melting points from re-melting and welding (sticking to the blade) at the cutting edge.
Compatible Systems : Fully supports Summa F series standard routing systems and high frequency routing systems.

Optimal processing materials and selection logic

As a multi-purpose (MP) top-cutting series,500-9878 Suitable for processing the following materials with a thickness of 12mm or less :

For PVC foam boards/Cheva boards with a thickness greater than 4mm : the top cutter ensures that debris does not accumulate in the groove, maintaining a smooth cutting process.
Wood composite boards and solid wood boards (MDF, plywood) : The powerful chip removal force can quickly remove wood chips, effectively preventing the accumulation of chips in the groove from causing localized scorching or breakage of the wood.
Aluminum-plastic composite board (ACM / Dibond) : When making a single rapid through cut, the 6mm blade diameter is more stable than 3mm/4mm and less prone to blade bounce.

The choice between upper cut (UC) and lower cut (DC) processing:

If you require the ultimate surface smoothness : continue using the 500-9880 (downcut) you previously queried , which will push the burrs downwards.
If you require extremely fast processing speeds and the sheet material is thick or easily melted : please use this.500-9878(Upper cutter) has better chip removal efficiency and tool life under heavy load

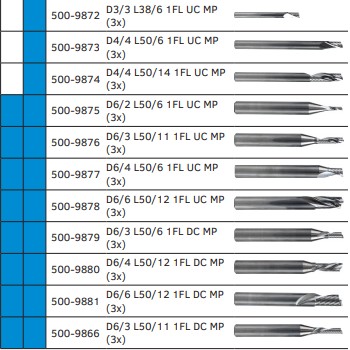

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
