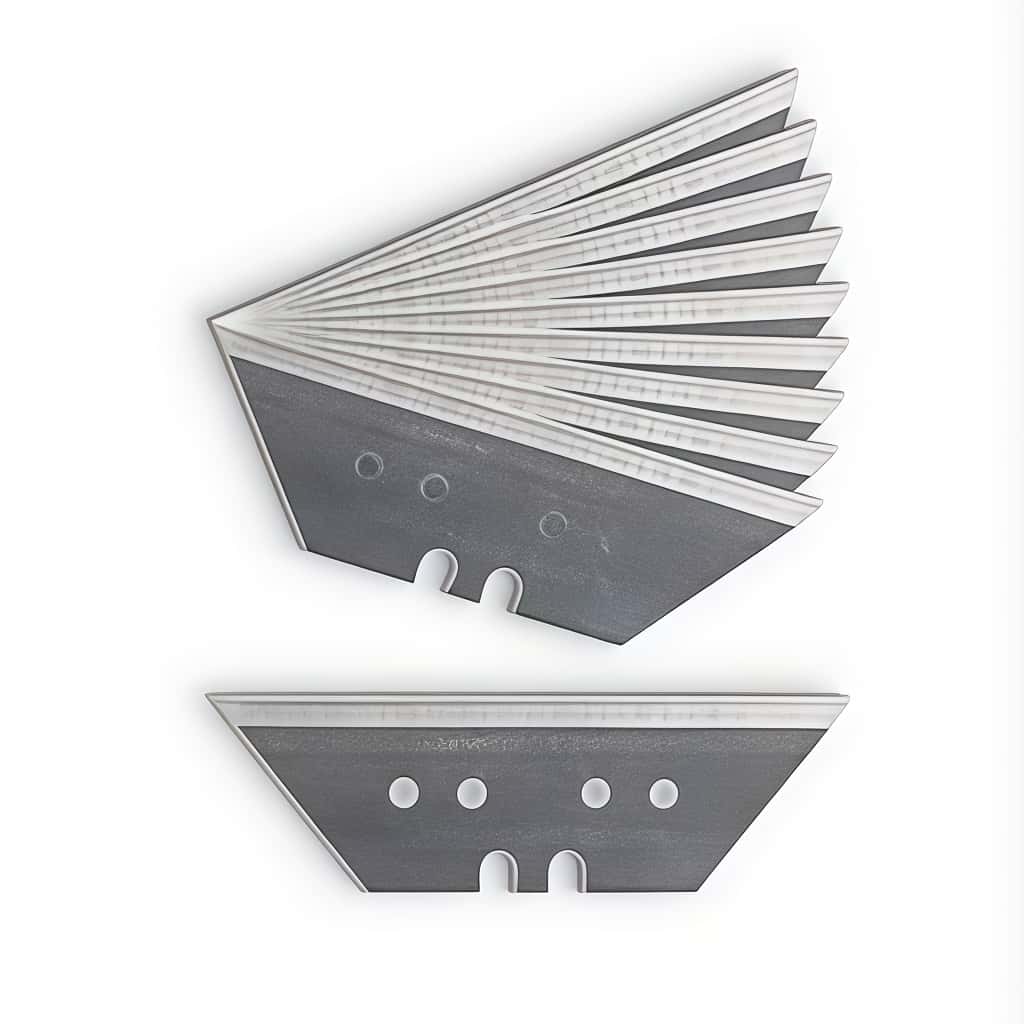

Esko Kongsberg Iecho Humantec Multicam Seron Zund V-cut blades for angled cutting of foam and corrug

Will find V-cut blades for cutting materials such as: various types of foam, cardboard, materials with a foam core or corrugated / honeycomb structure. The highest quality of materials used for the production of the blades ensures cutting precision and repeatability of the cut elements. There is a possibility of applying a hardening coating TIN, DLC etc. increasing the knife’s strength and reducing the knife resistance when cutting, eg foam. Our blades fit the following cutters:
Esko, Iecho, Humantec, Multicam, Seron, Zund.

V-cut blades for digital cutters like Esko Kongsberg, Zund, and iEcho are specialized for creating precise bevel cuts and V-grooves in materials like corrugated cardboard, honeycomb board, and foam. These blades allow you to fold the material into 3D structural designs or sharp-cornered boxes.

Popular V-Cut Blade Equivalents

Many aftermarket manufacturers produce tungsten carbide blades that are cross-compatible across these major brands.

Brand	Tool / Model	Common Blade Equivalents	Recommended Materials
Zund	VCT / VCT2	Z70, Z71, Z701, Z73	Corrugated, Honeycomb, Foam core
Esko Kongsberg	V-notch Tool	BLD-TZ129, BLD-TZ511, BLD-TZ230	Heavy corrugated board, Re-board
iEcho	VCT / V-Cut	E70, E71, E701	Corrugated board, soft/hard foam
MultiCam	KH20 Holde	XZ0071, K71	Honeycomb, Falconb

Blade Esko Kongsberg BLD-DF570 G42455279 knife longlife coated
Blade Esko Kongsberg BLD-DF572, G34102988
Blade Esko Kongsberg BLD-SF212, G424439781
Blade Esko Kongsberg BLD-SF290, G34094581
Blade Zund Z70 knife V-cut 5005642
Blade Zund Z71 knife V-cut 5006045
blade Zund Z73 V-cut Knife 5005572
Esko Kongsberg BLD-SF245 V-cut Knife G42455287
Esko Kongsberg BLD-TZ230 V-cut Knife G34061218
Esko Kongsberg BLD-TZ511 V-cut Knife G42448589
Esko Kongsberg BLD-TZ512 V-cut Knife G42448597
iEcho E74 Knife Blade
Multicam K71, XZ0071 V-cut Knife 003612-MC71
Multicam XZ0070 V-cut Knife Blade V-cut

Shenzhen Oyea Global sales： ensuring availability across Europe, the USA, the Middle East, and Asia with efficient shipping and customer service.Sold To Germany, France, The United Kingdom, Poland, The United States, Russia, Vietnam, Thailand, Indonesia, Singapore, The Netherlands, Switzerland, South Korea, Japan, Turkey, The Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, The Czech Republic And Other Countries Or Regions

Key Performance Features
Precision Angles: These tools typically support fixed or adjustable angles, commonly 0°, 15°, 22.5°, 30°, and 45° to achieve specific fold types.
Material Compatibility:
Corrugated & Honeycomb: Require stiffer, super-trapezoid blades like the Kongsberg BLD-TZ129 to maintain accuracy through thick walls.
Foam & Soft Materials: Drag blades like the Z71 (or equivalent K771) are ideal for thicknesses up to 25mm.
Enhanced Longevity: Many suppliers offer blades with TIN (Titanium Nitride) or DLC (Diamond-Like Carbon) coatings to reduce resistance and increase durability, especially when cutting abrasive foams
