| Process Category | Knife Blades |
|---|---|
| Process Type | Knife – V-Cut |
| Compatible Machines / Models |
Kongsberg: XP/C; Zund: G3, S3; Gerber: MCT; |
| Cut Angle | 20° |
| Max Cut Length | 18.2 mm (0.717 inch) |
| Blade Thickness | 0.9 mm (0.035 inch) |
| Knife Type | Flat Stock |
JingWei JWei J351 V-Cut tool,V-cut blade

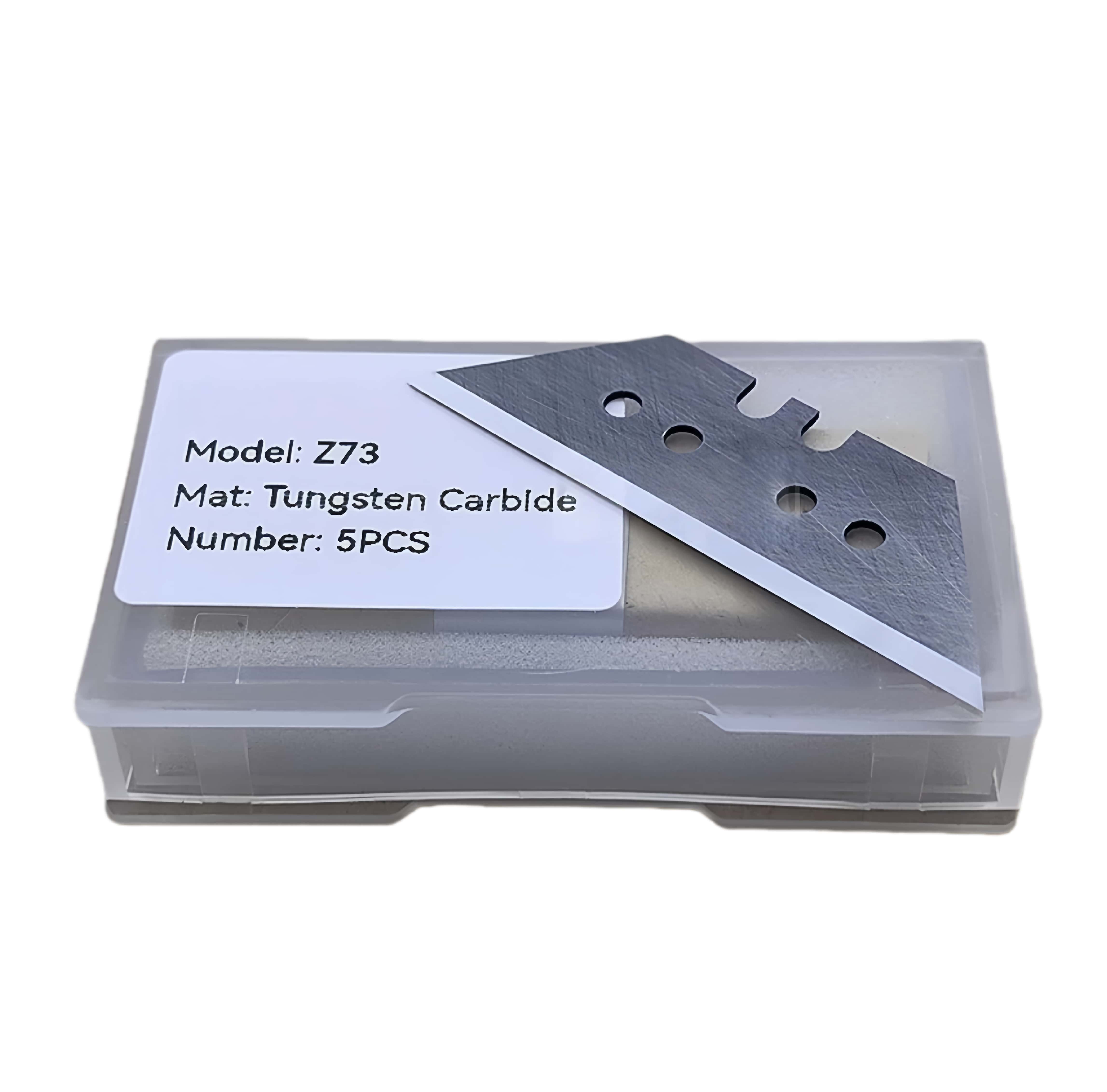

Zund S3 Z73 V-Cut Carbide Drag Knife Blade 5005572
Axyz BT1051X-20 Tangential Knives 61329: Super-Trapezoid Deep Edge Knife Blade
SUMMA 500-9825 Replacement V-Cut Knife Blade

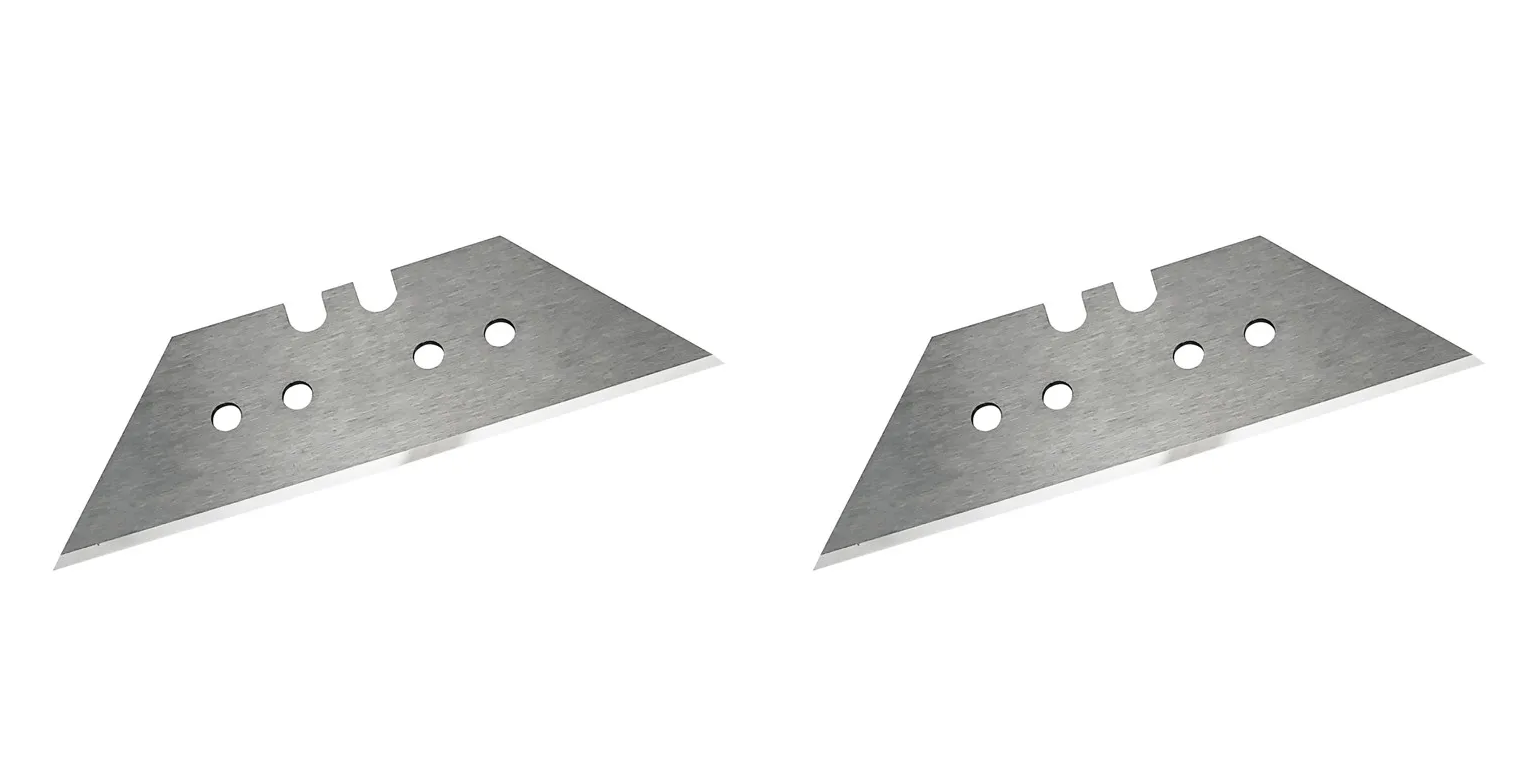

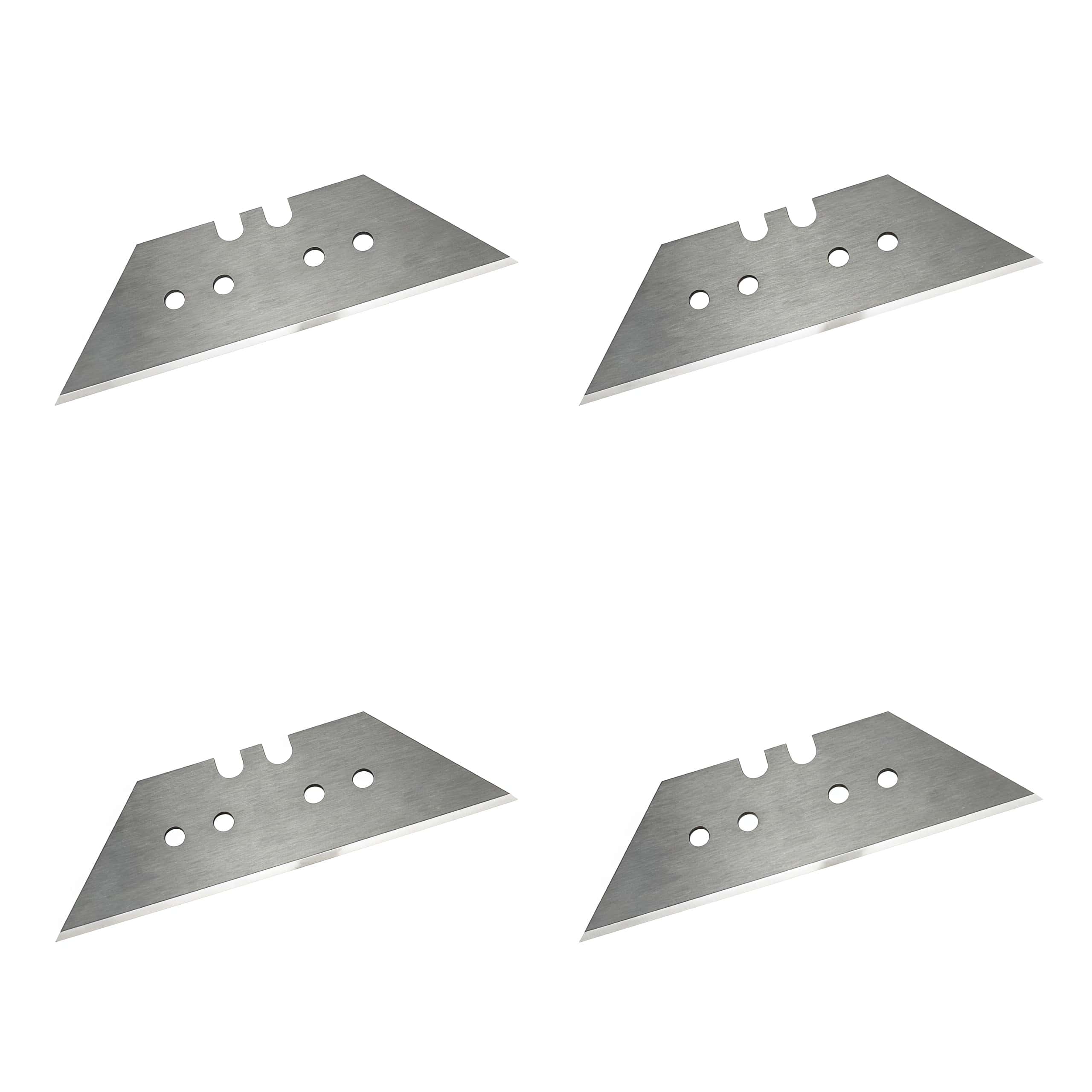

These blades are most commonly used for V-groove and angled cuts in materials such as foamboard, honeycomb board, cardboard, and plastics—essential in sign making, display construction, and packaging prototyping. Their trapezium shape and precise ground angle (typically 20°, around 18.2 mm long) allow for clean, accurate finishing of complex shapes and joints.
Users should match blades by machine compatibility (model, tool holder, clamp type) and cutting profile requirements. Tungsten carbide versions offer longer life and higher edge retention, especially for demanding continuous production runs.
If you need specialized blade types or custom shapes, Shenzhen Oyea Machinery Co., Ltd.provide bespoke manufacturing (with ultra-precise tolerances) as well as technical guidance to select the correct blade for your application.
This blade profile is compatible across not only Esko Kongsberg, Jwei, and Zund, but also Elitron, AXYZ, Summa, and Gerber flatbed systems, subject to tool holder and clamp compatibility.
Shenzhen Oyea Global sales： ensuring availability across Europe, the USA, the Middle East, and Asia with efficient shipping and customer service.Sold To Germany, France, The United Kingdom, Poland, The United States, Russia, Vietnam, Thailand, Indonesia, Singapore, The Netherlands, Switzerland, South Korea, Japan, Turkey, The Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, The Czech Republic And Other Countries Or Regions
