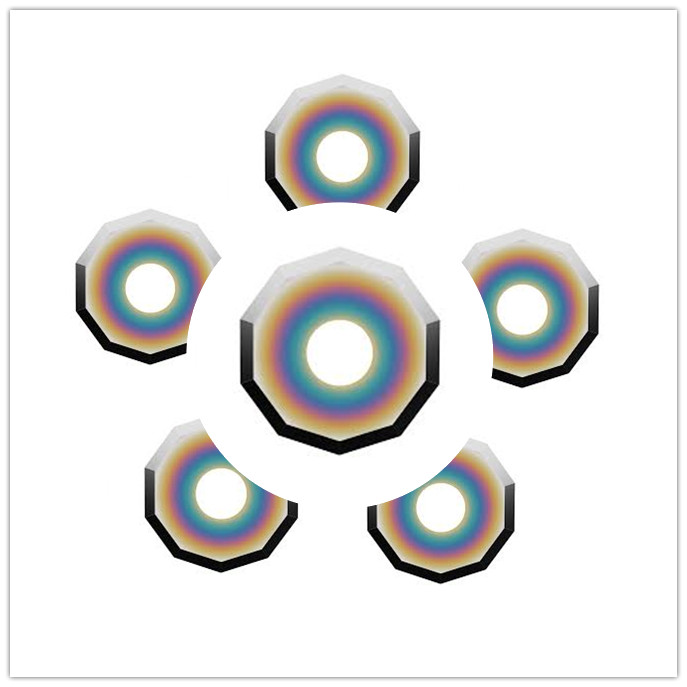

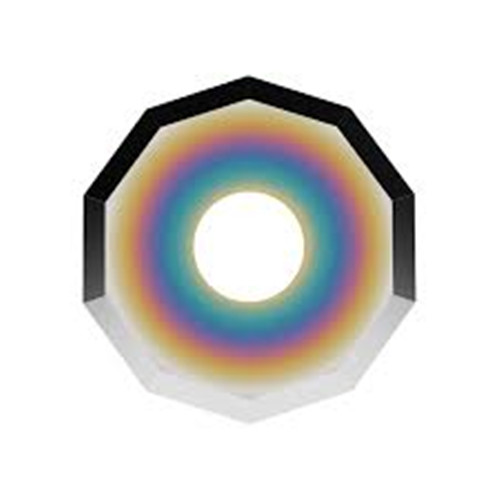

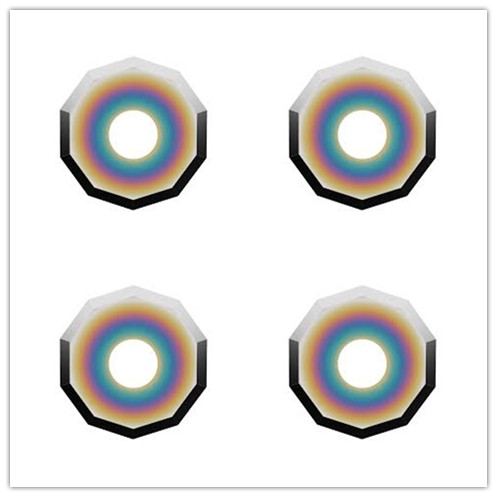

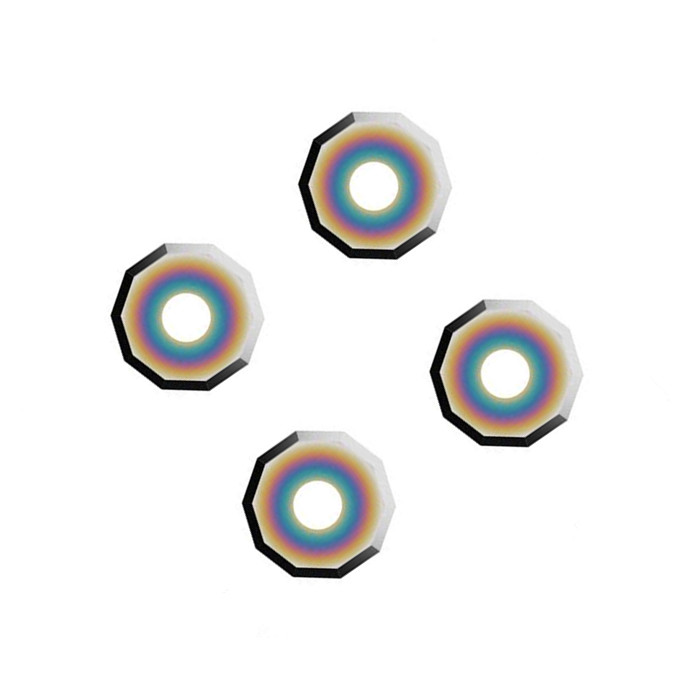

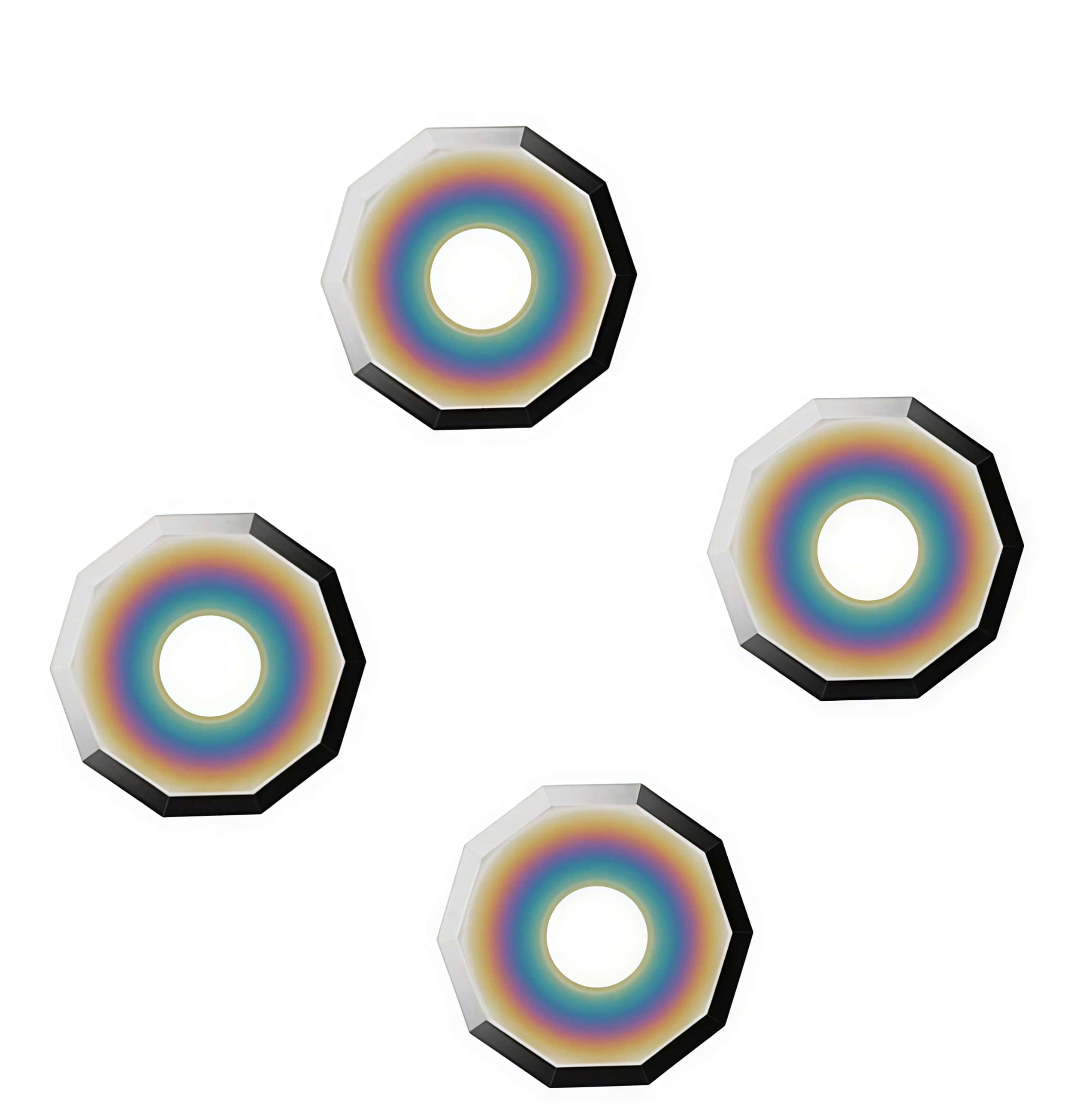

Blackman & White BW50B BW51B BW52B Coated Titanium Decagonal (10-sided) Knife Blades

Blackman & White BW50, BW51, and BW52 series are 10-sided (decagonal) rotary knife blades designed for high-speed CNC automated cutting tools, such as the ⁠Blackman & White CNC Knives range. Coated versions like Titanium Nitride (TiN) improve wear resistance and reduce friction during heavy-duty cut… Enquire now

Description

Blackman & White BW50B BW51B BW52B Coated Titanium Decagonal (10-sided) Knife Blades-For Sale Replacement

Blackman & White BW50B,Blackman & White BW51B,Blackman & White BW52B,Blackman & White Coated Decagonal Knife,Blackman & White Coated Decagonal Blade,Blackman & White Blade

These polygonal blades are primarily used on electrically powered rotary tools operating at up to 12,000 RPM. The unique 10-sided geometry prevents material drag and wire leakage when rolling or shearing through tough industrial fabrics.

Technical Specifications Overview

Blade Model	Outer Diameter (Knife Height)	Blade Thickness	Cutting Angle	Max Cutting Depth	Common Applications
BW50B	25.00 mm	0.60 mm	36°	3.5 mm – 5.0 mm	Standard synthetic textiles, canvas, light fiberglass.
BW51B	25.00 mm	0.60 mm	36°	5.0 mm	Intricate rotary contour cutting of technical fabrics.
BW52B	32.00 mm	0.60 mm	36°	7.0 mm	Thick materials, heavy felts, aramid, and multi-layer composites.

Note: All three models typically feature a standard 8.00 mm center mounting hole (aperture) to lock securely onto the tool arbor.

Material Composition & "Titanium" Coating

Base Core: These blades are manufactured from high-purity solid cemented tungsten carbide . Pure titanium is too soft to maintain a sustainable cutting edge for raw industrial cutting, so the core remains tungsten carbide to ensure rigid structural integrity.
The Coating: The "Titanium" designation refers to a high-performance Titanium Nitride (TiN) hard coat vapor-deposited onto the carbide surface. This golden/bronze coating reduces friction, dissipates heat buildup during high-RPM operations, and extends the overall blade lifespan by up to 3 to 5 times compared to uncoated options.

Cross-Brand Compatibility Matrix

These blades directly replace or cross-reference the following manufacturer part numbers:

Zund : Compatible with Z50,Z51, and Z52 circular/decagonal rotary blades (Part #3910335, #3910336, #3910337).
Esko Kongsberg : Replaces BLD-RC110 (Part #G42444844) BLD-RC111, and BLD-RC112.
Summa : Cross-compatible with Summa 500-0860 and 500-0861 rotary tools.
Gerber / MCT : Directly fits Gerber MCT R50

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
