Jingwei JWei Tungsten Steel Vibrating Blade for CNC Vibrating Knife Blade J333 J305 J310 J324 J343 J347 J351 J353 J367 J607-1 J371 J373 J374 J376 J381 J383 J384 J385 J391 J610 J629 J630 J631 J632
Jwei (Jingwei CNC) offers a comprehensive range of high-precision tungsten carbide cutting tools, purpose-built for use with Jingwei CNC flatbed cutting machines, including models such as CB, LST, TB, and the garment cutting series. The product lineup encompasses all critical consumables for the three main cutting modules of Jingwei systems: Oscillating Tool, Pneumatic Tool (POT/Heavy-Duty Cutting), and Electric Rotary Tool (DRT/Hollow Cutter). To streamline your factory's procurement, inventory management, and tool selection process, this guide categorizes these tools based on their specific head modules, physical attributes, and the materials they are optimized to process.
I. Vibrating Knife and Standard Drag Knife Series (J305 to J367, J607-1)
These blades are mounted via flat slots (typically 0.63mm or 0.64mm thick) and function through high-frequency vertical vibration or dragging methods to precisely cut materials. They vary by cutting angle, blade tip design, and cutting depth, optimized for specific applications:

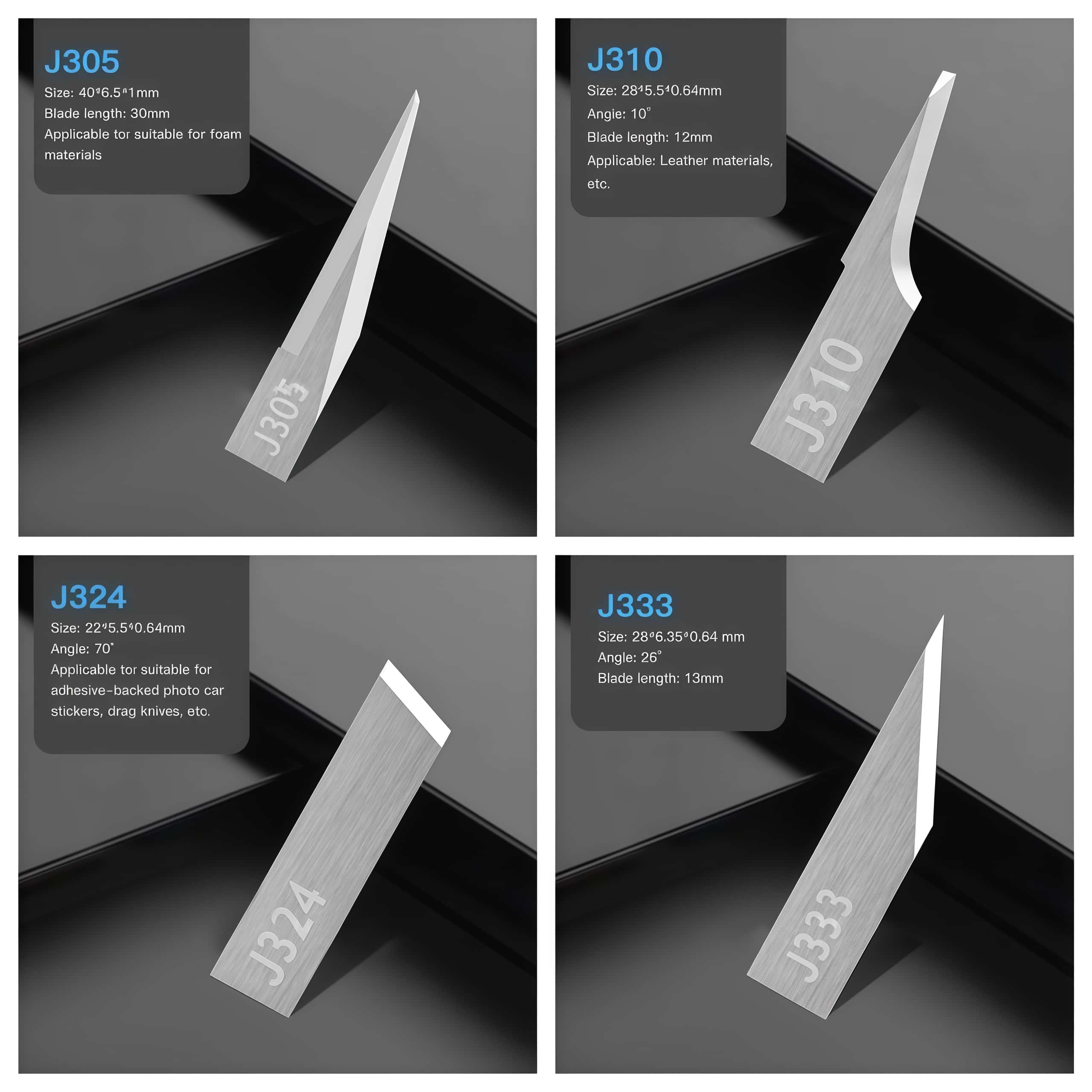

- J305/J310:All-purpose shallow cutters for single-layer adhesive labels, thin flexible PVC, coated paper, non-woven fabrics, and garment pattern papers.
- J324: Precision corner cutter with a sharp tip and asymmetric cutting edge for intricate work on high-hardness packaging boards and geometric patterns with tight radii.
- J333:A 26° pointed blade for high-speed V-cutting or straight cutting of single and double-layer corrugated cardboard (E-wall/B-wall) and linerboard. A preferred choice in packaging production.

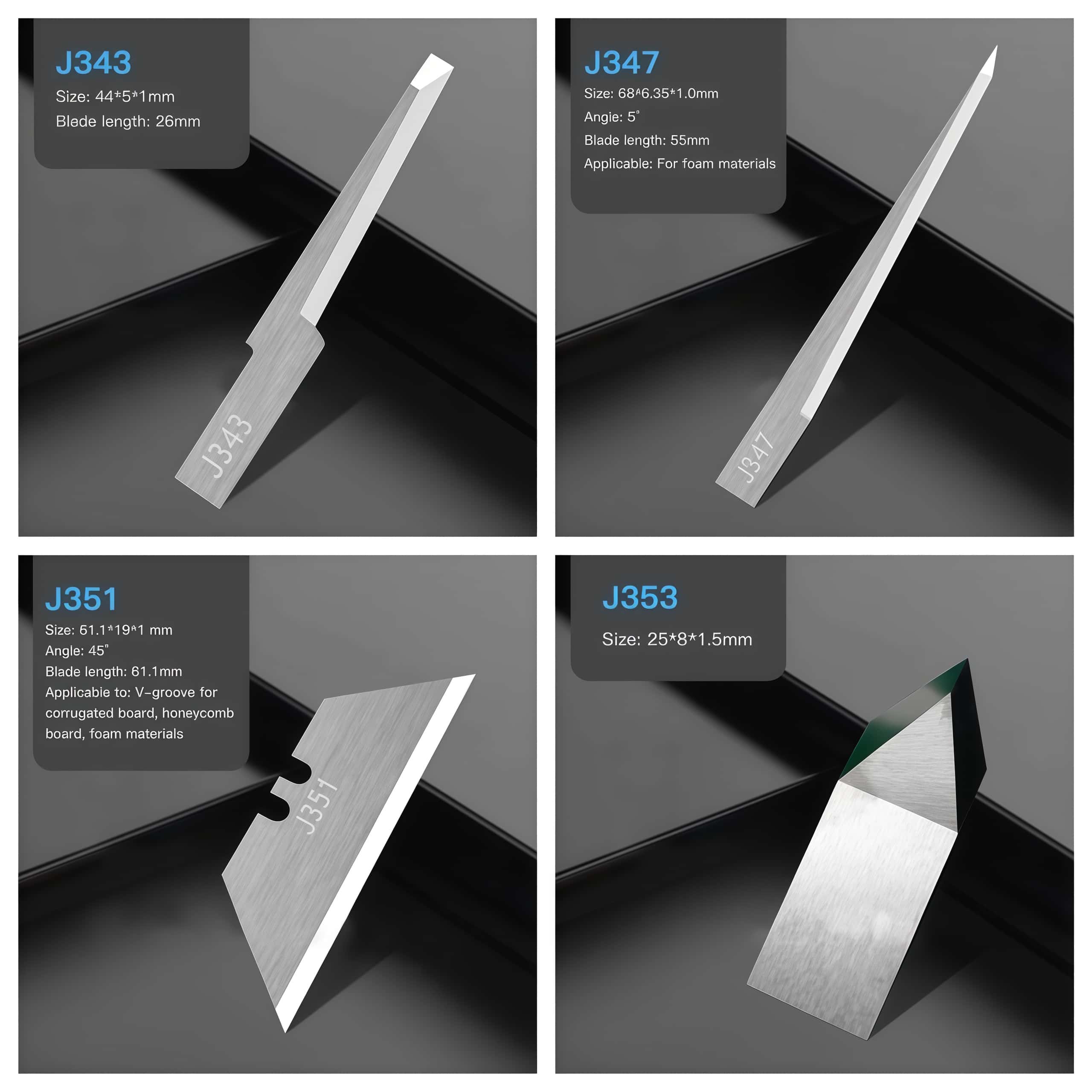

- J343/J347:Medium-depth cutters with extended dimensions, ideal for slicing 5mm–8mm composite boards, high-density foam boards, or automotive floor mats.
- J351/J353:Specialized blades for multi-layer sandwich panels, including honeycomb cardboard, thick KT boards, and hollow boards. Ensures perpendicular, precise cuts on both upper and lower surfaces.
- J367/J607-1: Special long-blade vibrating knives designed for high-power pneumatic operations or ultra-long stroke applications. Perfect for processing thick felts, pearl cotton (EPE), or sponges up to 20mm thick.
II. Electric Rotary Hob Series (J371 to J380)
This selection includes round or polygonal rotary blades (standard dimensions: 28mm outer diameter × 6mm inner diameter) designed to mimic scissor-like shearing with high-speed rotary motion, suitable for fabrics prone to fraying or pilling:
- J371: A pure circular blade (0.63mm thick) with smooth edges for precise curved cuts in single-layer silk and lightweight fabric garments.
- J373/J374: Decagonal cutters with 10 sharp edges, offering superior cutting power for durable materials like carbon fiber cloth, fiberglass, leather, and coated sunshade fabrics.
- J376:Thickened heavy-duty decagonal cutter (1.0mm thick), featuring unmatched torsional strength for slicing through automotive carpets, PVC foam boards, or multi-layered textiles.
III. Miniature Precision Tools and Eccentric Sliding Blade Series (J381 to J391)
Compact in size (e.g., 18mm OAL with approximately 3mm cutting edges), these tools are designed for use in kiss-cut modules or miniature blade holders:

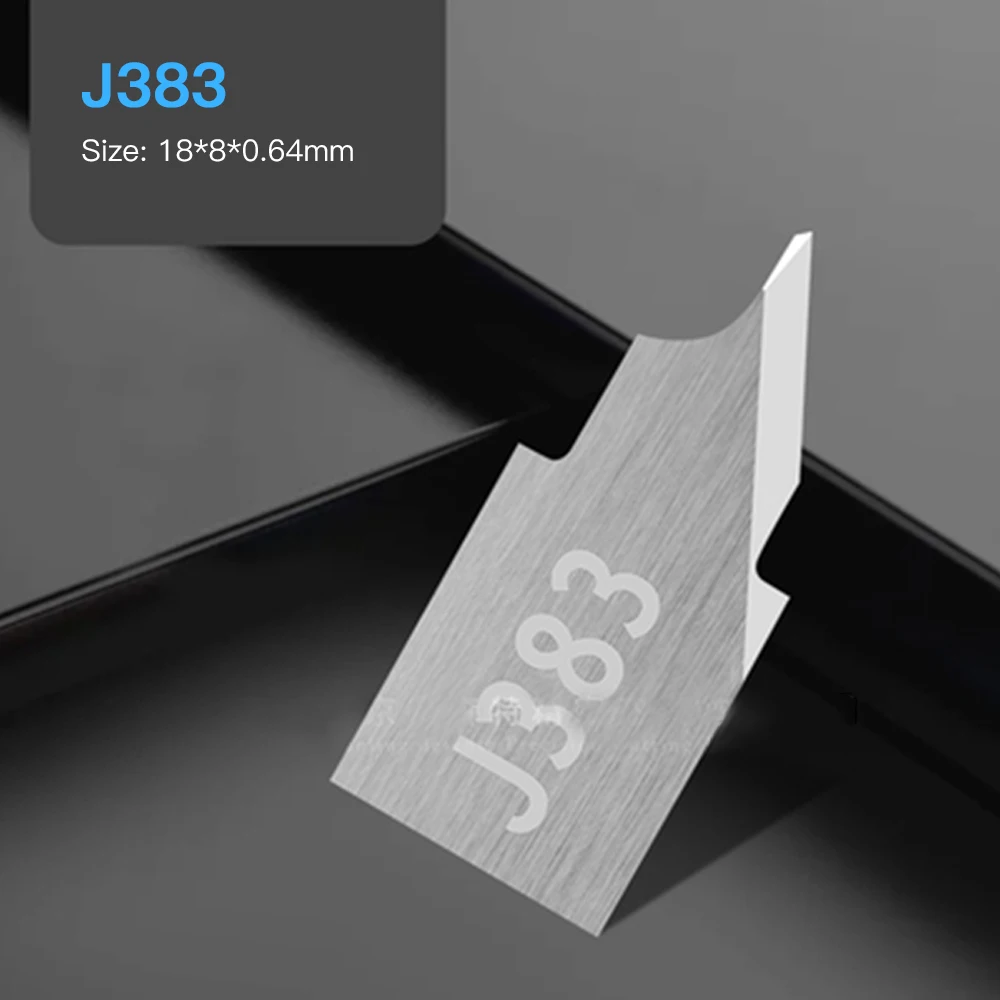

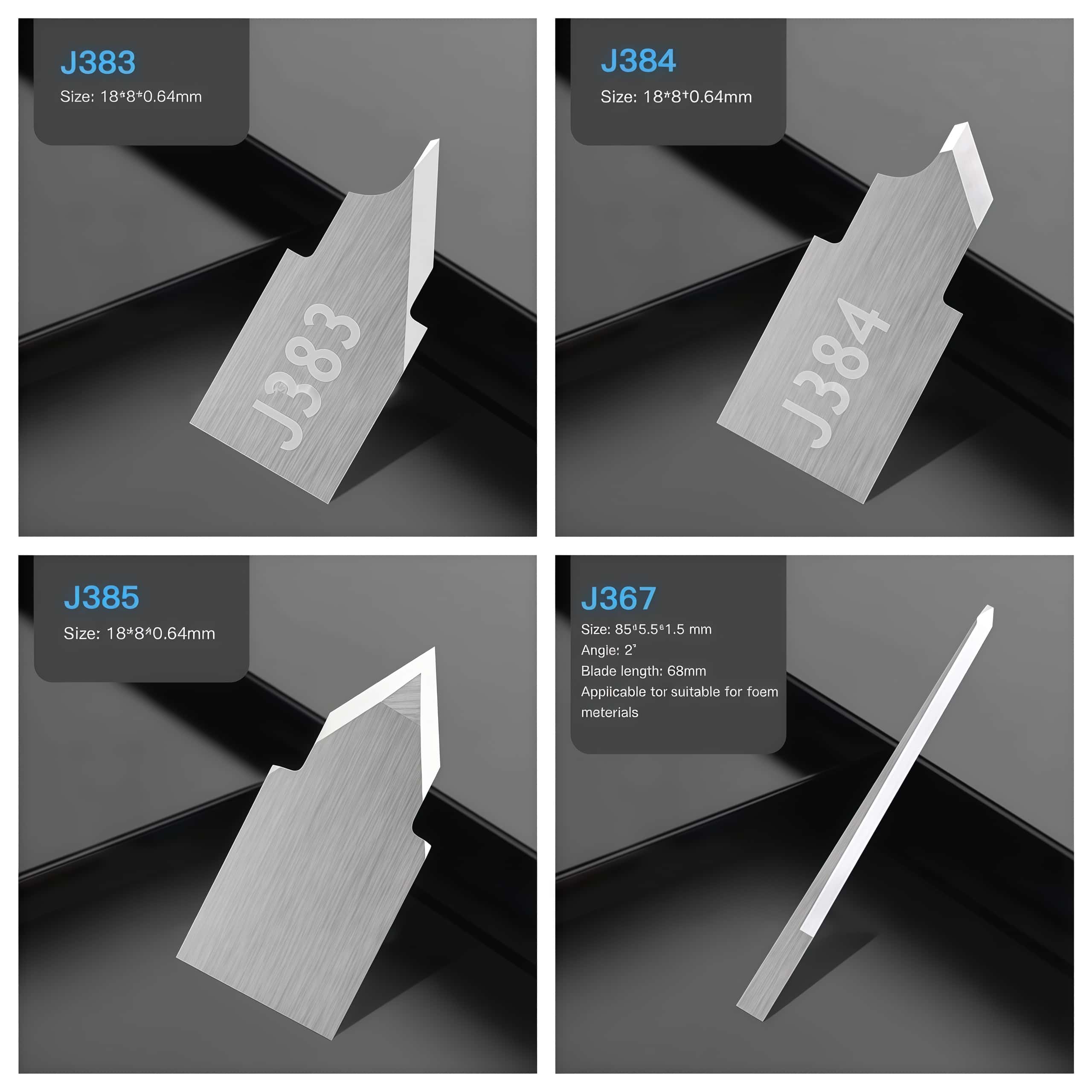

- J381/J383/J384/J385:High-precision miniature film cutters for executing delicate kiss-cuts that penetrate surface layers without damaging backing paper. Suitable for electronic die-cutting, automotive paint protection films (PPF), reflective films, and precision adhesive labels.
- J391:A specialized oblique blade drag cutter that auto-corrects rotational alignment during operation. Designed for high-speed cuts without vibrations on flexible packaging materials, PP adhesive strips, and ultra-thin PVC gaskets.
IV. V-Groove Slotting and Pneumatic Heavy-Duty Series (J610 to J632)
These tools consist of thick blades (1.0mm–1.5mm) or large-angle bent profiles designed to tackle rigid industrial-grade materials:
- J610:V-cut blades facilitate non-penetrative grooves (45°, 30°, or 60° angles) on dense materials like gray board, honeycomb panels, or high-density cardboard for seamless folding during package assembly.
- J629/J630/J631/J632:Heavy-duty pneumatic vibrating blades specifically designed for POT modules. Equipped with robust construction to endure larger stroke operations and cut a variety of tough industrial substrates.
By tailoring its tool offerings to specific material requirements and machinery configurations, Jwei ensures efficiency and precision across a wide range of industrial cutting needs. This detailed classification underscores their commitment to supporting optimal operational performance and ease of resource management for your business.
