Sinajet Y10, Y17, Y24, Y33 Flatbed Cutting System Rotary Knife Blades
Sinajet Y10, Y17, Y24, Y33 Flatbed Cutting System Rotary Knife Blades

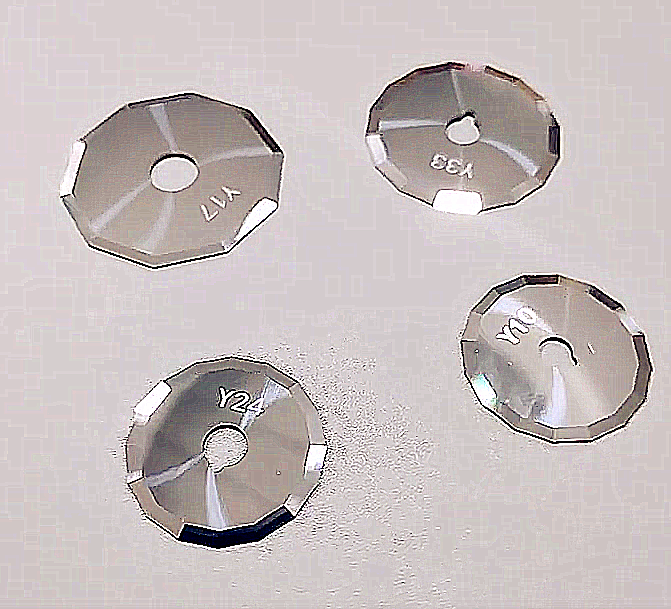

The SINAJET Y10, Y17, Y24, and Y33 are rotary knife blades designed for use with SINAJET flatbed cutting systems. These blades are crafted from tungsten carbide, known for its durability and wear resistance, making them suitable for cutting a variety of materials, including textiles, leather, garments, self-adhesive stickers, films, corrugated paper, KT board, carbon fiber honeycomb board, flexible PVC, advertising light sheets, carpet foam, and EVA sponge.

Blade Specifications:

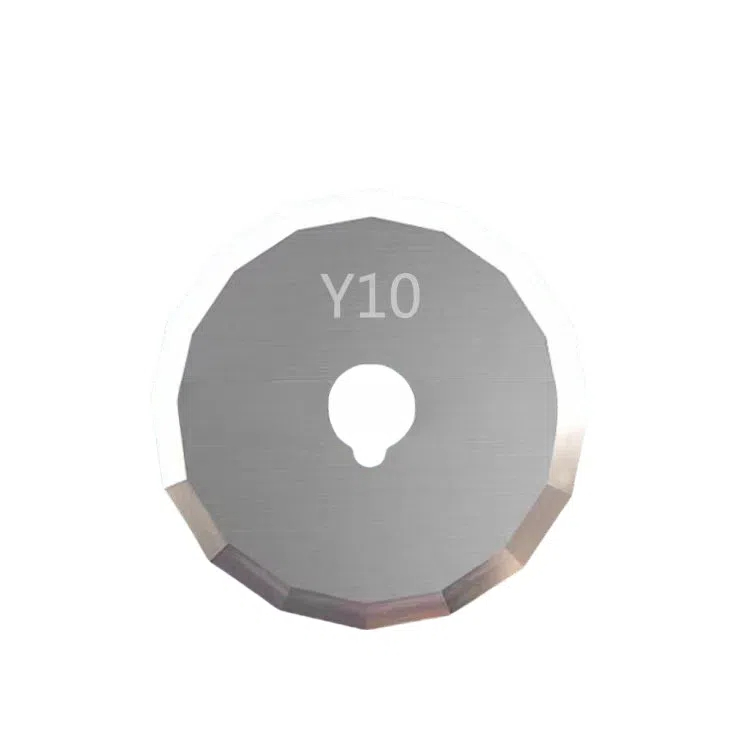

Y10: Outer diameter: 28 mm; Inner diameter: 5 mm; Blade thickness: 0.63 mm

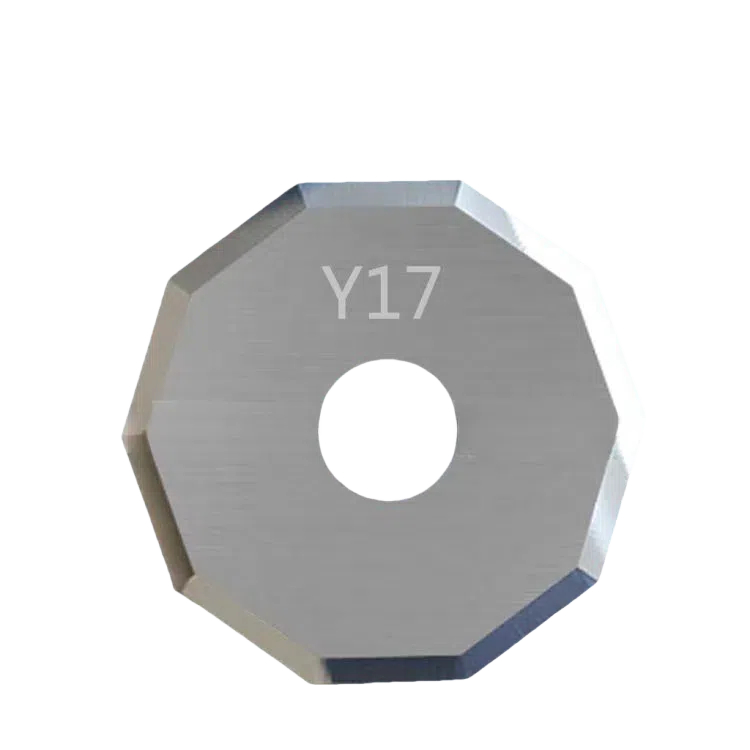

Y17: Outer diameter: 38.5 mm; Inner diameter: 8 mm; Blade thickness: 0.63 mm

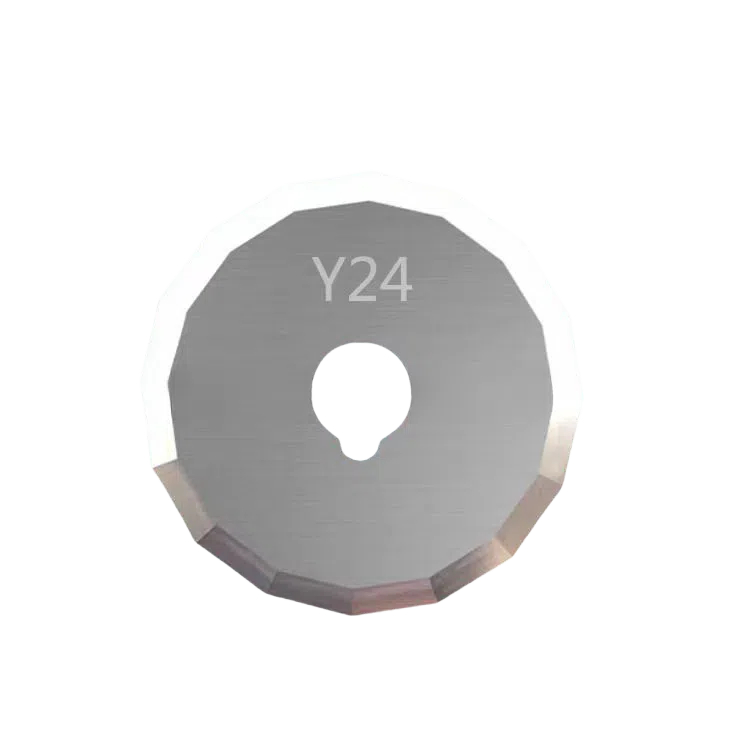

Y24: Outer diameter: 38.5 mm; Inner diameter: 8 mm; Blade thickness: 0.63 mm

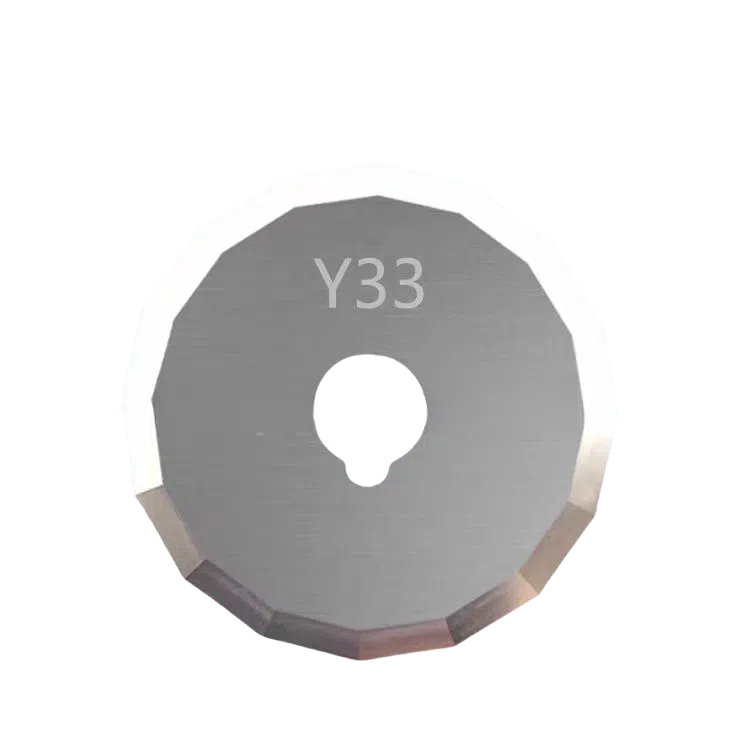

Y33: Outer diameter: 34.5 mm; Inner diameter: 6 mm; Blade thickness: 0.63 mm
These blades are known for their sharpness, providing neat and smooth cutting edges without burrs. They are also heat-resistant, allowing them to perform effectively in high-temperature environments.

Where to Purchase:
Shenzhen Oyea Machinery Co., Ltd.: This company offers Sinajet Cutter Carbide Rotary Knife Blades Y10, Y17, Y24, and Y33.
When selecting blades, ensure compatibility with your specific cutting system model and the materials you intend to process. Consulting with the supplier or manufacturer can provide additional guidance tailored to your cutting requirements.

Sinajet Y10,Sinajet Y17,Sinajet Y24,Sinajet Y33,Sinajet Flatbed Blades,Sinajet Cutting System Blades,Sinajet Rotary Blade
