What materials are best suited for the ZUND Z17 blades? Specifications and dimensions

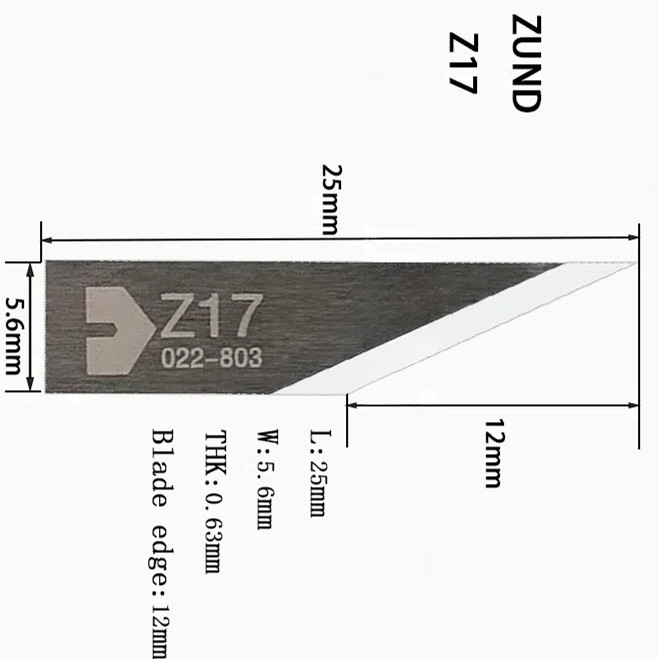

The ZUND Z17 blade is designed for precision cutting of various thin materials. Its specifications are as follows:
Angle: 65°
Overall Length: 25 mm
Useful Cutting Length: 12 mm
Thickness: 0.63 mm
Width: 5.65 mm
The blade is typically made from tungsten carbide, ensuring durability and sharpness.
The Z17 blade is compatible with ZUND cutting systems and is commonly used with Electric Oscillating Tools (EOT) and Pneumatic Oscillating Tools (POT).
Replacement for: XZ0017,BT-2317,Zund Z17 / 3910307,Esko T17, G42441220, 42441220, BLD-SF217, i-217,Bullmer B17,iEcho E17,Mecanumeric 100610390,COMPO008759,Blackman & White BW17,Comagrav FN12,Atom 01039894,Viliani 2157 T17,Ronchini RM-01039894
It is suitable for cutting a range of materials, including
Corrugated cardboard
Corrugated plastic
Felt
Foam board
Folding carton
Magnetic foil
Polyester fabric
Rubber
Sandwich board
Due to its design, the Z17 blade produces a smaller overcut compared to other blades like the Z16, though it may exert more drag force on the material. For optimal results, it is recommended to use the Z17 as an oscillating blade.
