SUMMA T Series Blade 30/45/60 Degree Tungsten blades Cutting Plotter Vinyl Cutter Knife For SUMMA T type Cutter
Replacement tungsten carbide blades for Summa T-Series tangential cutting plotters are available in standard 30°, 45°, and 60° angle variations.
Blade Angle Selection Guide
| Blade Angle | Best Application & Materials | Typical Cutting Depth |
| 30° / 36° Blade | Standard / Thin Vinyl: Standard lettering, delicate detail cutting, thin self-adhesive films, window tint. | Shallow (Up to 0.25mm) |
| 45° Blade | General Purpose: Medium-weight vinyl, heat transfer vinyl (HTV), cardstock, masking film. | Medium (Up to 1.0mm) |
| 60° Blade | Thick & Tough Media: Thick vinyl, reflective films, sandblast stencils, magnetic sheets, cardstock, felt. | Deep (Up to 1.2mm) |

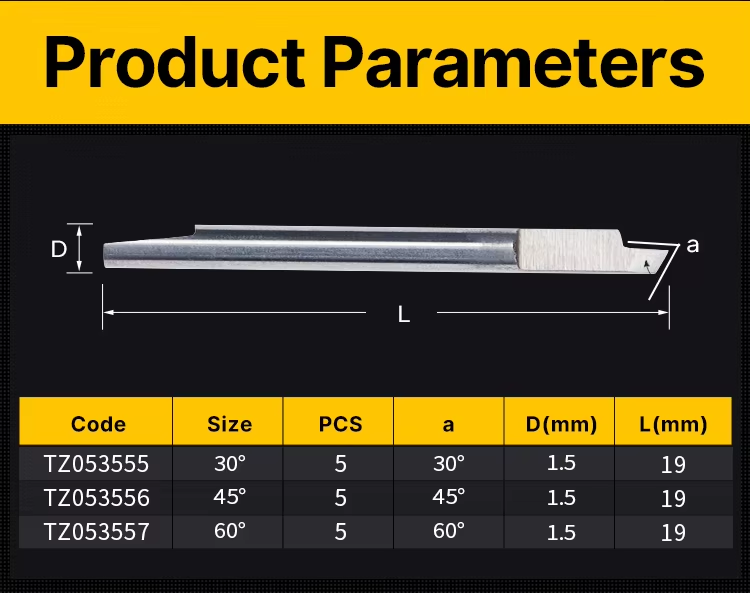

Examples of replacement blade kits for Summa T-Series cutters include:

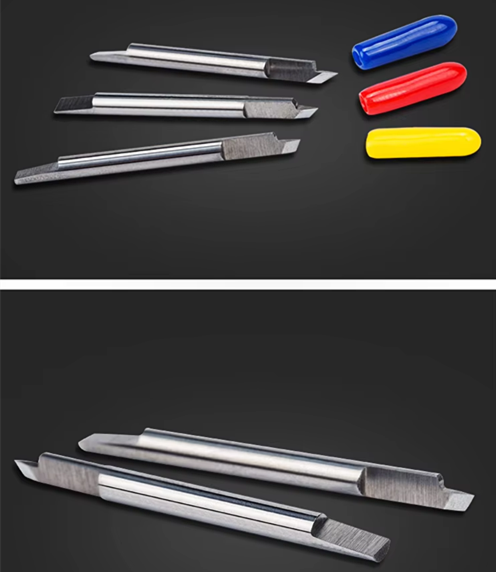

These double-edged tungsten carbide blades offer high wear resistance and provide precise cutting performance for cutting media of various thicknesses on Summa T-Series machines.
If you need assistance selecting specific Summa part numbers (e.g., 390-534 for 36° cutters or 390-550 for 60° cutters), or require compatible blade holders, please let me know!
