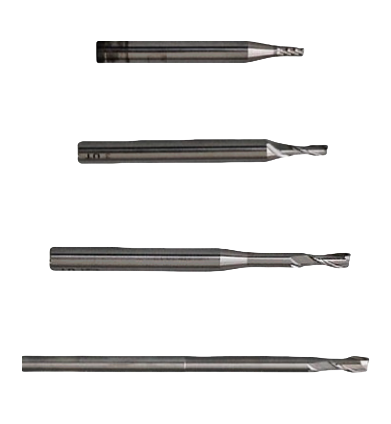

Mimaki offers a variety of end mills (milling cutter bits) specifically designed for their industrial cutting and modeling plotters, such as the CF2, CF3, and ME-II series. These bits are typically used for high-precision tasks like resin engraving, metal machining, and cutting thick substrates.
Core Mimaki End Mill Series
Official Mimaki end mills are often categorized by the specific machine and material they are intended for:
ME-II Series (Desktop Modeling Plotters): These bits are used for detailed 3D modeling and engraving.
End Mill ST 1.0: Standard 1.0mm diameter bit used with ME-300STII, ME-500STII, and ME-650STII models.
High-End Precision Bits:
SPB-0067: A dedicated end mill specifically designed for cutting resin materials.
Industrial Cutting (CF2/CF3/CFX Series): While these series primarily use blades, they also support milling heads for routing and deep cutting. Standard bit types for these industrial heads include:
Single-Flute End Mills: Ideal for fast material removal in softer substrates like plastic or foam.
Two-Flute Straight Bits: Used for cleaner finishes on materials like MDF and plywood where "furry" edges need to be minimized.

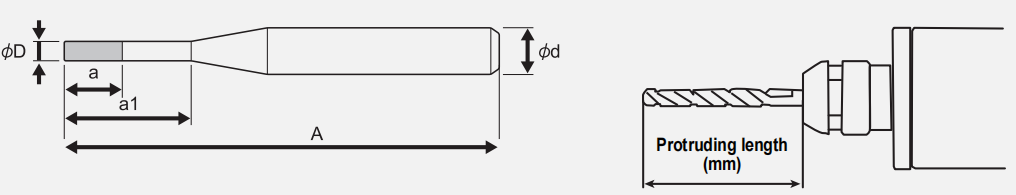

● End mill list
|
End mill type |
No. of
cutting
blades
|
Cutter diameter (φD) |
Cutter |
Effective |
Overall
length
(A)
|
Shank diameter (φd) |
Protruding |
Max. rotationspeed (× 1,000 rpm) |
Groove (mm) |
Side face cutting depth (mm) |
|
2 |
φ3 |
9 mm |
- |
60 |
φ6 |
21 |
40 |
1.5 |
4.5 |
|
|
2 |
φ3 |
12 mm |
- |
50 |
φ6 |
23 |
40 |
1.5 |
4.5 |
|
|
2 |
φ4 |
8 mm |
24 mm |
70 |
φ6 |
36 |
30 |
2 |
6 |
|
|
2 |
φ6 |
12 mm |
42 mm |
80 |
φ6 |
46 |
30 |
3 |
9 |
|
|
2 |
φ6 |
12 mm |
63 mm |
120 |
φ6 |
66 |
30 |
3 |
9 |
|
|
1 |
φ4 |
8 mm |
- |
50 |
φ6 |
16 |
40 |
2 |
6 |
|
|
1 |
φ3 |
6 mm |
- |
50 |
φ6 |
16 |
40 |
1.5 |
4.5 |
|
|
SPB-0103 |
1 |
φ6 |
12 mm |
- |
50 |
φ6 |
21 |
40 |
3 |
9 |
|
SPB-0104 |
1 |
φ6 |
22 mm |
- |
58 |
φ6 |
31 |
40 |
3 |
9 |
|
SPB-0105 |
1 |
φ6 |
32 mm |
- |
100 |
φ6 |
46 |
30 |
3 |
9 |
|
Model No. |
Shank diameter |
|
SPA-0369 |
φ6 |
-
