The part numbers Aristo 000007354, MultiCam 84-00193-BT-57268 (also cataloged as 003612-MC7354), and AXYZ B1041L-25 all refer to the exact same solid tungsten carbide round shank oscillating knife blade. Because major flatbed digital cutting and CNC routing tables share standard 6mm tool configurations, these components are 100% physically interchangeable

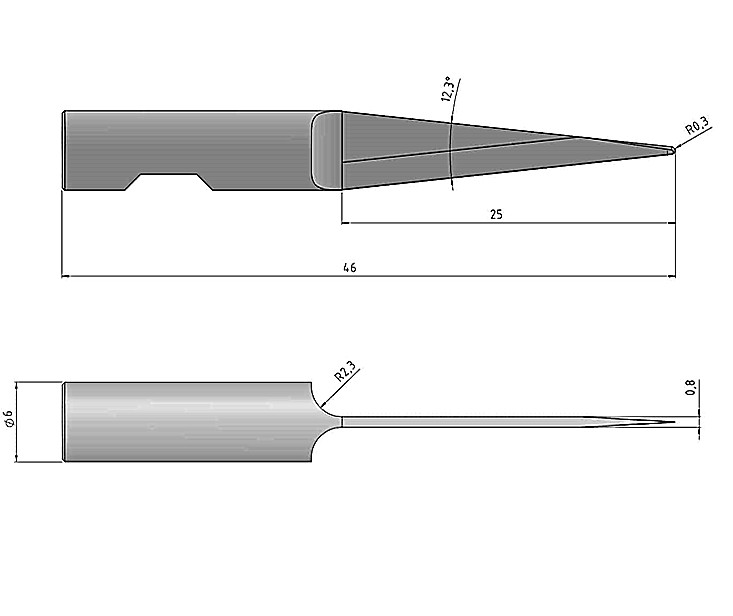

Round Shank Knife Blade, single- edged, oscillating, rounded tip
ANGLE
85°
KNIFE HEIGHT
46,00 mm
MAX. CUTTING DEPTH
25,00 mm
KNIFE TYPE
Oscillating blade, Weldon
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
round Ø 6 mm
Primary Material Applications
Equivalent to: XK3025-ORP BT-57268 Aristo 7354, Aristo 000007354, Aristo 0000 07354, MultiCam 84-00193-BT-57268, MultiCam 003612-MC7354 ,AXYZ B1041L-25,Kuris 78558, Valiani 001897
Round Shank Knife Blade, single- edged, oscillating, rounded tip
ANGLE
85°
KNIFE HEIGHT
46,00 mm
MAX. CUTTING DEPTH
25,00 mm
KNIFE TYPE
Oscillating blade, Weldon
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
round Ø 6 mm
Machine Module Compatibility
This universal blade fits into the following specific manufacturer cutting heads:
- Aristo Tooling: Designed for high-frequency pneumatic oscillation units found on MultiHead IV and V systems (requires standard Part No. 0000 07553 tool holder).
- MultiCam CNC Tables: Installs natively into MultiCam CNC routers equipped with a tangential or oscillating knife option block.
- AXYZ Routers: Compatible with the standard AXYZ oscillating knife tools used heavily in structural packaging and foam fabricating setups.
Primary Material Applications
Because the 83.9° angle creates an incredibly sturdy wedge profile, it handles dense or deep materials that stall out standard drag knives:
- Packaging & Signage: Thick double-wall or triple-wall corrugated cardboard, honeycomb composite board, and heavy display fluting.
- Foams & Insulation: High-density foam board, closed-cell EVA, soft foam cores, and technical insulation layers.
- Industrial Fabrics: Heavy felt mats, real leather hide blanks, multi-ply canvas, polyester fabric, and aramid/carbon fibers.
- Tough Films: Heavy-duty reflective road-sign vinyl, thick tarpaulin PVC sheets, and flexible magnetic foil backing rolls
Equivalent to: XK3025-ORP BT-57268 Aristo 7354, Aristo 000007354, Aristo 0000 07354, MultiCam 84-00193-BT-57268, MultiCam 003612-MC7354 ,AXYZ B1041L-25,Kuris 78558, Valiani 001897
