IECHO E10, E11, E12, and E13 series carbide blades are high-precision cutting consumables specifically designed for IECHO CNC digital cutting machines (such as the BK3, TK3S, and PK series).This series encompasses two core types: drag blades and oscillating/vibrating knives, both made of high-purity tungsten carbide, offering exceptional wear resistance and cutting sharpness.
|
Blade No |
Image |
Description |
Compatible |
|

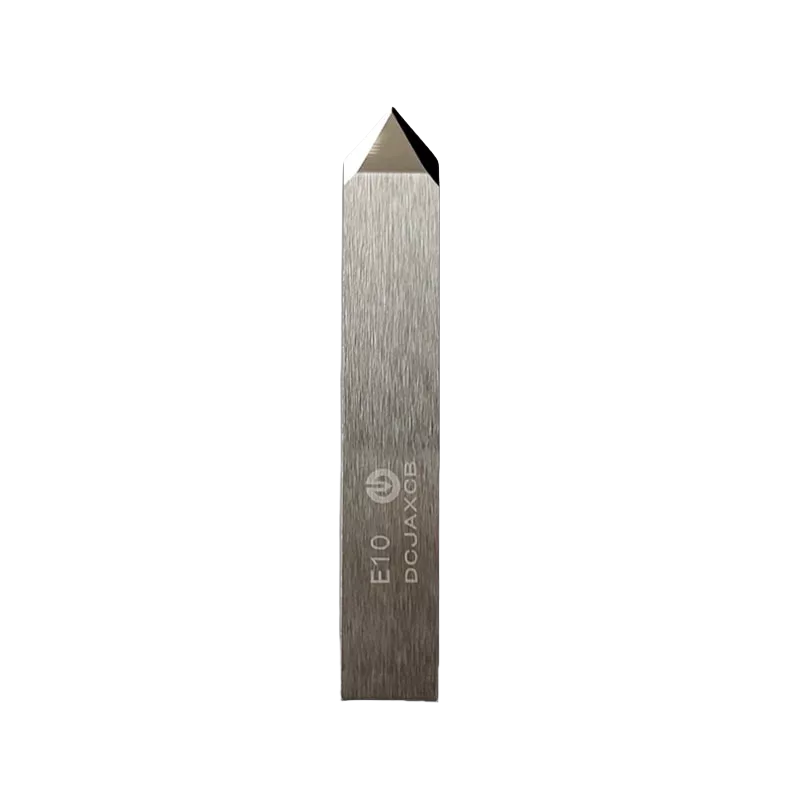

iEcho E10C Drag Knife blade flat-stock |
 |
50*8*1.5*4.8 |
Zund Z10 3910301 Bullmer B10 iEcho E10C Comagrav E10 |
|

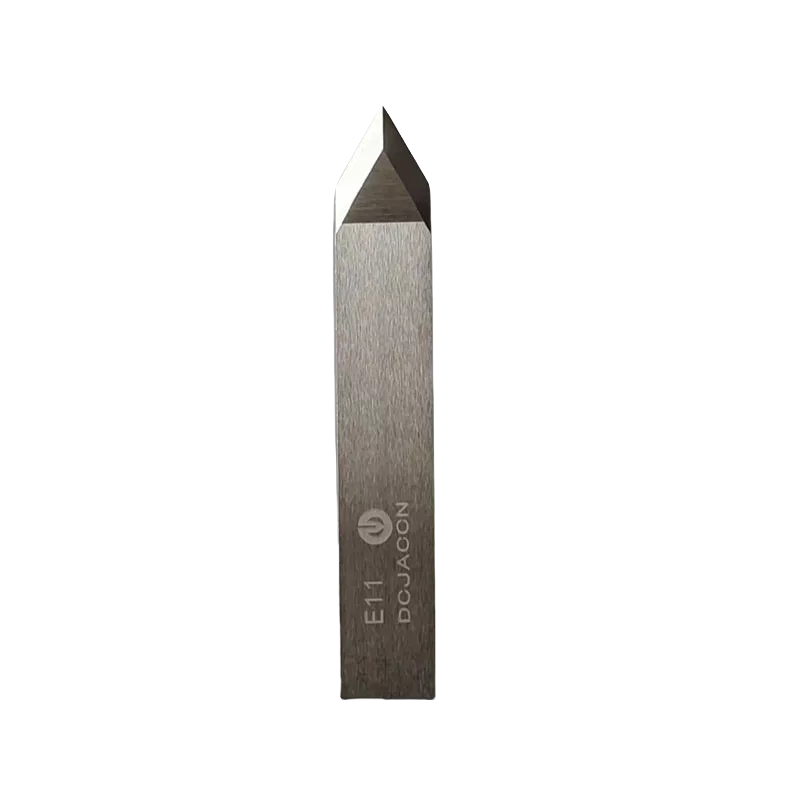

iEcho E11C, Drag Knife blade, flat-stock |
 |
50*8*1.5*4.8 |
Zund Z11 (3910309), Bullmer B11 (069723), Comagrav E11,iEcho E11C |
|

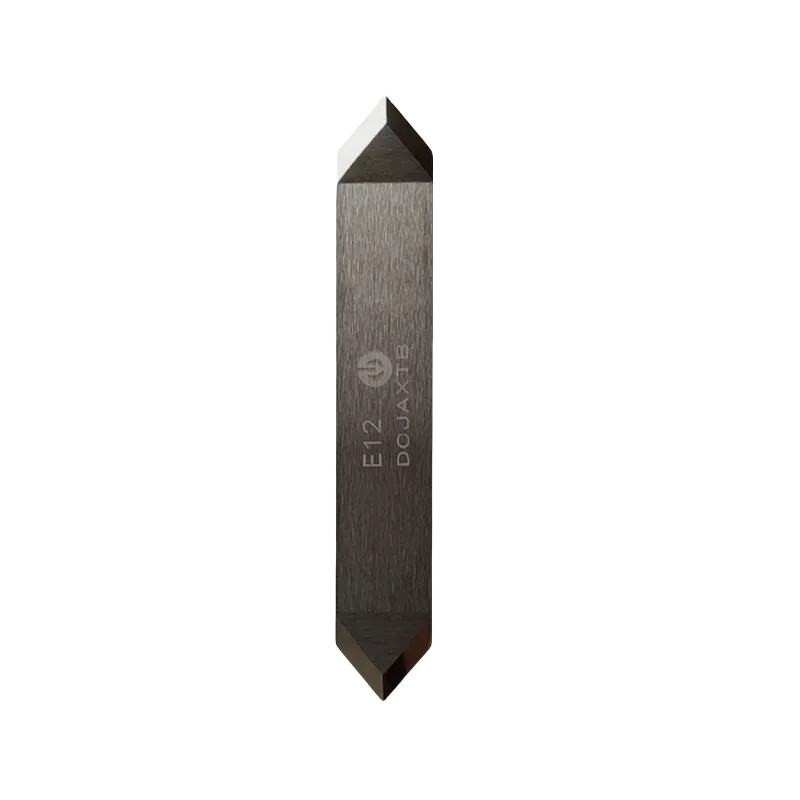

iEcho E12c Knife Blade |
 |
50*8*1.5*4.8 |
Zund 3910320 Z12 iEcho E12 Esko Kongsberg 42441196 G42441196 BLD-DF212 i-310 i-312 T12 Dyss AGDYB140 Blackman & White BW12 |
|

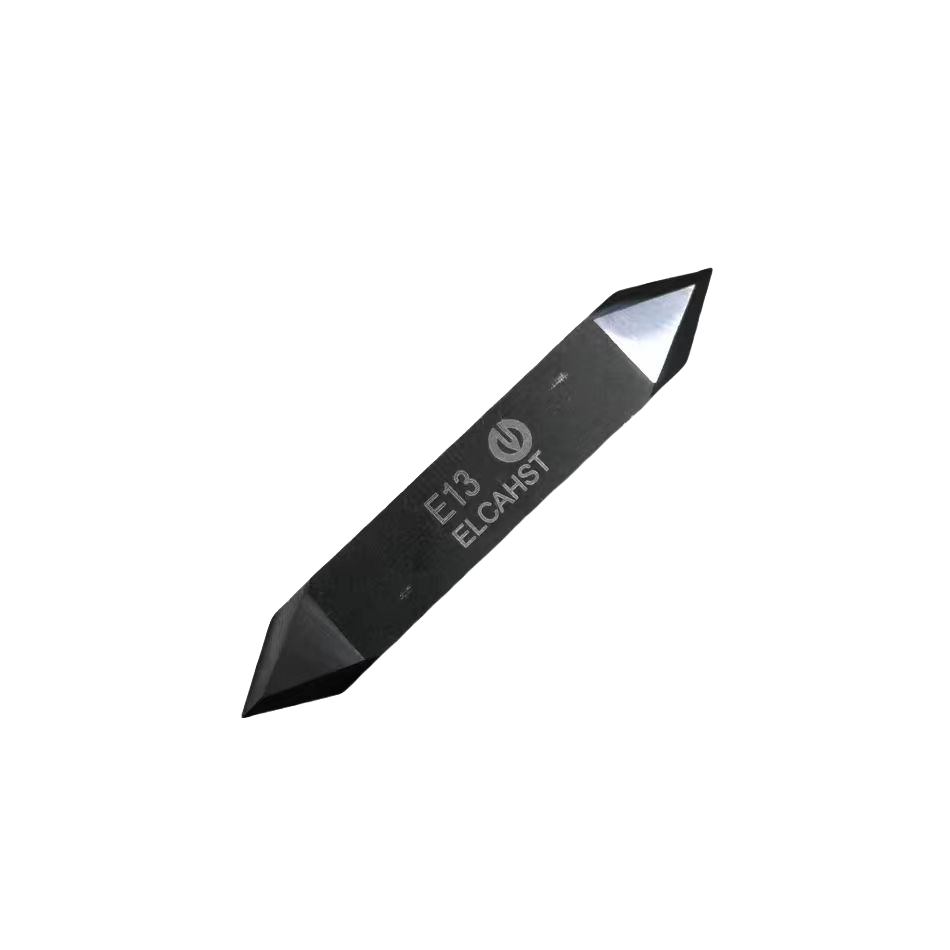

iEcho E13 Knife Blade |
 |
50*8*1.5*4.8 |
AXYZ 26082,iEcho E13,Comagrav E13, ZUND 3910321 Z13, Atom 01033925, Dyss AGDYB140, Esko Kongsberg 42441204 G42441204 BLD-DF213 i-313 i-311 T13,Blackman & White BW13 |
Core Models and Processing Applications
Based on different cutting processes and tool heads, the main models and applications of this series are as follows:
-
E13 (Double-ended drag blade/vibrating blade) :
- Process types : Common types include E13 double-headed double-edged drag cutter (Flat-Stock 1.5mm thickness) and E13C vibrating cutter .
- Cutting characteristics : The E13 slasher typically has a 60° cutting angle , and its double-end design doubles its cutting life, with a maximum cutting thickness of 7mm.
- Applicable materials : PVC banners, corrugated paper, cardboard, leather, soft and hard foam, canvas, reflective film and thin wood .
-
E10 / E11 / E12 (Flat-mounted blades) :
- Process type : Mostly used in high-performance drag knife modules or light-duty vibrating knife modules .
- Applicable materials : self-adhesive labels, vehicle wraps, PP films, slotted cardboard, single-layer leather, and flexible transparent PVC film .
Core Advantages of Carbide (Tungsten Carbide) Cutting Tools
- High wear resistance : Made of pure cemented carbide and precision ground, it has a significantly longer service life than traditional steel blades, reducing the frequency of blade replacement .
- Burr-free cuts : The blade is flat and sharp, and the high shearing force ensures that the edges of various composite materials and high-density boards are neat and smooth .
- High-frequency vibration resistance : Under the high-frequency vertical reciprocating vibration of tens of thousands of times per minute of the vibrating knife (EWT module) , the blade can still maintain extremely high structural stability and is not easy to chip.
