Zund Z1 Z2 Z3 Z4 Z5 Round Drag Knife Blades For Zund G3, S3, D3 Machine For Sale Replacement

Zund Z1 Z2 Z3 Z4 Z5 Tungsten Steel Round Drag Knife Blade For Zund G3, S3, D3 Machine For Sale Replacement

Zund Z1,Zund Z2,Zund Z3,Zund Z4,Zund Z5,ZUND BLADE,ZUND Knife Blade

Zund Z1 through Z5 blades are solid tungsten carbide round-stock drag blades designed for precision cutting in Zund digital cutters. These blades are primarily used with tools like the KCT (Kiss Cut Tool), C2, and C2P for handling thin, flexible materials

Model	Max. Cutting depth (mm)	Length (mm)	Thickness (mm)	Applicable	Picture

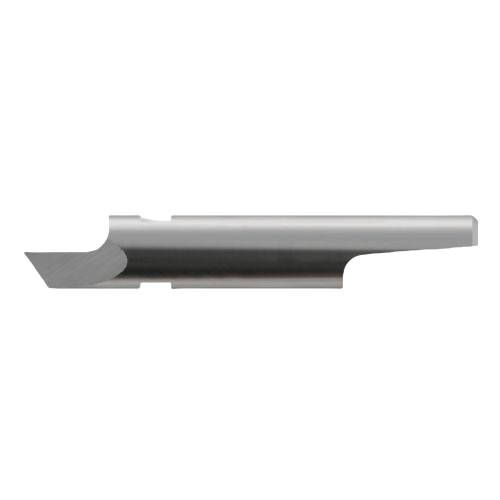

ZUND Z1	1.0	18.5	Φ3.0	Zund Z1,Jwei J301,Esko Kongsberg Bld-Kc101,Iecho E1,Blackman & White Bw Kiss Cut 1,Bullmer 069720 B1

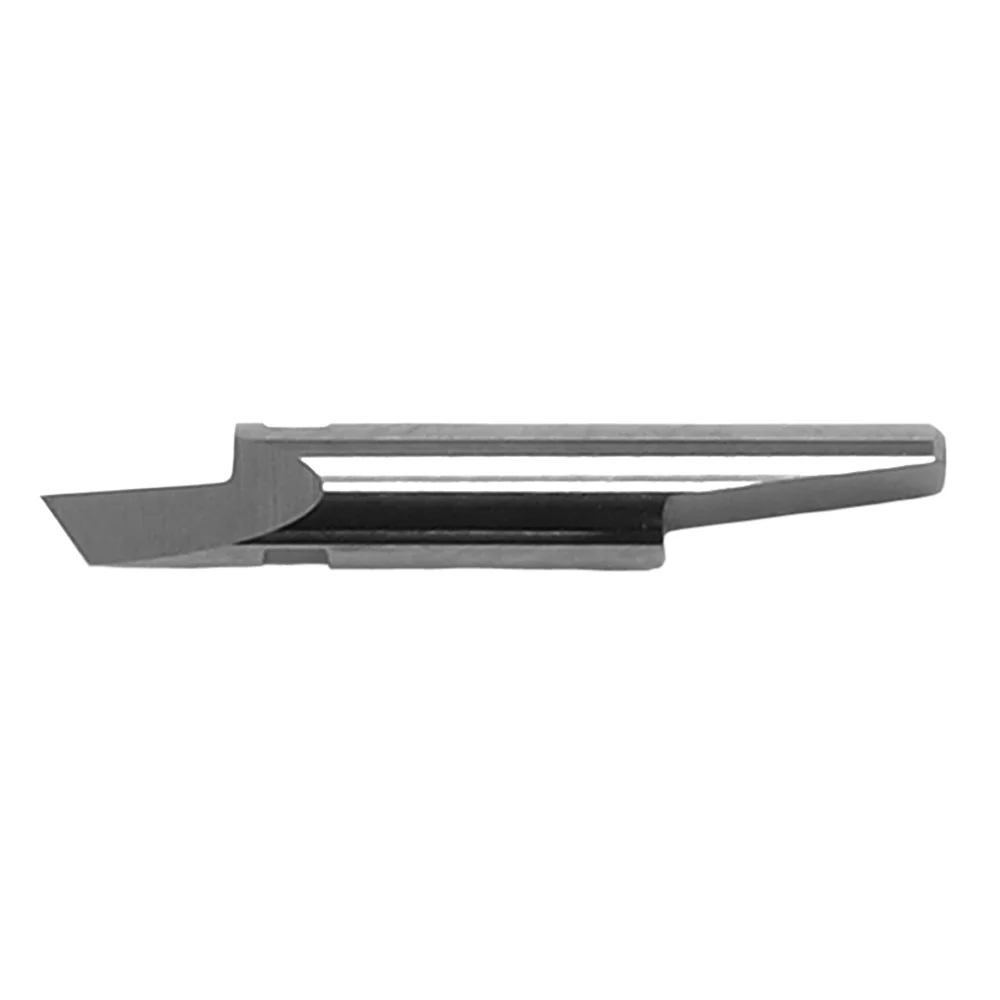

ZUND Z2	1.0	18.5	Φ3.0	Zund Z2,Esko Kongsberg G42438507 42438507 BLD-KC102 i102 KC12,iEcho E2,Blackman & White Bw Kiss Cut 2

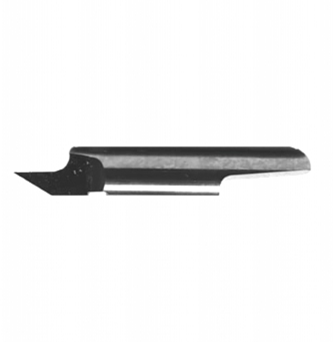

ZUND Z3	1.0	18.5	Φ3.0	ZUND 3910115 Z3,Esko Kongsberg G42458323 42458323 BLD-KC103 KC13,Bullmer 069738 B3,Blackman & White Bw Kiss Cut

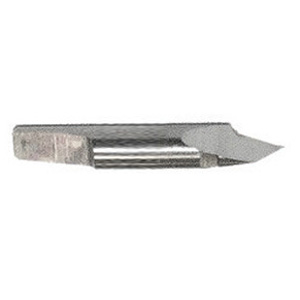

ZUND Z4	2.1	18.5	Φ3.0	Zund 3910116 Z4,Esko Kongsberg G42447532 42447532 BLD-KC104 KC14,Blackman & White Bw Kiss Cut 4,Gerber MCT KC4 895004

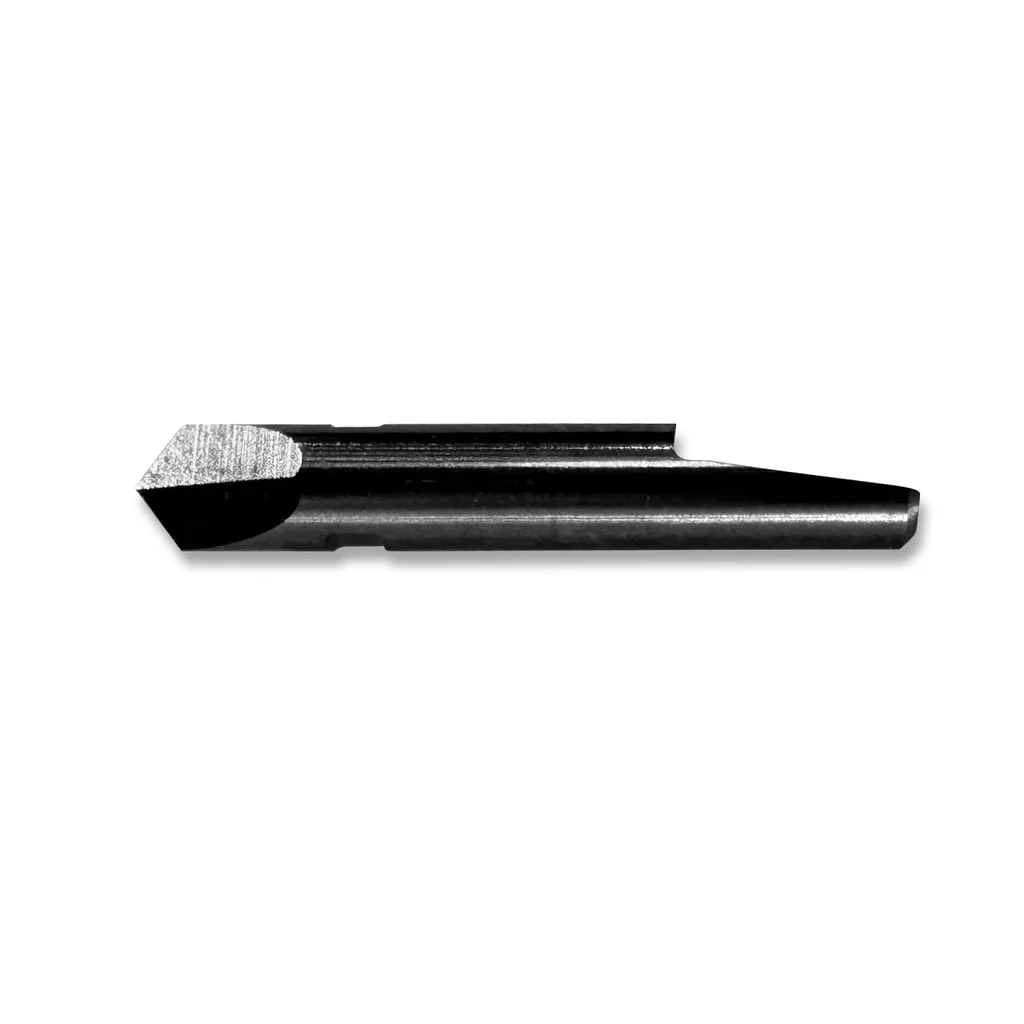

ZUND Z5	2.6	18.5	Φ3.0	Zund 3910117 Z5,Esko Kongsberg G42458331 42458331 BLD-KC105 KC15 i-105,Blackman & White Bw Kiss Cut 5,Gerber MCT KC5 895005,Gerber MCT KC5 895005 Drag Knife Blade

Key Specifications & Applications
Material: Made from high-quality tungsten carbide, offering significantly better durability and edge retention than high-speed steel.

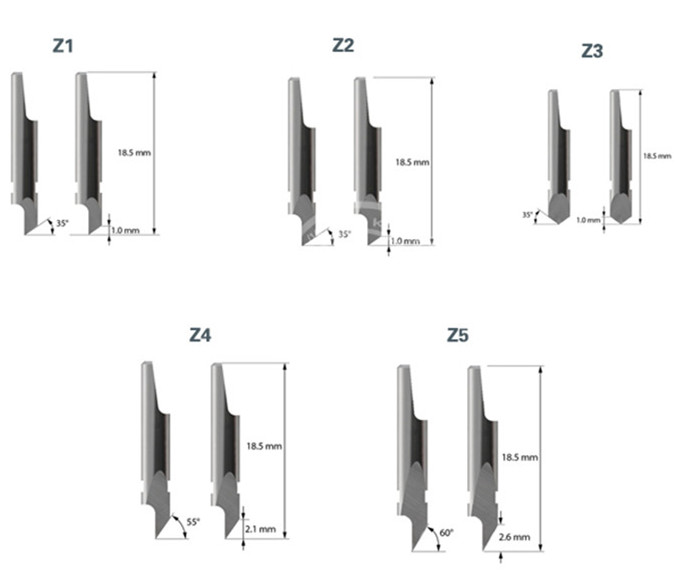

Geometry: Most of these blades (Z1, Z2, Z3) have a 35° cutting angle and a 3 mm diameter shank.
Target Materials:
Vinyls: Standard, reflective, and 3M varieties.
Foils/Films: Magnetic foil, masking film, and polycarbonate films.
Heavy Paper: Cardstock, pattern materials, and thin folding cartons.
Precision: These blades are often used for "kiss cutting," where only the top layer of a multi-layer material is cut while leaving the backing intact.

Shenzhen Oyea Global sales： ensuring availability across Europe, the USA, the Middle East, and Asia with efficient shipping and customer service.Sold To Germany, France, The United Kingdom, Poland, The United States, Russia, Vietnam, Thailand, Indonesia, Singapore, The Netherlands, Switzerland, South Korea, Japan, Turkey, The Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, The Czech Republic And Other Countries Or Regions
