Suitable for:
Magnetic foil
Masking film
Polycarbonate film
Cardstock
Faux carbon fiber
Reflective vinyl
Sandblast masking film
Self adhesive vinyl
Window perf
3M vinyl
Avery Dennison vinyl
Quick Comparison of Blade Specifications
|
Blade Model |
Part Number |
Max Cut Depth |
Recommended Applications |
|
G42438499 |
1.0 mm |
Standard self-adhesive vinyl, masking film, cardstock |
|
|
G42438507 |
1.0 mm |
Thicker/tougher adhesive foils, reflective/reflex foil |
|
|
G42476499 |
1.0 mm |
Asymmetric blade for clean edges on thin materials |
|
|
G42458323 |
1.0 - 2.6 mm |
Fine double-edged blade for small lettering |
|
|
G42447532 |
2.1 mm |
Sharper general-purpose blade for fine detail |
|
|
G42458331 |
2.6 mm |
Fine tip with very low overcut for soft materials |
|
|
G42458349 |
2.4 mm |
Robust all-round blade for large radii and thick vinyl |
Blade Highlights & Material Compatibility

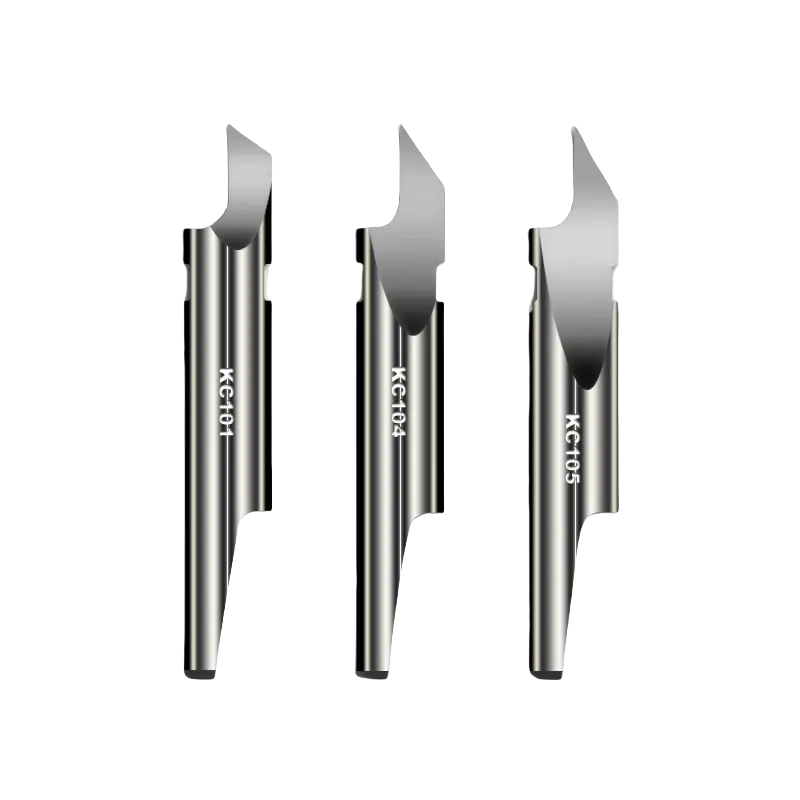

Precision Cutting: The KC103 and KC104 are optimized for fine details, such as intricate vinyl lettering, where minimal overcut is required.
Specialty Blades: The KC102A is an asymmetric version of the standard KC102, designed to "plough" burrs to one side for a cleaner finish on the opposite edge.
Heavy Duty: For thicker materials like tarpaulin or diamond-grade reflective film, the KC154 and KC105 provide deeper cutting capabilities up to 2.4mm and 2.6mm respectively
Knife material: Solid tungsten carbide
Application:
Zund digital cutter G3, S3 + Kiss-cut Tool (KCT) with Insert Sleeve 40, C2 / C2P, Zund Kiss-cut Module (KCM-S)
ESKO, Kongsberg XE, C, XL, XN, XP, V
Gerber MCT
Multicam
Jwei
Iecho
