Esko Kongsberg Cutting System Kiss-Cut Knife Blade Overview
ESKO and Kongsberg Precision Cutting System are two more manufacturers of flatbed tables for digital cutting. These companies were previously a single entity but have since separated. Nevertheless, the technology and blades for kiss cut and die cut digital cutting are appropriate for both manufacturers.
Likewise Zund, ESKO or Kongsberg KCT and knives are designed for precise cutting in materials like adhesive vinyl, foil, reflective materials, window film, masking film, and thin PVC. Kiss-Cut tools are compatible with X Edge, X Series, C Edge, and C Series Cutting Systems.

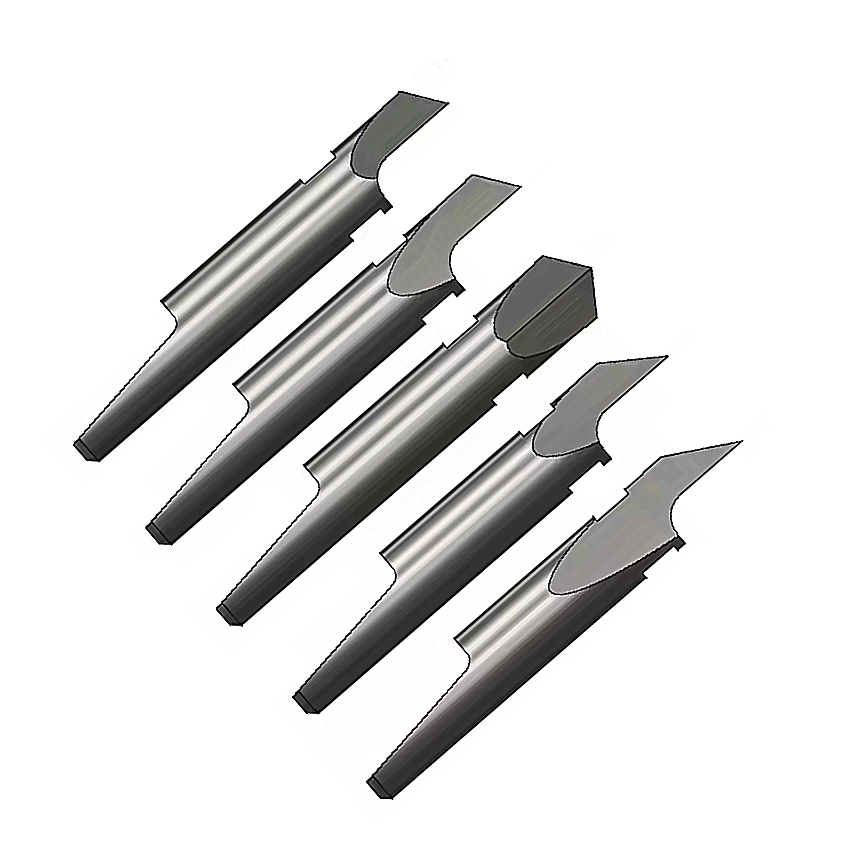

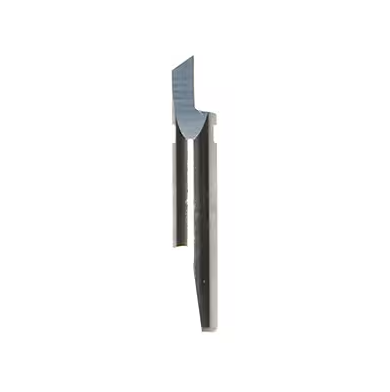

The following knife blades with round shaft Ø3mm are used for Die-Cutting ( PressCut knife tool ) and Kiss-Cutting ( KissCut knife tool ) on ESKO/ Kongsberg PCS tables.
|
Blade Model |
Description |
Max. Thickness |
Compatibility with Kongsberg / ESKO |
|---|---|---|---|
|
( 42438499 / g42438499 ) |
General-purpose cutting blade |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
|
BLD-KC102 ( 42438507 / g42438507 ) |
Kiss cut blade for thicker, tougher adhesive foils, such as reflex foil |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
|
( 42476499 / g42476499 ) |
Assymetric kiss-cut blade for fine cuts in thinner materials |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
|
BLD-KC103 ( 42458323 / g42458323 ) |
Blade for detailed cuts in vinyl |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
|
( 42447532 / g42447532 ) |
General purpose kiss-cutting blade |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
|
BLD-KC105 ( 42458331 / g42458331 ) |
Blade for cutting thicker adhesive vinyl, rubber, cardboard |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
|
( 42458349 / g42458349 ) |
Robust thicker blade to cut vinyl, carton, polyester |
1mm |
PressCut knife tool on C/XP/XE KissCut knife tool on XL/XN/X/V |
