The Zund Z63 and iEcho E63C are tungsten carbide oscillating knife blades designed for use in CNC digital cutting systems. These blades are equivalent in terms of design and functionality, with the Z63 being compatible with Zund cutters and the E63C with iEcho cutters.
Specifications:

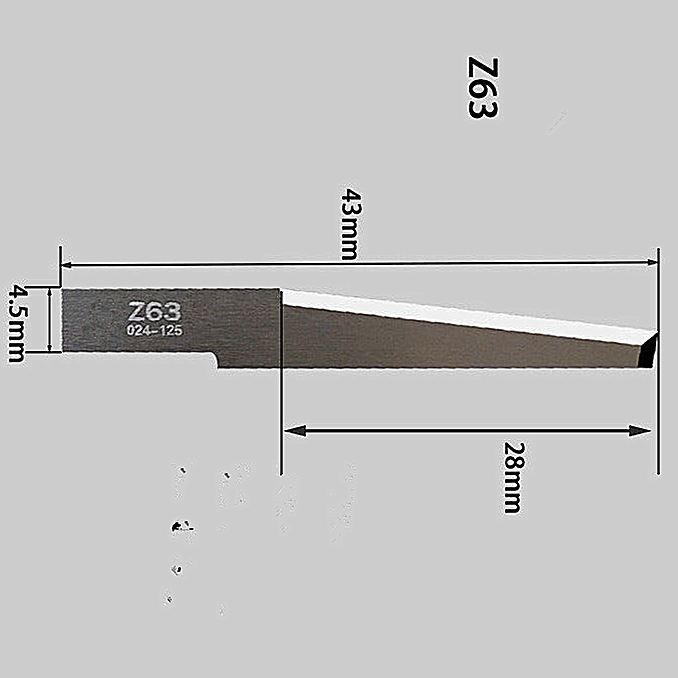

- Zund Z63:
- Length: 43 mm
- Width: 4.45 mm
- Thickness: 0.63 mm
- Maximum Cutting Depth: 28 mm
- Cutting Angle: 15° / 83°
- Suitable for materials such as foam board and insulating mats.

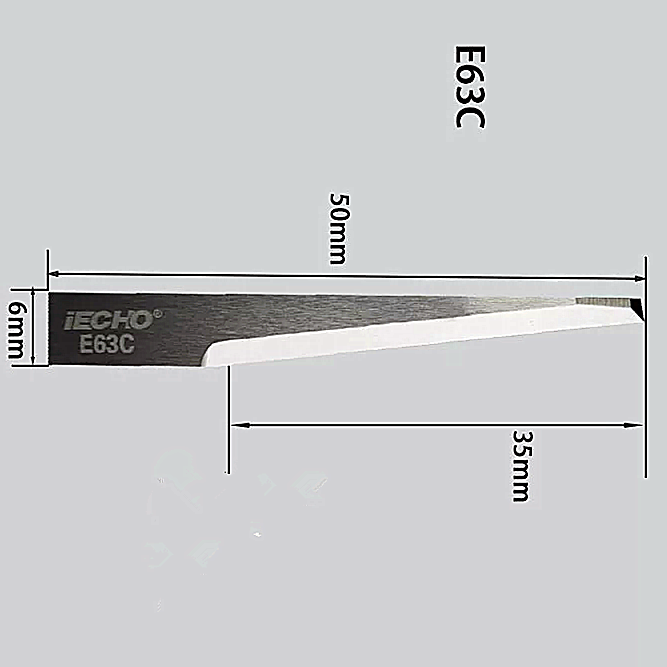

- Length: 50 mm
- Width: 6 mm
- Thickness: 1 mm
- Maximum Cutting Depth: 37 mm
- Cutting Angle: 10° / 84°
- Suitable for materials such as carbon fibers, corrugated cardboard, felt, fiberglass, leather, non-woven fabrics, nylon fabrics, polyester fabrics, and rubber.
Key Differences:
- Dimensions: The iEcho E63C blade is longer, wider, and thicker than the Zund Z63, allowing for a greater maximum cutting depth.
- Material Compatibility: While both blades are versatile, the iEcho E63C is suitable for a broader range of materials, including various fabrics and rubber, whereas the Zund Z63 is primarily recommended for foam-related materials.
In summary, the iEcho E63C offers larger dimensions and a wider range of material compatibility compared to the Zund Z63. However, both blades are designed for specific cutting systems and applications, so it's essential to choose the one that aligns best with your cutting requirements.
