How to choose and use iEcho E18C and E18LC blades
Choosing and using iEcho E18C and E18LC blades involves understanding their specifications and applications. Here's a guide to help you make the right choice and use them effectively:
Choosing the Right Blade

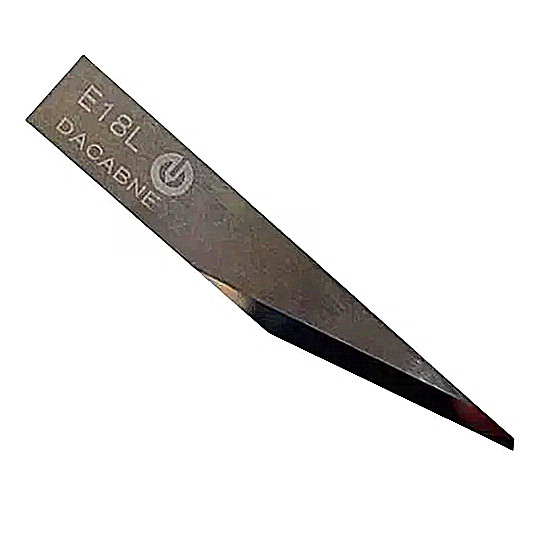

iEcho E18LC Blade
· Specifications:
o Knife height: 42 mm
o Knife width: 6 mm
o Thickness: 1 mm
o Angle: 74°
o Max. cutting depth: 19 mm
o Materials: Canvas, Folding Carton, Gasket materials, Paper, Polyester fabric, PVC, Reflective foil, Reflective vinyl film, Self-adhesive vinyl film.
· Use: Suitable for cutting various materials like canvas, carton, and PVC.

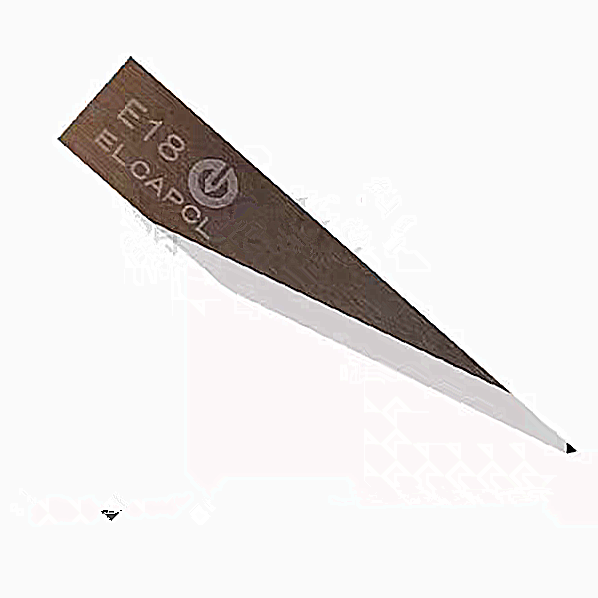

iEcho E18C Blade
· Specifications:
o Knife height: 32 mm
o Knife width: 6 mm
o Angle: 75°
o Thickness: 0.63 mm
o Max. cutting depth: 23 mm
o Materials: Similar to E18LC.
· Use: Suitable for materials like canvas, carton, and PVC, with a slightly different profile.
Using the Blades
1. Mounting: Ensure the blade is properly mounted according to its flat mounting specification (e.g., 1 mm for E18LC).
2. Material Selection: Choose the blade based on the material you are cutting. For example, the E18LC is suitable for a wide range of materials including PVC and reflective vinyl.
3. Cutting Depth Adjustment: Adjust the cutting depth according to the material thickness to avoid damaging the blade or the material.
4. Maintenance: Regularly inspect and clean the blade to maintain its cutting efficiency.
5. Replacement: Replace the blade when it becomes dull or damaged to ensure optimal performance.
Additional Tips
· Customization: If needed, consider customizing blades for specific applications, as some manufacturers offer customization services.
· Compatibility: Ensure the blade is compatible with your cutting machine model.
· Safety: Always follow safety guidelines when handling sharp blades.
By following these guidelines, you can effectively choose and use iEcho E18C and E18LC blades for your cutting needs.
