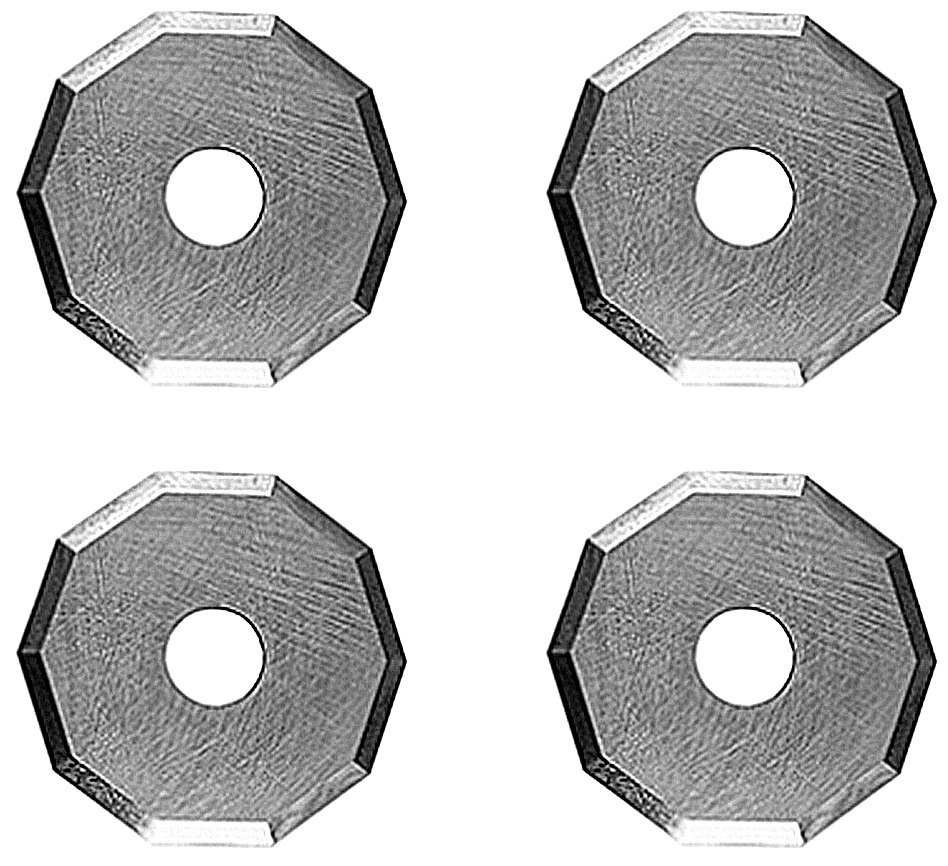

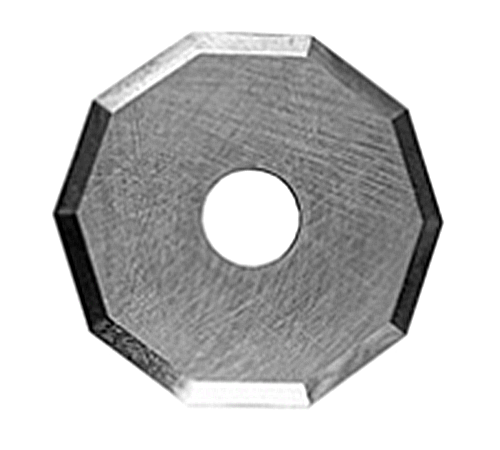

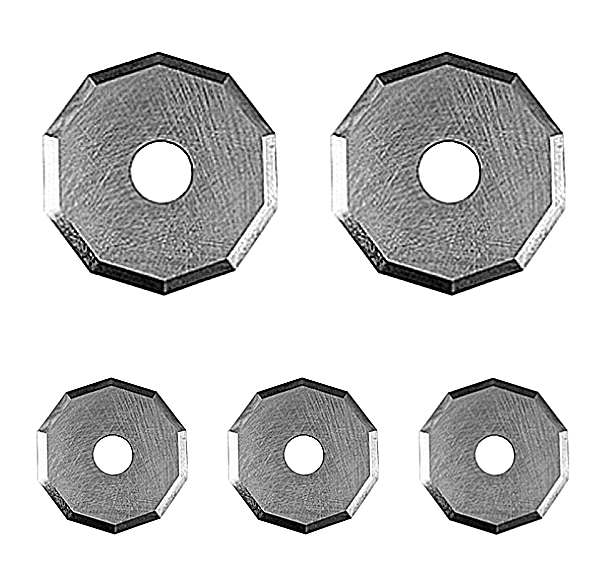

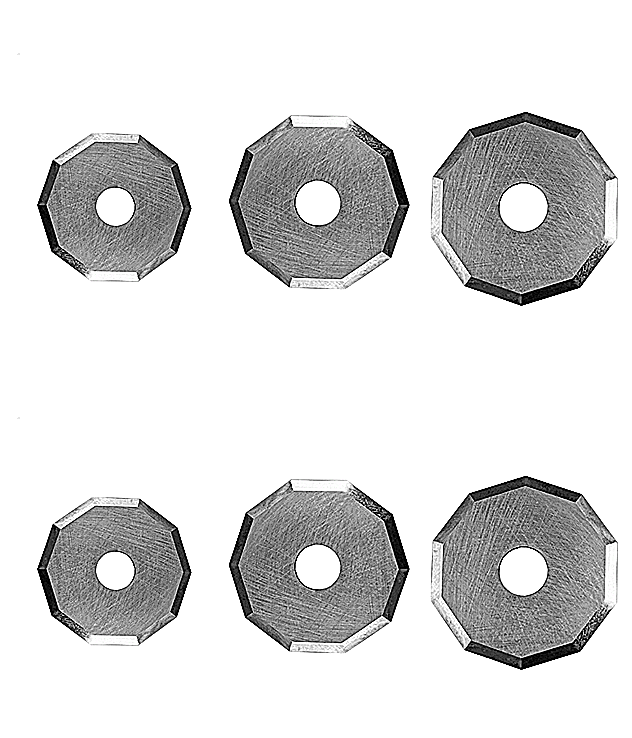

Filiz F50 Tungsten Carbide Rotation Knife Blade Decagonal (10-Sided) Rotary Blades

Filiz F50 Tungsten Carbide Decagonal (10-Sided) Rotary Blade is a premium-grade circular knife engineered for motor-driven Driven Rotary Tools (DRT) on digital cutting tables. Enquire now

Description

Filiz F50 Tungsten Carbide Rotation Knife Blade Decagonal (10-Sided) Rotary Blades

Filiz F50 is a solid tungsten carbide decagonal (10-sided) rotation knife blade designed for motorized rotary tool modules (DRT / PRT) on digital finishing equipment, CNC plotters, and flatbed cutters.

The 10-sided decagonal geometry provides a scissor-like shearing force rather than a dragging motion, allowing high-speed, drag-free cuts through tough or flexible materials.

Technical Specifications

Parameter	Specification
Part Series / Model	Filiz F50 (Rotation Knife Blade)
Blade Profile	Decagonal (10-Sided polygon geometry)
Material Composition	Solid Micrograin Tungsten Carbide (Hard Metal / Carbide)
Outer Diameter (OD)	~25 mm
Center Bore Diameter	8 mm
Thickness	0.6 mm
Max Cutting Depth	~3.5 mm
Cross-System Equivalents	Zund Z50 / Summa 500-9860 / MultiCam MC50 Rotary / Esko BLD-RC110

Key Applications & Substrate Compatibility

Decagonal rotary blades like the F50 are designed for woven, knitted, or fibrous substrates where conventional drag or oscillating blades would cause material gathering, tearing, or fraying:

Technical Textiles & Fabrics: Aramid / Kevlar, carbon fiber, fiberglass, nylon, polyester, and woven canvas.
Soft & Flexible Synthetics: Banner vinyl, mesh, non-woven materials, and felt.
Industrial Substrates: Leather, rubber sheets, paper, and film laminates.

Suitable for machine manufacturer:Esko BLD-RC110 G42444844, Zund Z50 3910335,Gerber MCT R50,Summa 500-0860 500-9860,Kuris 83906,Colex T00360, iEcho E50,Blackman & White BW50,Comagrav CD25,Multicam 003612-MC50,Bullmer B50,Gunnar GR926

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards .
