| Blade Model | Part Number | Total Length | Max Cutting Depth | Knife Thickness | Material | Cutting Edge Type |
|---|---|---|---|---|---|---|
| Z201 | 5209201 | 30 mm | 17.4 mm | 1.5 mm | HM/Carbide | Oscillating blade with two active cutting edges |
| Z202 | 5209985 | 26 mm | 14.5 mm | 1.5 mm | HM/Carbide | Oscillating blade with multifaceted bidirectional cutting edge |
| Z203 | 5210145 | 28.5 mm | 17 mm | 1.5 mm | HM/Carbide | Oscillating blade with multifaceted bidirectional cutting edge |

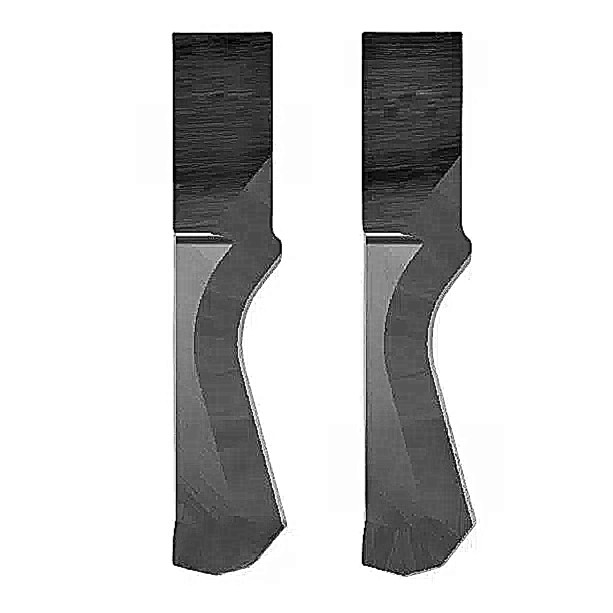

Here are the specifications and typical applications for the Zund Z201, Z202, and Z203 oscillating knife blades, commonly used in digital cutting systems:
Blade Specifications
These blades are designed for high-speed cutting of light and paper-based sandwich boards, with the Z201 specifically recommended for cutting sandwich boards up to 16 mm thick.
Typical Applications
The Z201, Z202, and Z203 blades are suitable for:
Light and paper-based sandwich boards
Corrugated cardboard
Foam board
Folding carton
Vinyl
Magnetic foil·
Textiles·
Leather
Rubber·
These blades are compatible with Zund digital cutters equipped with Electric Oscillating Tool (EOT) or Pneumatic Oscillating Tool (POT) modules.
