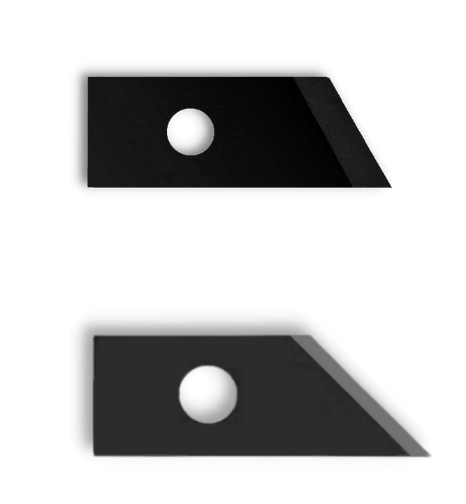

What are the differences between the Gerber TL-051 and TL-052 Tangential plotter blade
The main differences between the Gerber TL-051 and TL-052 tangential blades are as follows:
· Cutting Angle and Depth:
o TL-051 has a cutting depth of up to 3.5 mm, making it ideal for thinner materials requiring precise blade guidance.
TL-052 offers a deeper cutting capability of up to 6.0 mm, suitable for thicker materials while maintaining precision.
· Blade Dimensions:
TL-051 blade height is approximately 17.0 mm with a thickness of 1.00 mm.
TL-052 blade height is slightly larger at 17.5 mm, also with a thickness of 1.00 mm.
· Applications:
Both blades are designed for cutting materials such as paper, leather, and fabrics, but TL-051 is optimized for precision on thinner materials, whereas TL-052 is better for more robust cutting needs involving thicker materials.
· Blade Mount:
Both blades have a mounting hole diameter of 3 mm, making them compatible with the same Gerber cutting machines.
· Cutting Angle (Tip Angle):
While not explicitly stated in the main specs, TL-051 is generally associated with a 30° tip angle suitable for shallow, detailed cuts, and TL-052 with a 45° tip angle, which is standard for cutting materials from 2 to 6 mm thick.
In summary, TL-051 is a precision blade for thinner materials with a shallower cutting depth and likely a 30° tip angle, while TL-052 is designed for deeper cuts on thicker materials with a 45° tip angle and a slightly larger blade height. Both blades share similar thickness and mounting specifications.
