The ATOM FlashCut is a comprehensive digital CNC knife cutting system designed for cutting flexible and semi-rigid materials with high precision and versatility. Here are the main models and uses of the ATOM FlashCut cutting system, along with information about their knife cutting tables and system blades:
Main Models of ATOM FlashCut Cutting Systems:
1. FlashCut FLEX Series:
Advanced and evolved model with solid steel rack and pinion system for high precision and speed.
Available with static or conveyorized (belt feed) cutting surfaces.
Multi-tool cutting head for versatile cutting, scoring, drilling, marking, and punching.
Applications in petro-chemical, automotive, aerospace, composites, technical textiles, packaging, rubber, foam, carbon fiber, Kevlar, plastics, and more.
Features like partitioned vacuum system, overhead camera for contour recognition, projectors for layout visualization, and advanced nesting software.
2. FlashCut S Series:
Static working surface design optimized for traditional gasket materials including steel inserted graphite, non-asbestos, rubber, dense foams, teflons, fabrics, plastics.
Robust and precise, capable of running three shifts per day.
Suitable for cutting tough gasket materials.
3. FlashCut EASY Series:
Inclined cutting surface with ergonomic design for footwear, leather goods, EMI shielding, gasket materials, felt, foam, silicone rubber, adhesive laminates.
Two cutting gantries with multi-tool cutting heads for high output and flexibility.
Suitable for materials under 1 meter in width.
4. FlashCut TWINS Series:
Features two fixed cutting systems or conveyor belt for high adaptability.
5. FlashCut SPEEDY Series:
Designed for high-speed cutting of footwear, leather goods, and synthetic materials.
o Equipped with 5- or 7-tool cutting heads.
6. FlashCut FASHION Series:
Specialized for fashion and multi-ply textile cutting.
Uses of ATOM FlashCut Cutting Systems:
· Cutting a wide range of materials including footwear, leather goods, gaskets, foams (up to 130mm thick), rubber and its by-products (up to 25mm thick), conveyor belting materials, composites (carbon fiber, Kevlar, pre-pregs), industrial fabrics, technical textiles, adhesives, laminated materials, interior upholstery for automotive, aerospace, marine industries, plastics (PU, PP, PVC, polycarbonates, acrylics), paper, corrugated and printed materials.
· Ideal for prototyping, small to medium production runs.
· Eliminates need for cutting dies, increasing production flexibility and reducing setup time.
· Enhances yield through efficient nesting software and reduces waste.
· Supports kiss cutting, score cutting, drilling, marking, and punching with multi-tool heads.
Knife Cutting Tables & System Blades:
· The tables come with static or conveyorized cutting surfaces. Sizes range from small-scale to large formats (e.g., 1000mm x 600mm up to 6100mm x 2600mm).
· Cutting heads vary from single to dual heads with multiple tool options.
· Blades include oscillating knife blades, tungsten carbide blades, and carbides designed for different hardness and thickness of materials.
· Example blade specs: Atom 01049409 tungsten carbide oscillating knife blade has a height of 28mm, cutting depth up to 9mm, thickness of 0.64mm, suitable for graphite, leather, and sole materials.
· Blade designs include flat edges and various angles for specific cutting needs.
· The system uses a powerful vacuum hold-down with up to 50 vacuum sectors for secure material placement and precise cutting.
Overall, the ATOM FlashCut system is known for its precision (within +/- 0.1mm), reliability, modularity, and adaptability across a vast range of industrial cutting applications.
This information summarizes the main models, uses, cutting tables, and system blades of the ATOM FlashCut knife cutting systems based on the latest available resources.
Main models:

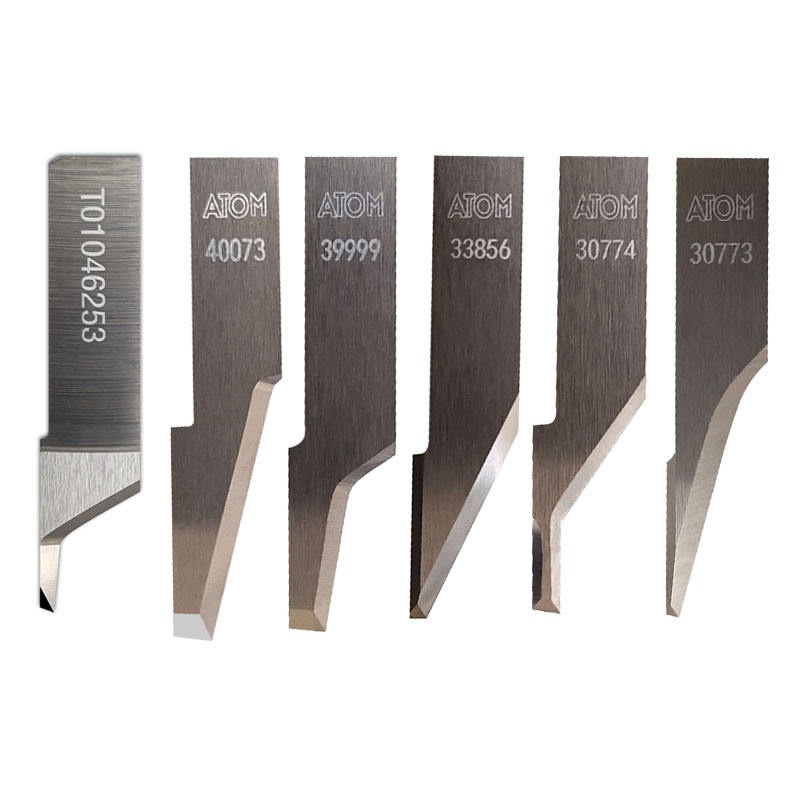

01033858 Blade 01030911 Blade 01039896 Blade
01030910 Blade 01039892 Blade 01039999 Blade
0103A858 Blade 0103B858 Blade R/9999-0911 Blade
01040356 Blade 01030728 flat blade oscillating 01030729 flat blade oscillating
01030730 flat blade oscillating 01030731 flat blade oscillating 01030773 flat blade oscillating
01030774 flat blade oscillating 01030782 flat blade oscillating 01030793 flat blade oscillating
01030910 flat blade oscillating 01033310 Blade Wheel - 28mm 01033375 Blade
01033840 flat blade oscillating 01033841 flat blade oscillating 01046251 Blade
01040073 Blade 01040357 Blade 01039907 Blade
01033925 Blade 01045556 Blade 01040075 Blade
01040074 Blade 01R43856 Blade 01039893 Blade
01606750 Atom rotary blade 01060676 Atom rotary blade 01060217 Atom rotary blade
01060215 Atom rotary blade 01045231 Atom rotary blade 01060214 Atom rotary blade
01060216 Atom rotary blade 01060218 Atom rotary blade 01060219 Atom rotary blade
01060220 Atom rotary blade 01060465 Atom rotary blade ....
The Atom Flashcut cutting knife systems, tables, and blades serve diverse applications in production, manufacturing, wholesale, and factory supply, offering high-quality solutions at competitive prices. Shenzhen Oyea Global excels in supporting international sales by ensuring consistent product availability in major markets worldwide, including Europe, the United States, the Middle East, and Asia. The company's commitment is evident through its reliable shipping services and responsive customer support tailored to the varied demands of its global clientele.
Oyea Global's products have reached an extensive array of nations, including Germany, France, the United Kingdom, Poland, the United States, Russia, Vietnam, Thailand, Indonesia, Singapore, the Netherlands, Switzerland, South Korea, Japan, Turkey, the Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, the Czech Republic, among others. This widespread distribution reflects the company’s dedication to establishing and maintaining a robust presence in international markets.
