Summa 500-9864 500-9863 500-9859 Cnc Speciality Router Bits

Compression bit: Up cut and down cut in one, ideal for wood

V-groove bit: Ideal for ACB materials

Polishing bit: Provides a better finish in acrylic - HF Router only

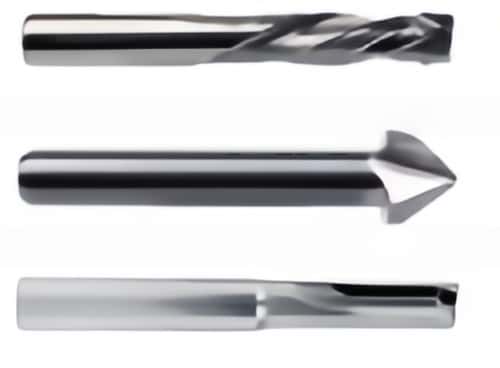

H	S	Bit	Description	Picture
		500-9864	D6/6 L50/22	2FL UC/DC
		500-9863	D6/10 L50/6 2FL 90°	V Groove
		500-9859	D6/6 L50/14	Polishing

The Summa router bits with part numbers 500-9864, 500-9863, and 500-9859 are specialty CNC router bits designed for use with Summa F Series flatbed cutters, targeting specific advanced cutting and finishing tasks.

Specifications and Application Details:

· 500-9864: Compression Router Bit

o Diameter: 6 mm (shank and cutting)

o Total Length: 50 mm

o Cutting Depth: 22 mm

o Flutes: 2

o Flute Style: Up Cut/Down Cut (UC/DC)

o Application: Combines up and down cut action for clean top and bottom finishes; ideal for wood and laminates. The compression geometry reduces fuzzing and tear-out, particularly when cutting plywood, veneered, or laminated boards.

· 500-9863: V-Groove Router Bit

o Diameter: 6 mm (shank), 10 mm (tip)

o Total Length: 50 mm

o Cutting Depth: 6 mm

o Flutes: 2

o Flute Style: V-Groove, 90°

o Application: Cuts precise V-grooves typically used for panels (like ACM/ACB), signmaking, chamfering, and folding techniques on composite materials and plastics.

· 500-9859: Polishing Router Bit

o Diameter: 6 mm

o Total Length: 50 mm

o Cutting Depth: 14 mm

o Flutes: 1 (commonly single-flute for polishing)

o Application: Purpose-built for the polishing of acrylic surfaces after cutting, providing smooth, optically clear edges without secondary manual finishing; used exclusively for acrylic and compatible with high-speed routers.

Usage Notes and Recommendations:

· All three bits fit Summa's Standard and High Frequency Routing Systems.

· The compression and V-groove specialty bits deliver better edge quality and more complex cut geometries versus standard single-direction spiral bits.

· For best results, use the shortest bit length possible to minimize vibration relative to material thickness, and adhere to Summa's guidelines (max cutting depth ≈ 1–1.5x bit diameter per pass).

· The polishing bit should only be used on acrylics, and care should be taken to use proper feeds and speeds for best finish.

Summary Comparison Table:

Summa 500-9864, 500-9863, and 500-9859 CNC Specialty Router Bits are expertly designed for use with Summa F Series Flatbed Cutters. These tools cater to a wide range of operational needs, including production, manufacturing, wholesale, sales, and supply chain requirements. Engineered as essential consumables for industries reliant on OEM and ODM services, these router bits boast exceptional quality and versatility, backed by a robust and reliable network of factory resources.

Shenzhen Oyea Machinery Co., Ltd. distinguishes itself through its strong commitment to serving diverse global markets. Its distribution network covers key regions such as Europe, North America, the Middle East, and Asia. The company exports its products to numerous leading economies, including Germany, France, the United Kingdom, Poland, the United States, and Russia. Its influence extends further into vibrant Asian markets, reaching countries like Vietnam, Thailand, Indonesia, Singapore, South Korea, Japan, Turkey, the Philippines, Taiwan, and Hong Kong. Additionally, it supplies products to other prominent markets in the Netherlands, Switzerland, Italy, Spain, Hungary, and the Czech Republic. This expansive global presence highlights the company’s dedication to building enduring and mutually beneficial partnerships with international clients. At its core is an unwavering drive for quality excellence and ongoing innovation, ensuring state-of-the-art manufacturing and supply solutions that meet the dynamic demands of worldwide industries.
