Blade Specifications
|
Part Number |
Cutting Angle |
Offset |
Max Depth |
Key Specs |
|
60° |
0.5 mm |
0.6 mm |
Shank 1.5 mm, length 19 mm; for thicker/standard materials |
|
|
55° |
N/A |
~0.6 mm |
Mid-angle option for general vinyl/sign media |
|
|
36° |
0.45 mm |
0.25 mm |

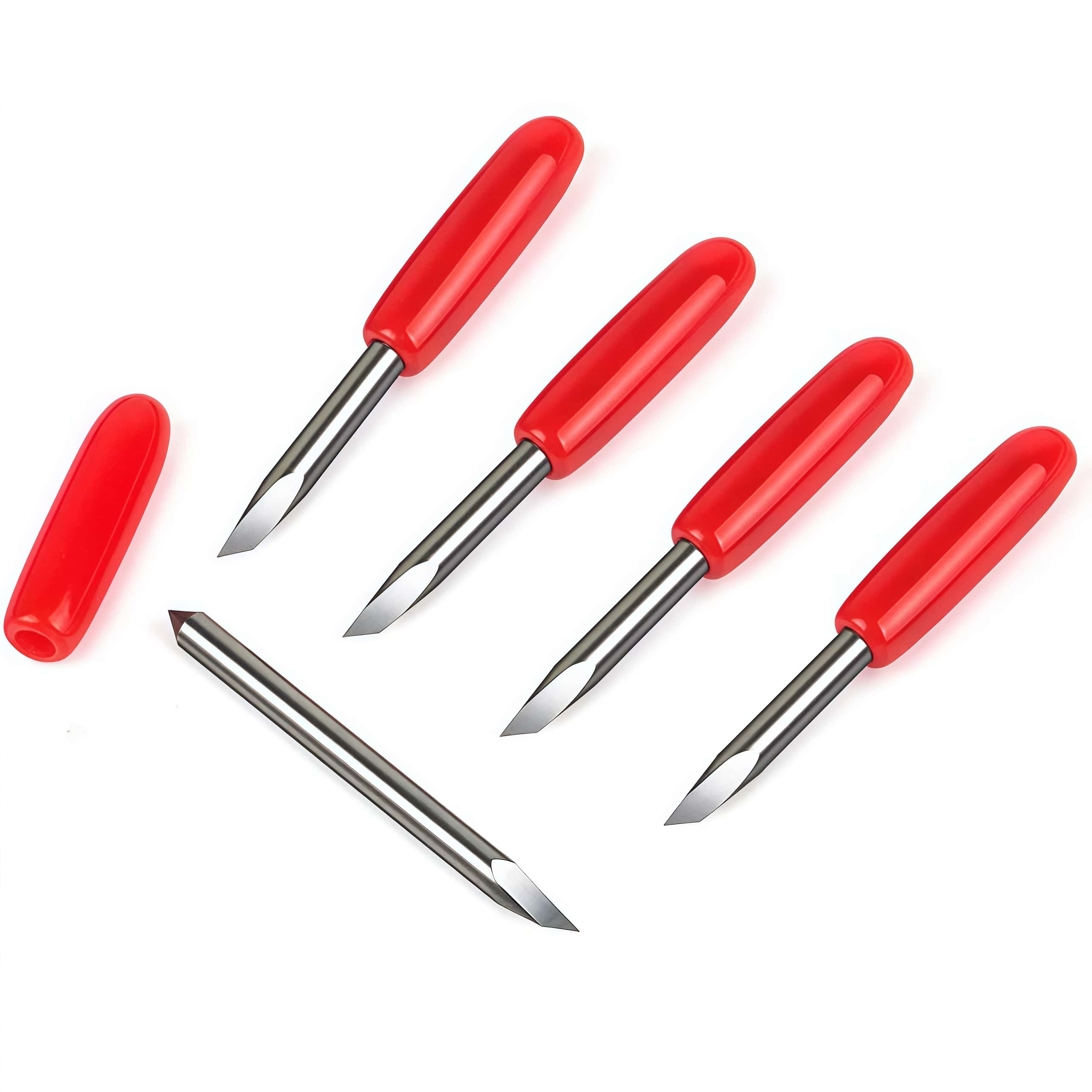

Shallow angle (often sold in 5-packs); ideal for thin vinyl/kiss-cutting |

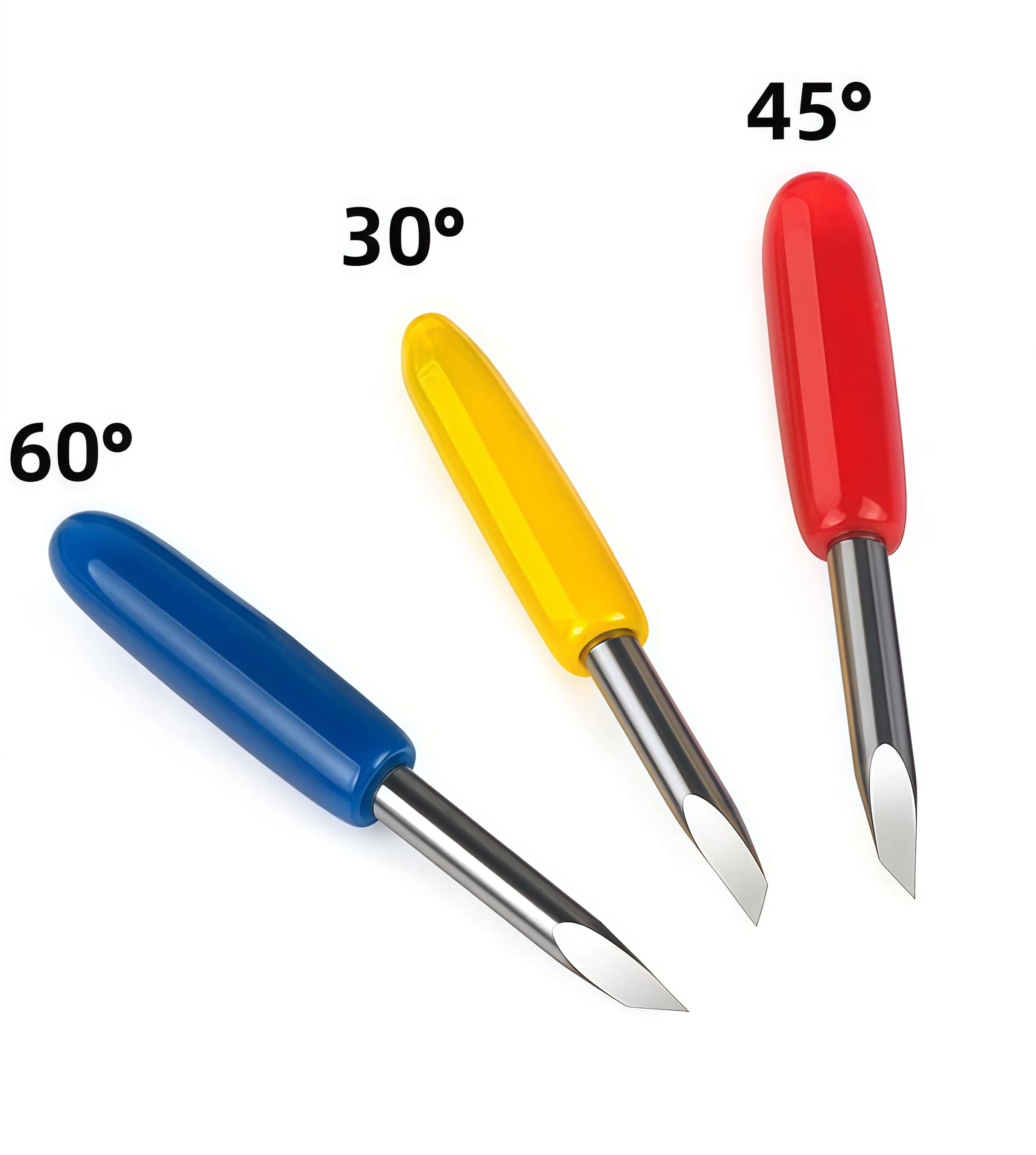

391-231 (60°): Ideal for kiss-cutting adhesive vinyls with pressures up to 600g. This blade excels at handling thicker media while delivering precise, clean edges.
391-358 (55°): A versatile choice suited for most standard sign vinyls, offering a balanced blend of cutting depth and precision.
391-360 (36°): Designed for thinner vinyls (up to 0.010"), this blade is perfect for basic applications, ensuring smooth weeding. It comes pre-installed on many Summa units.
When working with thinner materials, opt for shallower blade angles to reduce drag resistance. All these blades are fully compatible with D-Series operating speeds of up to 1414 mm/s diagonally and cutting pressures between 400-600g.
These knives are optimized for use in Summa's drag mode across D-Series and T-Series cutters, making them ideal for vinyl, graphics, and light substrates.
-
