Blackman and White Genesis-Z-V MasterCut Orion Versa-Tech Digital Cutting System CNC Blades
Genesis-Z & Genesis-V: High-speed flagship models designed for versatility. Both support a "Dual Switch Tool Module" that holds two tools simultaneously. They feature a maximum cutting speed of 2000mm/second and can handle material thicknesses up to 150mm.
MasterCut: A heavy-duty flatbed system built for large-scale production, supporting widths up to 7m and lengths up to 80m. It is optimized for rigid materials and composites.
Orion: A more affordable, modular entry-level flatbed system typically used for ply cutting and plotting. It features two independent tool stations and a maximum cutting depth of 10mm.
Versa-Tech: A multi-functional system that integrates blade cutting, laser cutting, and a 2.5 kW router (60,000 RPM) on a single machine.
Available CNC Blade & Tool Options
Blackman and White systems use interchangeable "drop-in" tool inserts to handle various substrates:
Electric Oscillating Knife: High-speed motorized tool (12,000 RPM) for dense materials like foams, gaskets, and rubber.
Pneumatic Oscillating Knife: Air-powered tool (9,000 RPM) designed for very thick or tough materials.
Driven Rotary Wheel: A motorized circular blade (12,000 RPM) for clean cuts on porous fabrics, textiles, and sailcloth.
Thru-Cut / Drag Knife: A standard blade tool for single or multiple-pass cutting of non-permeable textiles and vinyl.
V-Cut Tool: Specifically for angled cutting of foamboard and recycled fiberboard to allow for folding.
Kiss Cut Tool: For cutting the top layer of a material (like vinyl) without piercing the backing.
Key Technical Features
Auto Tool Depth Sense: Automatically sets the blade depth to ensure precise cuts and minimize bed damage.
Zoned Vacuum System: Sophisticated software-controlled vacuum zones maximize suction specifically where the material is being cut.
Vision Systems: Integrated optical cameras for reading printed registration marks, ensuring accuracy for graphics and signage
| Model | Positioning | Tooling | Notable traits |
|---|---|---|---|
| Genesis-Z | Latest premium system | Multi-tool CNC cutting | Conveyorised, automated, built for production flexibility. |
| Genesis-V | Versatile modular system | Knife, laser, router | Wide material range, conveyor or flatbed, strong configurability. i |
| Mastercut | Bespoke made-to-measure system | Full complement of tools | Custom table sizes, broadest “built-to-order” concept. |
| Orion | Lower-cost flatbed system | Blade and pen tools | Easy to use, reliable, good for ply cutting/plotting. |
| Versa-Tech | Older finishing system | Knife/rotary/oscillating/creasing | Known for versatility and servo drive; likely predecessor/legacy equipment. |

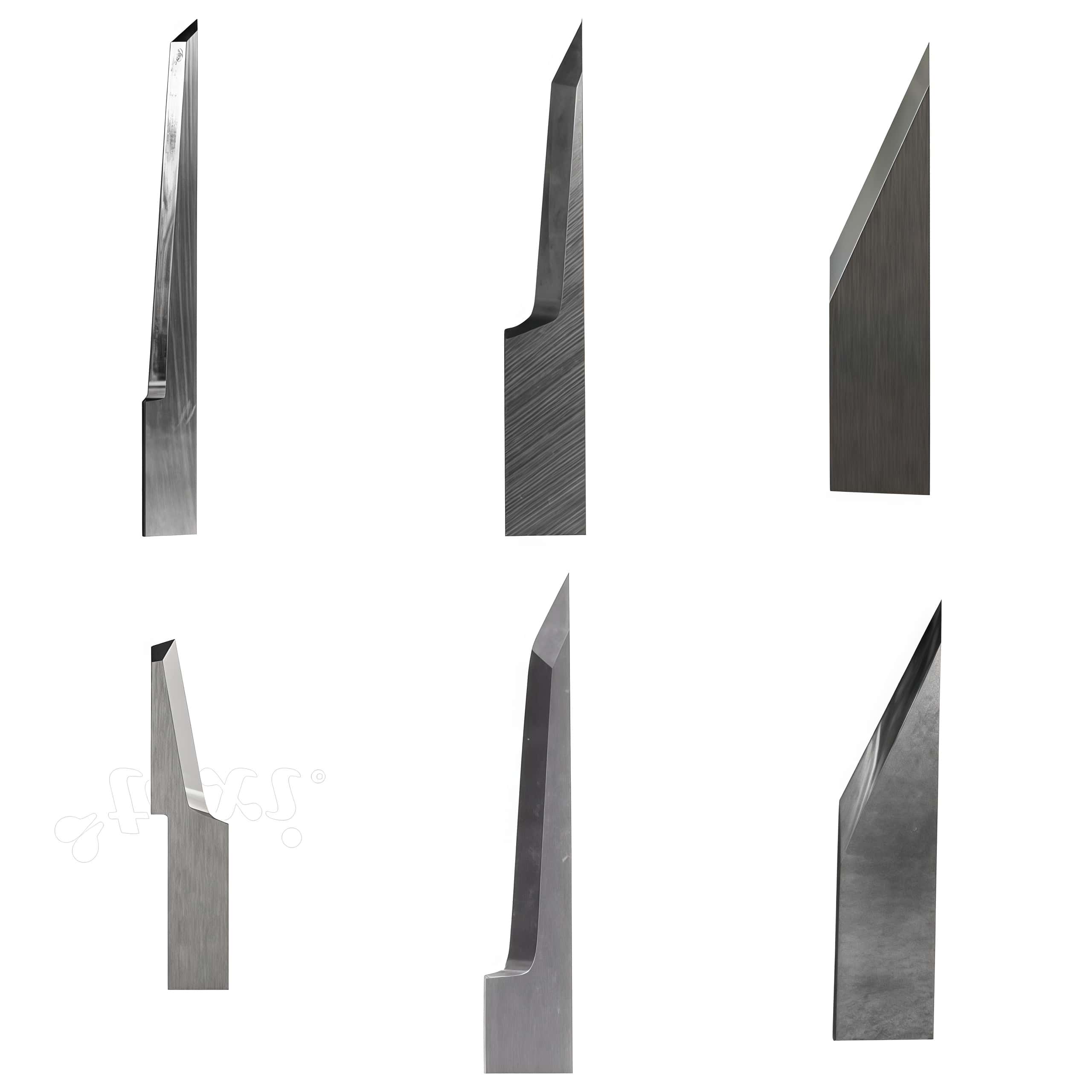

The following models are the standard industry recommendations for Blackman & White oscillating systems:
BW20 / BW21: The most common versatile blades. The BW20 features a 65° angle and a 0.63mm thickness, making it ideal for general-purpose cutting of foamboard, cardboard, and technical textiles.
BW16 / BW17: Specialized for high-capacity cutting of thicker materials like heavy foam or composites.
BW28: Often used for high-speed cutting in textiles where a finer
point is required.
BW41 / BW43: Heavy-duty blades designed for dense or rigid materials.
