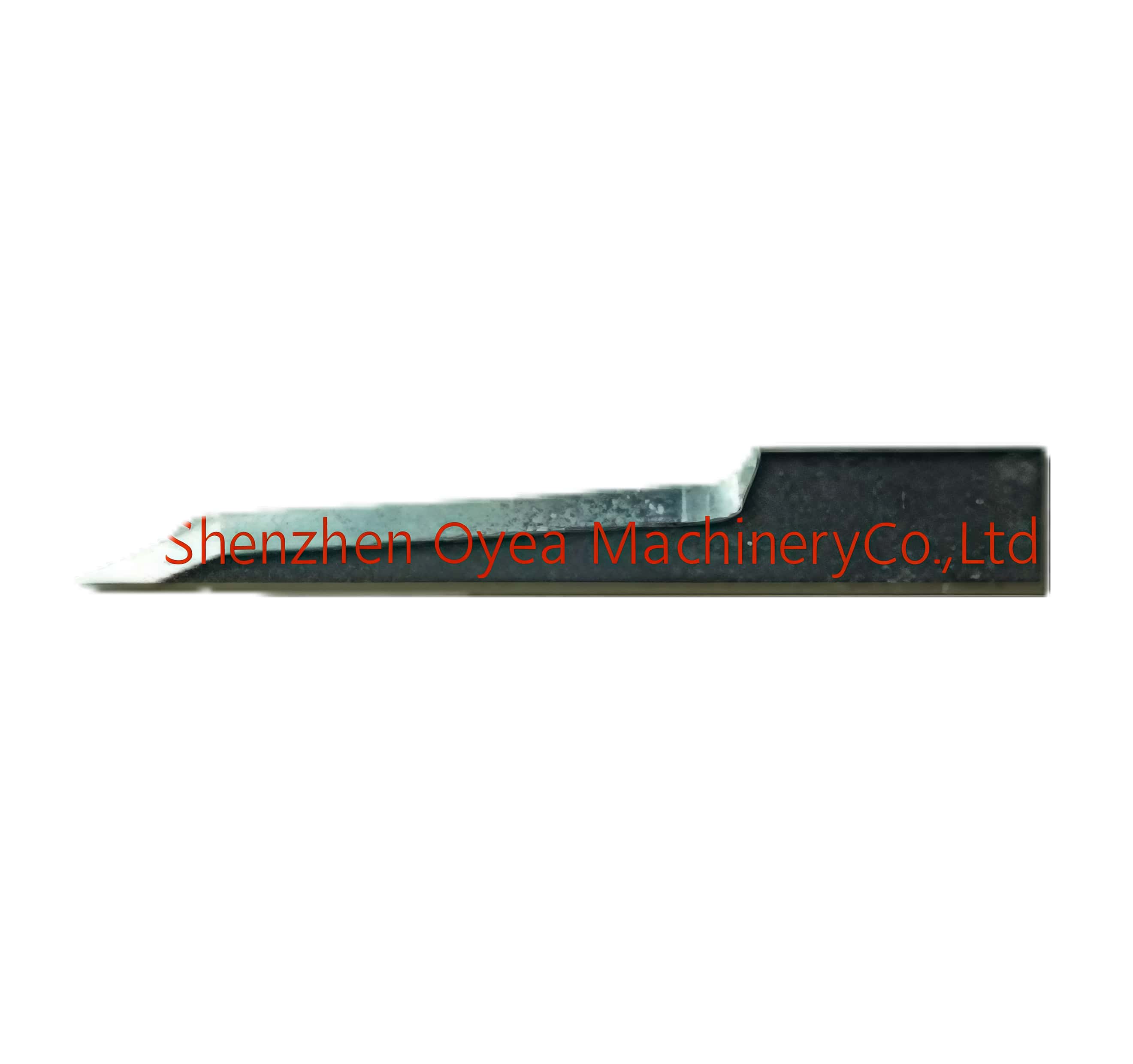

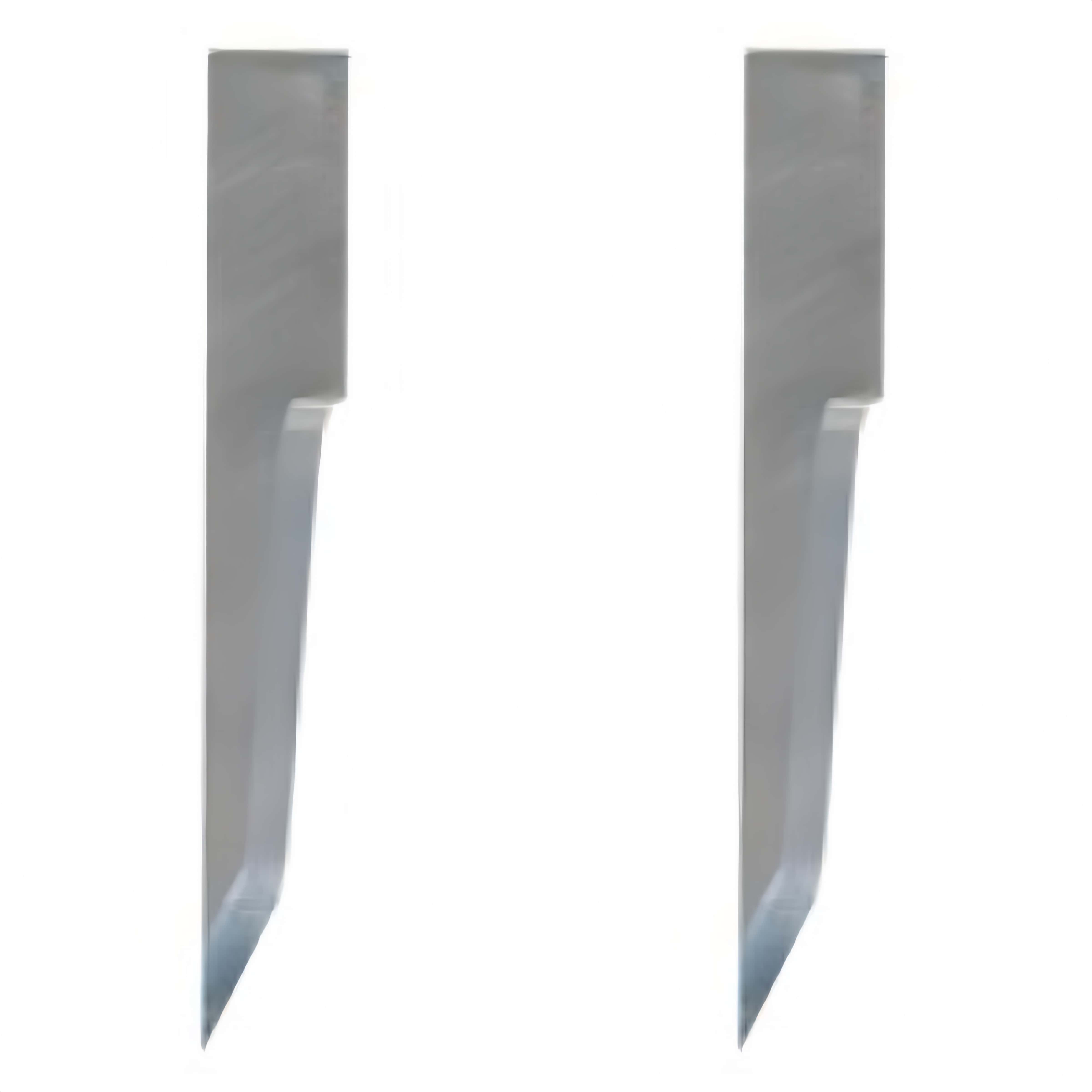

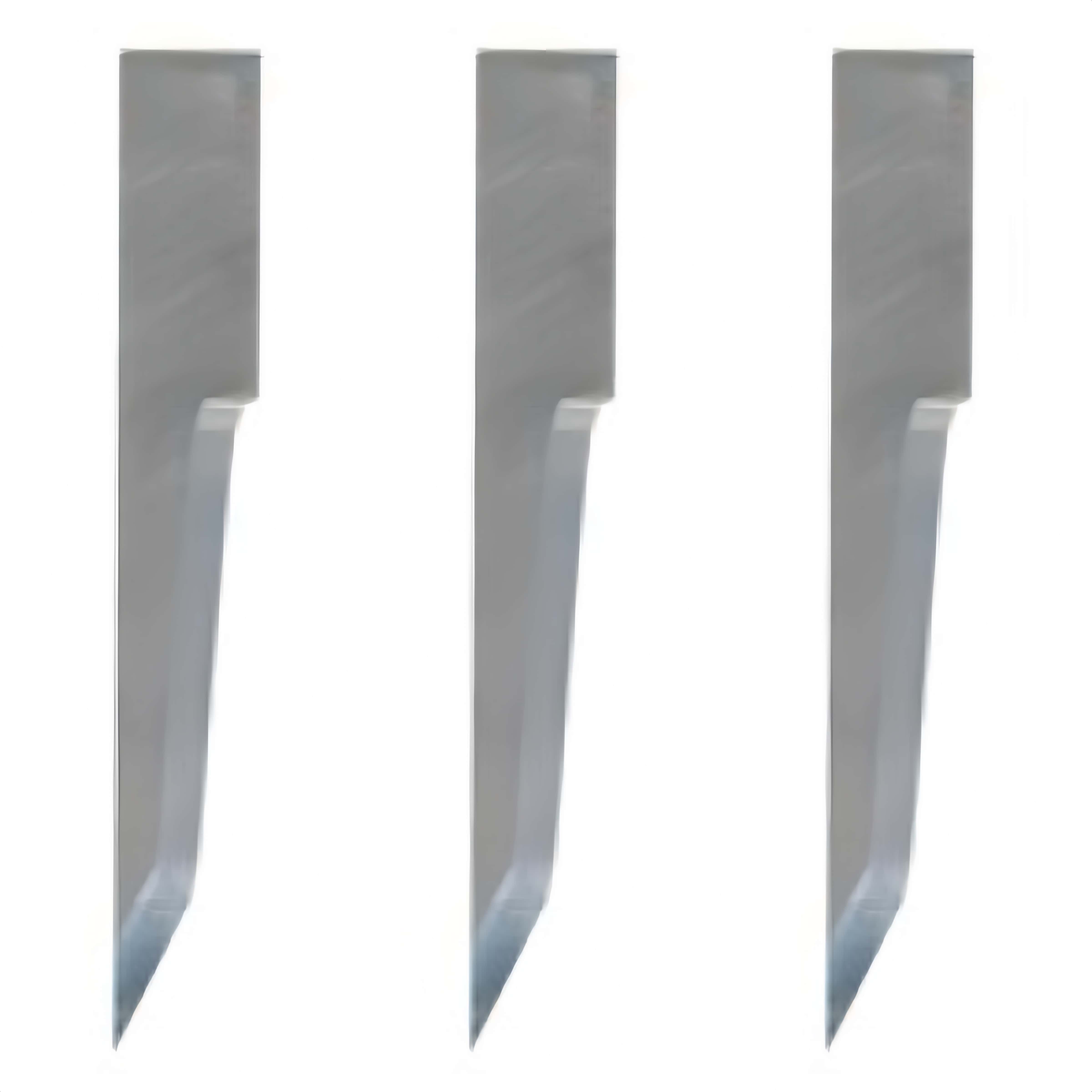

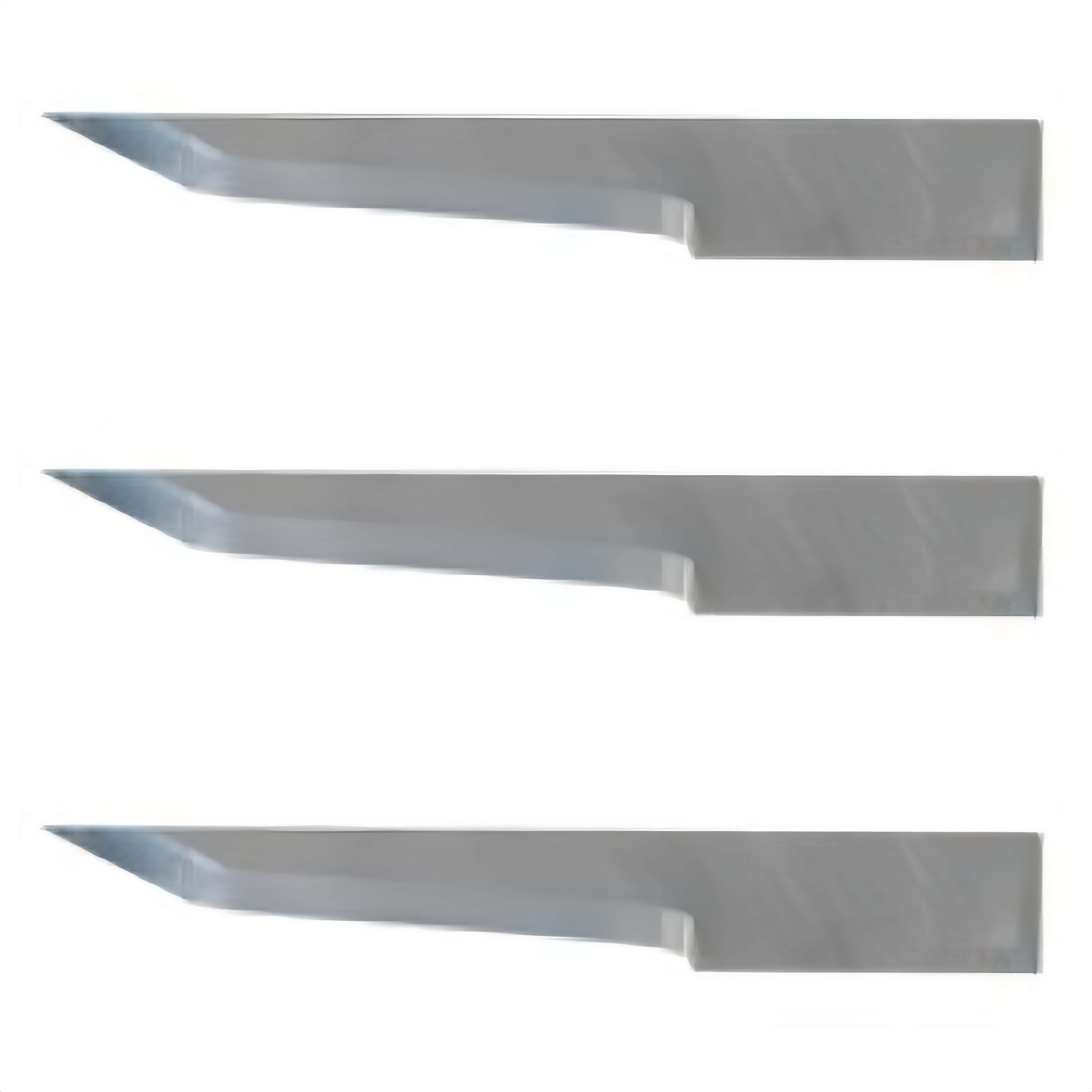

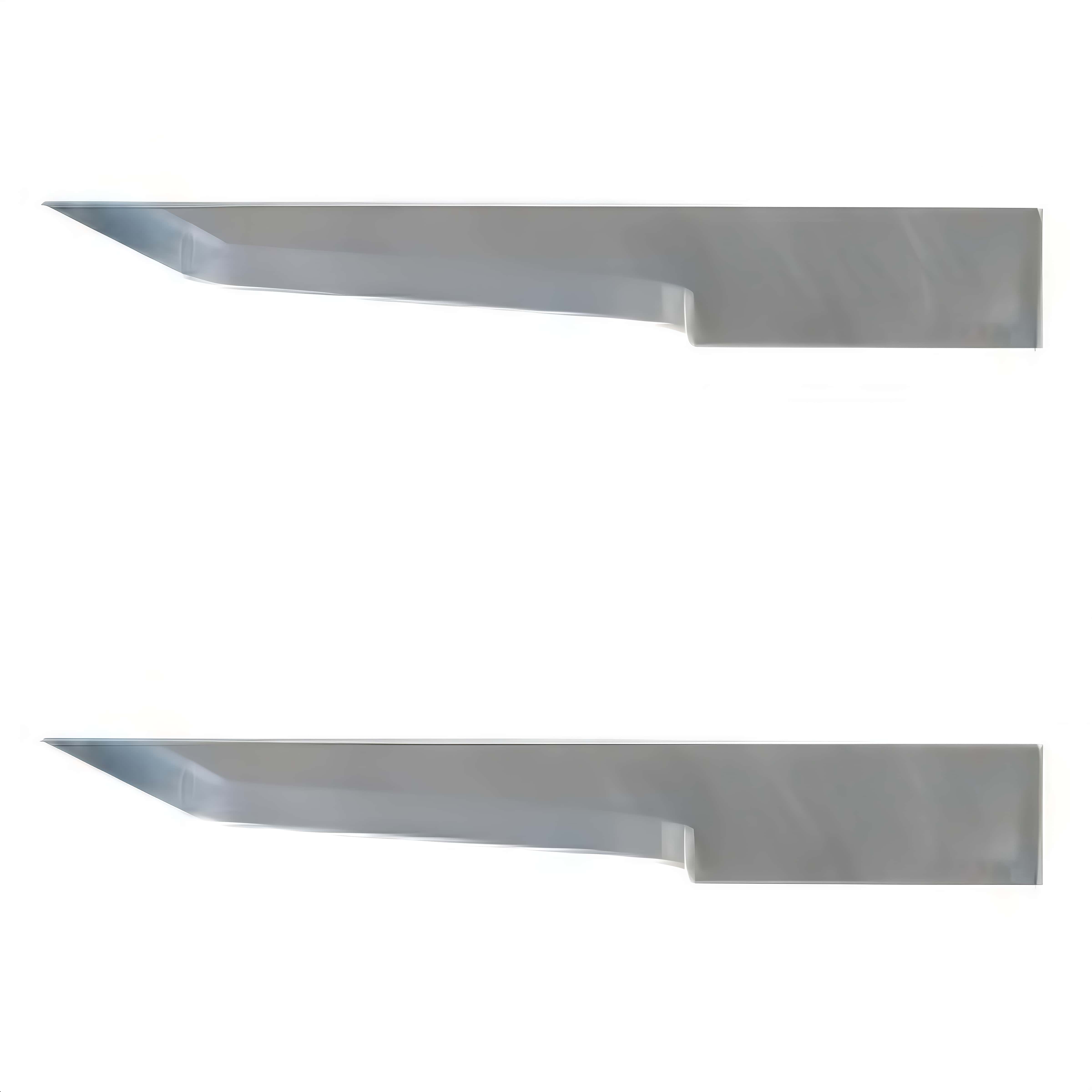

Lectra Z21 Hard Metal Knife Blade Replacement For Atom 01033569 01039907 Multicam 94-02466-910.314

Lectra Z21 Hard Metal Knife Blade is a double-edged, flat-shank carbide (tungsten steel) vibrating blade designed specifically for high-precision CNC cutting systems.. Enquire now

Description

Lectra Z21 Hard Metal Knife Blade Replacement For Atom 01033569 01039907 Multicam 94-02466-910.314

Brand: Compatibilità LECTRA
Product Code: Z-021
Description:

Cutting knife for corrugated cardboard up to 10 mm, rubber and leather and imitation leather little geometries (25 mm length). Cuts up to 13mm (28 mm length)
Angle (a°): 25°
Thickness (mm): 0.6

Global Brand Cross-Platform Model Benchmarking

If your factory has a multi-brand, hybrid digital workshop, you can directly use the following interchangeable part numbers when purchasing consumables. They are 100% identical in size and function:

Cutting bed brands and models	The corresponding original equipment manufacturer (OEM) part number.
Lectra	Lectra Z21 (MFC series)
Zund(Swiss Source)	Z21 / Part Number: 3910314
Atom (Italian Atom)	01033569 / 01039907 (Commonly used in Flashcut vibrating heads)
MultiCam (USA)	94-02466-910.314 (Compatible with KH2 tool holder)
Esko Kongsberg	BLD-SF421 / Part Number: G42458257
Summa / Gerber MCT	Summa 500-0812 / Gerber SE21

Applicable Materials for Cutting:

Due to the high hardness of cemented carbide and the sharpness of Z21, it is widely used in the processing of medium-thickness sheets and flexible fabrics in the following industries: Packaging and Advertising Printing: Cardboard, corrugated cardboard (B/C/E/F corrugated), honeycomb cardboard, Foamboard (KT board/foam board). Industrial Composite Materials: Polyester fiber sound-absorbing panels, non-woven fabrics, fiberglass cloth, prepreg carbon fiber. Automotive and Sealing Industry: Various sealing rubber gaskets, high-density EVA foam, magnetic patches. Footwear and Fashion Apparel: Single-layer natural leather, synthetic leather (PU/PVC), thickened engineering fabrics.

Replacement for:XZ0021 BT-2381 Colex T00421,Esko Kongsber G42458257 42458257 BLD-SF421,iEcho E21,Summa 500-0812 500-9812,Zund 3910314 Z21,Blackman & White BW21,Mécanuméric 100610370 COMPO008757,ATOM 01033569 01039907,Ronchini RM-01039907,Comagrav FNS13,Gerber MCT SE21 895022,MultiCam 94-02466-910.314 Cutworx Apex CWX/CWT E21

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
