Flat knives for WILD “UTH” Universal Tool Head

Flat Knives For Wild “Uth” Universal Tool Headflat Knives For The Wild "Uth" (Universal Tool Head) Are Precision Replacement Blades Engineered Specifically For Wild Leitz (Now Part Of Zund) Cnc Digital Flatbed Cutters And Plotters. Enquire now

Description

Flat knives for WILD “UTH” Universal Tool Head

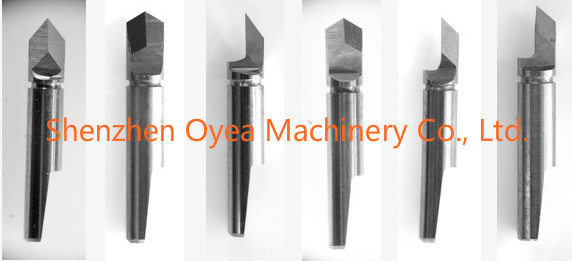

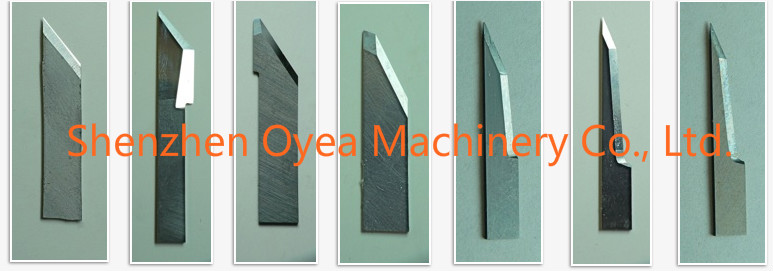

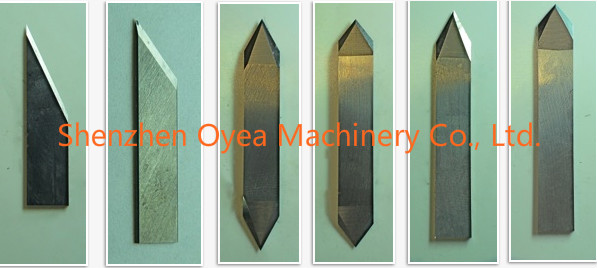

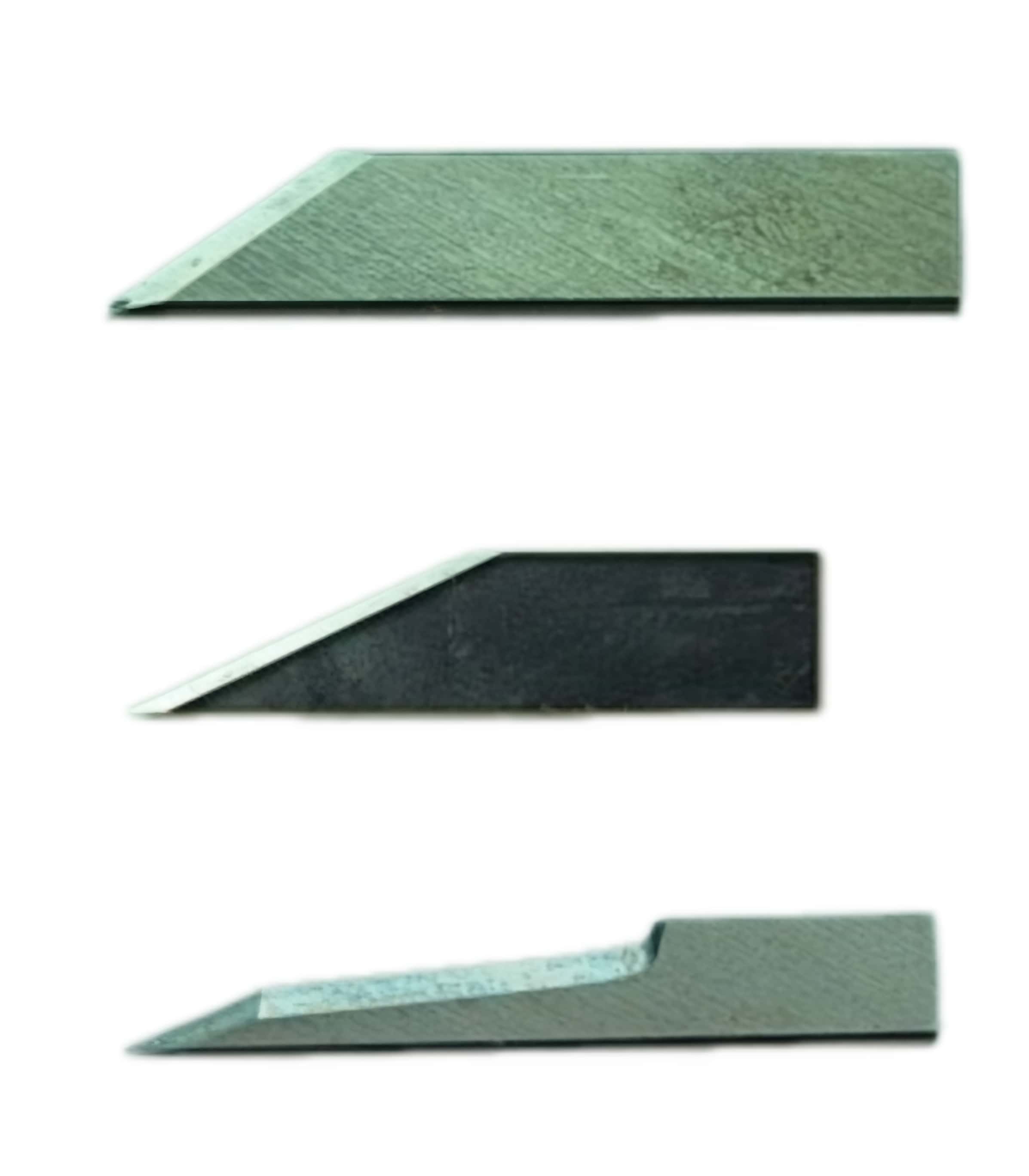

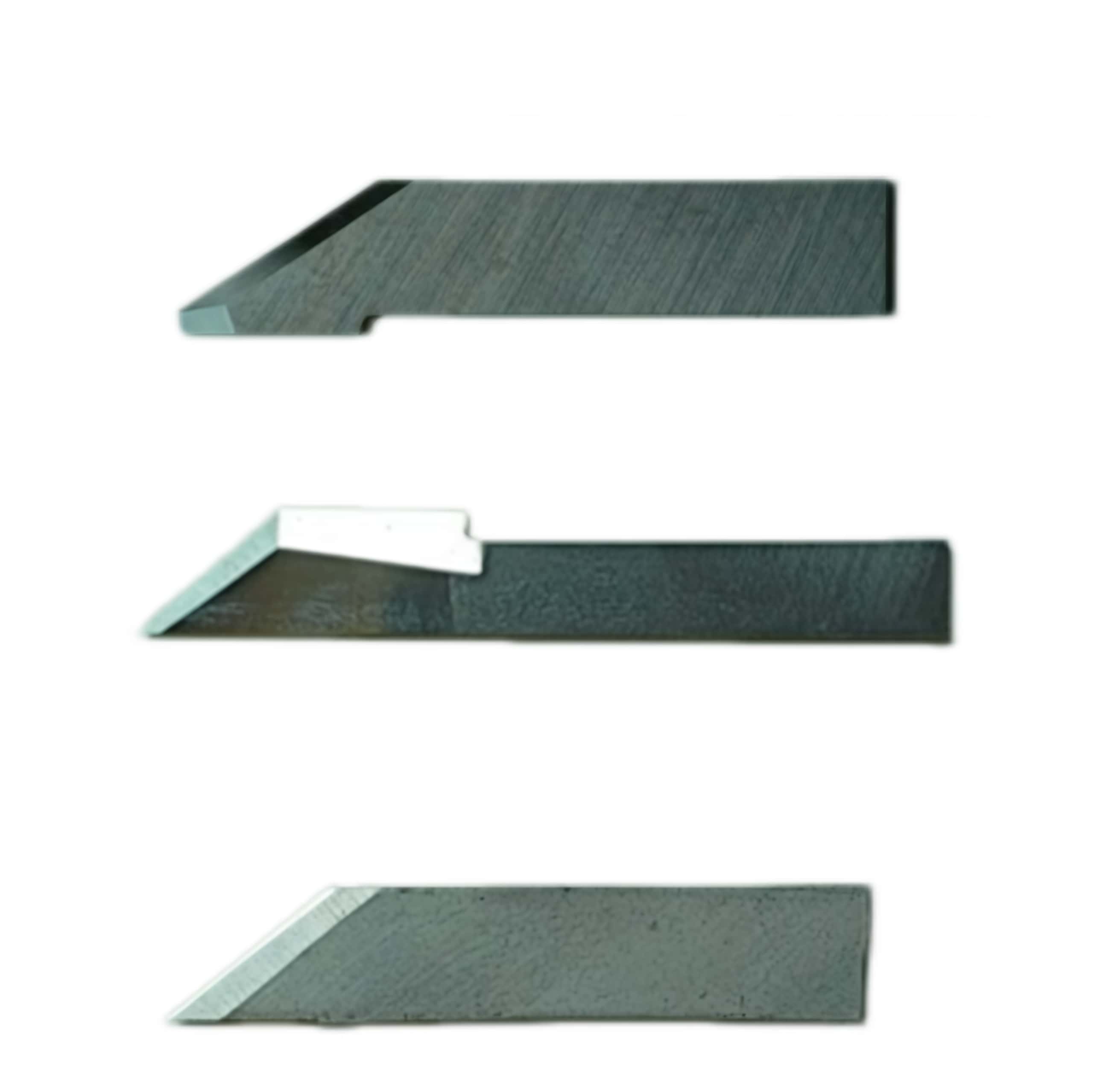

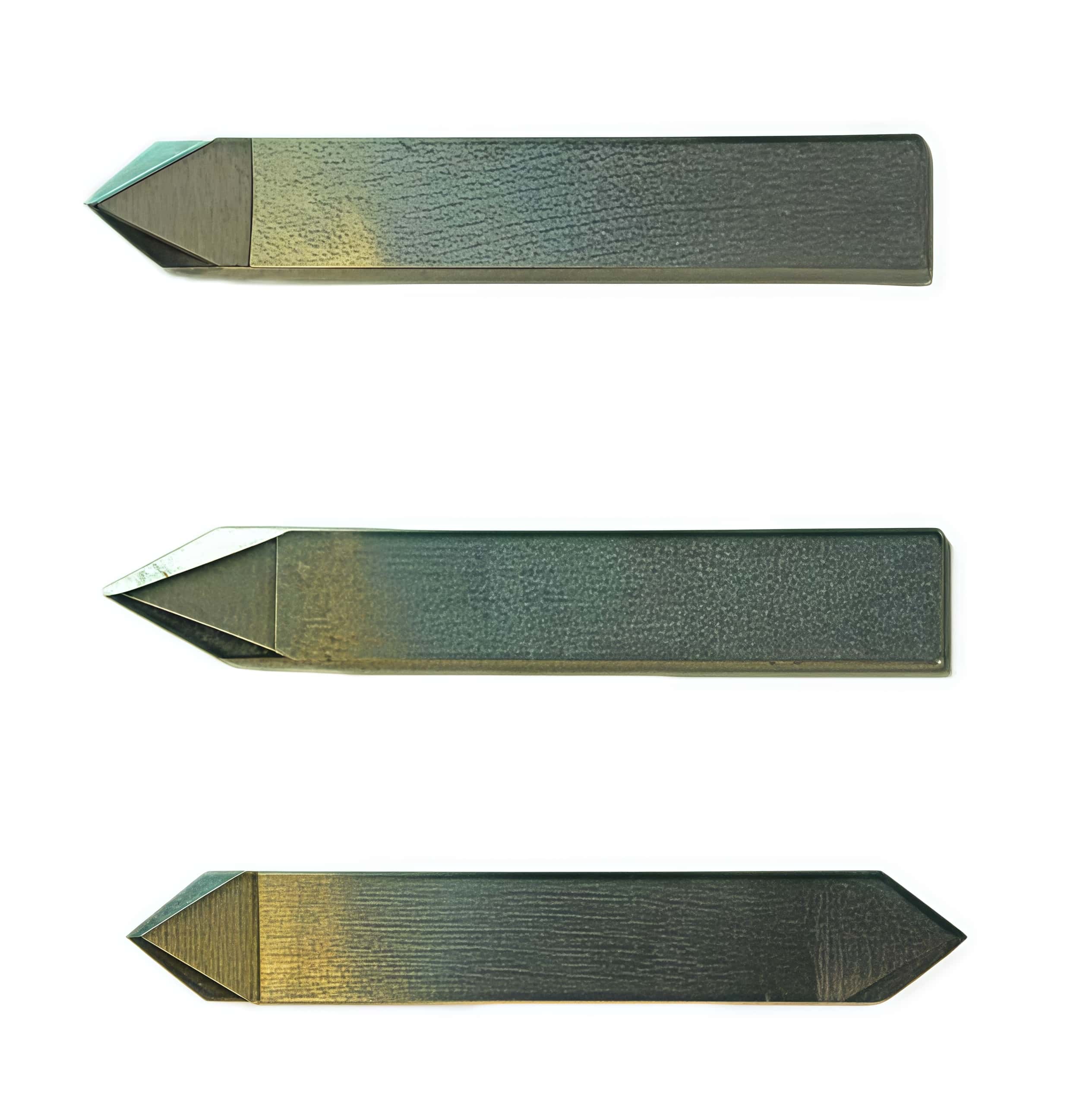

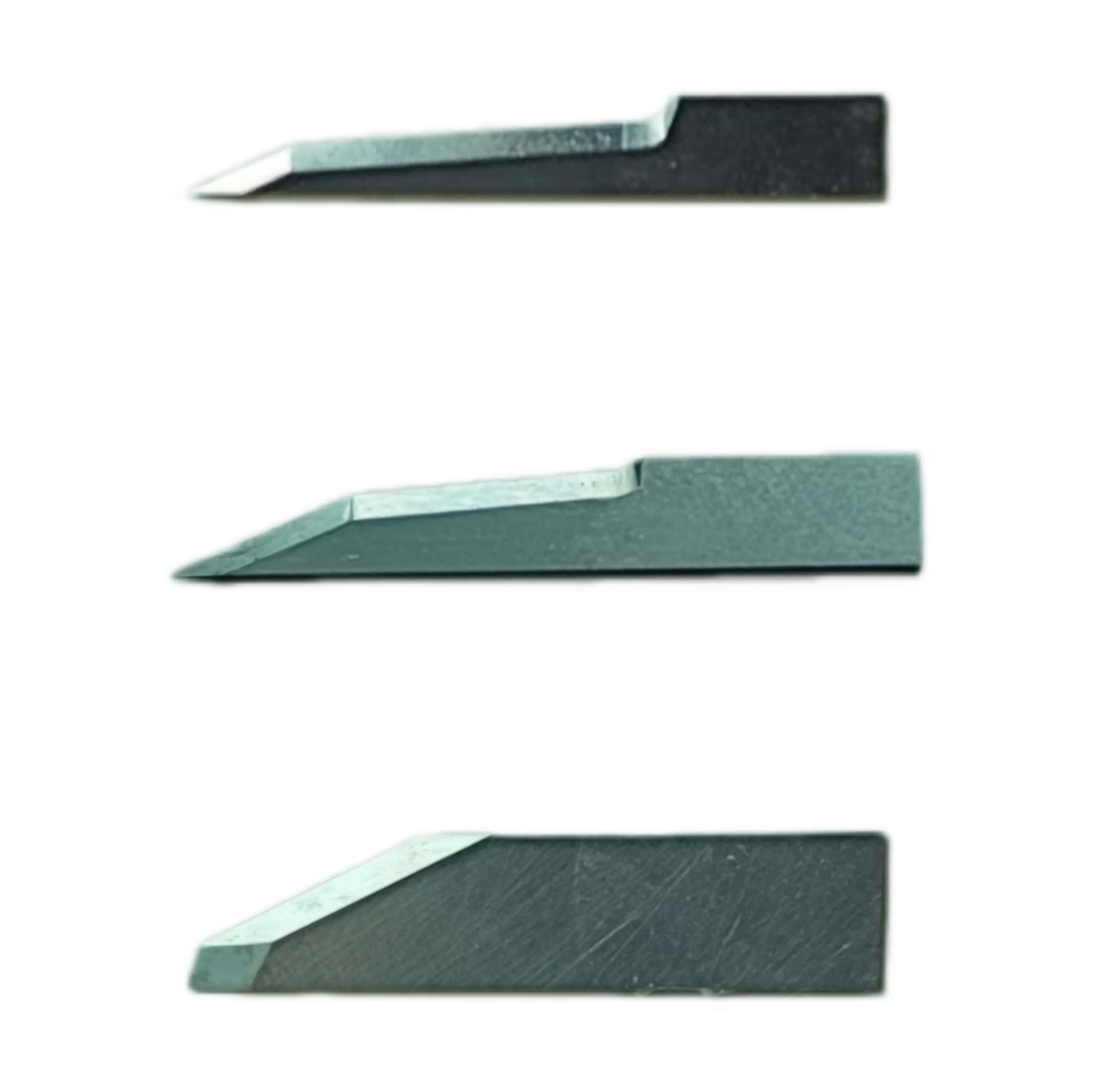

Flat knives compatible with the WILD “UTH” (Universal Tool Head) are specialized cutting blades engineered for flatbed CNC cutting tables and digital plotters. They are designed to fit specific tool inserts and handle different industrial materials

Z10

8mm wide, dual edge, 50 degr. cut angle solid carbide, for knife holder type 1heavy duty knife for Lexan, cardboard, Diamond Grade, pavement marking etc.

Z11

8mm wide, dual edge, 60 degr. cut anglesolid carbide, for knife holder type 1heavy duty knife for Lexan, cardboard, Diamond Grade, pavement marking etc.smaller overcut than Z10

Z12

8mm wide, 2-sided dual edge, 50 degr. cut angle, solid carbide, for knife holder type 1heavy duty knife for Lexan, cardboard, Diamond Grade, pavement marking etc.

Z13

8mm wide, 2-sided dual edge, 60 degr. cut angle, solid carbide, for knife holder type 1heavy duty knife for Lexan, cardboard, Diamond Grade, pavement marking etc.smaller overcut than Z12

Z16

6mm wide, 0.6mm thick, 55 degr. cut angle,single edge, for knife holder type 3 (#3960324 yellow), and for EOT and POTfor cutting cardboard, leather and fabric etc.

Z17

6mm wide, 0.6mm thick, 65 degr. cut angle,single edge, for knife holder type 3 (#3960324 yellow), and for EOT and POTfor cutting cardboard, leather and fabric etc. smaller overcut than Z16

Z20

65/85 degr. cut angle, 25mm longfor and POTfor cutting corrugated cardboard, foam and rubber etc. up to 10mm thick

Z21

65/85 degr. cut angle, 28mm long for EOT and POTfor cutting corrugated cardboard, foam and rubber etc. up to 13mm thicklike Z20 with longer blade

Z22

65/80 degr. cut angle, 25mm long for EOT and POTfor cutting corrugated cardboard, foam and rubber etc. up to 10mm thicksolid boards up to 3mm thick

Z26

12/65 degr. cut angle, 25mm long9.2mm blade length,for EOT and POT, for cutting sole leather, rubber, foam, had board, fibre board, felt, special order only (2 weeks delivery)

Z42

-15/55 degr. cut angle, 28mm long, 7.8mm blade length with special tip for cutting fabrics, fibre boards, leather, felt, rubber and foam materialsfor EOT and POT oscillating tool

Z46

45/90 degr. cut angle, 50mm long, 20mm blade length , special blade for foam boards, carpet and thick fibrous materialsfor tool insert type 5 (#3960320 black)

Martor 784

50 degr. cut angle, single edgefor holder type 3 (#3960324 yellow)for cutting thin solid boards, PVC, PP and all kind of gasket materials

Key Specifications to Consider

When placing an order or sourcing replacements, ensure you cross-reference these attributes:

Tool Holder Compatibility: Match the knife to your exact holder style (e.g., Holder Type 3/Yellow vs. Holder Type 5/Black).

Material Construction: Opt for Tungsten Carbide for maximum longevity on abrasive materials, or High-Speed Steel (HSS) for specific elastic or thin plastics.

Overcut Constraints: Choose blades like the Z16 or Z42 depending on how tight your design geometry is to minimize corner overcut.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
