Wild Z21 Cnc Oscillating Flat Blades Compatible With Iecho E21 Summa 500-9812 Esko Bld-Sf421 Blades

Z21 (often referred to as Zund Z21 / Esko BLD-SF421 / iEcho E21) is a popular tungsten carbide oscillating knife blade widely used in digital flatbed cutting systems and CNC knife-cutting machines (such as Zünd, iEcho, Esko Kongsberg, Summa, Atom, and others). Enquire now

Description

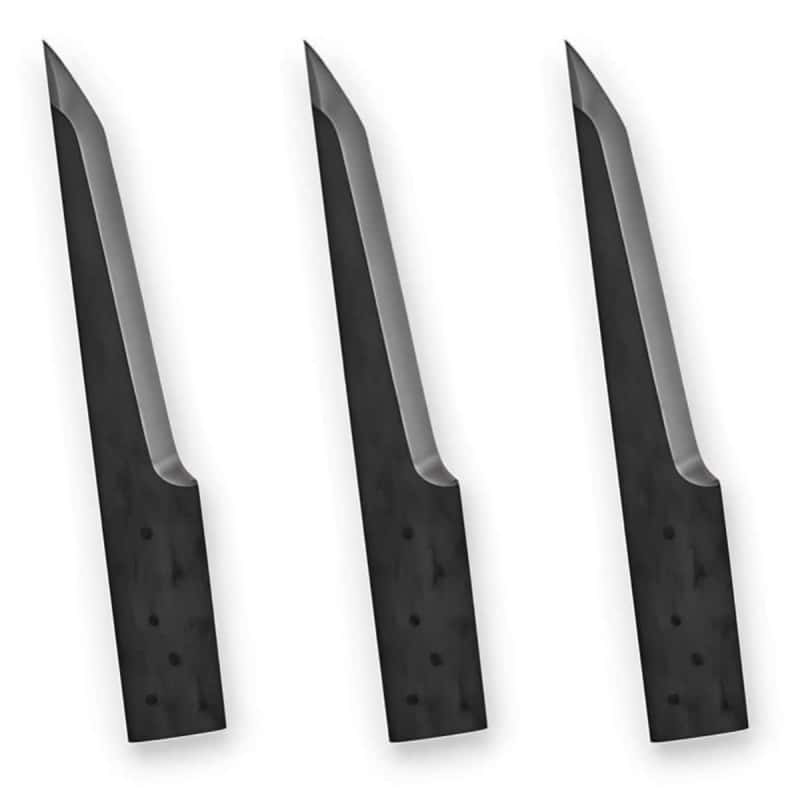

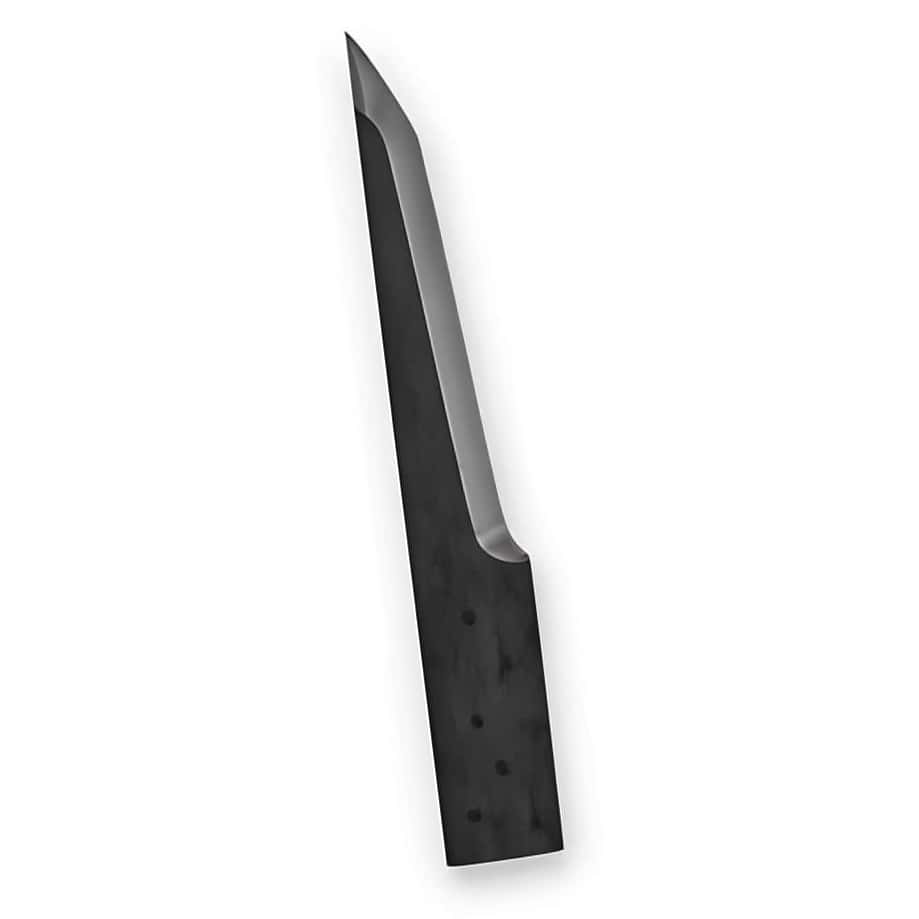

Wild Z21 Cnc Oscillating Flat Blades

Wild Z21 CNC oscillating flat blade is a highly durable, tungsten carbide replacement knife designed for processing details and small radii with minimal overcut on flatbed digital cutter tables. it is standard industry practice to purchase this exact specification as a Zund Z21 blade (OEM Part #3910314)

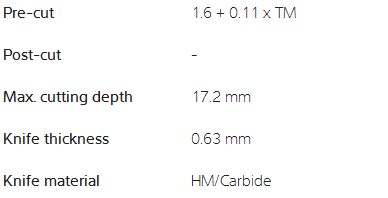

Key Specifications & Cross-References

Dimensions: 28 mm total length × 4 mm width × 0.63 mm thickness.
Cutting Performance: Double-angled tip (63° / 84°) featuring a maximum cutting depth of 17.2 mm. Cross-Brand Equivalents: Esko Kongsberg BLD-SF421 (i-421), Summa 500-9812 (L28), iEcho E21, Colex T00421, and Gerber MCT SE21.
Tool Head Compatibility: Engineered specifically for automated cutting systems equipped with Electric Oscillating Tools (EOT) or Pneumatic Oscillating Tools (POT).

Material Suitability

Thanks to its premium tungsten steel formulation, it maintains sharp edge retention through:

Corrugated cardboard and double-wall stock.
Sandwich boards and light foam core.
Rubber, ejection rubber, and felt.
Folding cartons, magnetic foils, and polyester fabrics.

Recommended materials :

Corrugated, Corrugated plastic, Corrugated sandwich, Sandwich board, Foam board, Folding Carton, Magnetic foil, Polyester fabric, Rubber, Foam

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .

Tel:+86-0769-88014625

Phone Number:+86-18823852826

Email: info@china-oyea.com

1659590865@qq.com

Web: www.china-oyea.com

We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !

Wild Z21 CNC Oscillating Flat Blade, compatible with Iecho E21, Summa 500-9812, and Esko BLD-SF421 blades, is available for sale at competitive prices. Shenzhen Oyea Machinery Co., Ltd. specializes in manufacturing, wholesale supply, and sales, catering to diverse industry requirements. Offering top-quality products, they are available for purchase in China.
