Summa 500-9810 500-0810 F Series Electronic Oscillating Tool(Eot)Vinyl Plotter Knives Knife Blades

Summa 500-9810 (500-0810) is a professional-grade solid tungsten carbide oscillating knife blade designed exclusively for the Summa F Series flatbed cutting systems Enquire now

Description

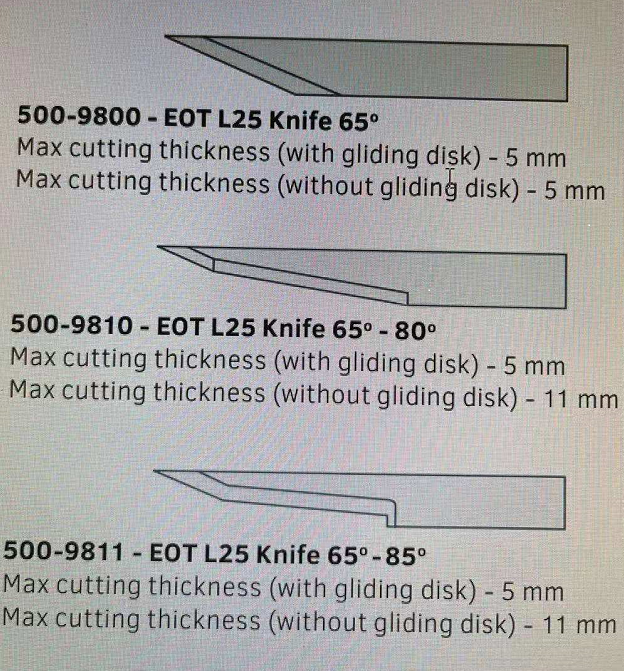

Summa F Series Oscillating Knife Blade OT 65° -80° L25 500-9810 500-0810

Summa 500-9810,Summa 500-0810,Summa Blades,Summa F Series Blades,Summa Plotter Blades,Summa Knives,Summa EOT Blades

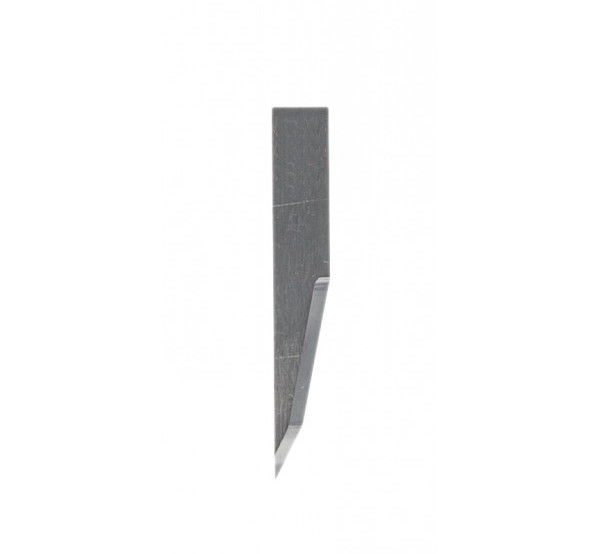

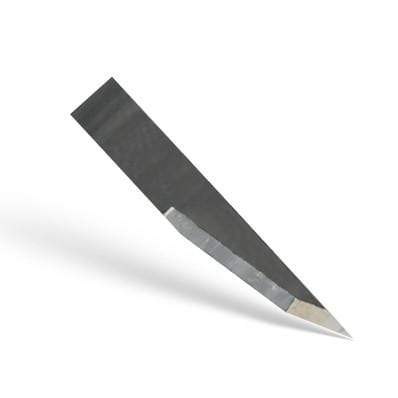

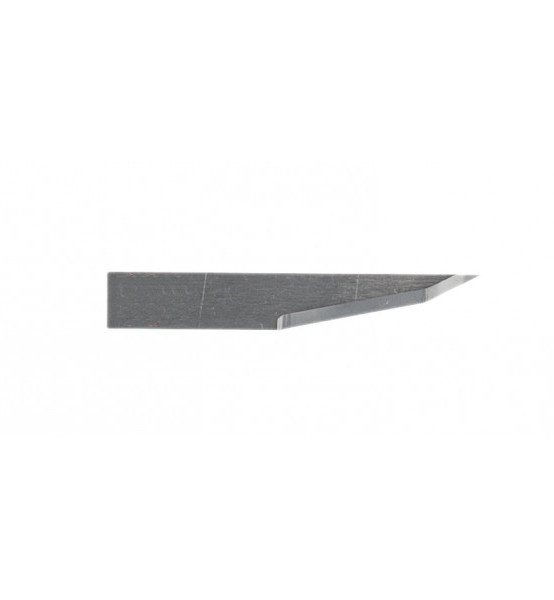

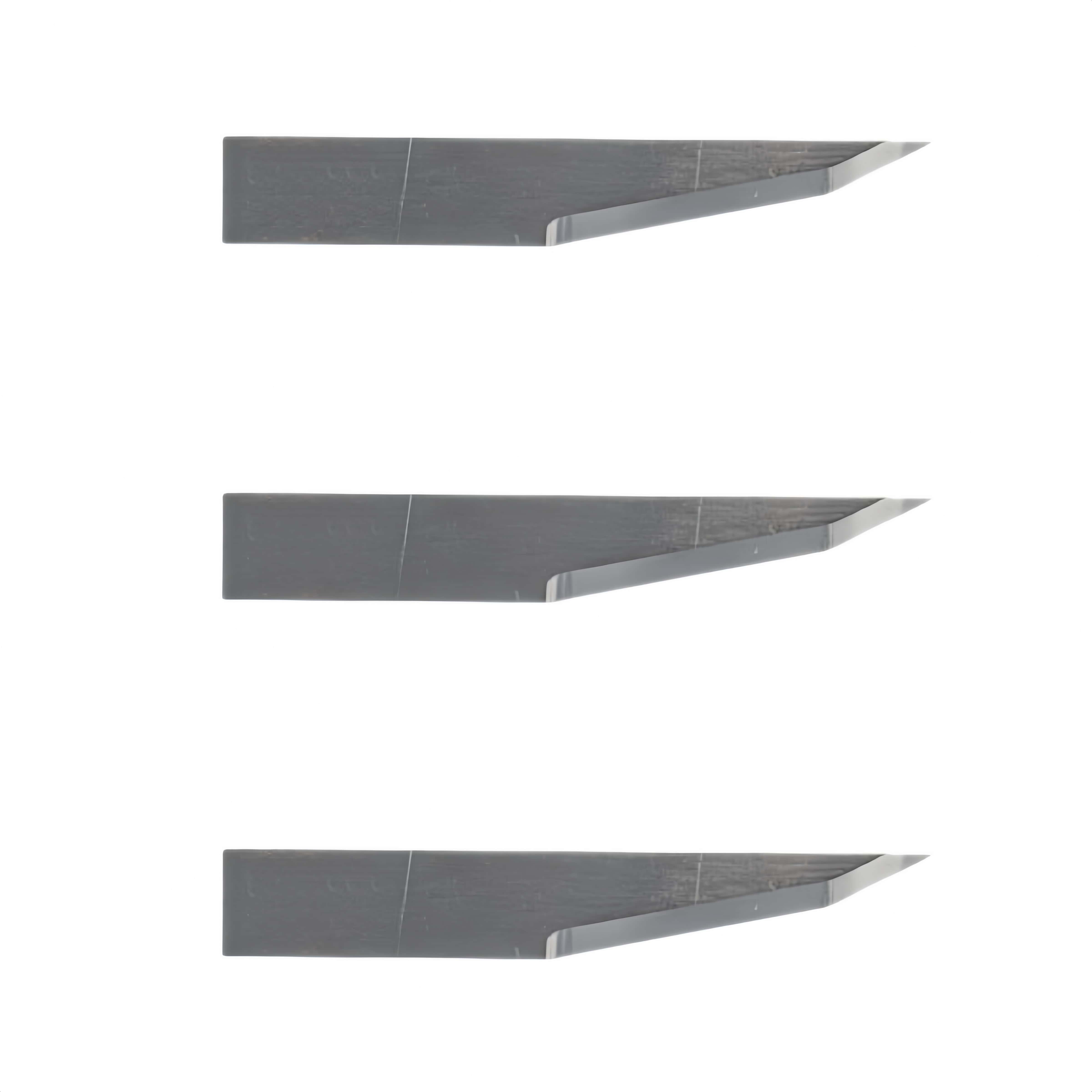

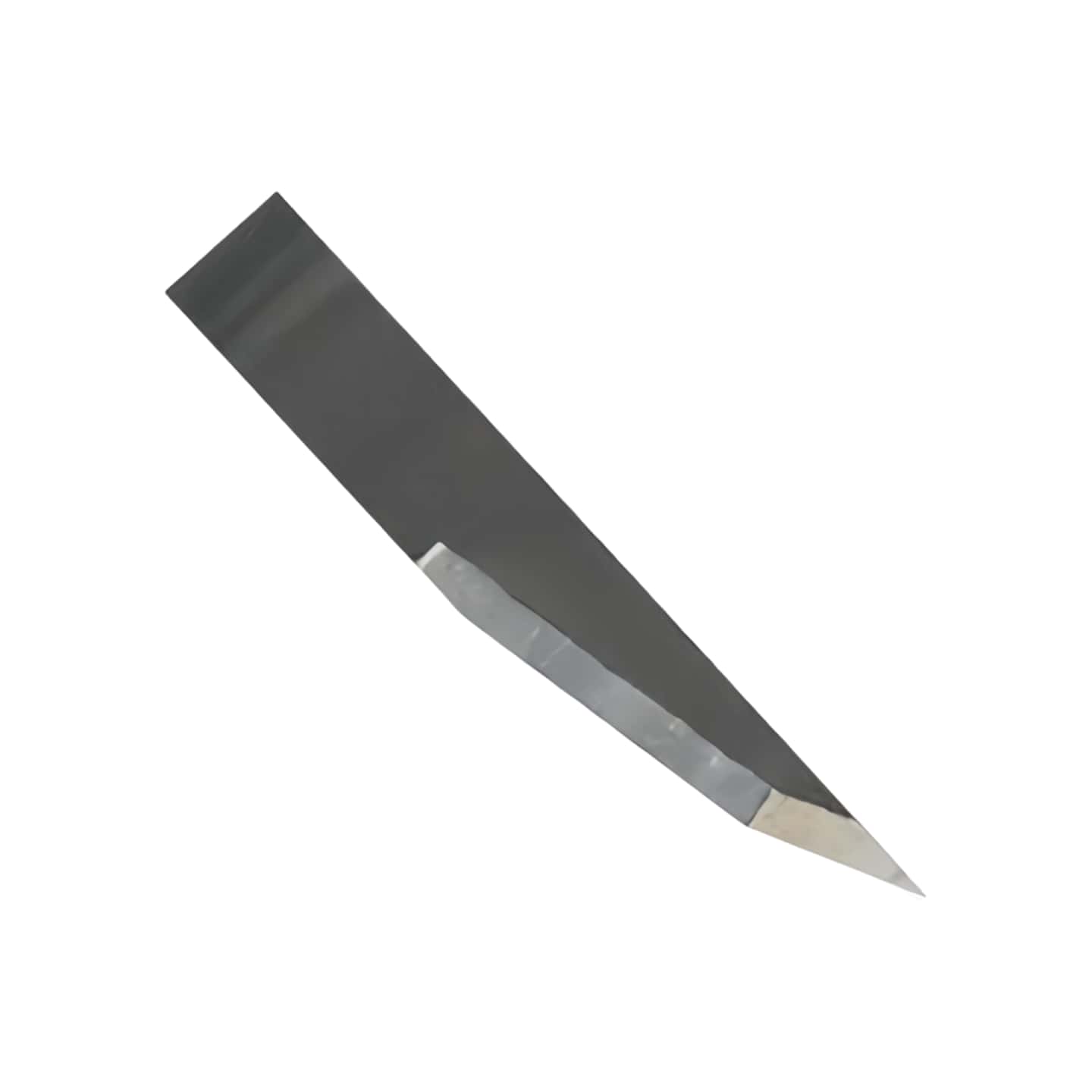

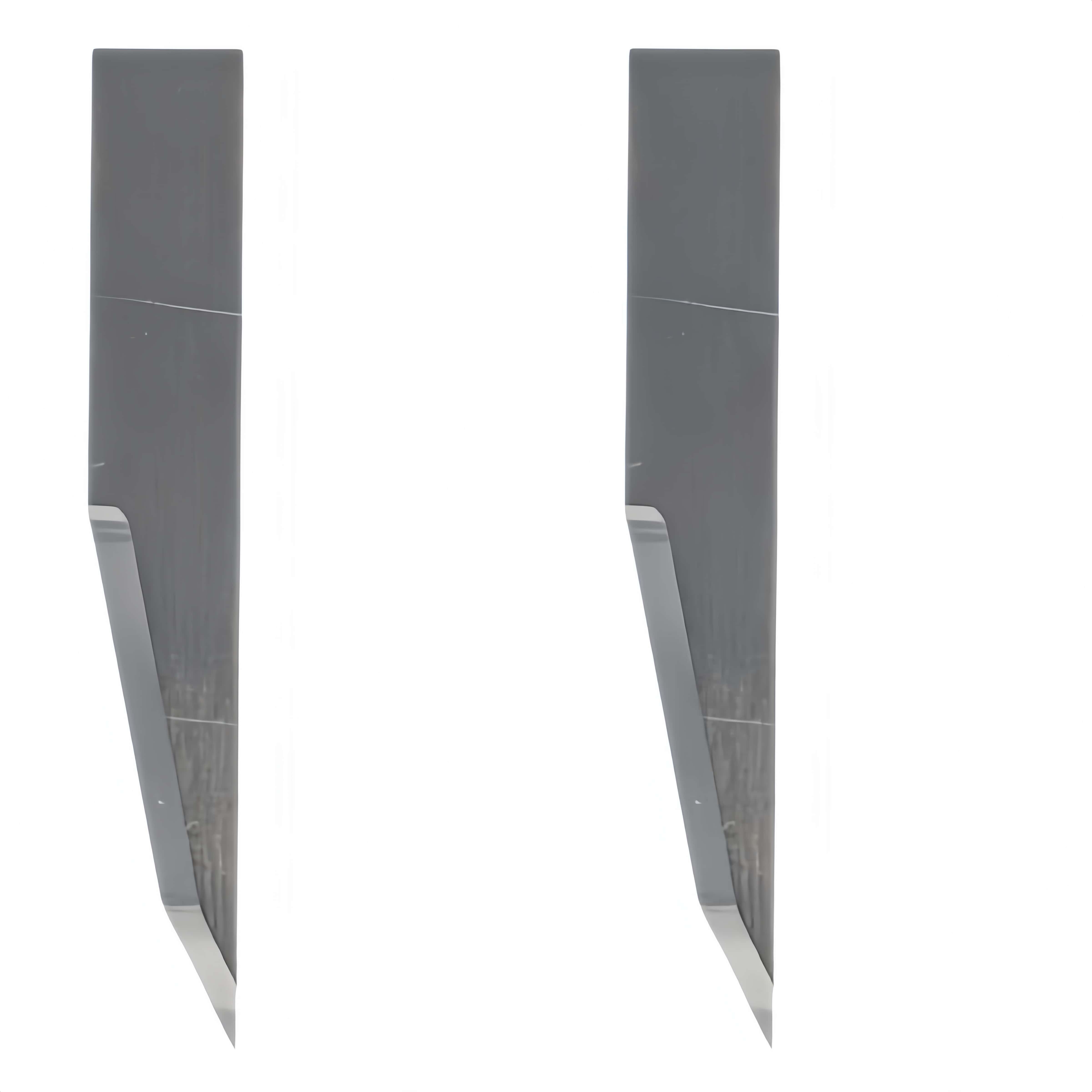

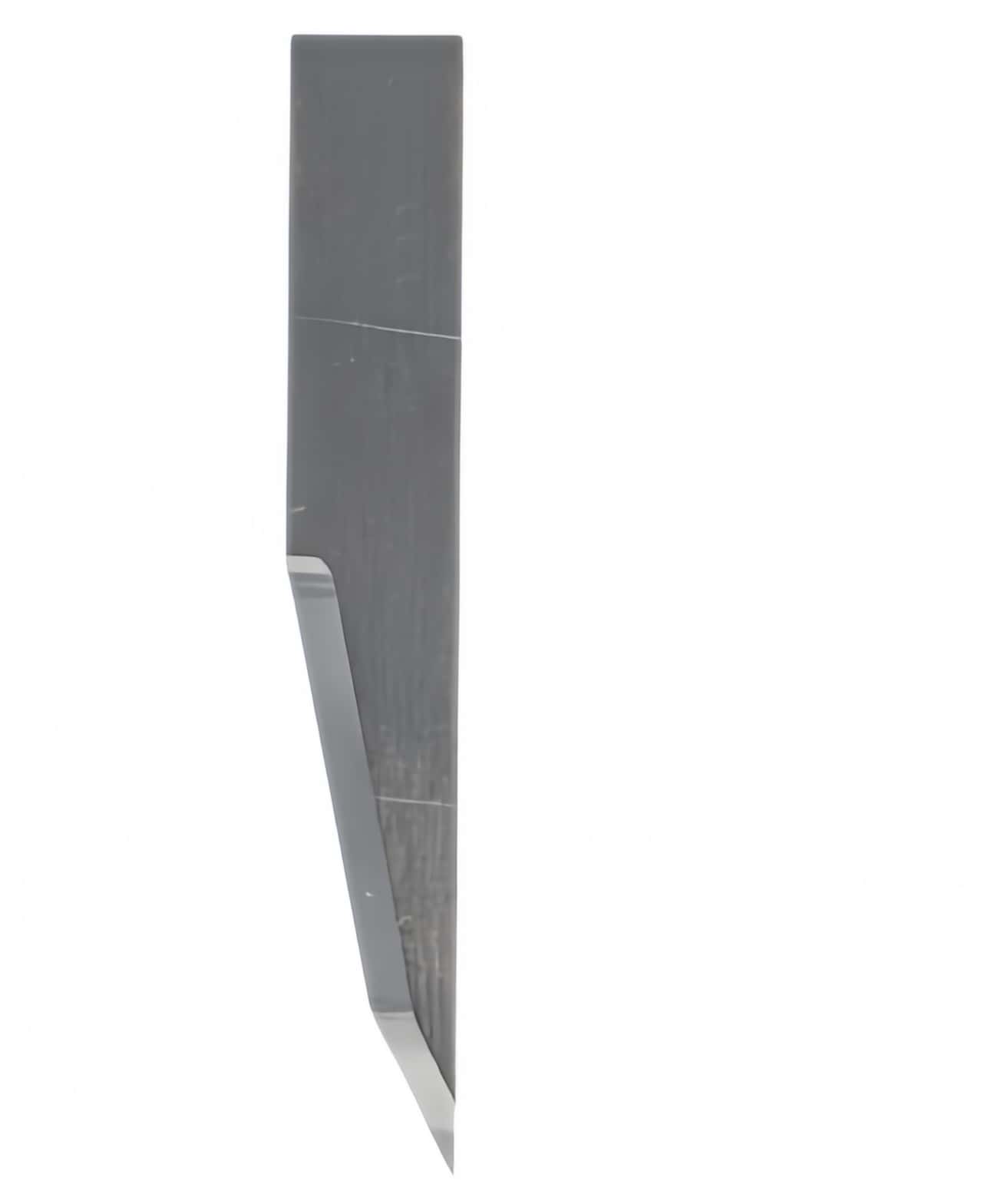

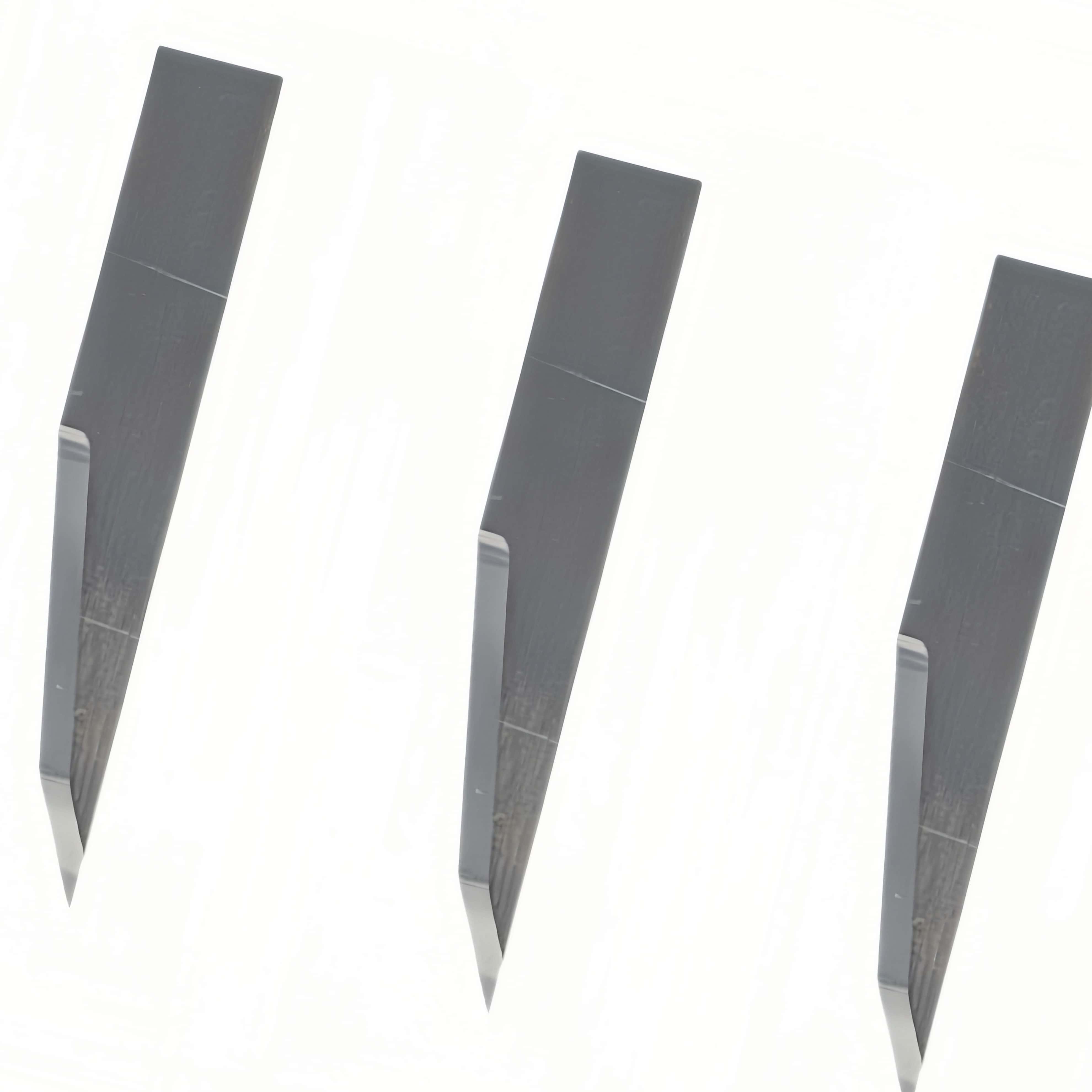

Summa 500-9810 (also known as 500-0810) is a solid tungsten carbide oscillating knife blade designed for Summa F Series flatbed cutting systems. Unlike standard vinyl plotter knives, this blade is specially built for the high-torque Electronic Oscillating Tool (EOT) module, making it ideal for cutting thick, soft-to-medium density industrial packaging and graphic media.

Description

For use with the Electronic Oscillating Tool.

Specifications

Cuts material up to .43″ (11mm) thick.

Compatibility

Summa F Series

Material Application Guide

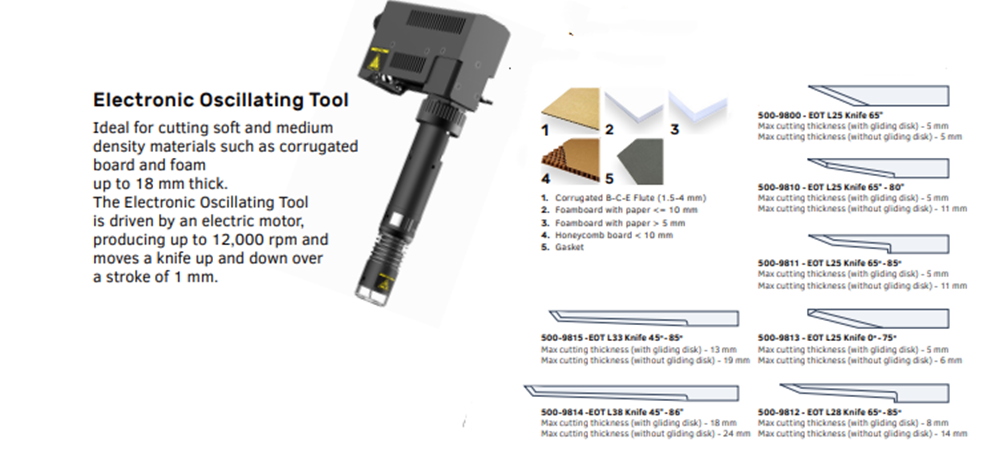

The EOT module drives this blade up and down at up to 12,000 rpm with a short 1 mm stroke. This high-frequency mechanical action allows the 500-9810 / 500-0810 blade to easily glide through materials that stick to or deflect under standard drag knives:

Corrugated Board: Ideal for multi-wall corrugated paperboard variants including B, C, and E flutes (1.5mm to 4mm).
Foam & Sandwich Panels: Soft polyurethane (PUR) core foamboards up to 10mm thick wrapped in paper liners.
Display Media: Honeycomb core boards under 10mm, corrugated plastics (Coroplast), and heavy folding cartons.
Industrial Specialties: Dense rubber gasket compositions, thick felt accents, flexible magnetic foils, and heavy polyester fabrics.

Replacement For:
TC knife blade T22,XZ0022,BT-2382,Esko Kongsberg BLD-SF422 i-422 G42458265,Zund Z22 3910315,Gerber MCT SE21 895022,Summa L25 500-9810 500-0810,Blackman & White BW22,iEcho E22,Mécanuméric 100610380 COMPO008758,Aristo 910.315,Gunnar GZ22
