Esko Kongsberg Bld-Sf422 Flat Oscillating Pointed Knife Blades For Kongsberg Digital Cutting Machine

Esko Kongsberg BLD-SF422(G42458265 , sometimes abbreviated as i-422 ) is a classic single-edged flat oscillating pointed knife blade Enquire now

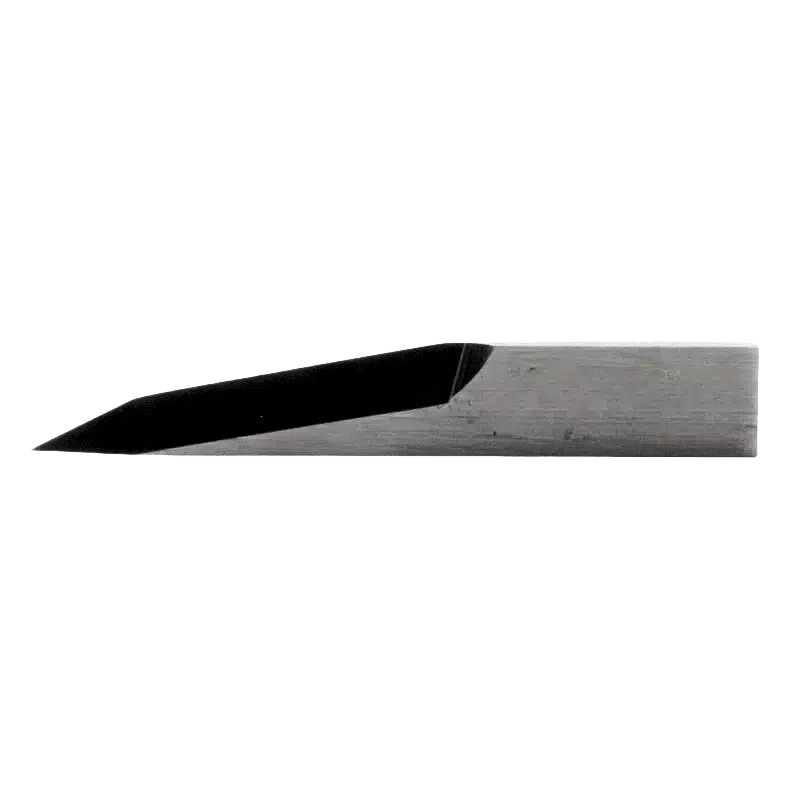

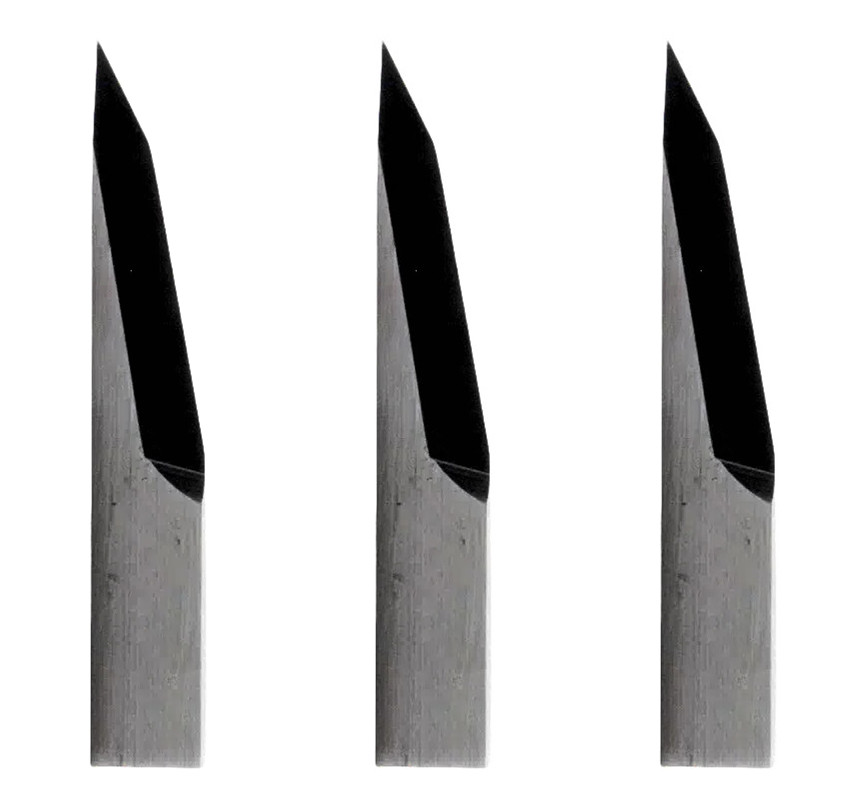

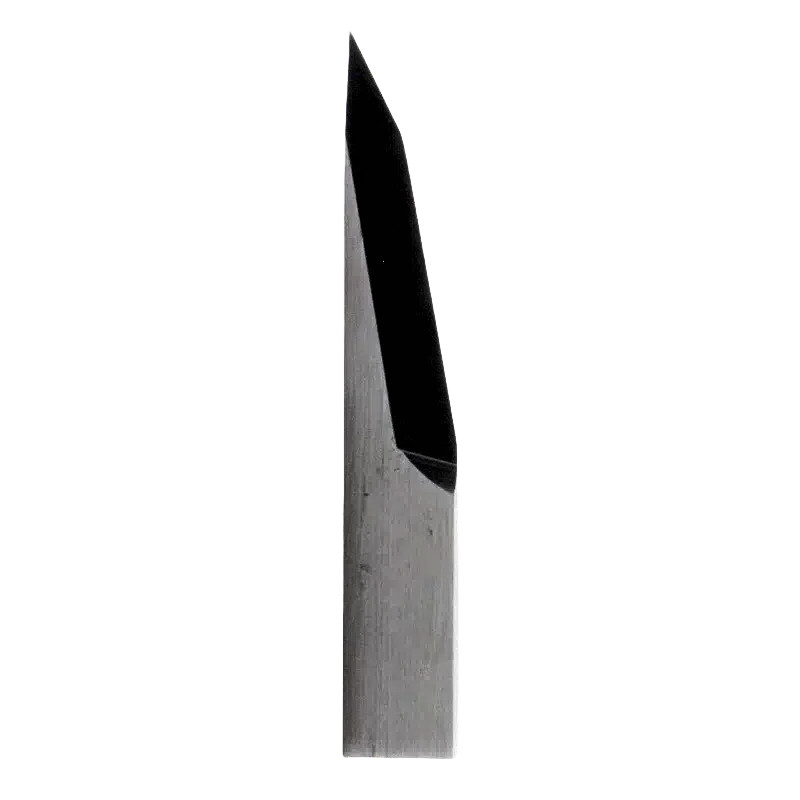

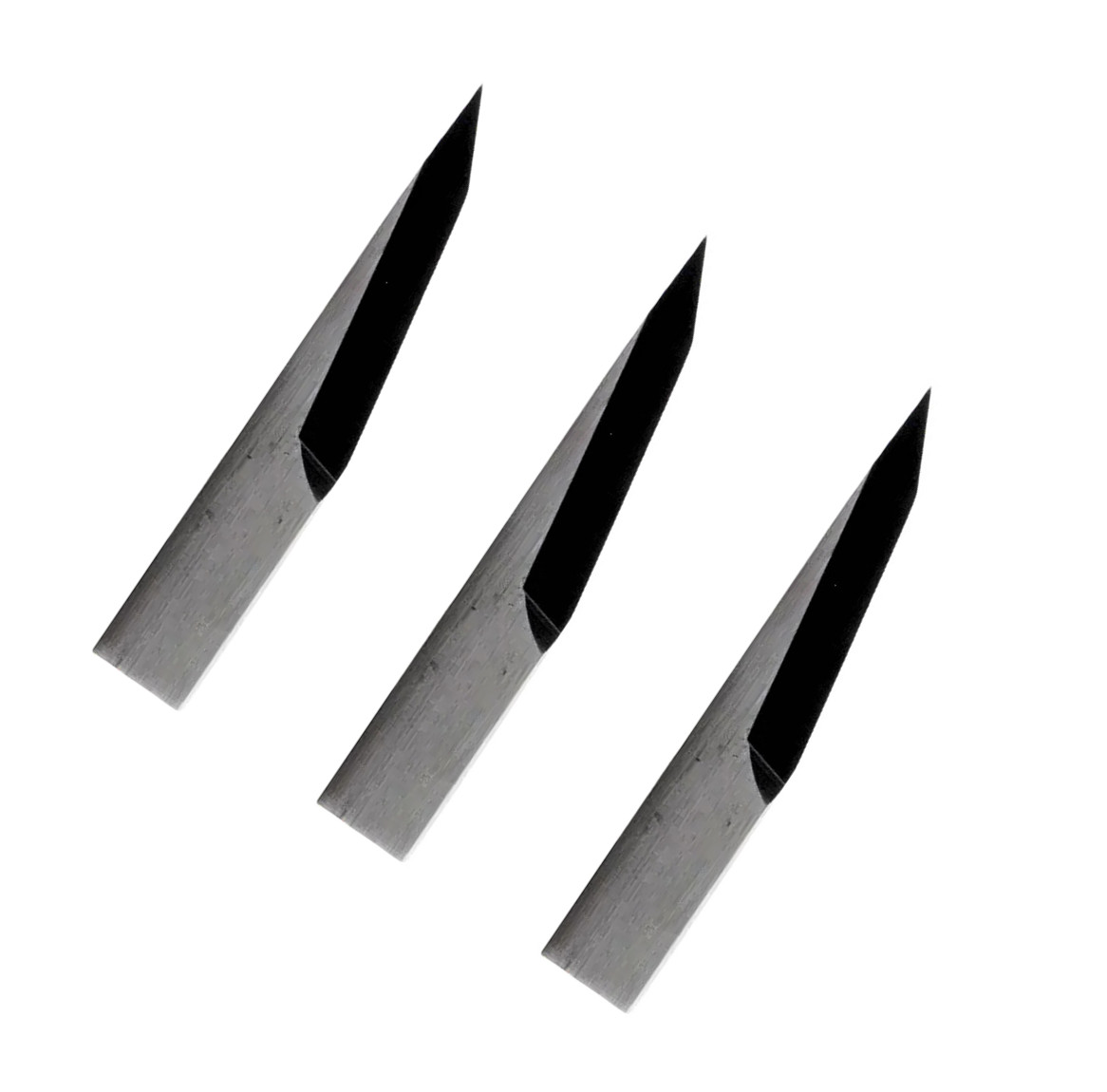

Esko Kongsberg Bld-Sf422 Flat Oscillating Pointed Knife Blade For Kongsberg Digital Cutting Machine G42458265

Esko Kongsberg BLD-SF422(part number: G42458265 , sometimes abbreviated as i-422 ) is a classic single-edged flat oscillating pointed knife blade. Due to the standardization of the blade holder interface of digital cutting machines, this model has a very wide range of cross-brand perfect alternatives and equivalent models in the industry.

Recommended use

Corrugated stock, foam board and more. for oscillate knife with a 10'/25' cut angle, a single edge design.

CUTTER BRAND
Esko Kongsberg
ANGLE
63°/79°
KNIFE HEIGHT
25,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
14,00 mm

KNIFE TYPE
Flat, Oscillating blade, Pointed

MATERIALS
Corrugated cardboard, Corrugated plastic, Felt, Foam board, Folding Carton, Magnetic foil, Polyester fabric, Rubber

REPLACEMENT
Yes

KNIFE/BLADE MOUNTING
flat 0,63 mm

Replacement For:
TC knife blade T22,XZ0022,BT-2382,Esko Kongsberg BLD-SF422 i-422 G42458265,Zund Z22 3910315,Gerber MCT SE21 895022,Summa L25 500-9810 500-0810,Blackman & White BW22,iEcho E22,Mécanuméric 100610380 COMPO008758,Aristo 910.315,Gunnar GZ22
