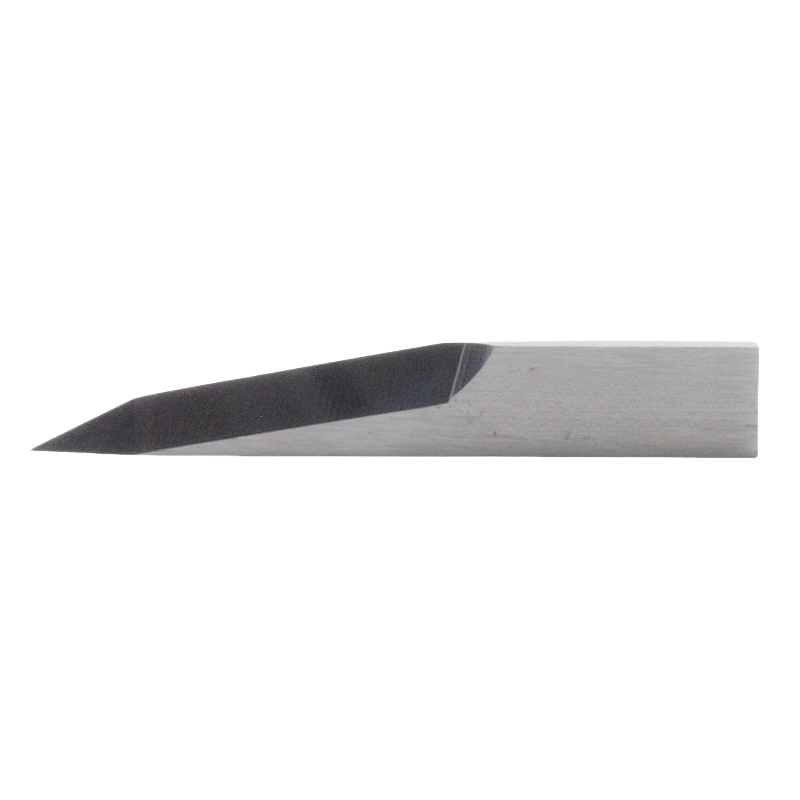

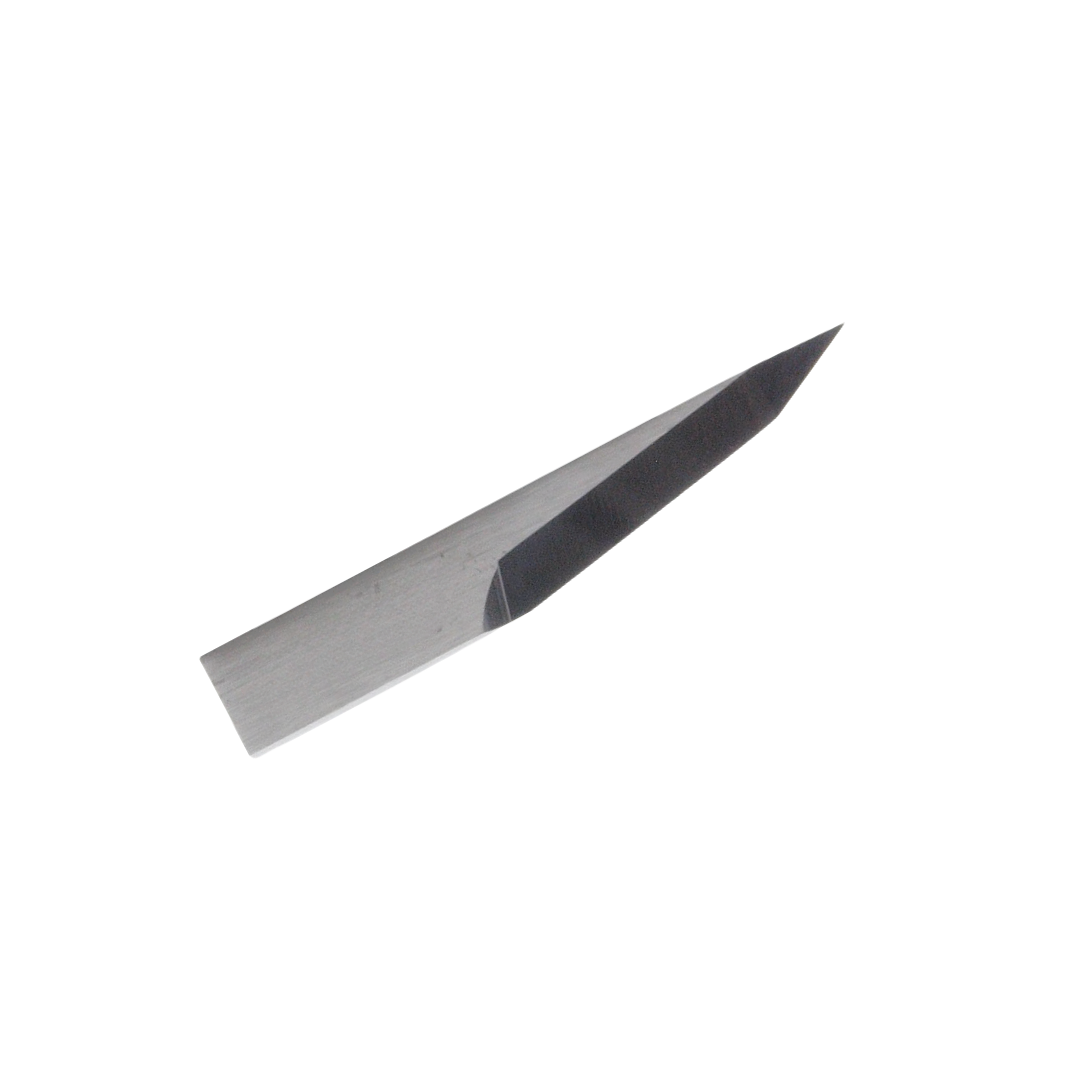

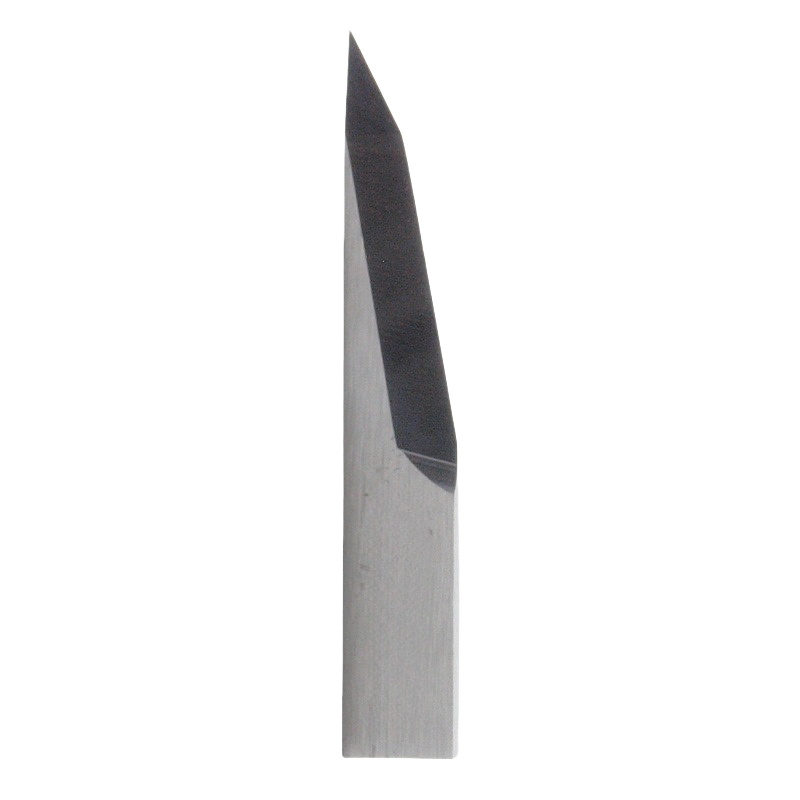

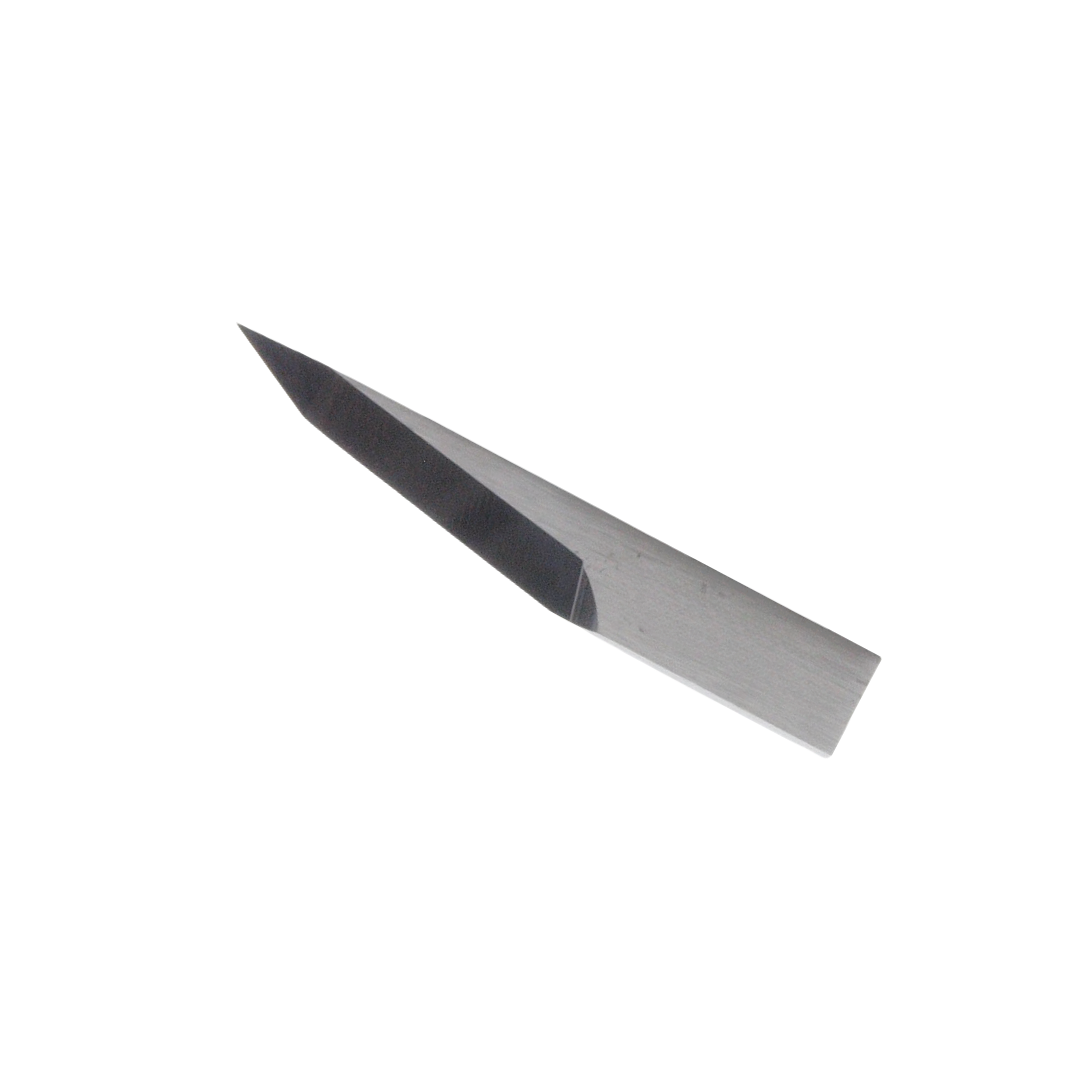

Aristo 910.315 Flat Single Edge Knife Blades For Aristo Cutting Systems | Flatbed Cutter

XZ0022 Aristo 910.315 is high-precision tungsten carbide (hard alloy) vibrating blade primarily used in ARISTO digital flatbed cutters Enquire now

Description

Aristo 910.315 Flat Single Edge Knife Blades For Aristo Cutting Systems | Flatbed Cutter

Aristo Knife,Aristo 910.315 blades,Aristo 910.315,Aristo blades,Aristo blades 910.315

Blade type : Flat single-edge oscillating blade

Material : High-quality tungsten carbide (tungsten steel), uncoated.

Maximum cutting depth/blade length : 14 mm

Handle style and size : Flat handle, 4 mm wide

Blade length : 25 mm

Blade thickness : 0.63 mm

Compatible Aristo tool holder : 4560 tool head assembly

Replacement For:
TC knife blade T22,XZ0022,BT-2382,Esko Kongsberg BLD-SF422 i-422 G42458265,Zund Z22 3910315,Gerber MCT SE21 895022,Summa L25 500-9810 500-0810,Blackman & White BW22,iEcho E22,Mécanuméric 100610380 COMPO008758,Aristo 910.315,Gunnar GZ22

Applicable processing materials
This model is widely used in packaging, advertising billboards, sealing gaskets, and shoe, apparel, and bag sampling, and can easily handle the following media:
Packaging materials : corrugated cardboard, honeycomb cardboard, folding cartons, hard cardboard
Composite/foamed boards : Coroplast/PP hollow boards, KT boards, polyethylene foam (PE Foam), polyurethane foam (PUR Foam)
Flexible and industrial media : carpets, leather (leather, raw hide, suede), rubber, magnetic tape, polyester fabrics

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
