Esko Kongsberg 6mm Multi-Purpose Down Cut Milling & Router Bits-Shops Stores

Esko Kongsberg 6mm Multi-Purpose Down-Cut Milling & Router Bits are specialty solid-carbide CNC routing tools engineered for high-performance finishing tables. Because they utilize a downward spiral helix, these bits push chips down and apply downward pressure to the substrate. Enquire now

Description

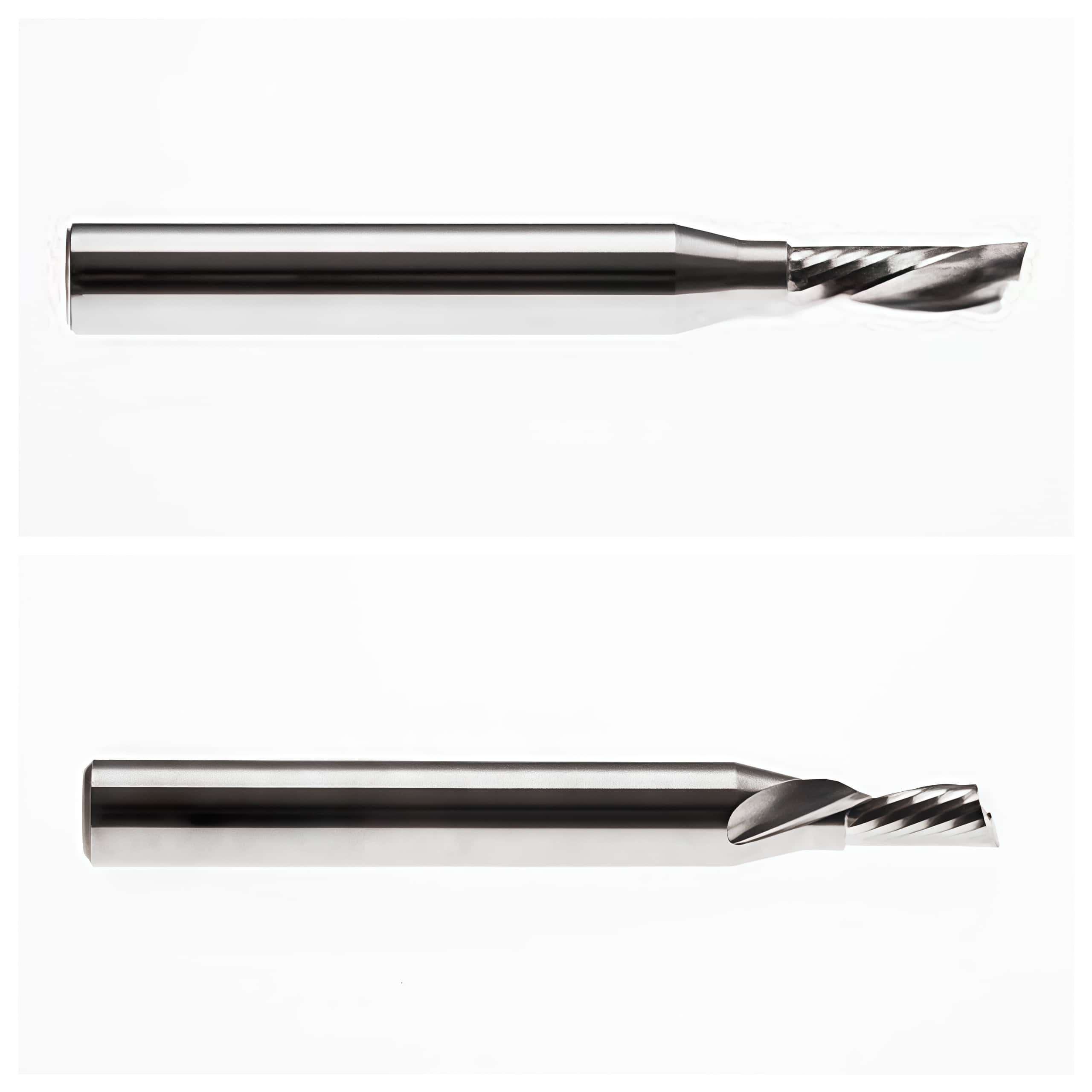

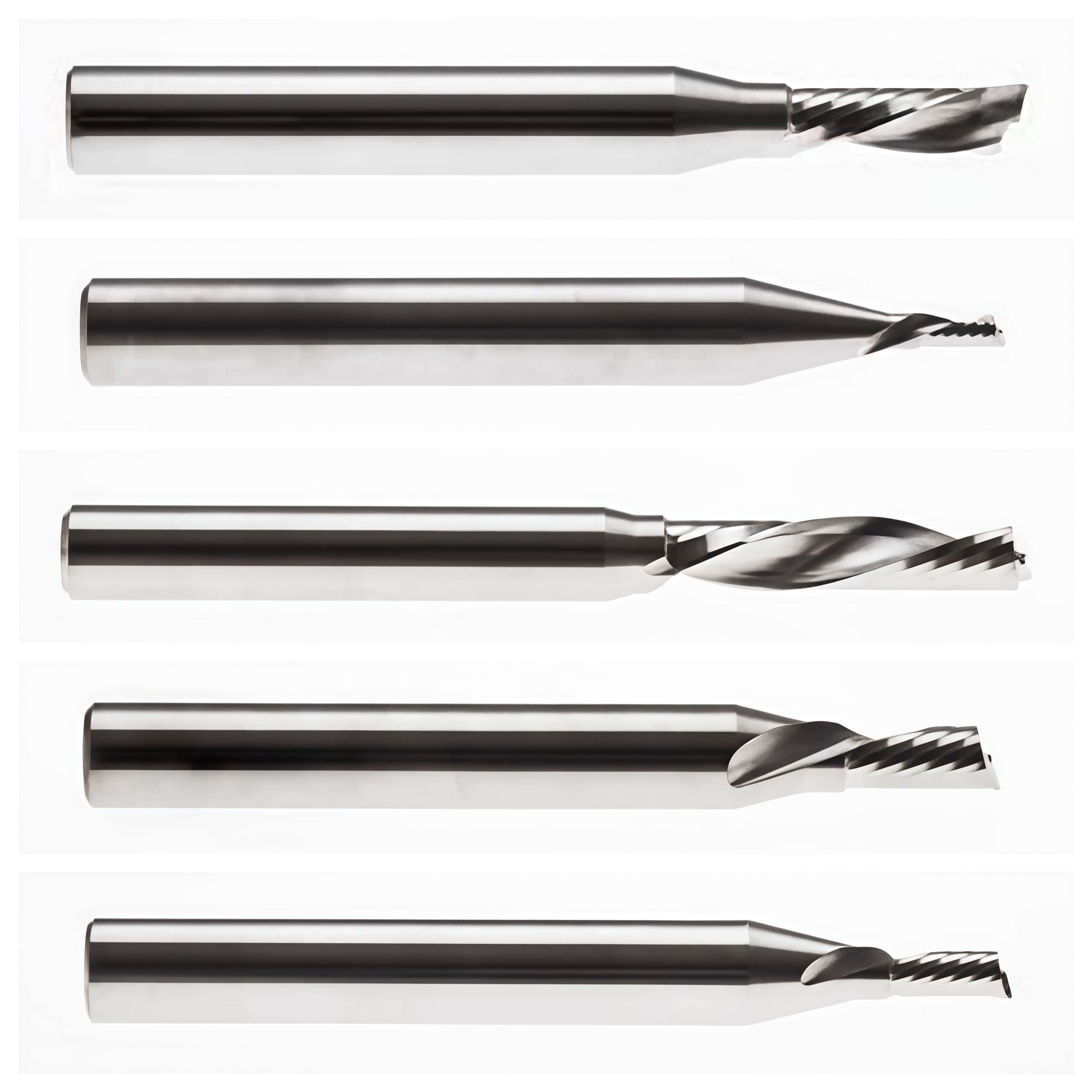

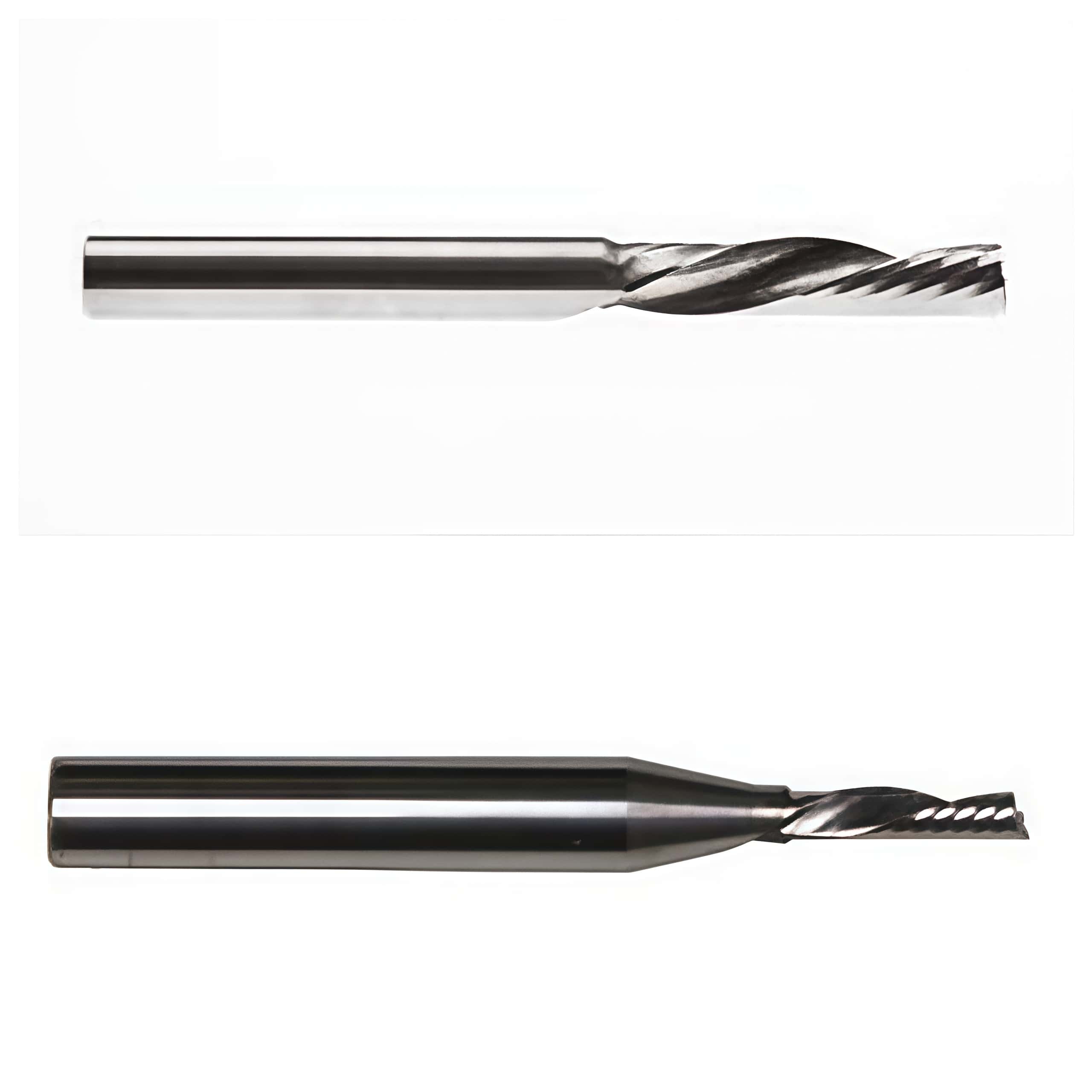

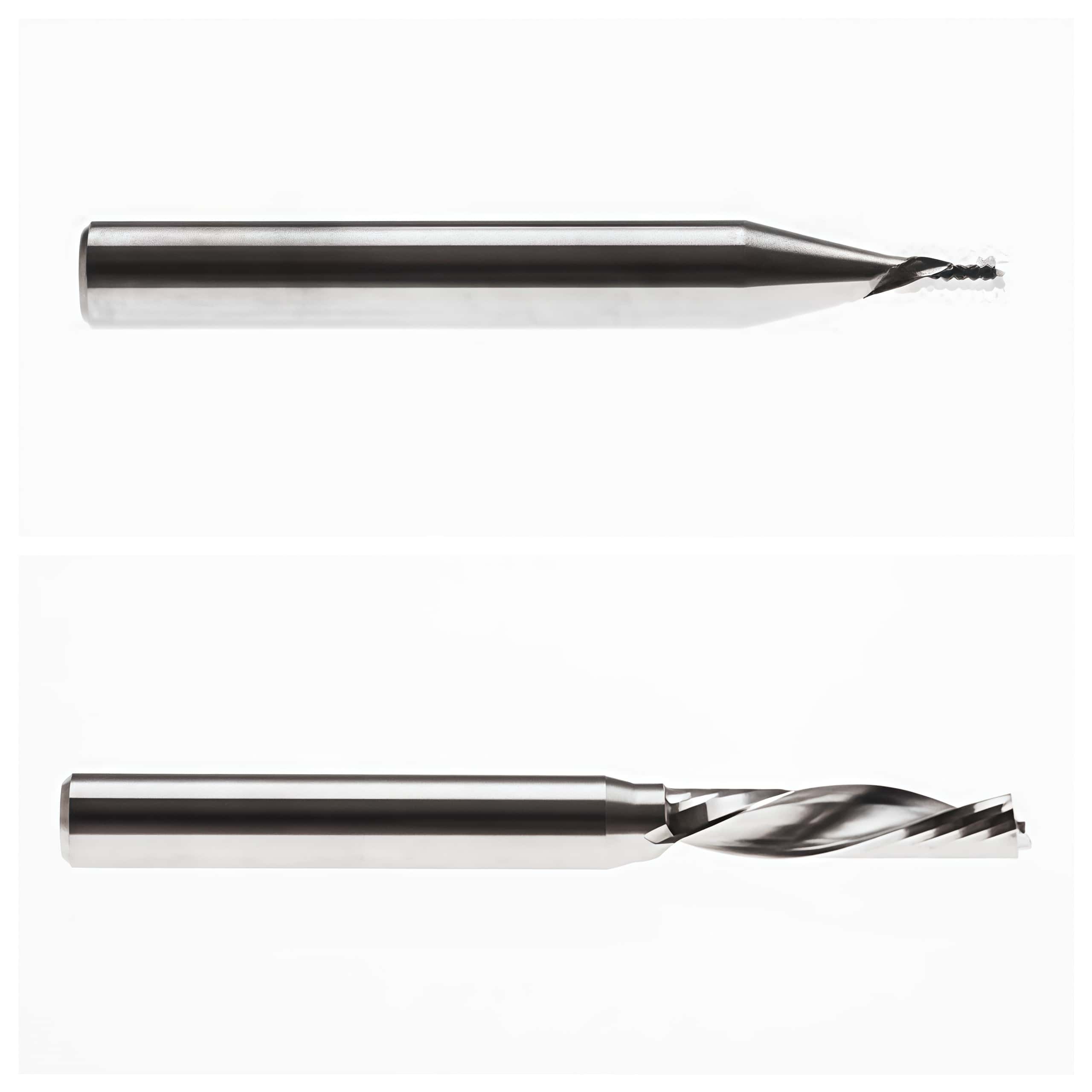

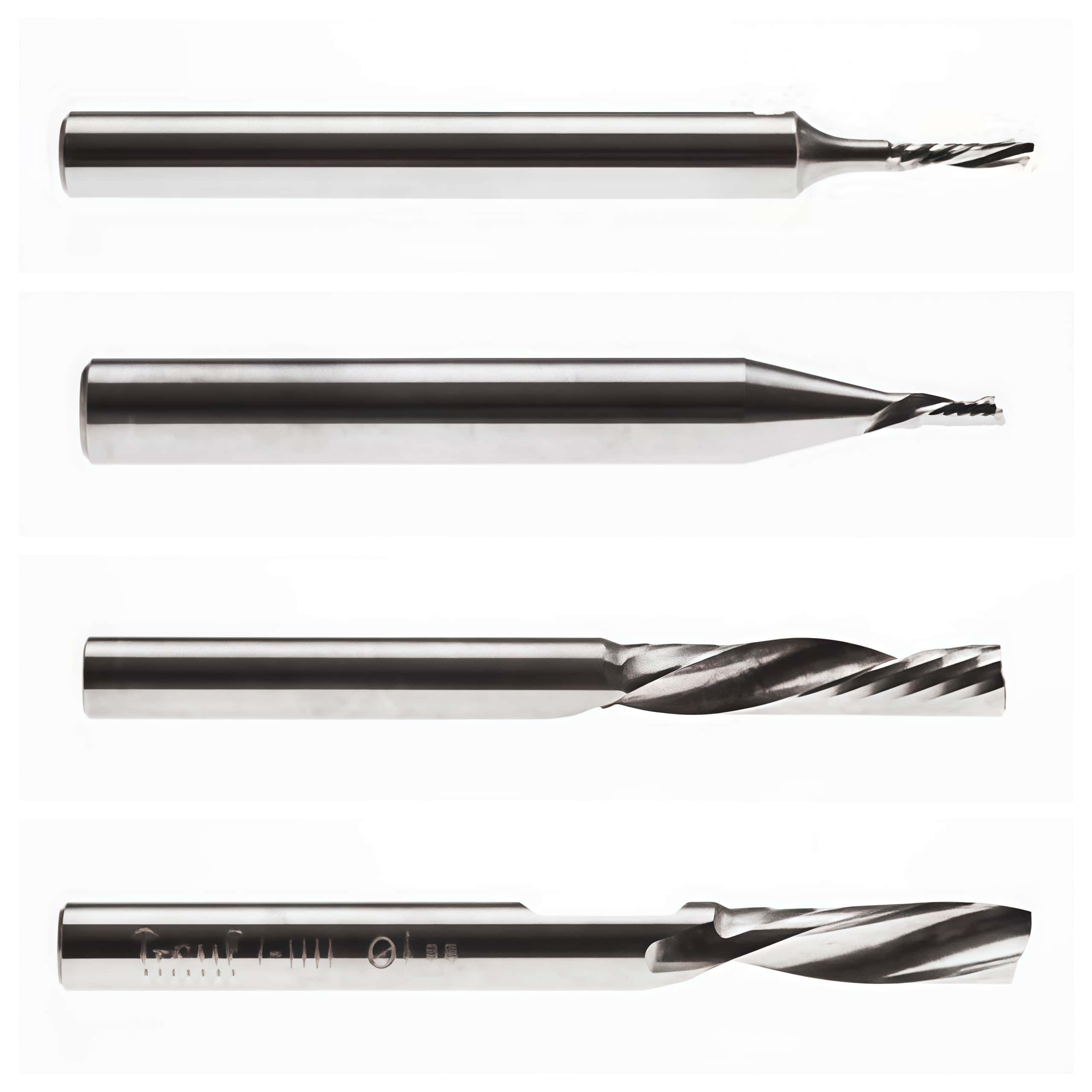

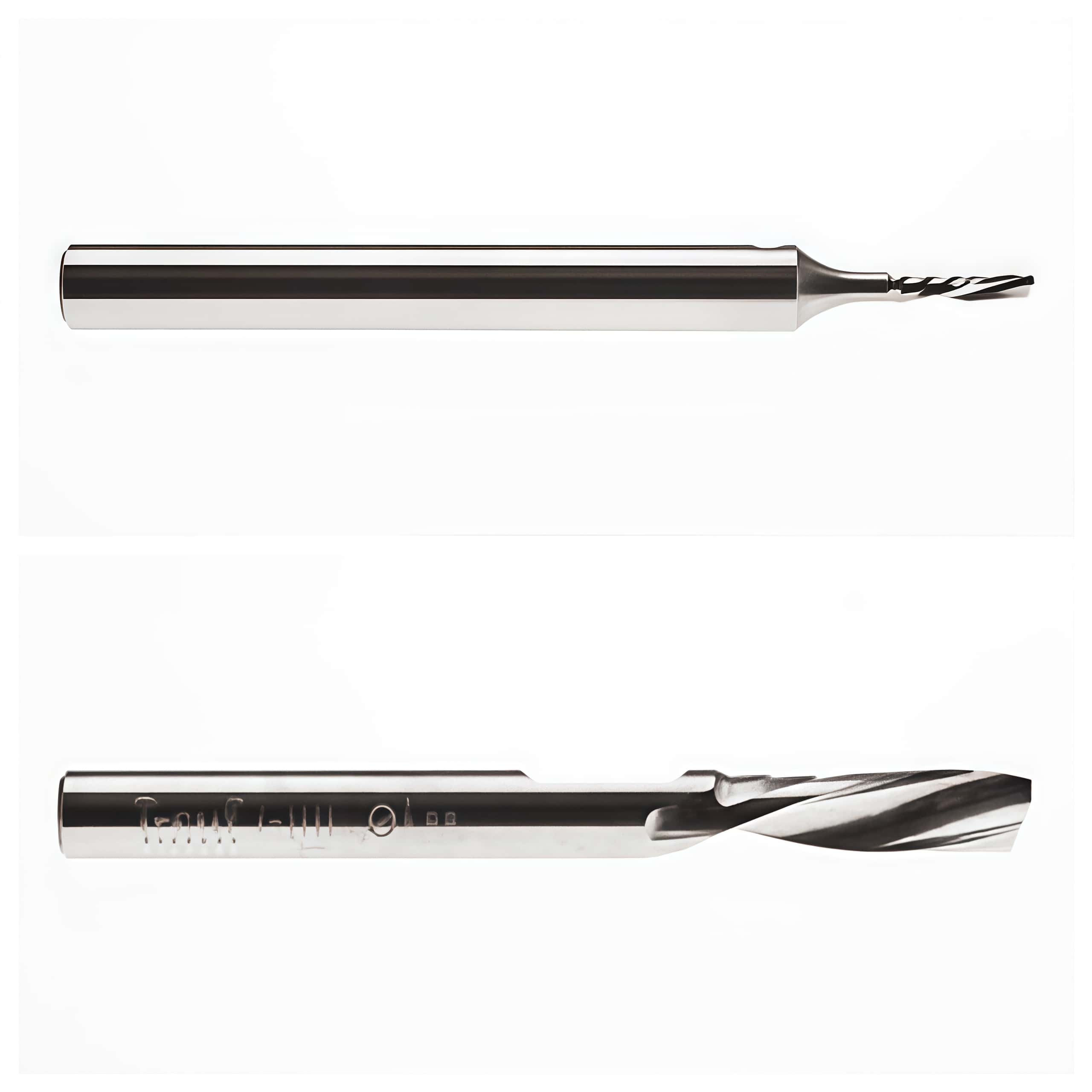

Esko Kongsberg 6mm Multi-Purpose Down Cut Milling & Router Bits

	BIT-MDS06-2004-50 G42449355
	BIT-MDS06-3006-50 G42449363
	BIT-MDS06-3011-50 G42447342
	BIT-MDS06-4008-50 G42449371
	BIT-MDS06-2008-64 (i-2804) G42458810
	BIT-MDS06-4012-50 G42449389
	BIT-MDS06-6020-64 (i-2888) G42458414
	BIT-MDS06-6030-64 (i-2889) G42458422
	BIT-MDS06-5022-60 G42447359

Key Technical Specifications

· Shank Diameter: 6.0 mm (Standard architecture for High-Power Milling Units and MultiCUT-HP tool heads).

· Geometry: Single O-Flute or dual flute with a polished down-cut spiral.

· OEM Reference Equivalence: Commonly matches factory codes like BIT-MDS06-6020-64 (Esko part number G42458414).

· Material Compatibility: Aluminum Composite Materials (ACM/Dibond), foamed PVC (Sintra/Forex), acrylics, solid wood, plastics, and MDF.

The following compatible 6mm tooling options are available across several trusted aftermarket and OEM manufacturers:

Available for purchase on Shenzhen Oyea Machinery Co., Ltd, this 6mm shank tool is engineered specifically for clean through-routing on Kongsberg systems. It handles tough, multi-layered sign media, delivering long service lives under continuous-duty operation.

Down-Cut vs. Up-Cut Application Guide

Cut Direction	Best For	Edge Finish Quality	Material Holding
Down-Cut Bits	Thin sheets, small parts, veneers, and laminates.	Flawless, crisp top edges; potential burrs on bottom.	Pushes material down into the bed.
Up-Cut Bits	Deep pocketing, thick aluminum sheets, fast roughing.	Flawless bottom edges; potential fraying on top surface.	Lifts chips up but pulls material upward.
