Esko Kongsberg Milling & Router Bits(6mm super sharp, down cut)

Kongsberg Milling & Router Bits,Kongsberg Milling,Kongsberg Router,Kongsberg Router Bits,Kongsberg Milling Bits

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the … Enquire now

Description

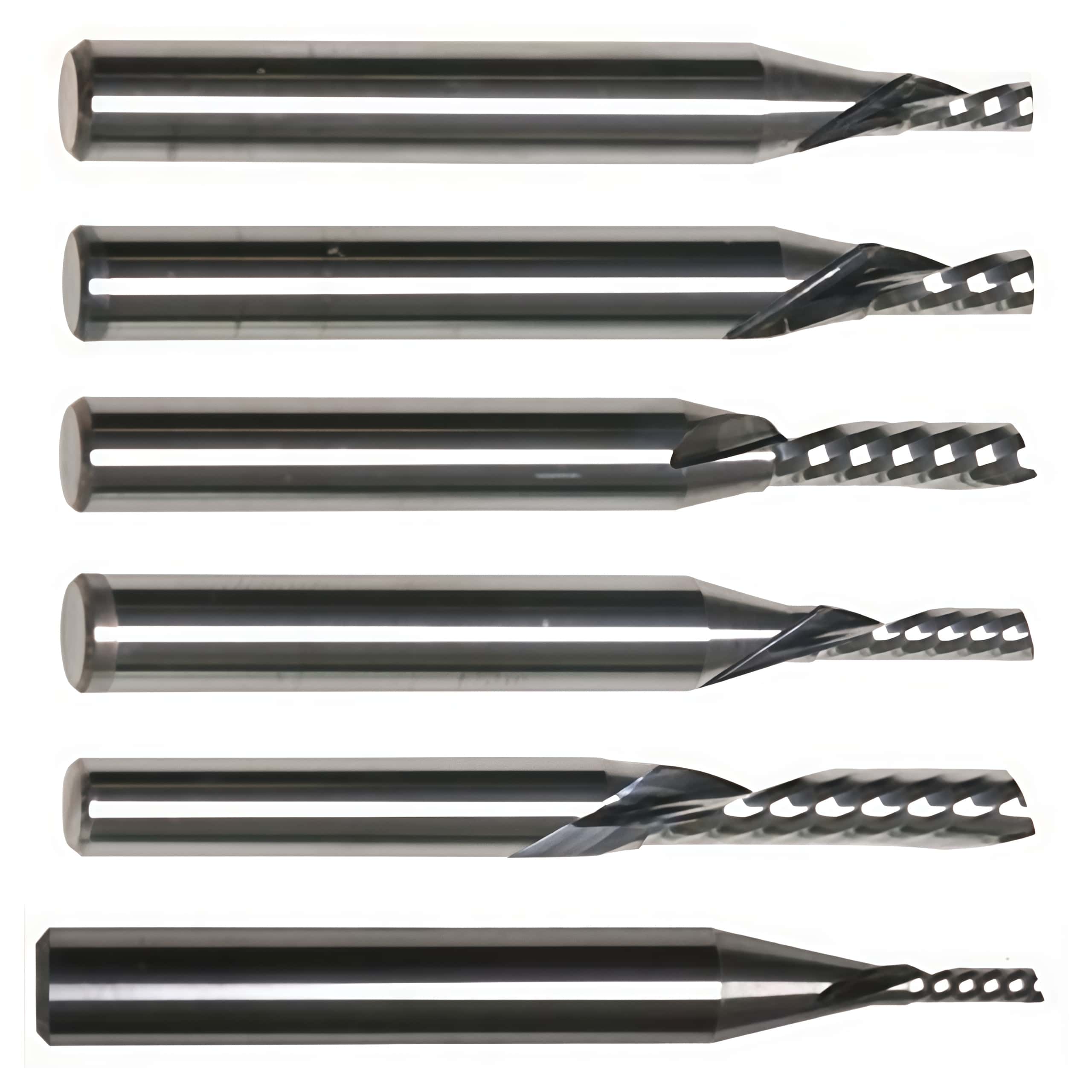

Esko Kongsberg Milling & Router Bits(6mm super sharp, down cut)

	BIT-ADS06-2006-50 G42449488
	BIT-ADS06-3006-50 G42445932

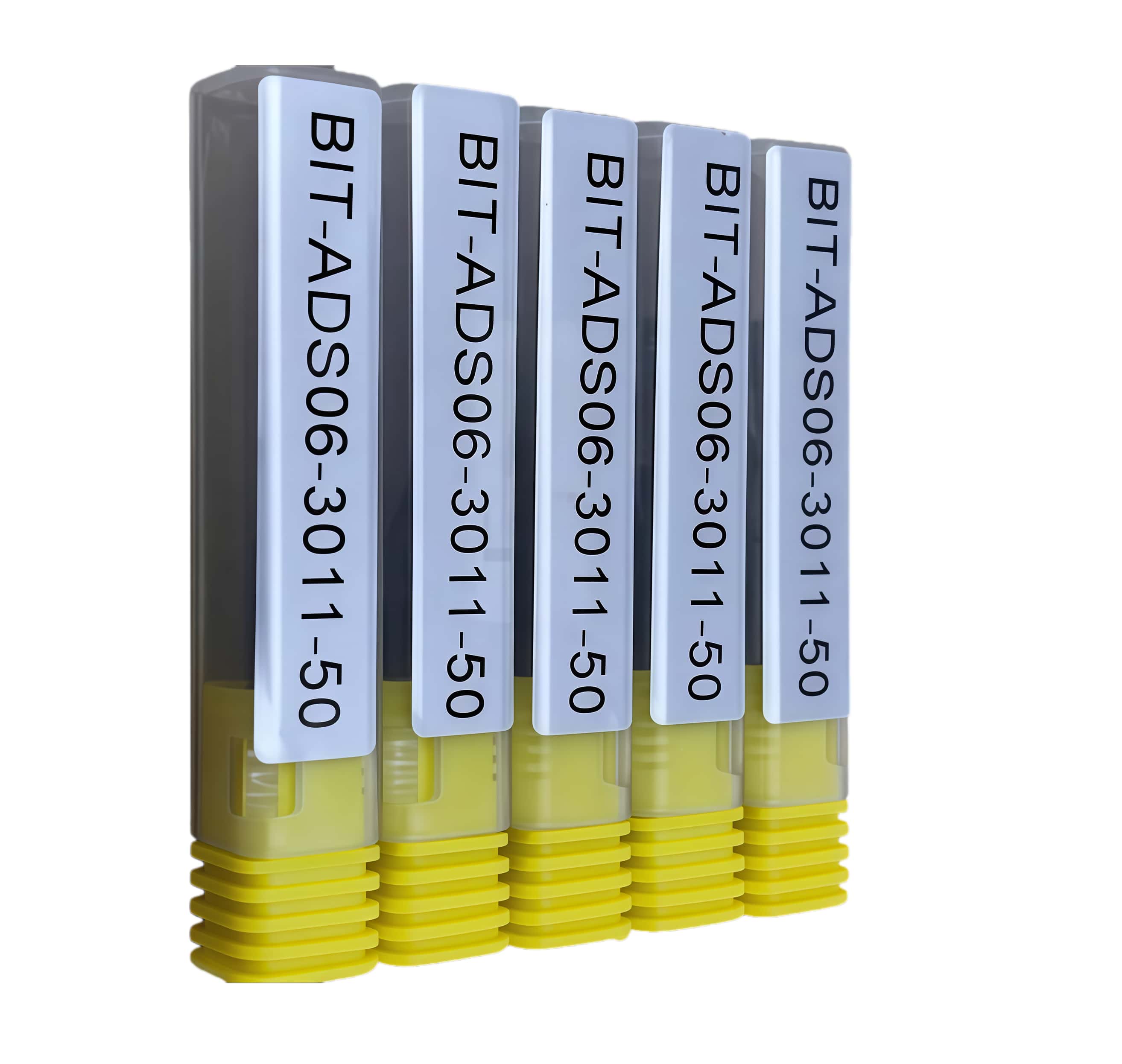

	BIT-ADS06-3011-50 G42443358
	BIT-ADS06-4008-50 G42445940

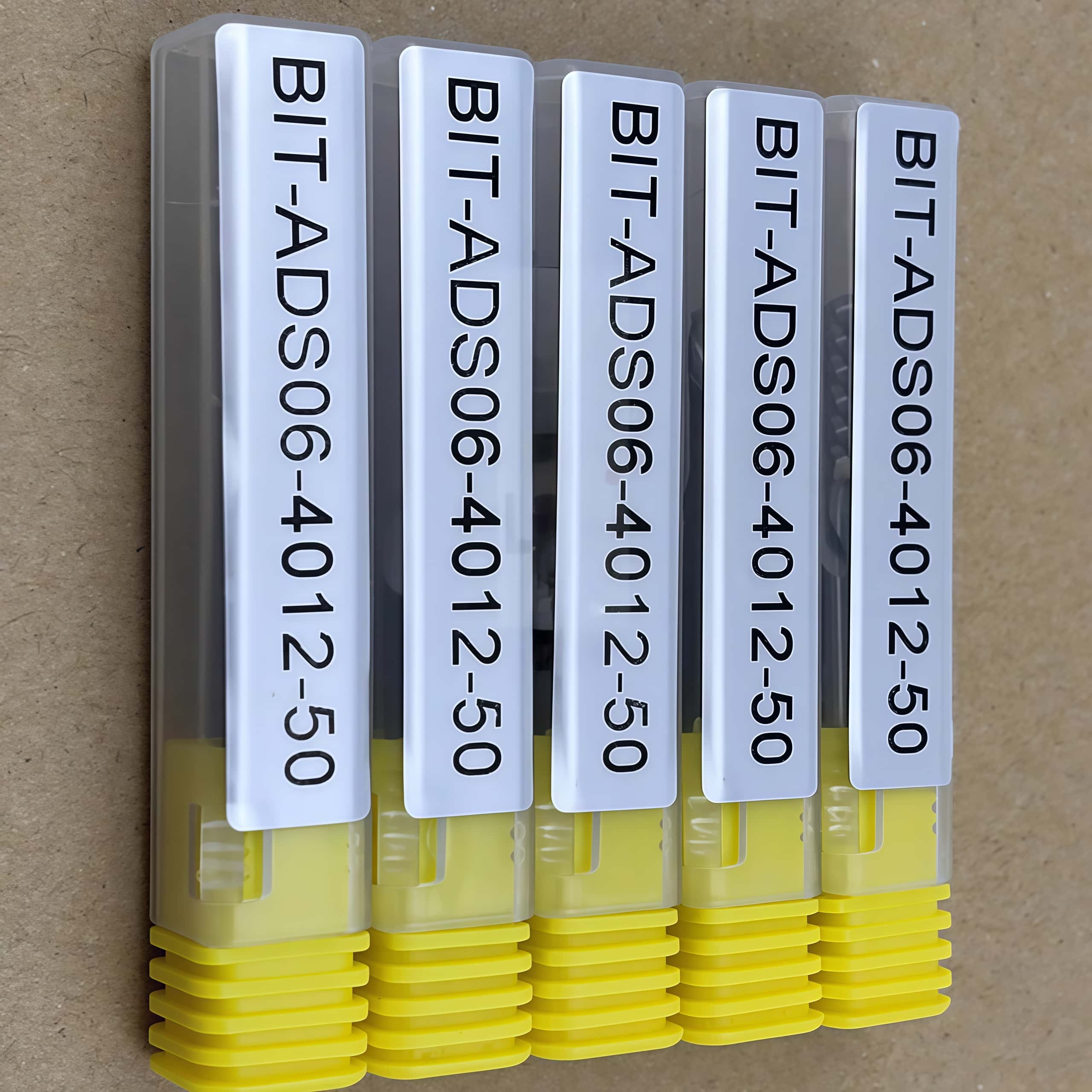

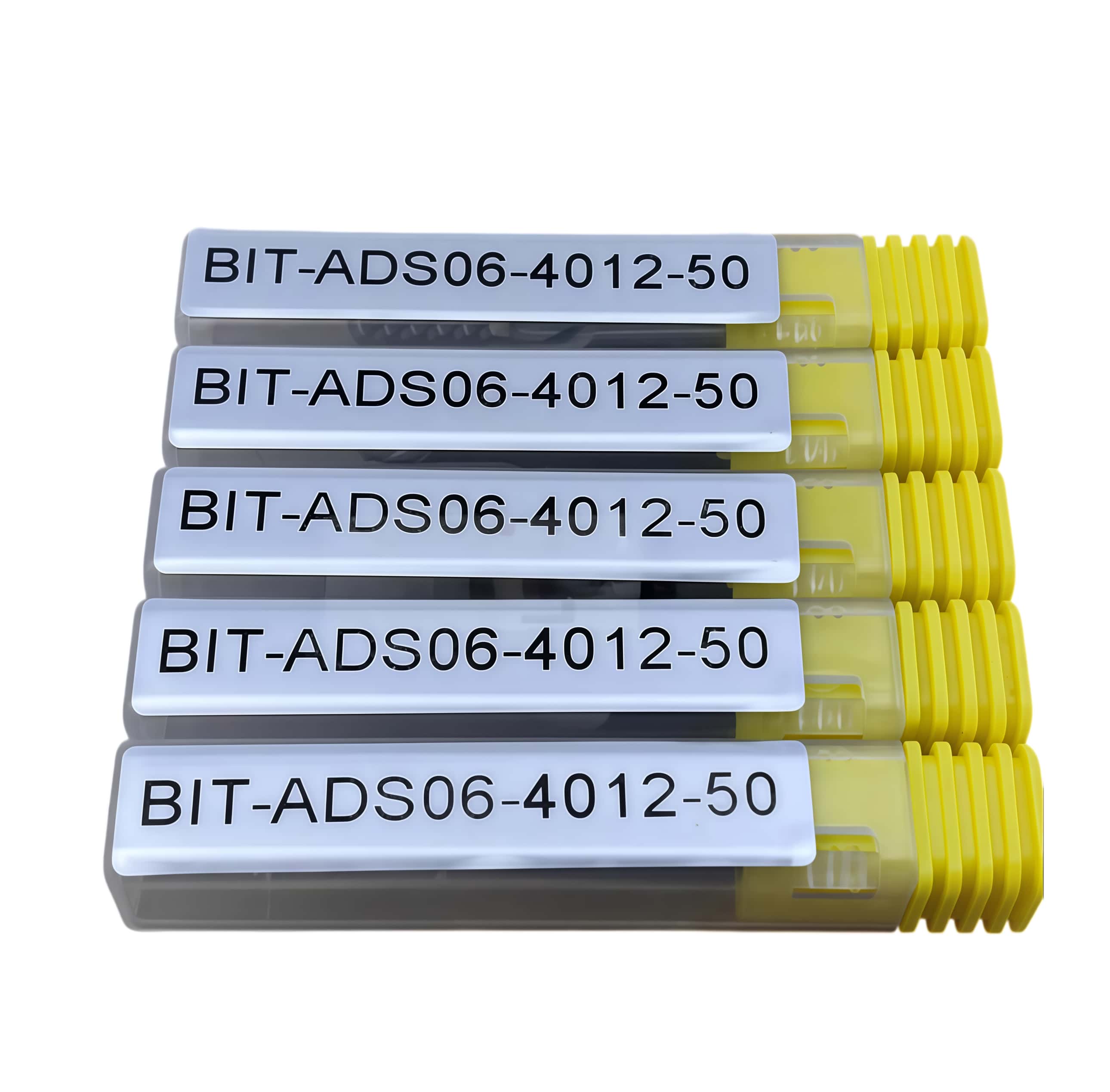

	BIT-ADS06-4012-50 G42445957
	BIT-ADS06-5022-60 G42442756

What this bit is
6 mm shank, "super sharp" acrylic bit, single flute, down-cut geometry designed primarily for acrylic but also suitable for other plastics where top-edge chip-free finish is critical.

Typical spec: 6 mm shank, total length around 50 mm, cutting length about 12 mm, single flute spiral with down-cut to keep chips and peel-off pressed into the material and protect the top surface film.

Where to source
Direct OEM: Kongsberg online store lists it under milling & routing bits in the 6 mm super sharp group (filter for 6 mm super sharp and down-cut).

Aftermarket/compatible: Shenzhen Oyea Machinery Co., Ltd. suppliers list “Esko/Kongsberg Milling & Router Bits BIT-ADS06-4012-50 (42445957)” as a compatible replacement, usually in solid carbide with similar geometry.

Application notes
Best for: clear or colored acrylic where top surface chipping or lifting of protective film is a concern; choose it over an up-cut when parts are small or thin and you need extra hold-down.

Parameters: use high spindle speed typical for acrylic (on Kongsberg often 30,000–40,000 rpm) with moderate feed; for thicker sheet, use multiple passes to avoid melting and to keep the super-sharp edge from chipping prematurely.
