Esko Kongsberg 6mm Soft Metal Single Flute Milling & Router Bit Replacement Compatible

Esko Kongsberg 6mm Soft Metal Single Flute Milling & Router Bits are premium, industrial-grade solid tungsten carbide tools engineered explicitly for high-speed CNC routing of non-ferrous metals. Optimized for Esko Kongsberg digital finishing tables, these bits are primarily utilized within High-Pow… Enquire now

Description

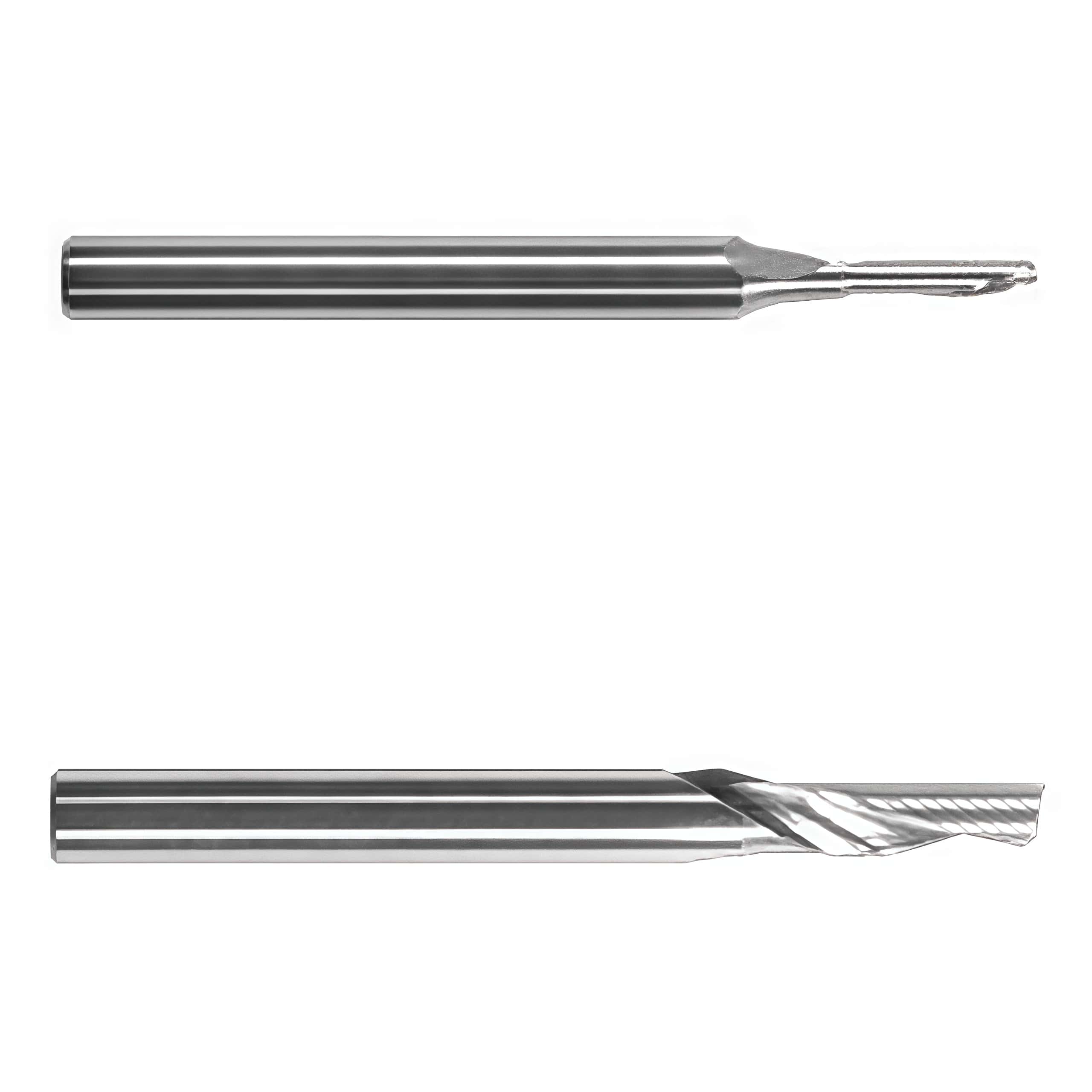

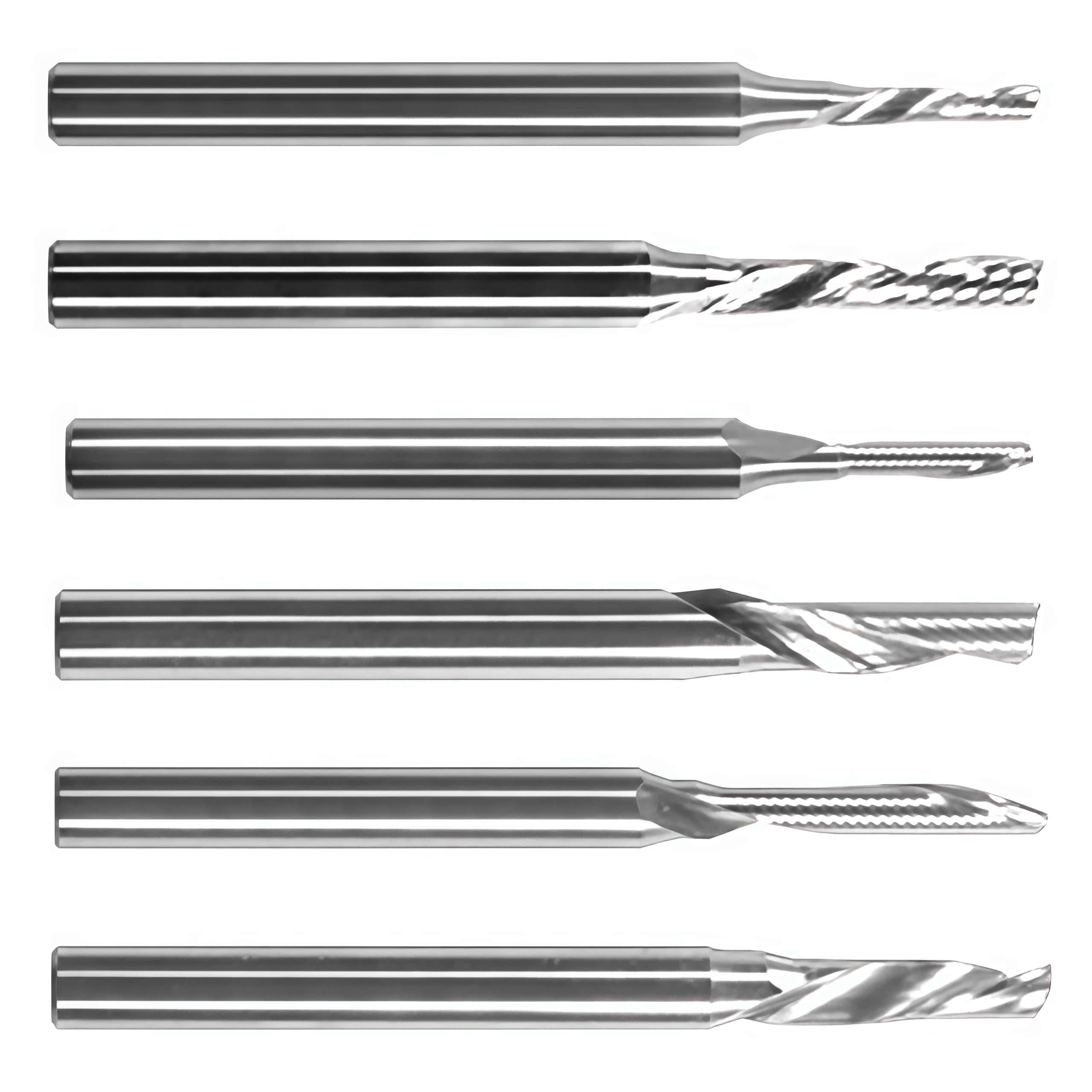

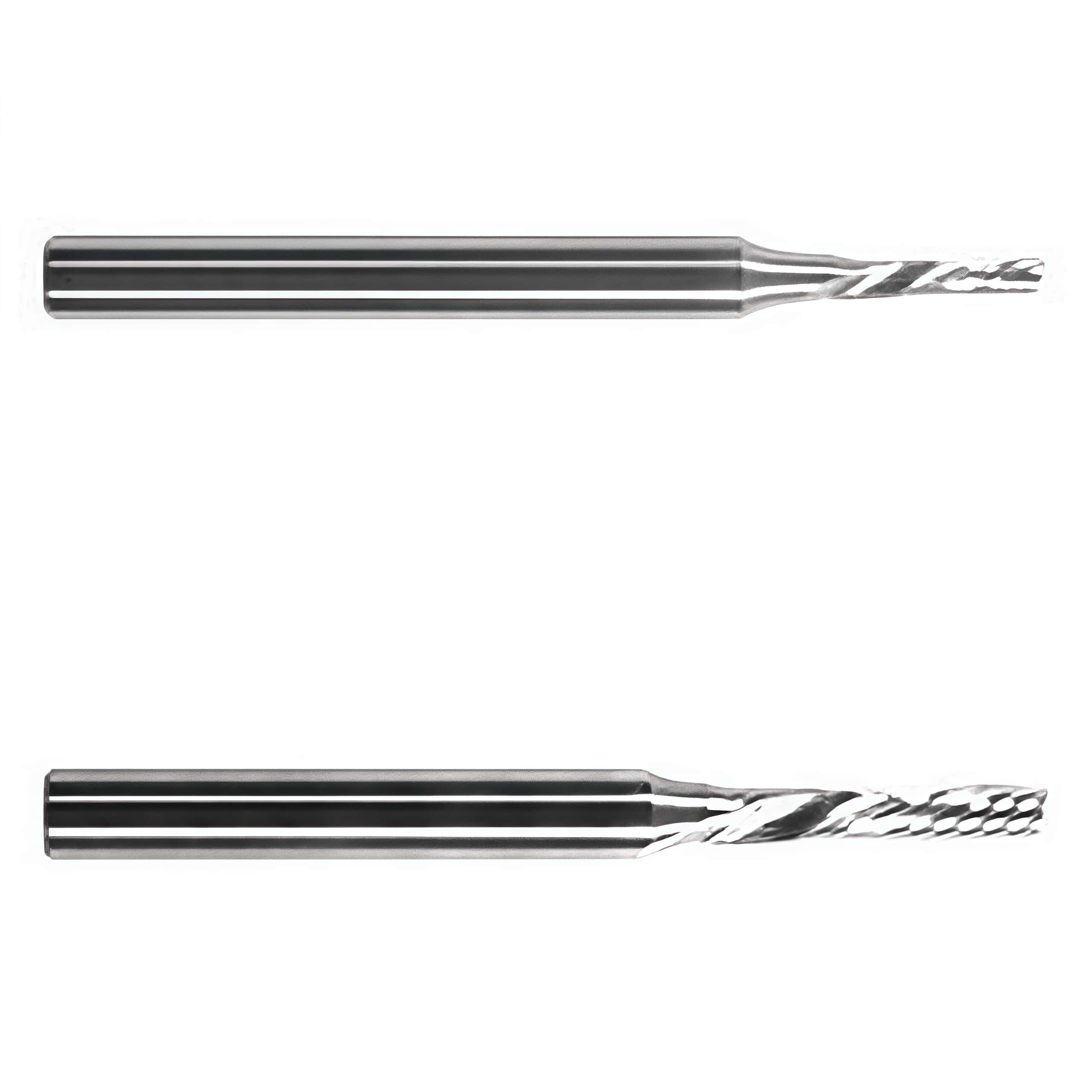

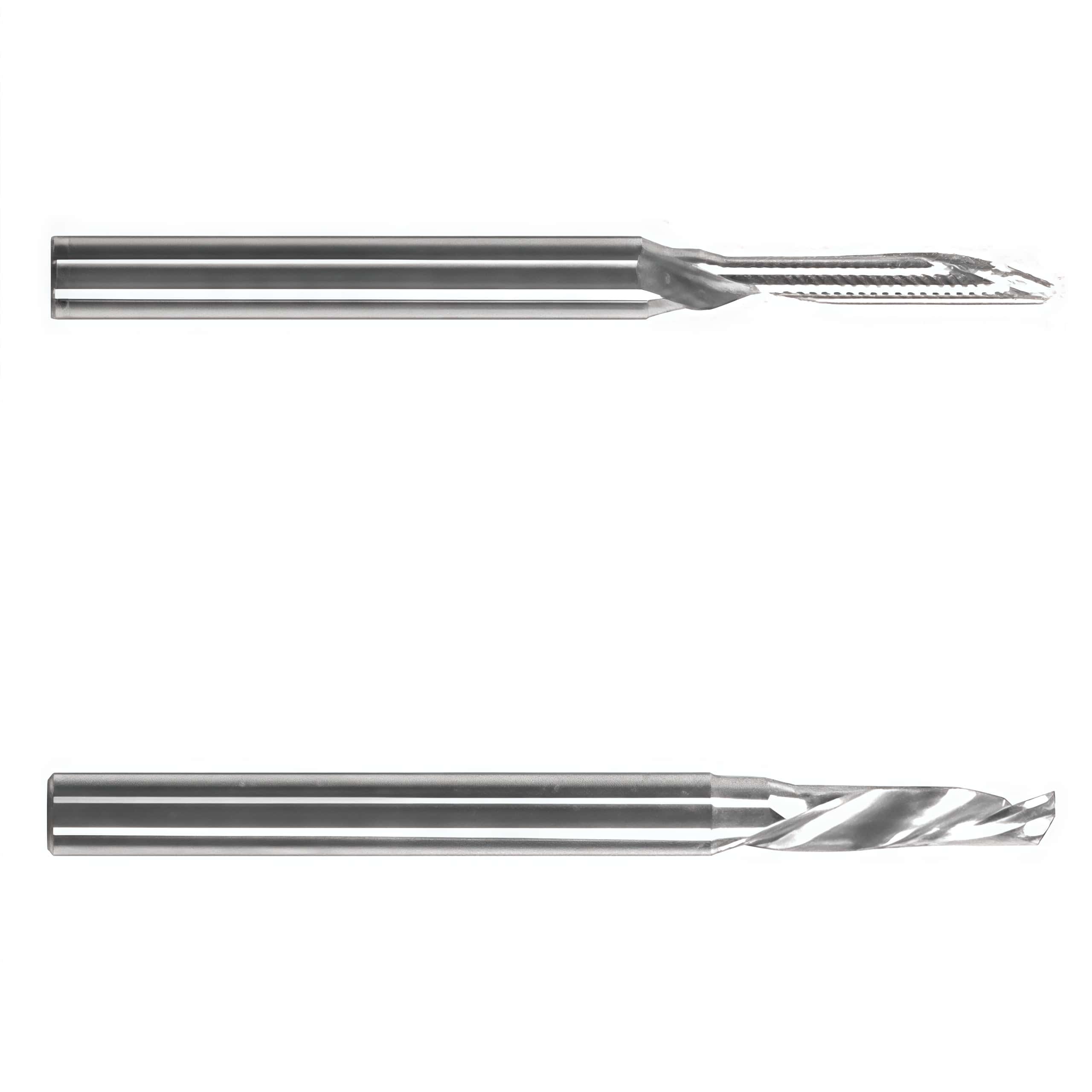

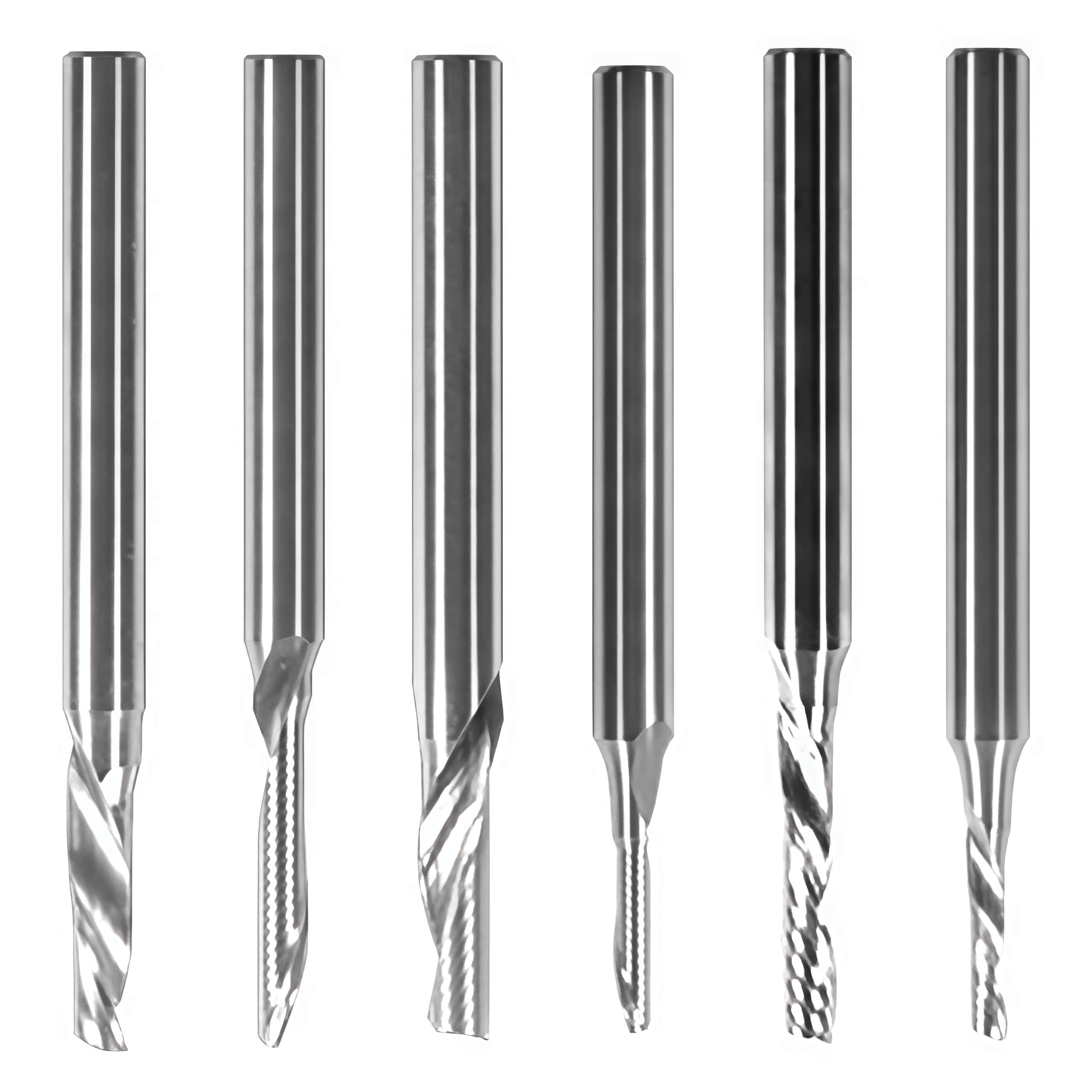

Esko Kongsberg 6mm Soft Metal Single Flute Milling & Router Bit Replacement Compatible

	BIT-SUS06-3012-64 (i-3916) G42458463
	BIT-SUS06-4020-64 (i-3924) G42458471
	BIT-SDS06-3012-64 (i-2916) G42458430
	BIT-SDS06-5016-64 (i-2930) G42458455
	BIT-SDS06-4020-64 (i-2924) G42458448
	BIT-SUS06-5016-64 (i-3930) G42458489

These Esko Kongsberg router and milling bits are specialized tooling engineered for high-precision CNC cutting tables. The naming convention directly embeds their technical specifications: the first letter in the suffix (S) denotes Super Sharp geometry, the second letter indicates the flute direction (U for Up-cut / D for Down-cut), 06 represents a 6 mm shank diameter, followed by the tip diameter (e.g., 30 for 3.0 mm), the flute cutting length (e.g., 12 for 12 mm), and the total tool length (64 mm).

Technical Specifications Matrix

Below is a direct breakdown of the dimensions, item IDs, and alternative industry part numbers for each requested milling bit. All listed models feature a standard 6 mm shank diameter and a 64 mm total length.

Part Number	Item ID (i-code)	Kongsberg Code	Flute Type	Tip Diameter	Flute Length
BIT-SUS06-3012-64	i-3916	G42458463	Super Sharp Up-Cut	3.0 mm	12 mm
BIT-SUS06-4020-64	i-3924	G42458471	Super Sharp Up-Cut	4.0 mm	20 mm
BIT-SUS06-5016-64	i-3930	G42458489	Super Sharp Up-Cut	5.0 mm	16 mm
BIT-SDS06-3012-64	i-2916	G42458430	Super Sharp Down-Cut	3.0 mm	12 mm
BIT-SDS06-4020-64	i-2924	G42458448	Super Sharp Down-Cut	4.0 mm	20 mm
BIT-SDS06-5016-64	i-2930	G42458455	Super Sharp Down-Cut	5.0 mm	16 mm

Functional and Application Profiles

The selection between these tools depends heavily on your material composition and the required surface finish.

BIT-SUS06 Up-Cut Series

· Material Evacuation: Pulls chips upwards away from the substrate.

· Best Used For: Thick rigid plastics, Acrylic, Aluminum Composite Materials (ACM), and solid woods.

· Edge Finish: Provides an exceptionally clean finish on the bottom surface of the material.

· Tool Head Compatibility: Fully compatible with the Kongsberg High-Power Milling Unit (MultiCUT-HP).

BIT-SDS06 Down-Cut Series

· Material Evacuation: Pushes chips and downward forces toward the cutting table vacuum bed.

· Best Used For: Thin, flexible, or easily lifted materials like corrugated plastic, thin veneers, and laminated boards.

· Edge Finish: Delivers a perfectly clean, burr-free top edge without tearing delicate top laminates.

Holding Power: Helps stabilize smaller parts or lightweight pieces by applying downforce during the milling path.
