Iecho E16 Oscillating Knife Blades-Replacement For Kongsberg Bld-Sf216 Zund Z16 Colex T00335

CHINA Iecho BK BK2 BK3 Bk4 High Speed Digital Cutting System PK4 PK PK1209 Automatic Intelligent Cutting System LCKS Digital Leather Furniture Solution SK2 High-Precision Multi-Industry Flexible Material Cutting System GLSA GLSC Automatic Multi-Layer Cutting System TK4S Large Format Cutting System … Enquire now

Description

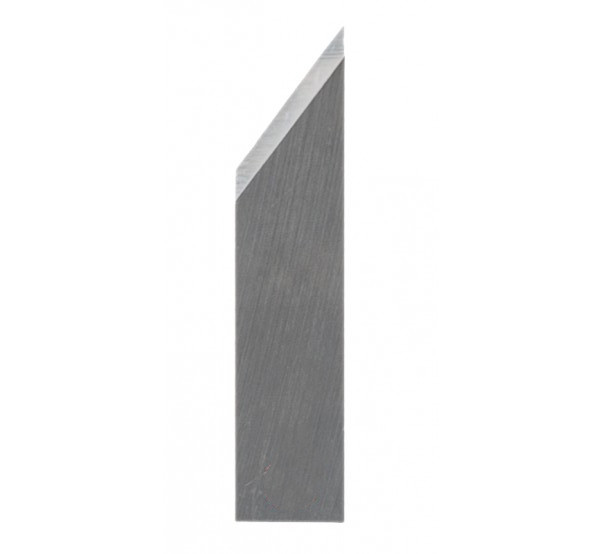

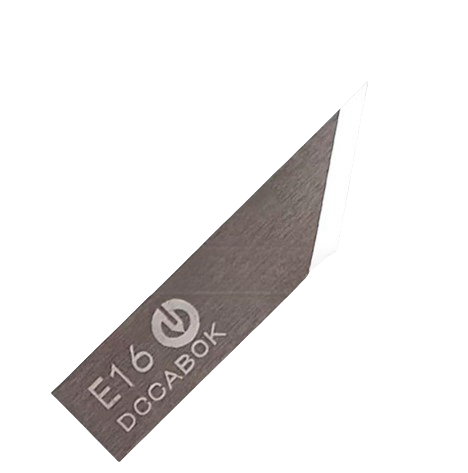

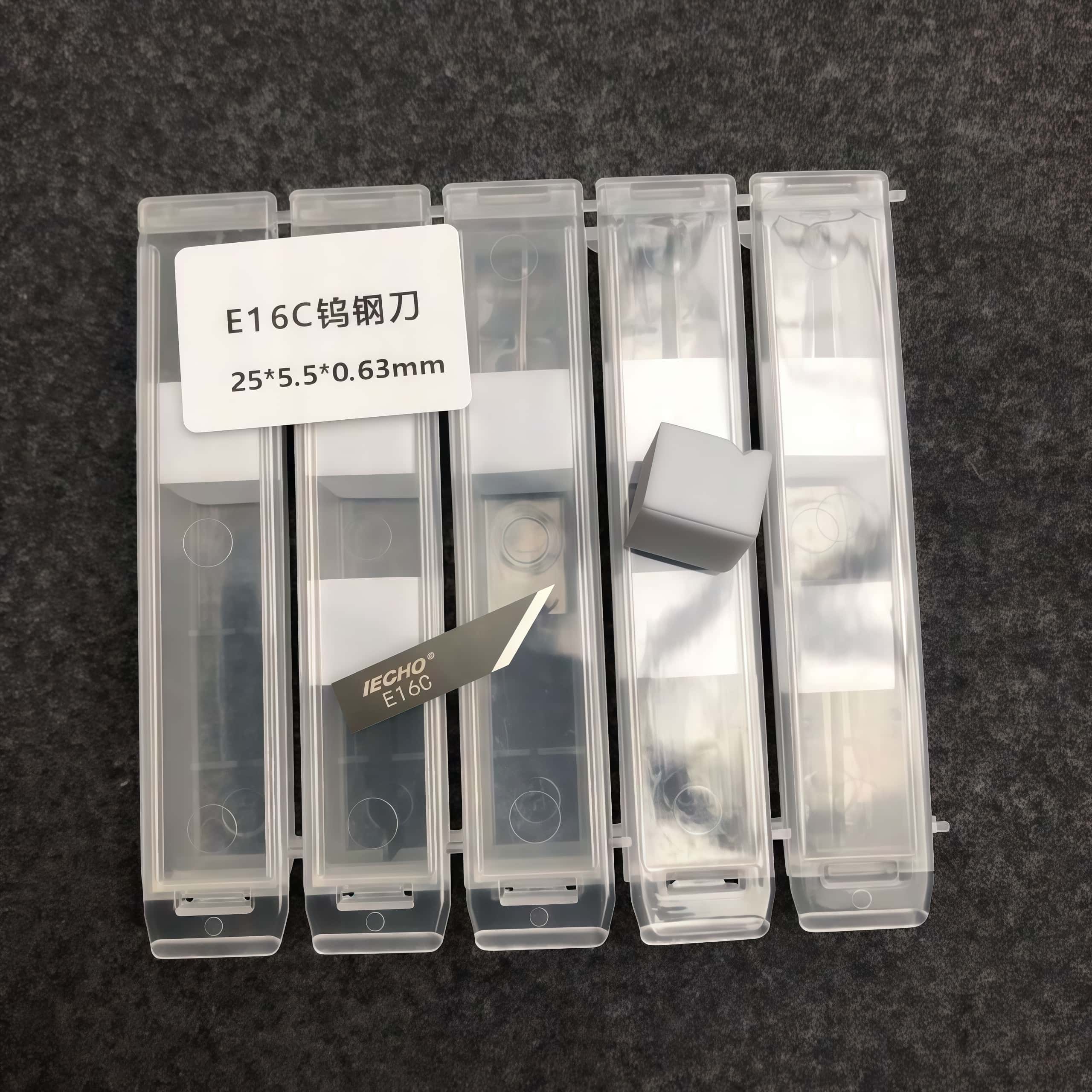

iEcho E16 Oscillating Knife Blades

iEcho E16,iEcho E16 Blade,iEcho Knife Blade,iEcho Blade,iEcho Blades

Knife height:
25mm
Thickness:
0.63 mm
Max. cutting depth:
7,4 mm
Knife type:
Oscillating
Angle:
54°

Applicable processing materials

The E16 series vibrating blades, due to their sharpness and reciprocating high-frequency vibration characteristics, can achieve clean cuts without thermal deformation or burrs, and are commonly used for the following materials:

Advertising and Packaging : Corrugated cardboard, folding boxes, KT board (PVC foam board), foam board.
Industrial and Sealing : Graphite gaskets, rubber, and composite gasket materials.
Automotive and composite materials : carbon fiber prepreg, glass fiber, automotive interior floor mats.
Textiles and Signage : PVC, canvas, polyester fabrics, reflective film and self-adhesive reflective stickers.

Procurement and Compatibility Recommendations

Distinguishing between original and compatible parts : The market offers both original iEcho inserts and cost-effective third-party compatible alternatives (such as Shenzhen Oyea)
Check the thickness of the machine head clamp : Before purchasing, please be sure to confirm the thickness of the vibrating knife slot on your machine. The required slot thickness for E16 is 0.63mm , while the required slot thickness for E16-2 is 1.0mm . The two cannot be used interchangeably.
Components in the selection list :
- iEcho E16 Vibrating Blade : Suitable for 0.63mm clamps, primarily for fine cutting of self-adhesive labels, thin cardboard, reflective film, etc.
- iEcho E16-2 Vibrating Blade : Suitable for 1.0mm clamps, with a thicker blade body, suitable for high-load cutting of hard materials such as PVC foam board, carbon fiber, and gaskets.

Replacement for: XZ0016,BT-2316,Esko Kongsberg T16 97AR836 G42441212 42441212 BLD-SF216 i-216,iEcho E16,Mécanuméric 100610440,Zund Z16 3910306,Colex T00335,Gerber MCT SE16,Comarav FN8,Bullmer B16,Blackman & White BW16,Multicam 94-02466-910.306-L,Viliani 002156 – T16 Cutworx Apex CWX/CWT E16.
