Iecho E28c Carbide Oscillating Knives Knife Blades-Replacement For Kongsberg Bld-Sf428 Summa 500-081

The iEcho E28C carbide oscillating knife blade is an aftermarket replacement blade for iEcho digital cutters and flatbed oscillating knife systems, typically listed with a 38 mm blade height, 4.0 mm width, 0.63 mm thickness, and a 45°/86° cutting angle. Enquire now

Description

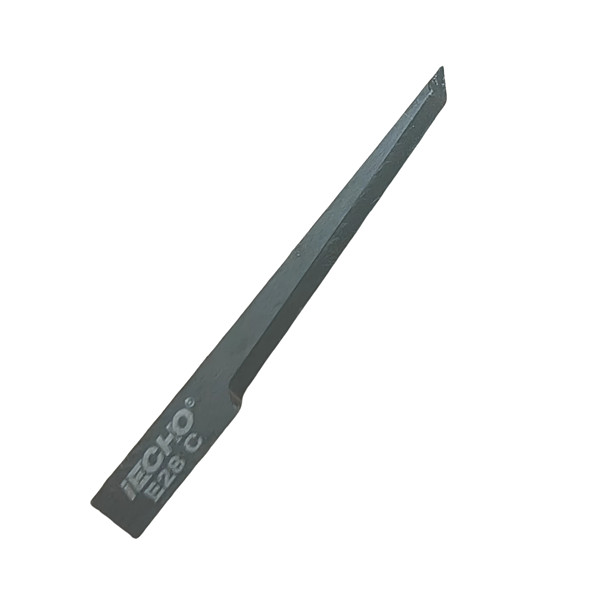

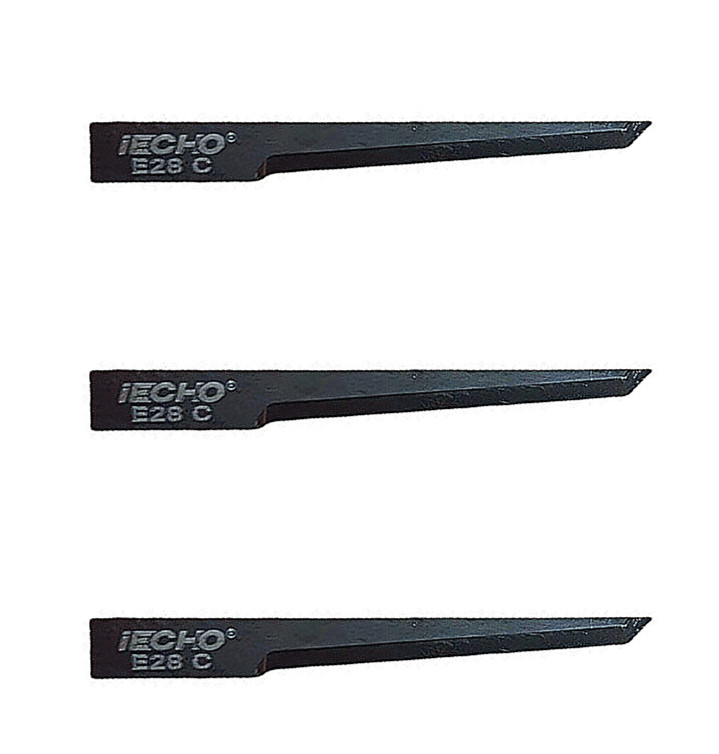

iEcho E28c Carbide Oscillating Knife Blades

Iecho E28c Carbide Oscillating Knives Knife Blades

iEcho E28C(E28) is a high-performance carbide oscillating blade specifically developed for the iEcho automated digital cutting system . It is precision ground from a single piece of ultra-fine tungsten carbide, and its key features are a large cutting depth and high rigidity , making it excellent for processing highly complex, high-density hard or medium-to-high thickness flexible materials.

Knife height:
38mm
Thickness:
0.63 mm
Max. cutting depth:
24mm
Knife type:
Oscillating
Angle:
45/86°

Best suited for processing materials

Due to its deep and high-strength cemented carbide material, E28C is widely used in advertising, packaging, and industrial composite materials:

Composite materials : carbon fiber sheets and glass fiber prepregs.
Technical textiles : heavy nylon fabric, thick felt, industrial non-woven fabrics.
Medium-thickness packaging materials : thick honeycomb cardboard, high-density multi-layer corrugated cardboard.
Insulation and cushioning materials : sound-absorbing mat, foam board/printed KT board.

Hardware compatibility

This blade can be seamlessly and natively integrated into iEcho's digital flatbed cutters (such as large and medium-sized BK, TK, SK, and even small PK series) and installed in the following tool head modules:

EOT (Electric Oscillating Tool): Suitable for medium-density materials with a thickness of around 20mm.
POT (Pneumatic Oscillating Tool): Utilizes high-stroke, high-power pneumatic cutting with a 1mm thick E28C blade to cut hard, dense materials

Suitable for machine manufacturer:
TC knife blade Z28 XZ0028 BT-2328 Esko Kongsberg G42442244 42442244 T28 Esko Kongsberg G42458307 42458307 BLD-SF428 i-428,iEcho E28,Mécanuméric 100610600,Summa 500-0814 500-9814,Blackman & White BW28,Colex T00425,Gerber MCT SE28,GUNNAR GZ28,Zund Z28 3910318 Cutworx Apex CWX/CWT E28

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
