COLEX T00425 Sharpcut Oscillating Knife Blades--Replacement Compatible Onlin

COLEX T00425 is a product specifically designed for the Colex Sharpcut CNC digital flat slicing machine.Heavy-Duty Oscillating BladeIts maximum cutting depth reaches 25 mm (1 inch) , making it a standard core tool for processing thick soft or semi-rigid sheets in the advertising signage, inkjet prin… Enquire now

Description

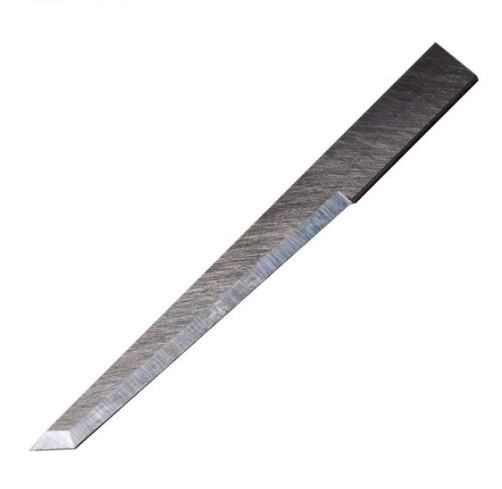

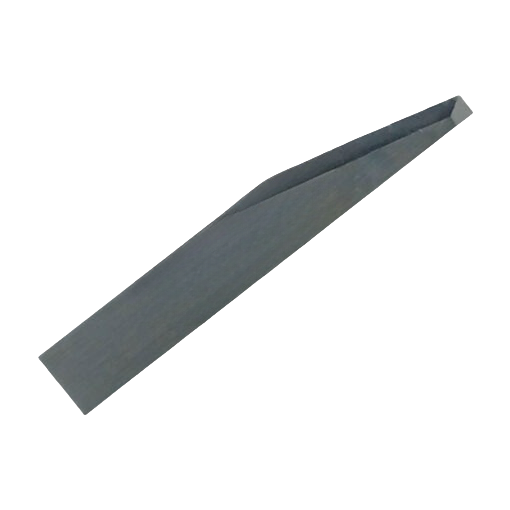

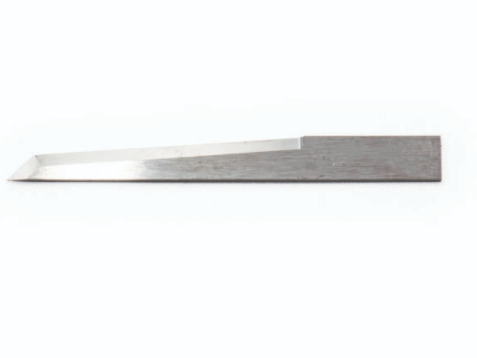

COLEX T00425 Sharpcut Oscillating Knife Blades--Replacement

COLEX Knife,COLEX T00425 Knife,COLEX T00425,COLEX T00425 Blade,COLEX Oscillating Blade,COLEX Blade,Colex Blades

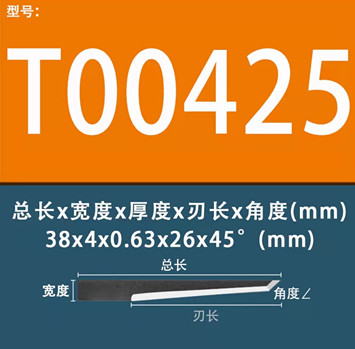

T00425 Oscillating Blade – 25 mm-1″
T00425 Oscillating blade is designed for cutting Honeycomb Board, Falcon Board, Corrugated Stock, Foam Board, stryofoam, and more.
Dimensions 2 × .35 × .35 in
Used With Colex Holder: T00126
Description: Flat Knife Oscillating Blade Single Edge

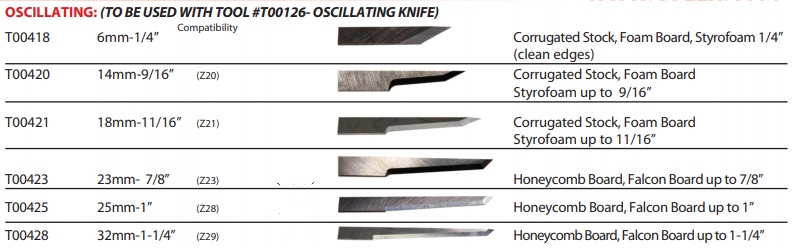

Notes: Same as XZ0023 except longer cut length

Target Materials
The T00425 is ideal for cutting soft or medium-density materials, including:
Rigid Boards: Honeycomb board, Falcon board, and Corrugated stock.
Foams: Foam board and Styrofoam.
Soft Fabrics/Fibers: Carbon and glass fibers, felt, leather, rubber, and various textiles.

Production efficiency reminder:
When machining full-load thicknesses of 20-25mm, due to the extremely high lateral friction experienced by the cutting tool within the material, it is recommended to appropriately reduce the feed rate and increase the vibration frequency of the vibrating head in Colex software. This can effectively prevent the cutting tool from deviating from its perpendicularity due to excessive resistance (i.e., inconsistent dimensions between the top and bottom of the cut material), and also extend the life of the cutting tip.

Suitable for machine manufacturer:
TC knife blade Z28 XZ0028 BT-2328 Esko Kongsberg G42442244 42442244 T28 Esko Kongsberg G42458307 42458307 BLD-SF428 i-428,iEcho E28,Mécanuméric 100610600,Summa 500-0814 500-9814,Blackman & White BW28,Colex T00425,Gerber MCT SE28,GUNNAR GZ28,Zund Z28 3910318

COLEX Knife,COLEX T00425 Knife,COLEX T00425,COLEX T00425 Blade,COLEX Oscillating Blade,COLEX Blade

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
