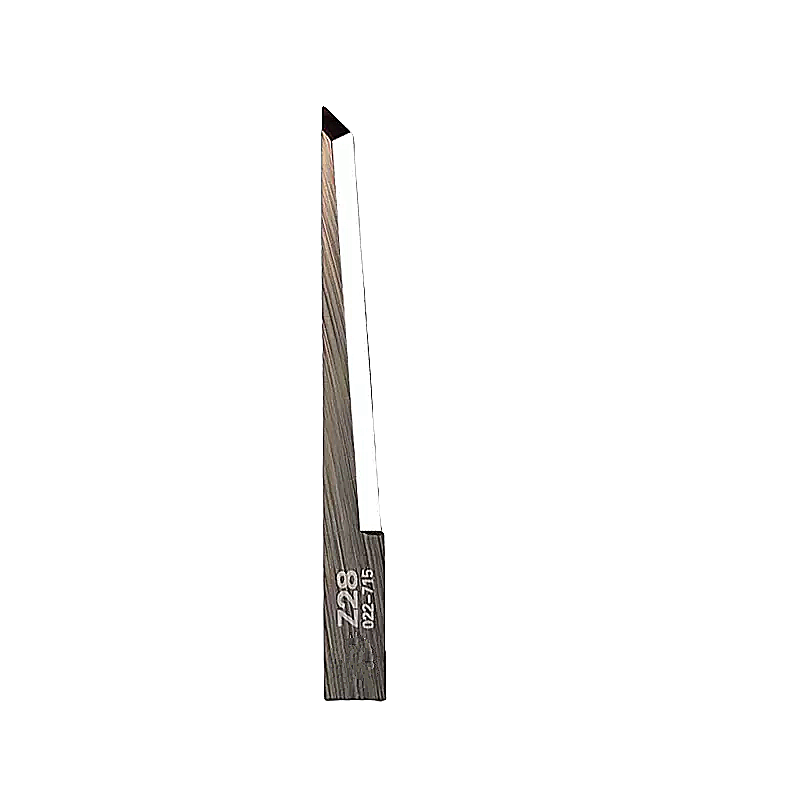

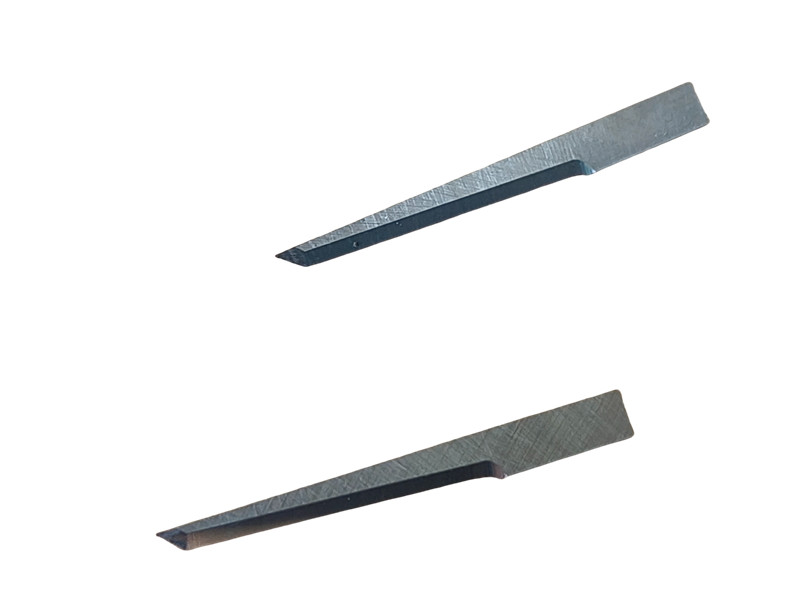

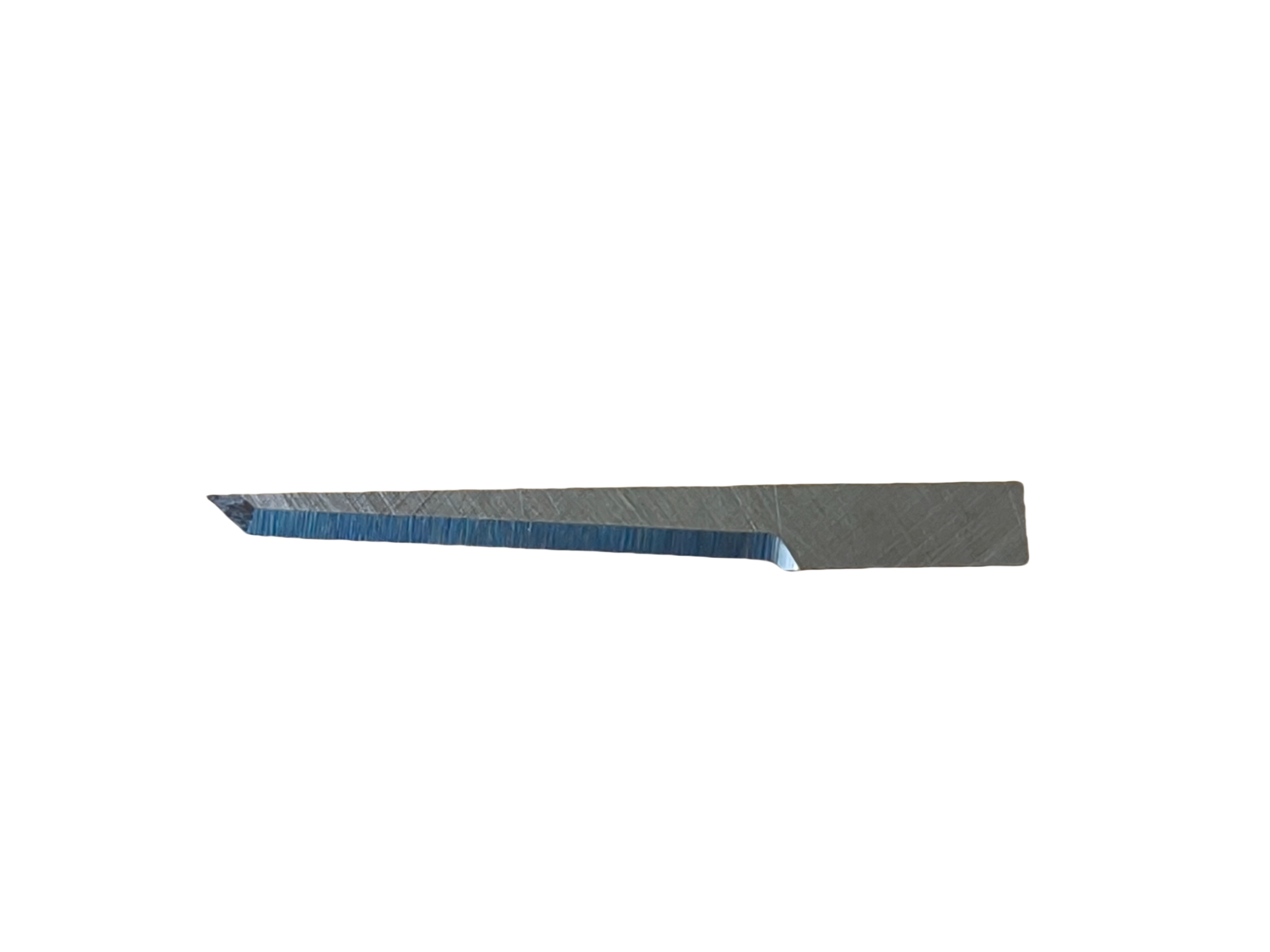

Zund Z28 Carbide Oscillating Replacement Knife Blades For Zund Cutting Systems 3910318

China Zund Z28 (3910318) is a premium, flat-shank tungsten carbide oscillating knife blade engineered specifically for processing soft, thick, and highly textured substrates. Featuring a specialized single-edge pointed design with an aggressive cutting angle, this long-shank blade delivers clean thr… Enquire now

Description

Zund Z28 Oscillating Replacement Knife Blades For Zund Cutting Systems 3910318

Zund Z28 Blade,Zund Z28,Zund Blade,Zund 3910318,Zund Z28 Knife,Zund Knife,Zund Knife Blade

Equivalent
3910318
Z28

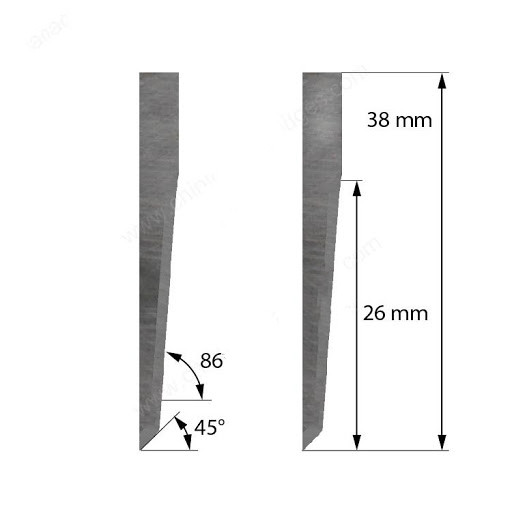

Thickness / Type
0.63 mm.
Max. cutting depth
25 mm
Pre-cut
1.9 + 0.07 x Tm
Post-cut
-
Composition
Tungsten Carbide - HM - Hard Metal
Tool
Electric Oscillating Tool (EOT) / Electric Oscillating Cutting Tool

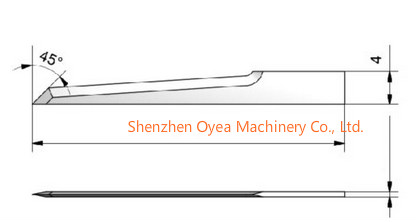

Knife width
4,0 mm
Compatible Brand
Aristo Atom Comagrav Combi Pro Data Technology Delta Diemaking Esko Kongsberg Mimaki SMRE Summa Zund

Target Materials & Applications

Because of its deep 26.0 mm depth tolerance and broad point wedge profile, the Z28 prevents structural crushing or material tearing on specialized substrates:

Structural Cores: Honeycomb paneling, thick sandwich boards, and heavy corrugated cardboard display units.
Foams & Insulation: Open/closed-cell polyethylene (PE) and polyurethane (PUR) foam inserts, along with dense acoustic felt panels.
Industrial Media: Thick natural leather hides, heavy textile weaves, and soft rubber gaskets.

Suitable for machine manufacturer:
TC knife blade Z28 XZ0028 BT-2328 Esko Kongsberg G42442244 42442244 T28 Esko Kongsberg G42458307 42458307 BLD-SF428 i-428, iEcho E28, Mécanuméric 100610600, Summa 500-0814 500-9814, Blackman & White BW28 , Colex T00425 , Gerber MCT SE28, GUNNAR GZ28, Zund Z28 3910318 Z28 3910318
