Summa 500-9814 500-0814 F Series Electronic Oscillating Tool(Eot)Vinyl Plotter Knives Knife Blades

The Summa 500-9814 knife (factory code 500-0814) is an extra-long oscillation knife (EOT L38). This knife is specifically designed for the Electronic Oscillating Tool (EOT) module on the Summa F-Series flatbed cutting tables.
Enquire now

Description

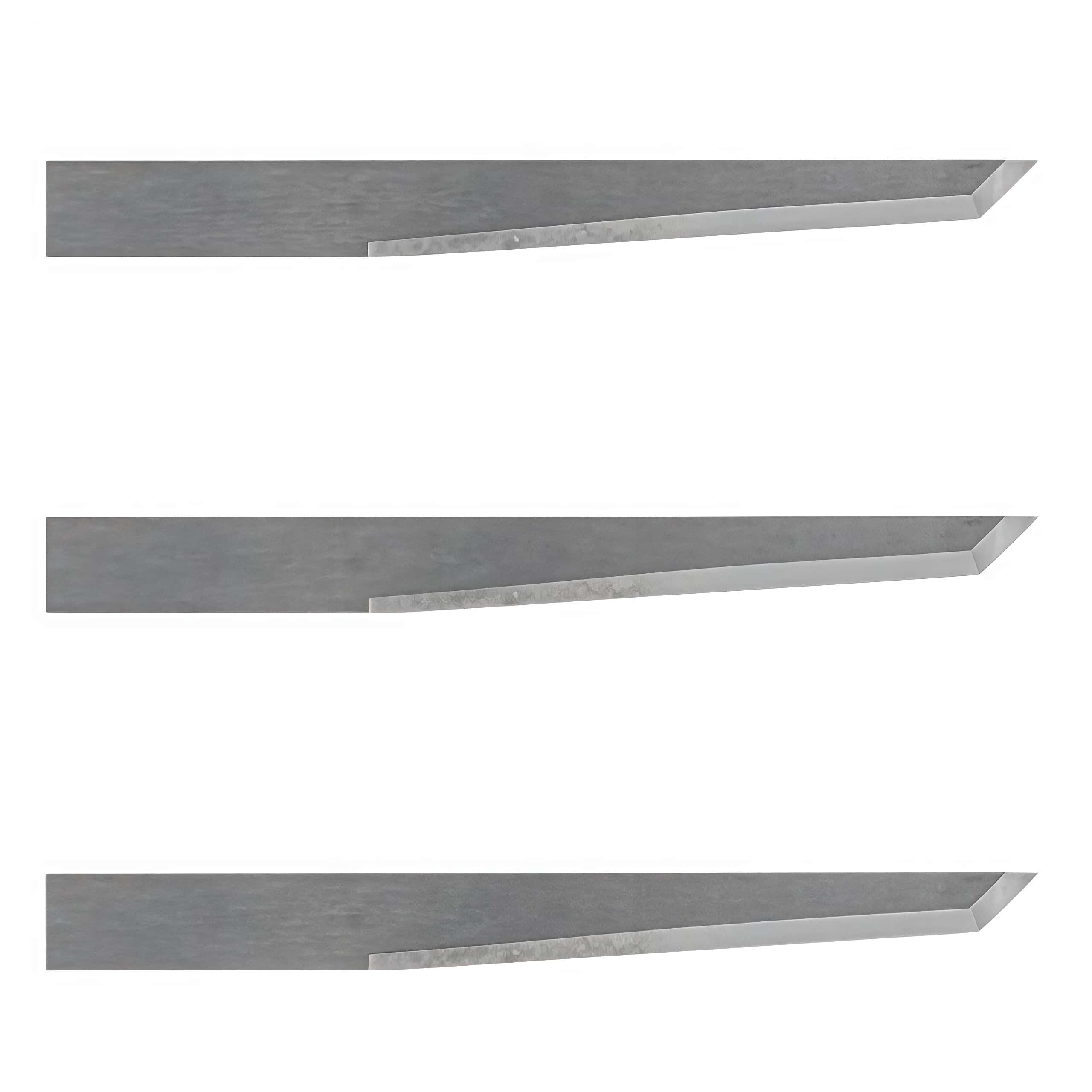

Summa F-Series Oscillating Knife Blade 500-9814,500-0814

Summa 500-9814,Summa 500-0814,Summa 500-9814 Knife,Summa 500-0814 Knife,Summa 500-9814 Blade,Summa 500-0814 Blade

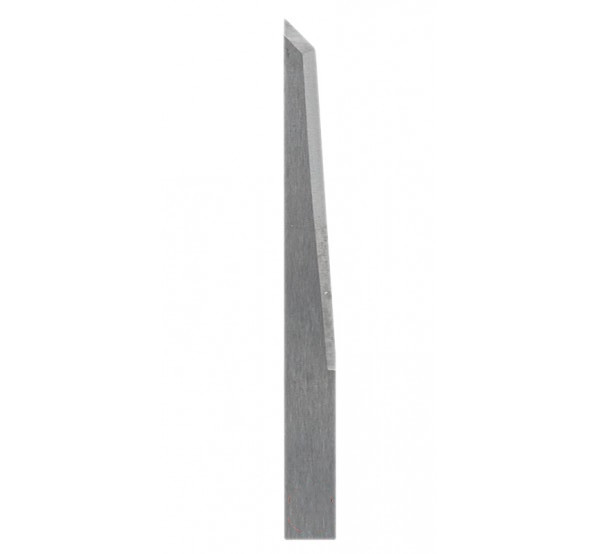

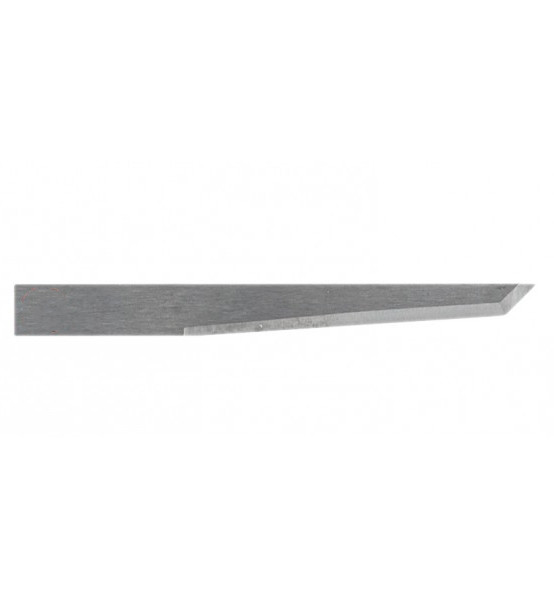

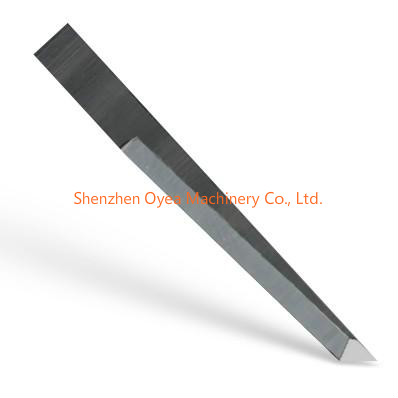

Summa 500-9814 (also categorized as 500-0814) is a premium solid tungsten carbide knife blade designed specifically for the Electronic Oscillating Tool (EOT) module used on Summa F Series Flatbed Cutters. Driven by a high-torque electric motor operating up to 12,000 rpm

Core Blade Specifications

Part Numbers: 500-9814 / 500-0814 (Comparable to Zund Z29 blades).
Blade Profile: EOT L38 Flat Pointed Knife.

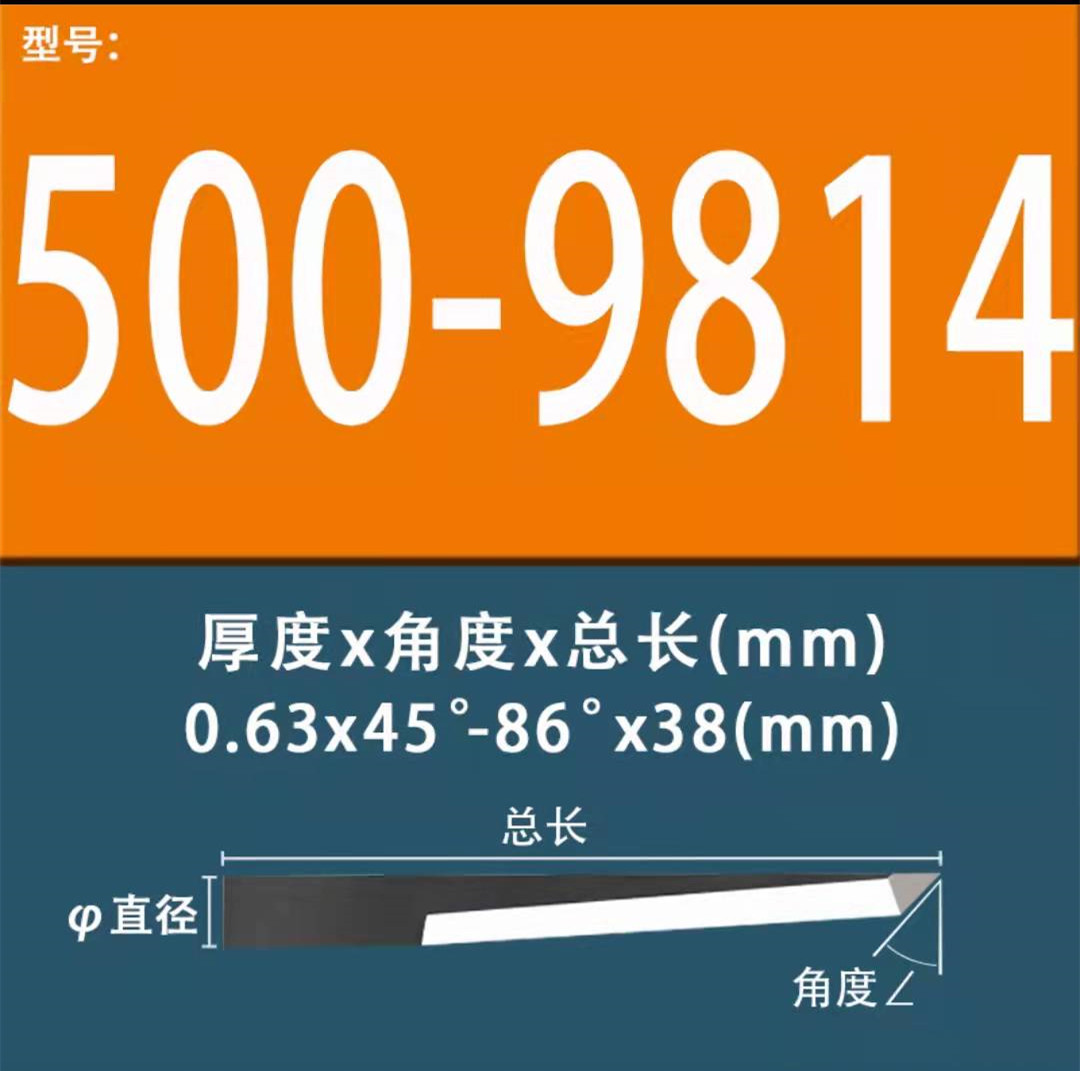

Total Length: 38 mm.
Blade Thickness: 0.63 mm.

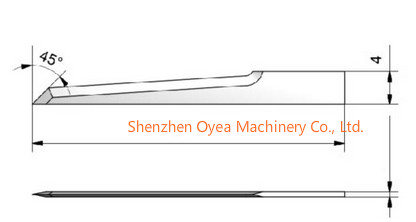

Blade Angle: 45° to 85° / 86° dual-angle edge geometry.
Max Cutting Depth: Cuts up to 18 mm thick with a gliding disk, or up to 24 mm thick (0.94") without a gliding disk.
Material Composition: High-grade industrial Tungsten Carbide for long-lasting edge retention.

Compatible Materials

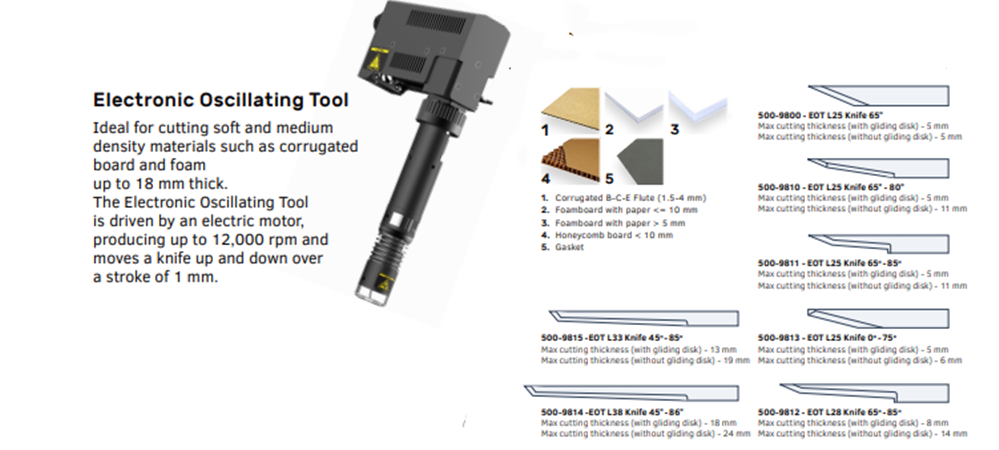

Unlike standard drag knives that drag and tearing thick materials, the rapid up-and-down sawing action of this blade cleanly glides through dense or sandwich-structured media: [1]

Packaging & Displays: Corrugated B, C, and E flute board, heavy folding cartons, and Honeycomb board up to 10 mm.
Foams: Soft polyurethane (PUR) core foamboards and sandwich panels up to 10 mm.
Industrial Textiles & Specialties: Dense rubber gasket compositions, PET acoustic felt, leather, heavy canvas, and polyester fabrics.

Suitable for machine manufacturer:BT-2329 Esko Kongsberg G42458315 42458315 BLD-SF429 i-429,iEcho E29,Mécanuméric 100610430,Zund 3910319 Z29,Blackman & White BW29,Gerber MCT SE29 895029,Summa 500-9814 500-0814,Colex T00428,GUNNAR GZ29

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
