iEcho E52 Decagonal(10-Sided)Rotation Knife Blades Replacement For Summa 500-9862 Zund Z52

iEcho E52 decagonal 10-sided rotation knife blade is a rotary blade for iEcho digital cutters, commonly listed with a 32 mm height, 0.60 mm thickness, a 36° angle, and an Ø8 mm mounting hole. It is used for aramid, carbon fiber, fiberglass, felt, non-woven fabric, nylon fabric, polyester fabric, and… Enquire now

Description

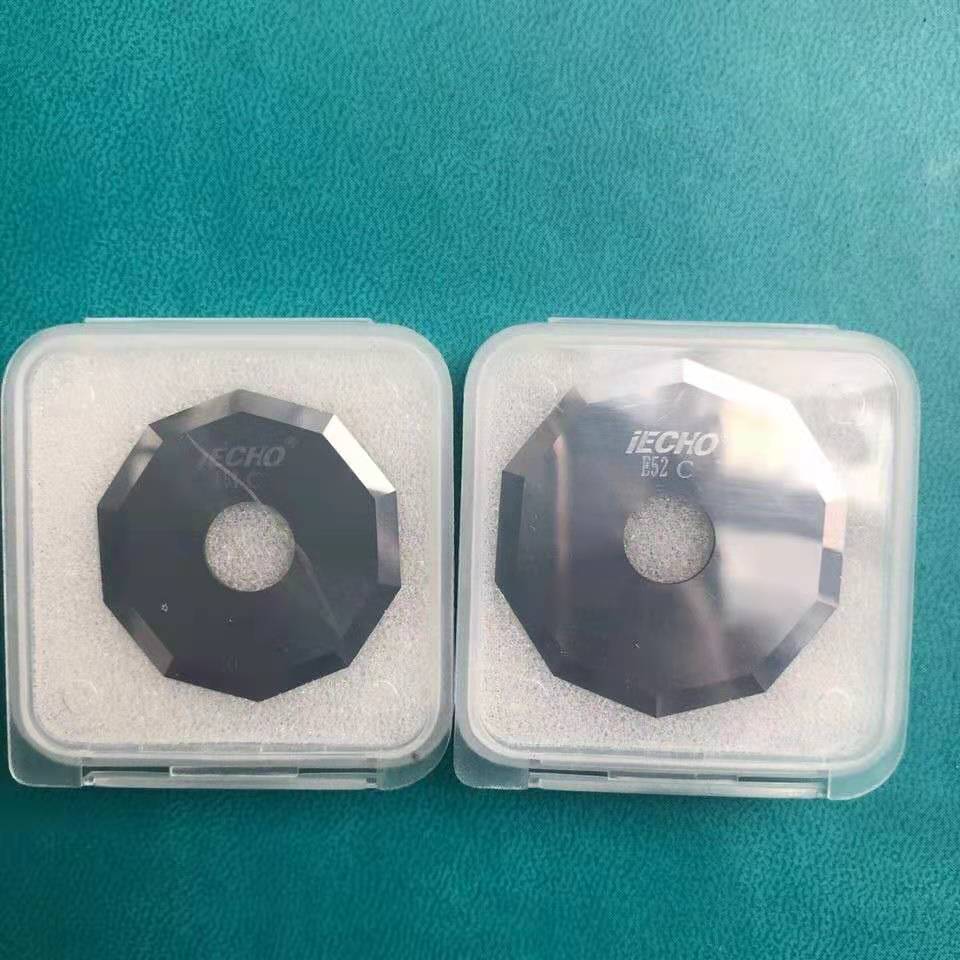

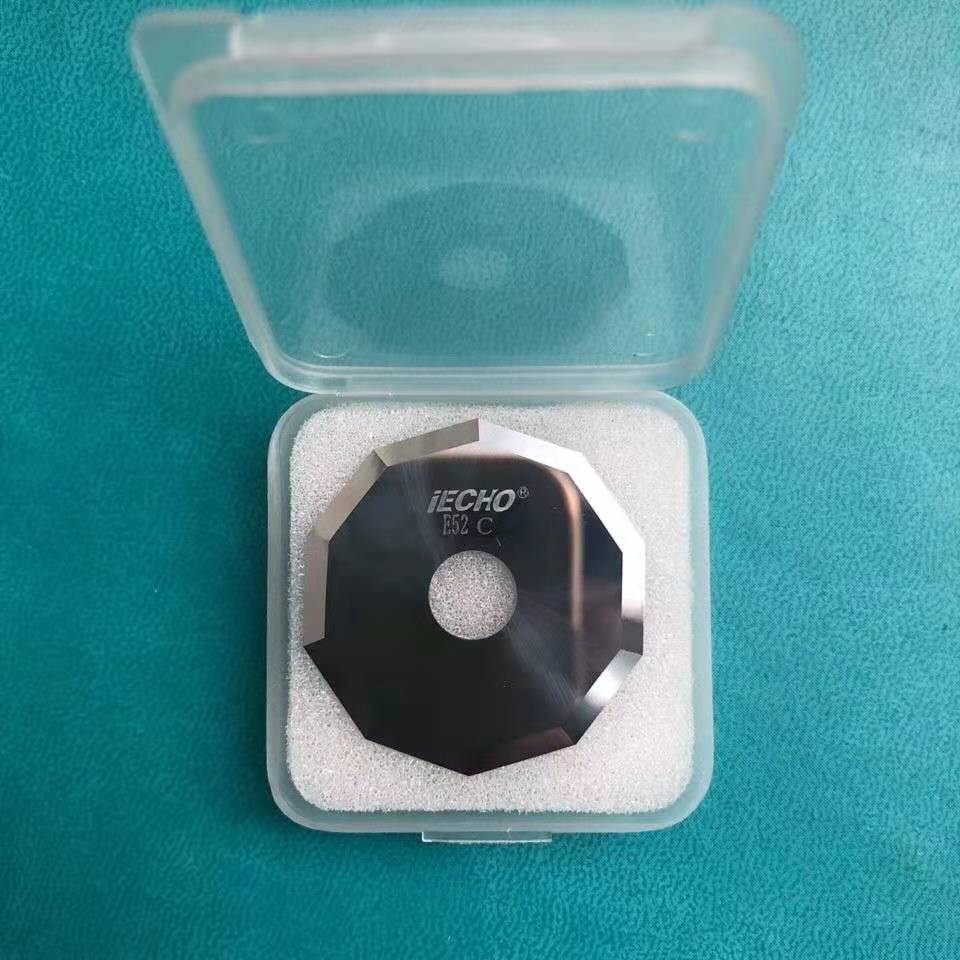

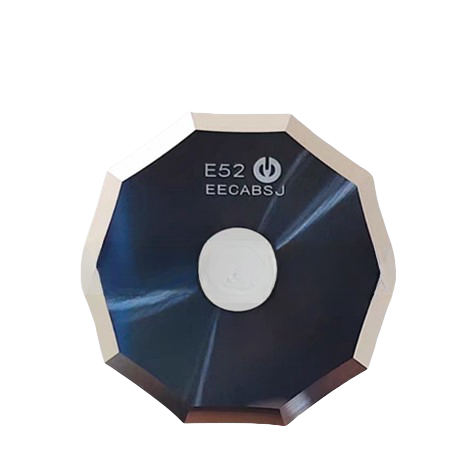

iEcho E52 Decagonal (10-Sided) Rotation Knife Blades

iEcho E52,iEcho E52 Blade,iEcho Rotation Blade,iEcho Rotation Knife,iEcho Blades

iEcho E52 Decagonal (10-Sided) Rotation Knife Blade is a large-diameter, high-speed faceted rotary blade engineered for iEcho Automated Digital Flatbed Cutters. Compared to its smaller counterpart (the 28mm E51), the E52 increases the outer diameter to 32.00 mm, which expands the vertical clearing range to a 7.00 mm maximum cutting depth.

The 10-sided geometry creates a continuous mechanical chopping and shearing motion as the tool moves. This prevents long fibers or multi-layered technical textiles from sliding or shifting out of the path of the gantry tool head.

Knife height: 32mm
Thickness: 0.6mm
Max. cutting depth:7.5mm
Knife type: Rotary
MATERIALS
Aramid fibers, Carbon fibers, Felt, Glass fibers, Non-woven fabric, Nylon fabric, Polyester fabric, Textiles
KNIFE/BLADE MOUNTING
hole Ø 8 mm

Tool Compatibility

The E52's 8mm mounting bore centers exactly onto the drive shafts of iEcho's rotation-specific modules:

DRT (Driven Rotary Tool): Motorized rotation module that spins the blade in coordination with the machine's gantry travel speeds.
PRT (Power/Pneumatic Rotary Tool): High-torque module meant to force the 10-sided blade through tough, heavy fabrics without bogging down the drive speed.

Ideal Material Applications

The E52 is primarily intended for processing tough, fibrous, multi-layered, or high-performance industrial textiles:

High-Strength Composites: Carbon fiber plies, woven glass fiber sheets, and protective Aramid (Kevlar) fabrics.
Thick Non-Wovens: Industrial acoustic felts, heavy carpets, and non-woven sub-straights.
Synthetics & Heavy Textiles: Multi-layered polyester, nylon mesh, canvas, heavy tarpaulins, and dense natural leather hides.
Packaging Paper: Heavy-gauge construction paperboards and flexible packaging sheets.

Production & Performance Options

When sourcing replacements, you can generally select from two main structural tiers depending on the abrasiveness of your materials:

Standard Hard Metal (HM): Economical, untreated tungsten carbide providing clean shear dynamics for general print and textile production floors.
DLC (Diamond-Like Carbon) Coated Variations: A dark, ultra-low-friction coating that lowers edge heat buildup. DLC coatings prevent synthetic materials from melting to the blade and double the operational tool life when cutting highly abrasive glass or carbon filaments.

Equivalent to: BT-2352 Summa 500-0862 500-9862,Zund Z52 3910337,MultiCam 003612-MC52-ROTAR,Gerber MCT R52/ R52-V, Blumer B52, iEcho E52,Blackman & White BW52

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
