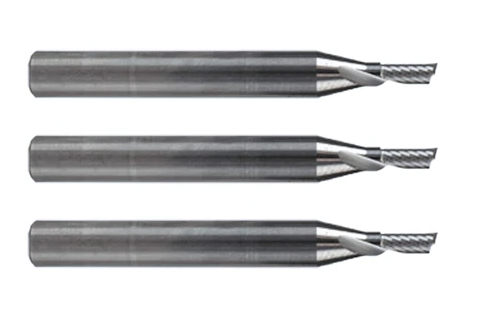

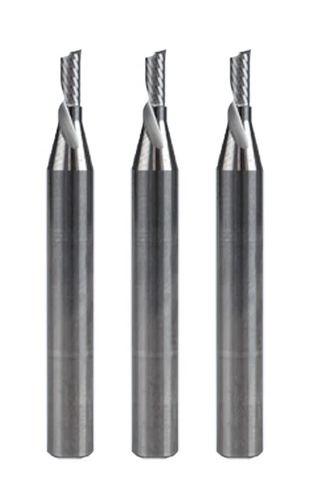

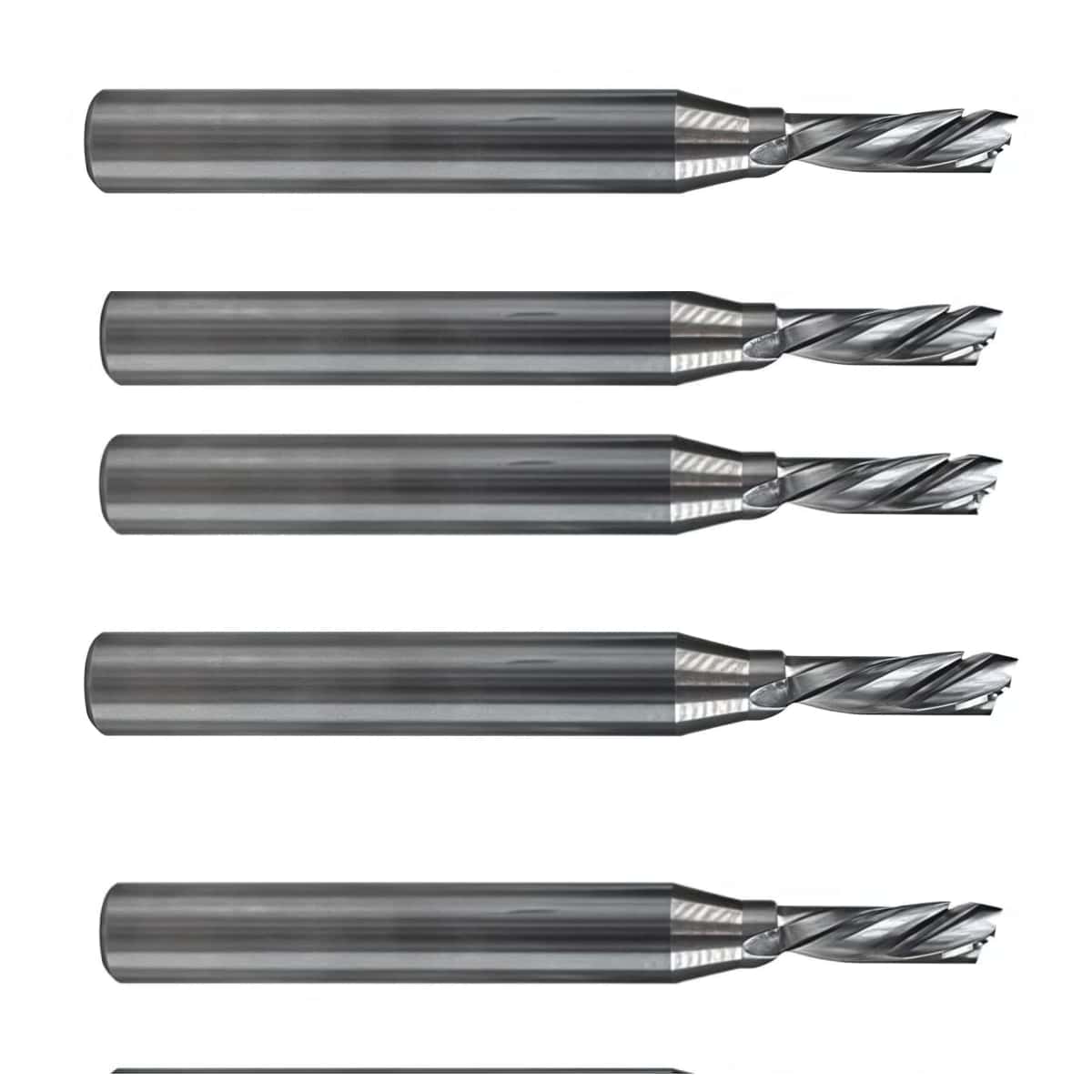

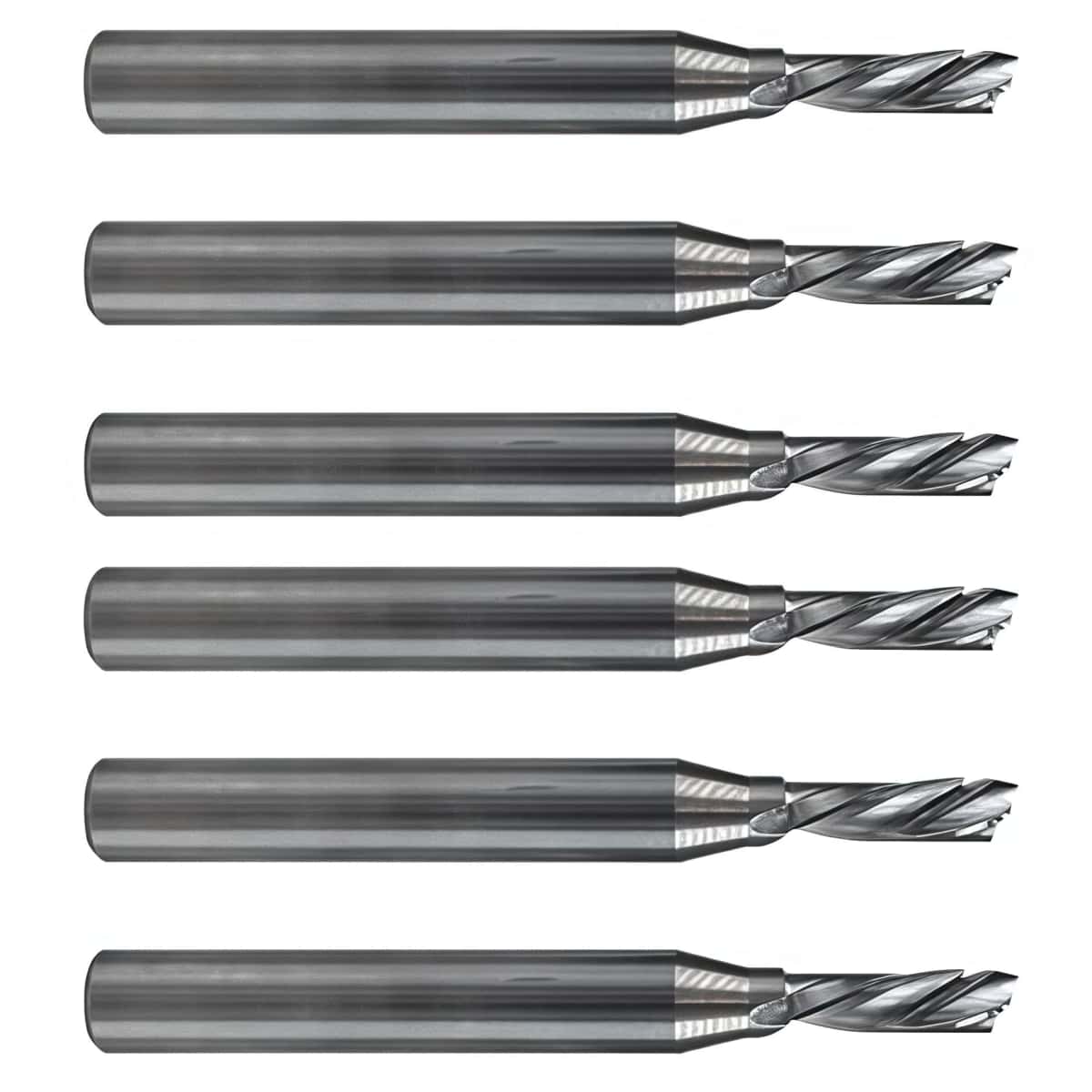

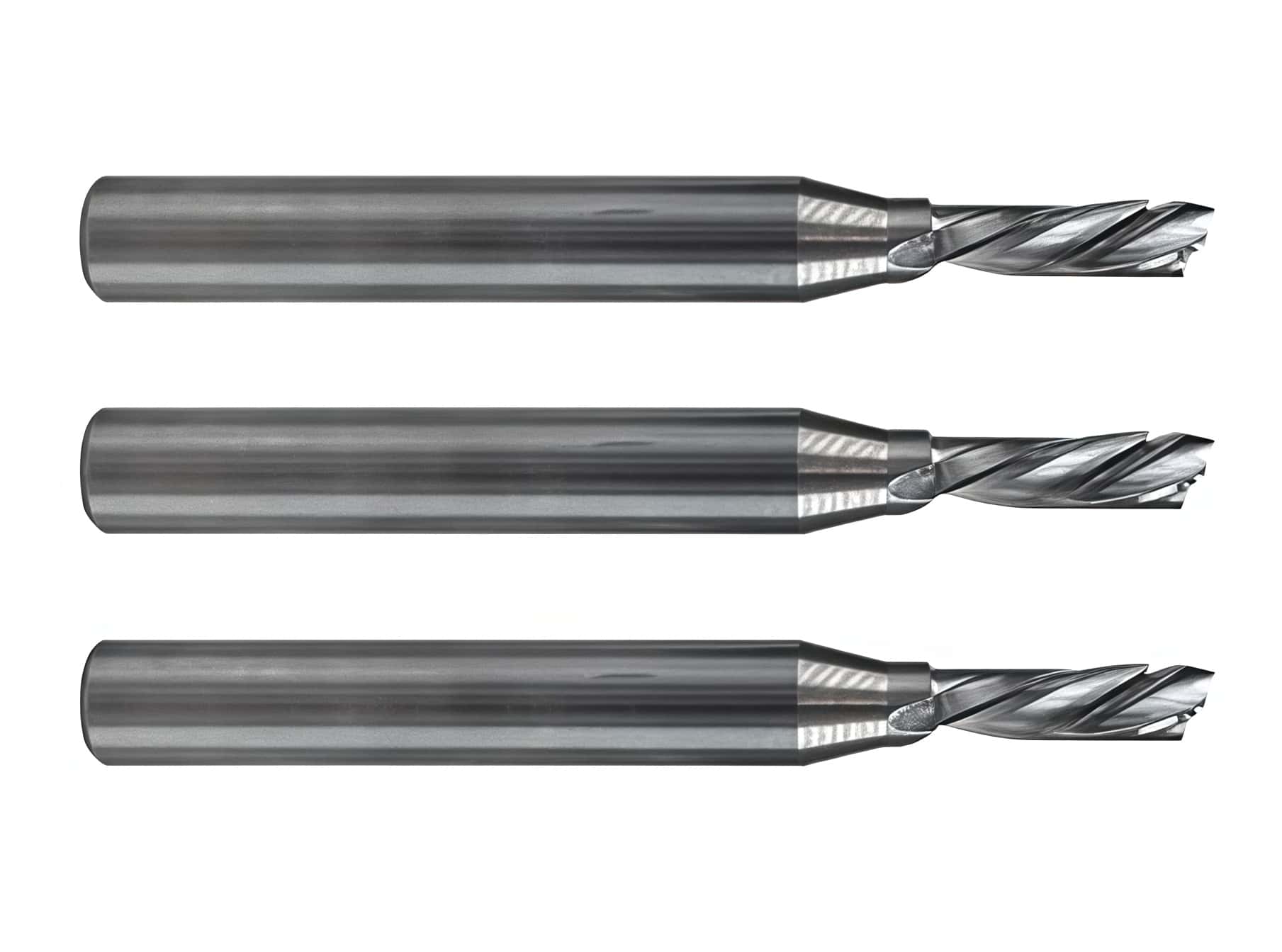

Summa 500-9879 Multipurpose Router Bit,D6/3 L50/6 1FL DC MP For Summa Flatbed Vinyl Cutters Shop

Summa 500-9879 Multipurpose Router Bit,D6/3 L50/6 1FL DC MP For Summa Flatbed Vinyl Cutters Shop polyvalent Summa, Bit de routeur Summa Bit uniwersalny Summa, Bit routera Summa Summa Многоцелевой бит, Summa Router Bit Summa Mehrzweck-Bit, Summa Router-Bit Summa-monitoimibitti, Summa-reititinbitti Enquire now

Description

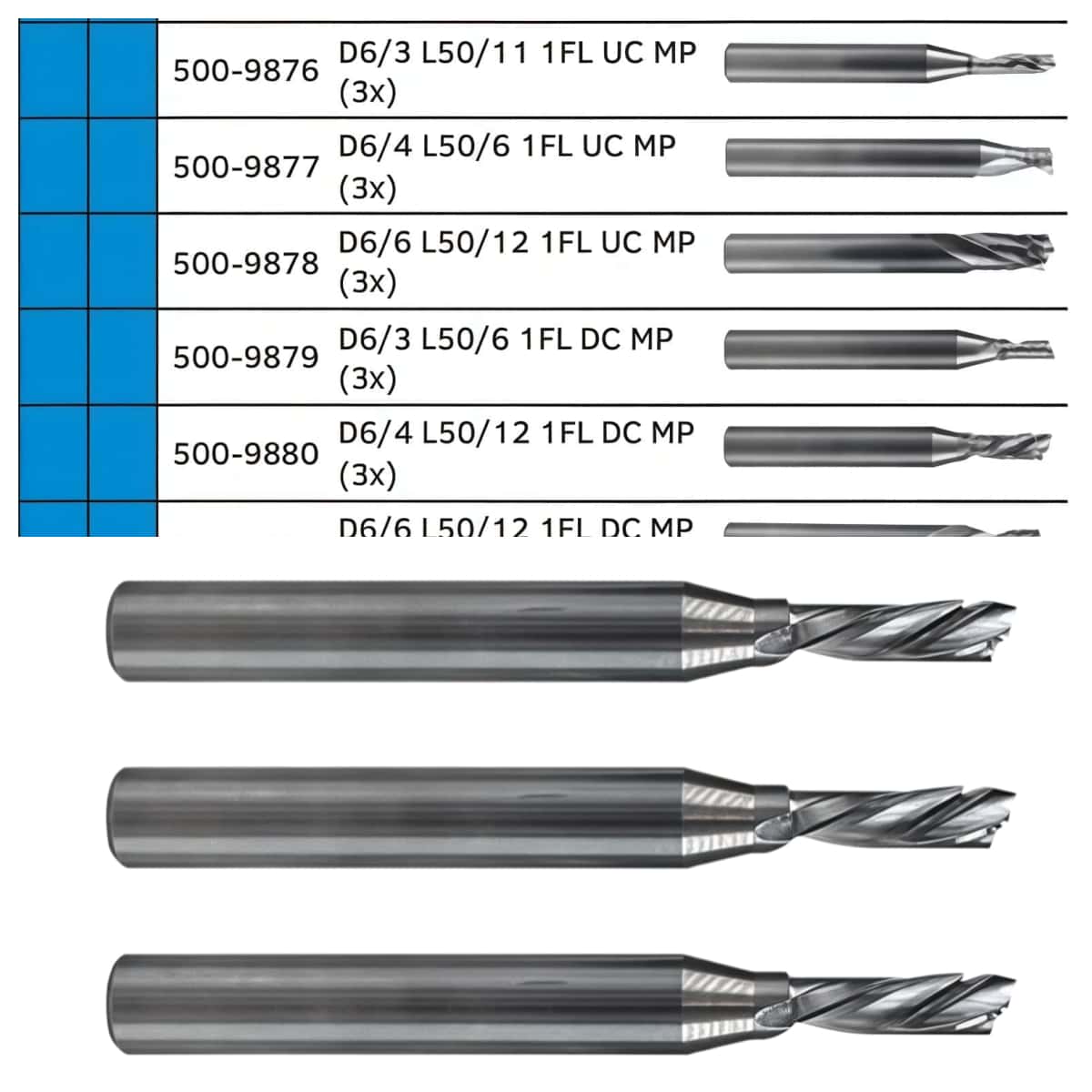

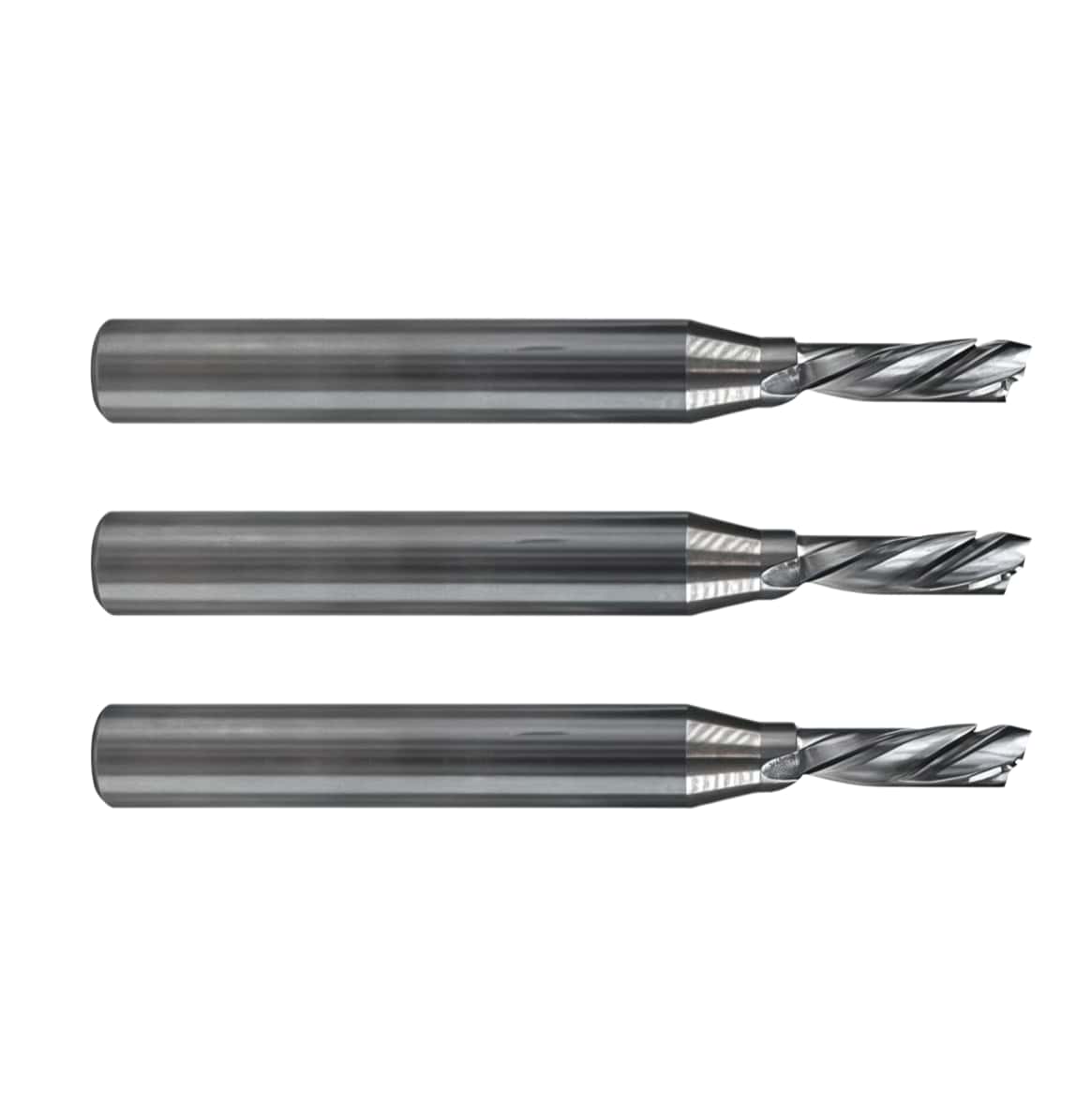

Summa 500-9879 Multipurpose Router Bit,D6/3 L50/6 1FL DC MP For Summa Flatbed Vinyl Cutters Shop

Core Specifications and Technical Parameters

Standard code : D6/3 L50/6 1FL DC MP
Shank Diameter : 6 mm
Routing Diameter : 3 mm (compared to 4 mm for the 500-9880, it can process more complex details and inner sharp corners)
Cutting length/Max. Routing Depth : 6 mm (Specifically designed for thin plates to prevent small-diameter tools from breaking under high loads)
Total Tool Length : 50 mm
Number of cutting edges and chip removal direction : Single-edge down-cut (1 Flute Down-Cut / 1FL DC)
- Note: When the downward-cutting spiral rotates at high speed, it presses the chips downward and uses the bottom suction or pad to fix them, thereby ensuring that the upper surface of the workpiece is absolutely flat and burr-free .
Compatible systems : Summa F series standard routing system and high frequency routing system.

Optimal processing materials and applications

As a member of the Multipurpose (MP) series, it is particularly suitable for processing the following materials with a thickness of 6mm or less:

Aluminum composite panels (ACM/Dibond/Alupanel, etc.) can be undercut to prevent the surface aluminum sheet from curling.
Thin-walled PVC foam board/Cheva board provides an extremely clean letter outline.
Wood composite boards and laminates (MDF, thin plywood), with undercutting to effectively prevent surface veneer chipping.

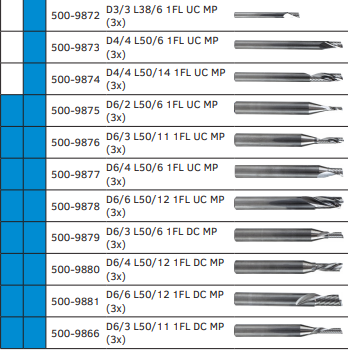

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
