The F Series is a completely new cutting product line based on over a quarter century of plotting manufacturing expertise.

Up to three tools can be inserted at one time into the multi-module tool holder. And changing those tools is quick and easy, thanks to the simple, single-point fastening system. Automatic tool recognition, combined with digital and mechanical depth / pressure control, ensures precision cutting on a vast array of materials.

The base unit comes standard-equipped with an ultra-fast drag knife module, plus Summa’s revolutionary OPOS-CAM optical camera marker recognition system for unparalleled contour cutting accuracy.

Multiple material-handling options assure optimal efficiency, whether cutting printed, flexible or rigid substrates. An ever-expanding arsenal of add-ons allows you to custom-tailor the machine to perfectly match a specific workflow.

An all-new Router System capable of milling all of the most common hard boards / thicker substrates has been added, as well as a Pneumatic Oscillating Tool that is so durable and powerful it breezes through many of the most challenging cutting situations.

Technical Specifications
Model
F1612
Dimensions
2350mmx1940mmx1100 mm(without roll support)
925°×763°×43.3′(without roll support)
Acceleration
Upto 1G
Maximum Allowed Forces
3 Phase 230V or 3 Phase 400V+N
Repeatability
Within+/-0.05mm on plots
Accuracy
0.05%of move or 0.05mm whichever is greater
Speed
Up to 1000mm/sec(39.4″/sec)
Standard Solution includes
F Series Flatbed Cutter
Vacuum Pack:(1.3Kw pump,Sound Absorber,
Switching Valve)
Safety Pack:(Four Pole Laser Beam Systems)
Camera System
Axis Control Software
Remote Controller with charger and USB Bluetooth Drag Module
Optional Modules/Upgrades
Tangential Module
Router Module

Modules
500-9300 Drag Module
500-9310 Tangential Module

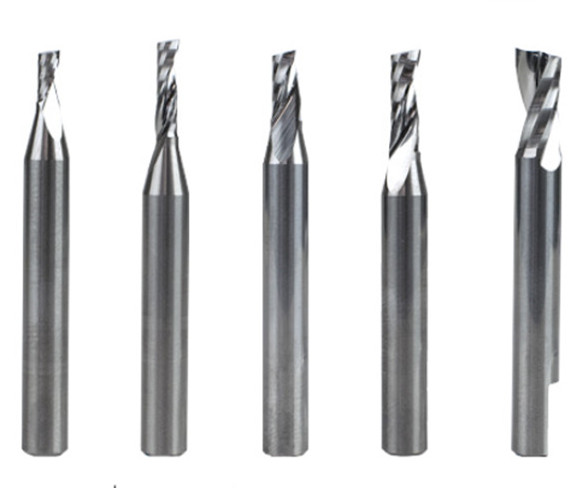

500-9330 Router System
Tools
500-9311 Kiss Cutting Tool
500-9312 Single Edge Cutout Tool
500-9313 Double Edge Cutout fool
500-9314 Double Edge Cutout fool
500-9325 Heavy Duty Cutout Tool
500-9326 Creasing Tool D25 R3 W8
500-9327 Creasing Tool D25 R1.5 W8
500-9328 Creasining ToolD2152Rp1t.5W1.5
500-9329 Creasing Tool D151pt
500-9340 VCut Tool-0
500-9341 V( Cut Tool-15°
500-9342 V(Cut’Tool-22.5
500-9343 V(Cut Too
500-9344 V Cut Tool-45°
500-9320 Electronic Oscillating Tool
500-9350 Pneumatic Oscillating Tool
order codes -consumables

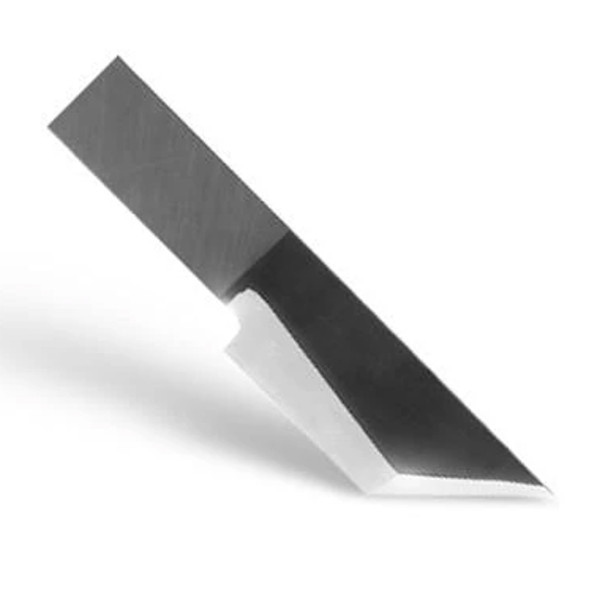

Consumables for Tangential Module
390-534 Standard Tangential Knife-36°
390-550 Sandblast Tangential Knife-60
390-551 Double Tip Tangential Knife-36°
500-9826 V Cut Blade -Hard Metal
500-3303 Gliding Disc Single Sided Knife
500-3315 Gliding Disc Double Sided Knife
390-560 Tangential Knife 45°Wedge 25°
390-553 Knife Install Tool
395-348 Nose Piece for 36°
500-9801 Single Edge Cutout Knife-65°
500-9802 Double Edge Cutout Knife-50°
500-9803 Double Edge Cutout Knife -60
500-9807 Heavy Duty Cutout Knife-45°/90°
500-9825 V Cut Blade-0.9mm

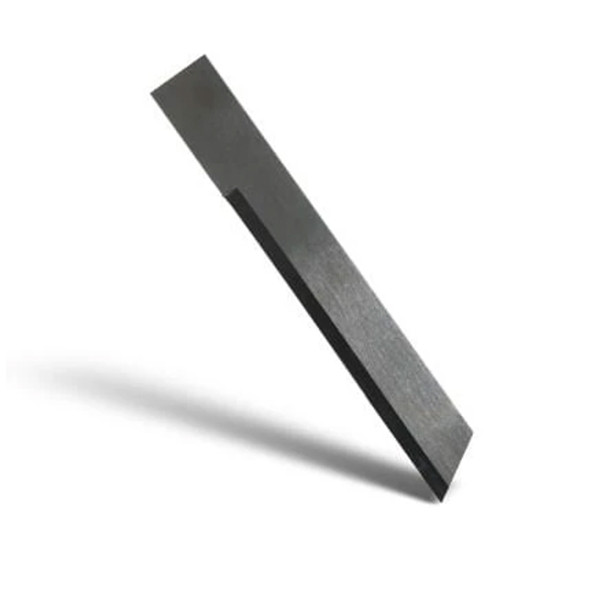

Consumables for Electronic Oscillating Tool (EOT)
500-3313 Knife Guide for EOT
500-9800 Knife for EOTL25-65°
500-9810 Knife for EOTL25-65°/80°
500-9811 Knife for EOT L25-65°/85°
500-9815 Knife for EOT L33-45°/85°
500-9812 Knife for EOT L28-65/85°
500-9813 Knife for EOTL25-0-/65°
500-9814 Knife for EOTL38-45/86°
Consumables for Drag Module
391-332 Drag Knife Holder for 36°&r60

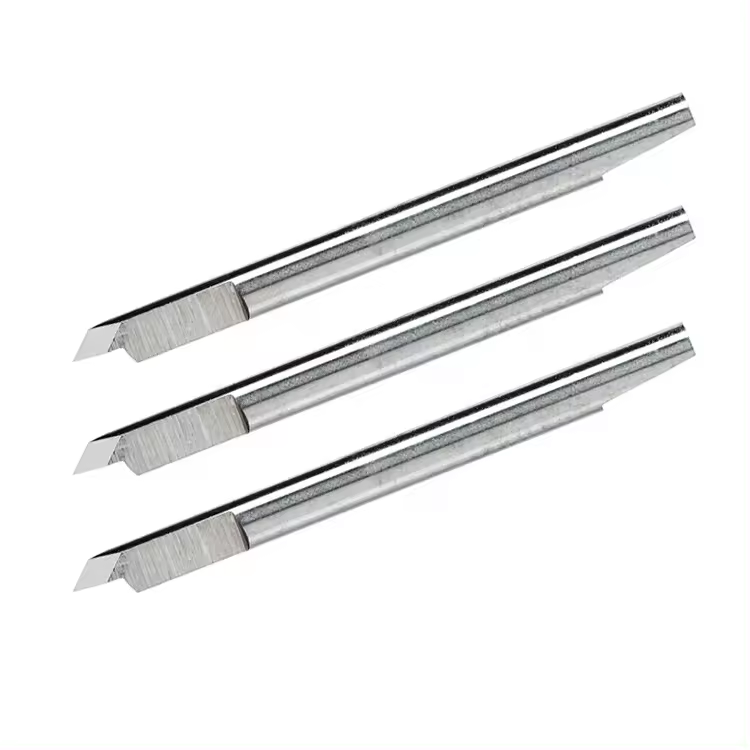

391-360 Standard Drag Knives-36°(5x)
391-231 Drag Knife-60°
MPO68K 395-430/395-431 Fibre Tip Pens-Black Roller Ball Pens-Black/Blue
395-434 Pen Holders
