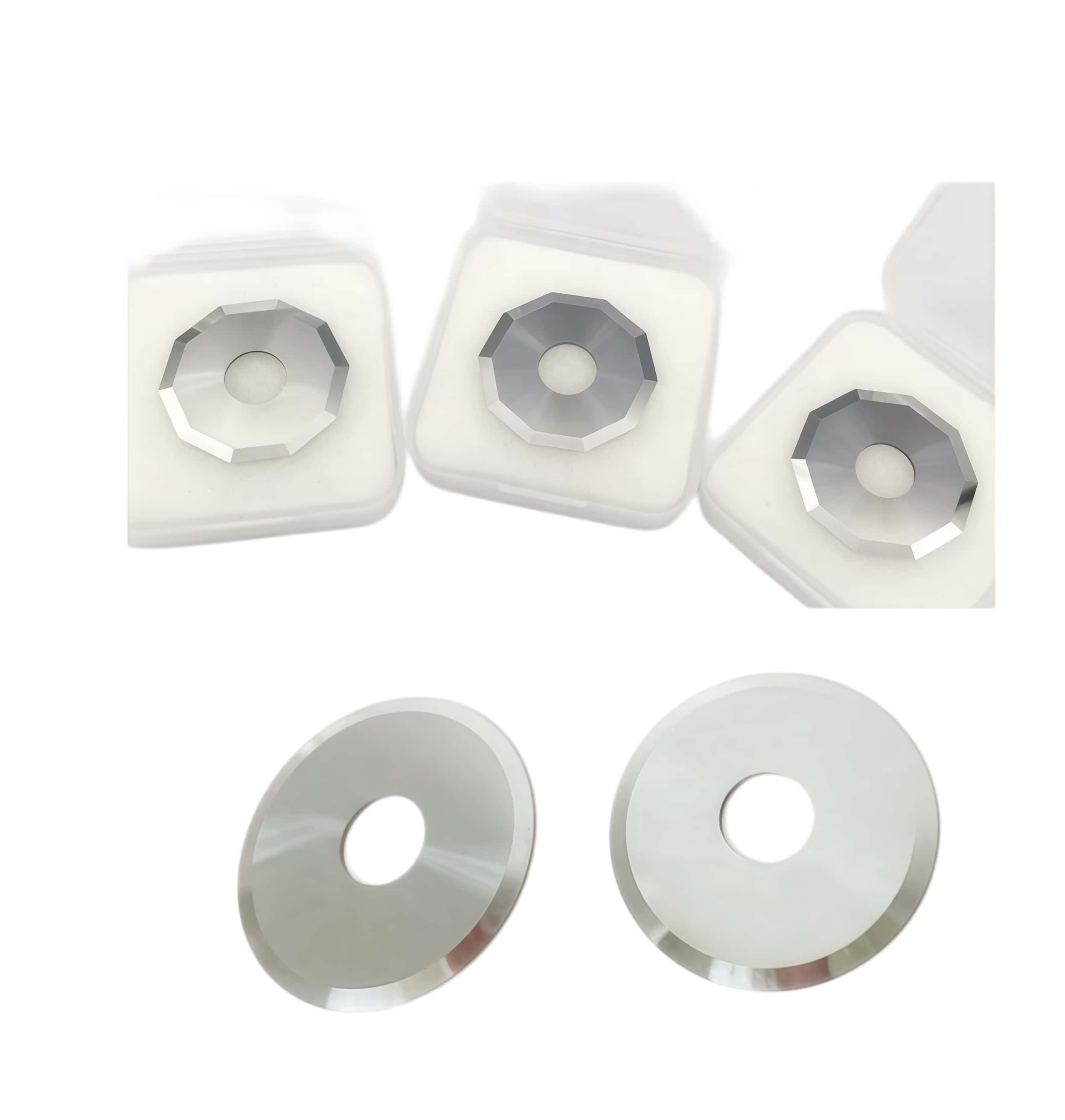

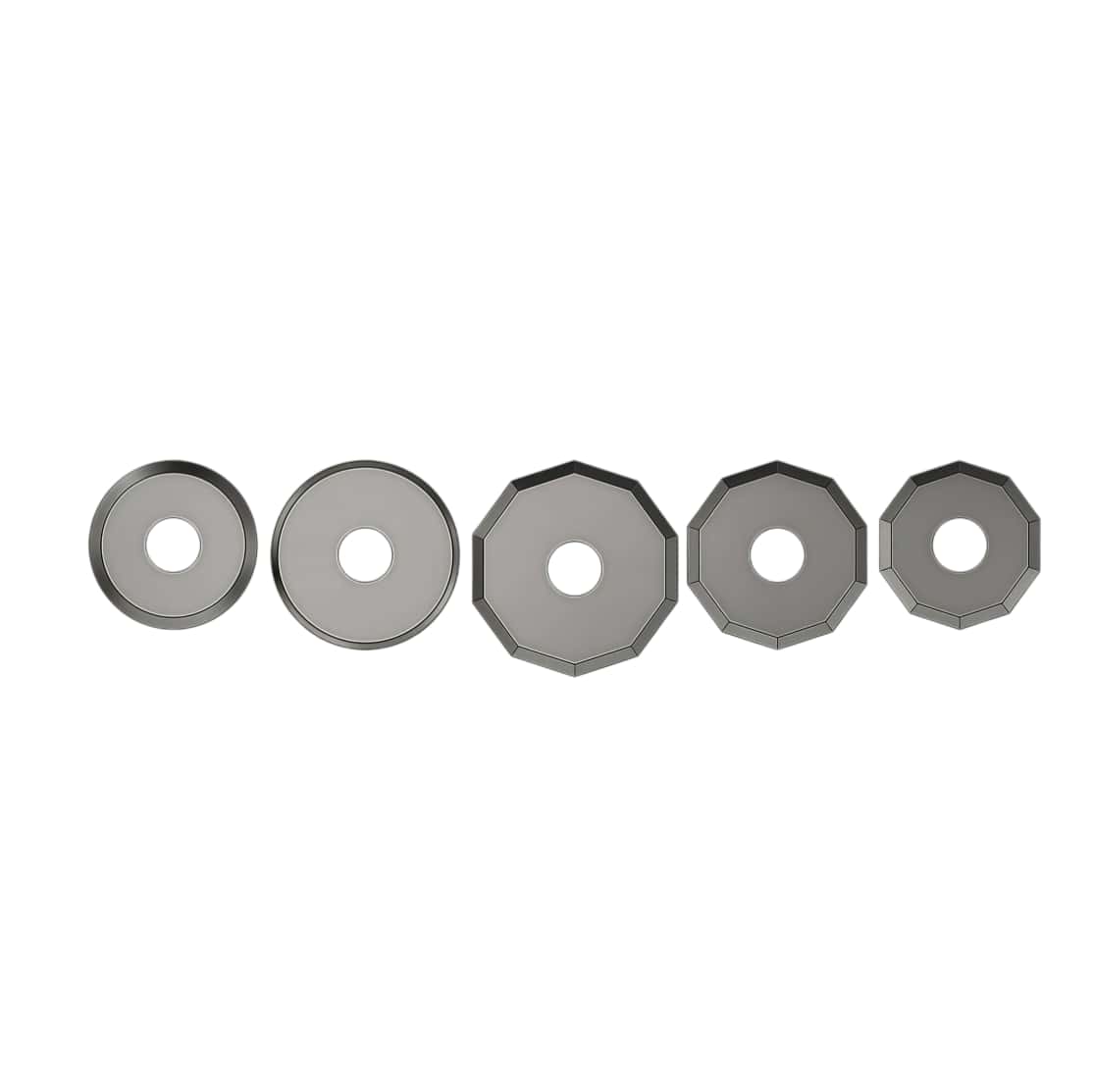

Zund Z50 Z51 Z52 Z53 Z55 Carbide Rotary (Decagonal / Wheel) Cutting Blades

Zund Z50 Z51 Z52 Z53 Z55 Carbide Rotary (Decagonal / Wheel) Cutting Blades Description

Zund Z50, Z51, Z52, Z53, and Z55 are all high-precision rotary (decagonal / wheel) blades. Designed for use with Zund’s DRT (Driven Rotary Tool) and PRT (Power Rotary Tool) modules, these blades use rolling pressure to cleanly shear single-ply or multi-ply woven and non-woven textiles without pulling or snagging the fibers.

They perform smooth, slag-free rolling cuts on tough, high-resistance fibers and soft materials through high-speed rotation (non-vibration).

Core Specifications and Physical Parameters of Z50 - Z55 Series

Because rotary blades are high-precision geometric tools, even minute differences in thickness and diameter can affect the smoothness of their cutting into different fabrics. The following are the standard technical specifications for this series:

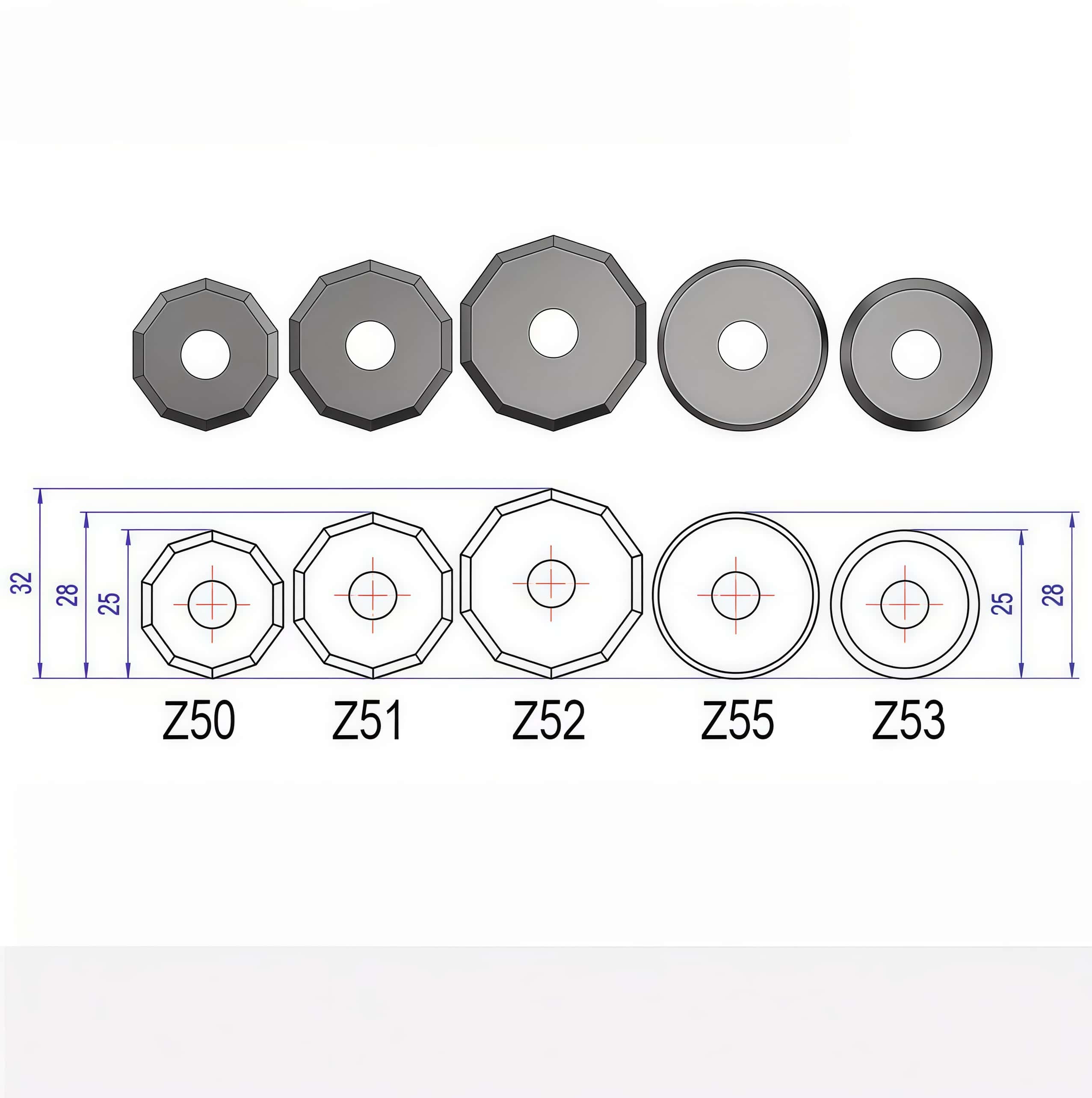

Blade model	Order number (Zund Ref)	Diameter × Thickness × Inner Diameter (mm)	cutting edge geometry	Features and core processing depth

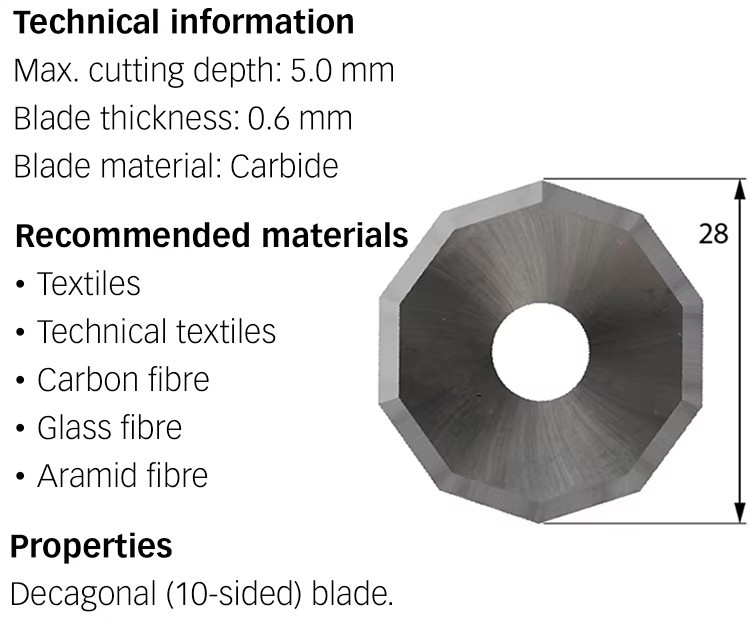

Z50	3910335	25 × 0.6 × 8.0	Decagonal	Standard all-purpose rotary cutter: It mainly uses ten flat obtuse angle teeth to crush fibers at high frequency, suitable for medium thickness fabrics, with a maximum cutting thickness of 5 mm .

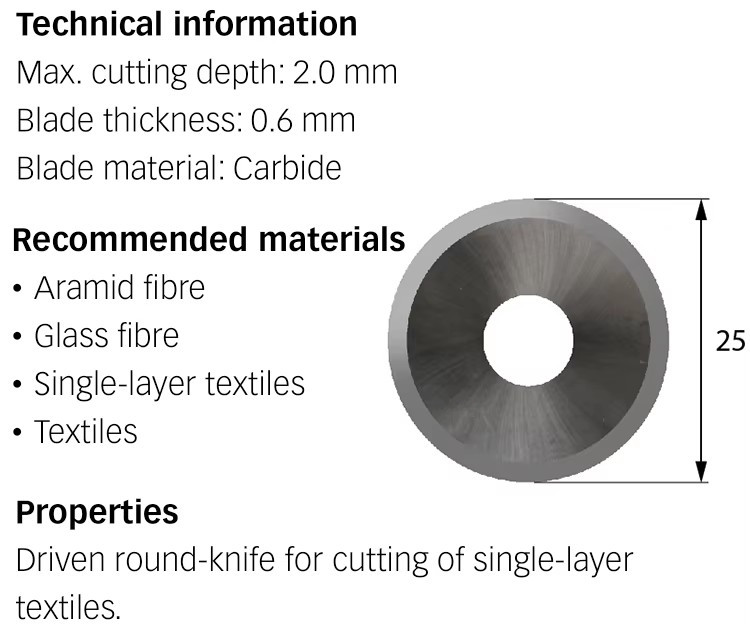

Z51	3910336	25 × 0.6 × 8.0	Circular/Smooth Wheel	Continuous smooth cutting edge: specially designed for fragile fine fibers that are extremely prone to fraying and unraveling, providing a silky smooth, snagging edge with a maximum cutting thickness of 5 mm .

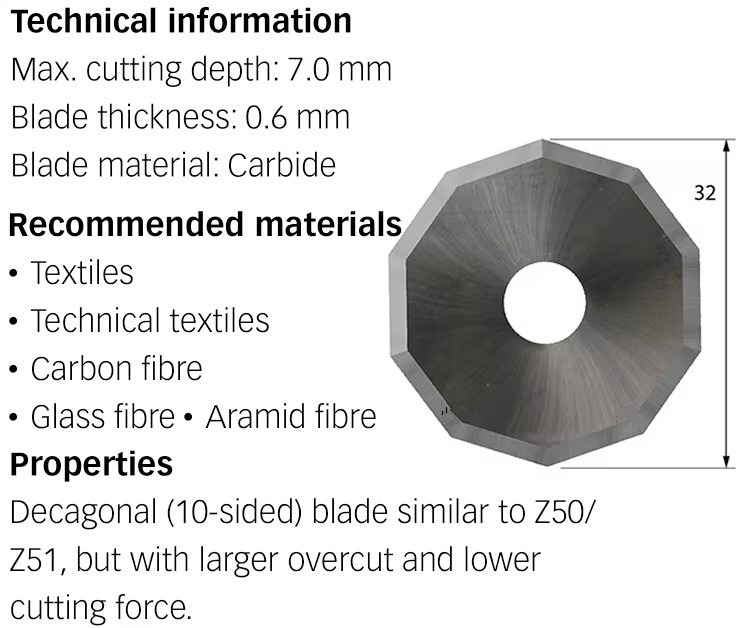

Z52	3910337	32 × 0.6 × 8.0	Decagonal	Larger diameter rotary cutter: Increases rotational torque, specifically designed for thick, multi-layered materials requiring deeper cuts, with a maximum cutting thickness of 7 mm .

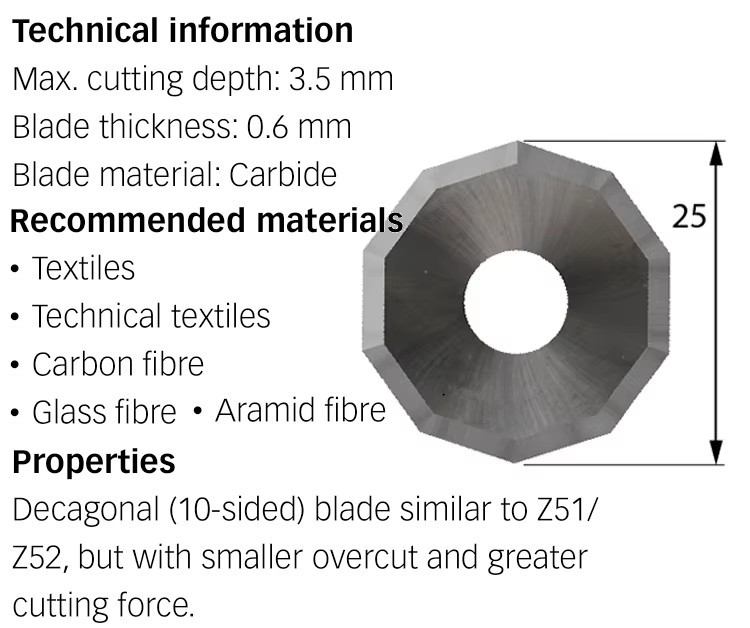

Z53	4800059	25 × 0.6 × 8.0	Decagonal	Special thin-profile, high-biased blade: The blade geometry is optimized for ultra-high-density technical textiles, enhancing penetration and allowing for a maximum cutting thickness of 5 mm .
Z55	5210319	32 × 0.6 × 8.0	Circular/Smooth Wheel	Larger circular blade: Combining the non-snagging properties of the Z51 with the deep cutting advantage of the Z52, it provides perfect cut edges for extremely thick fibers, with a maximum cutting thickness of 7 mm .

Optimized Substrates

Unlike vertical vibrating blades, rotary blades cut materials through continuous rolling shearing (like a rolling cutter), perfectly solving problems such as fiber stretching and fabric wrinkling.

Technical textiles and composites : precision cutting of single or multilayered glass fiber, carbon fiber , and aramid fiber (Kevlar, Nomex).
Industrial and home textiles : nylon, high-strength polyester fabrics, canvas, awning fabrics, high-density nonwoven fabrics, and microfiber fabrics.
Soft industrial materials : leather, artificial leather, corrugated paper, breathable porous foam (Airmesh), and banner advertising cloth with extremely high lateral tensile strength.

Tooling Compatibility

This 8mm inner bore carbide rotary cutter can be perfectly mounted in the following CNC flatbed cutting machine's specific rotary head tools:

Zund (Shude) Cutting Room :G3,S3,D3 series is compatible with DRT (Driven Rotary Tool)orPRT (Pneumatic Rotary Tool)modules.
Colex cutting table : Sharpcut series automatic rotating textile cutting head.
Esko Kongsberg cutting bed : compatible with its Hi-Force Knife or RM (Rotary Module) rotary cutting head.
